Description
- Origin: Mainland China
- Material: Plastic
- Plastic Type: PC
- Recommend Age: 12 y
- Tool Supplies: Assembly Category
- RC Parts & Accs: Servo Accessories
- Size: 15*10*5
- Use: Vehicles & Remote Control Toys
- Certification: CE,FCC
- Quantity: 1 pcs
- Technical parameters: KV1100
- Model Number: TF luna
- Remote Control Peripherals/Devices: Receivers
- For Vehicle Type: Helicopters
- Four-wheel Drive Attributes: Assemblage
- Wheelbase: Bottom Plate

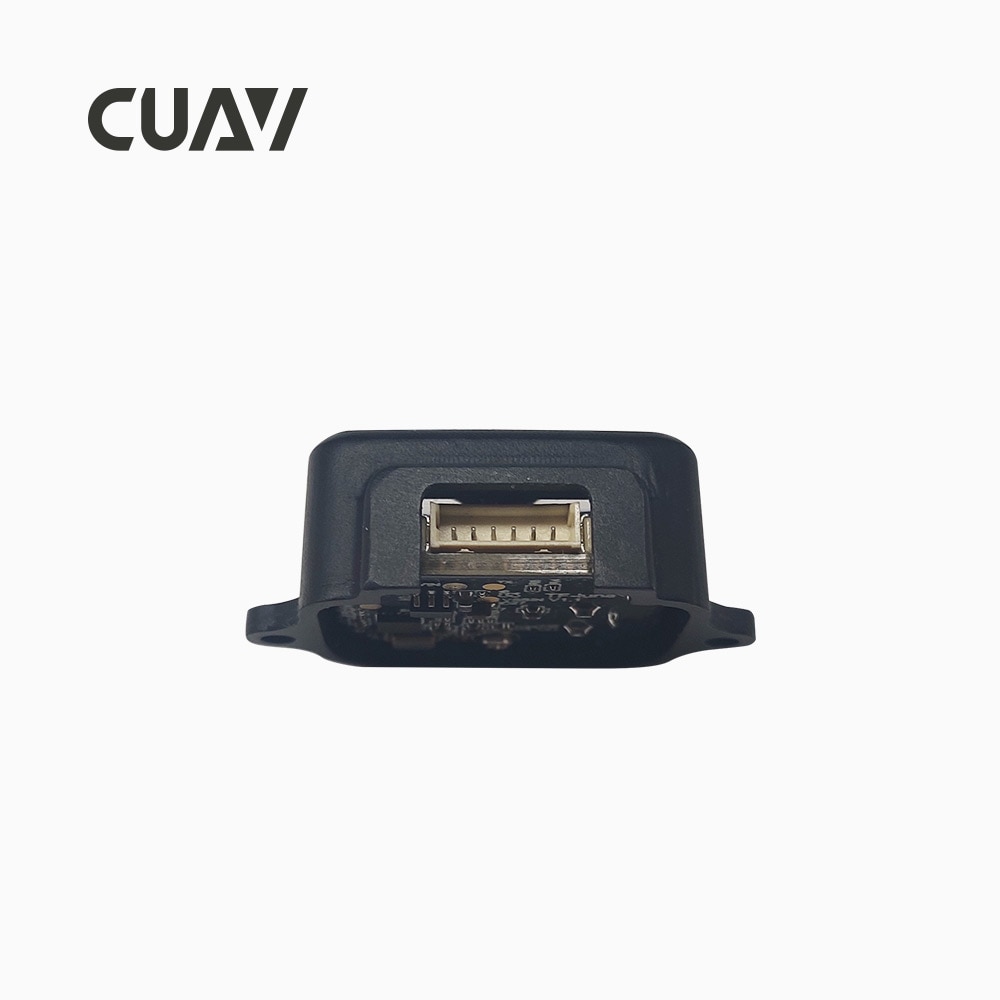

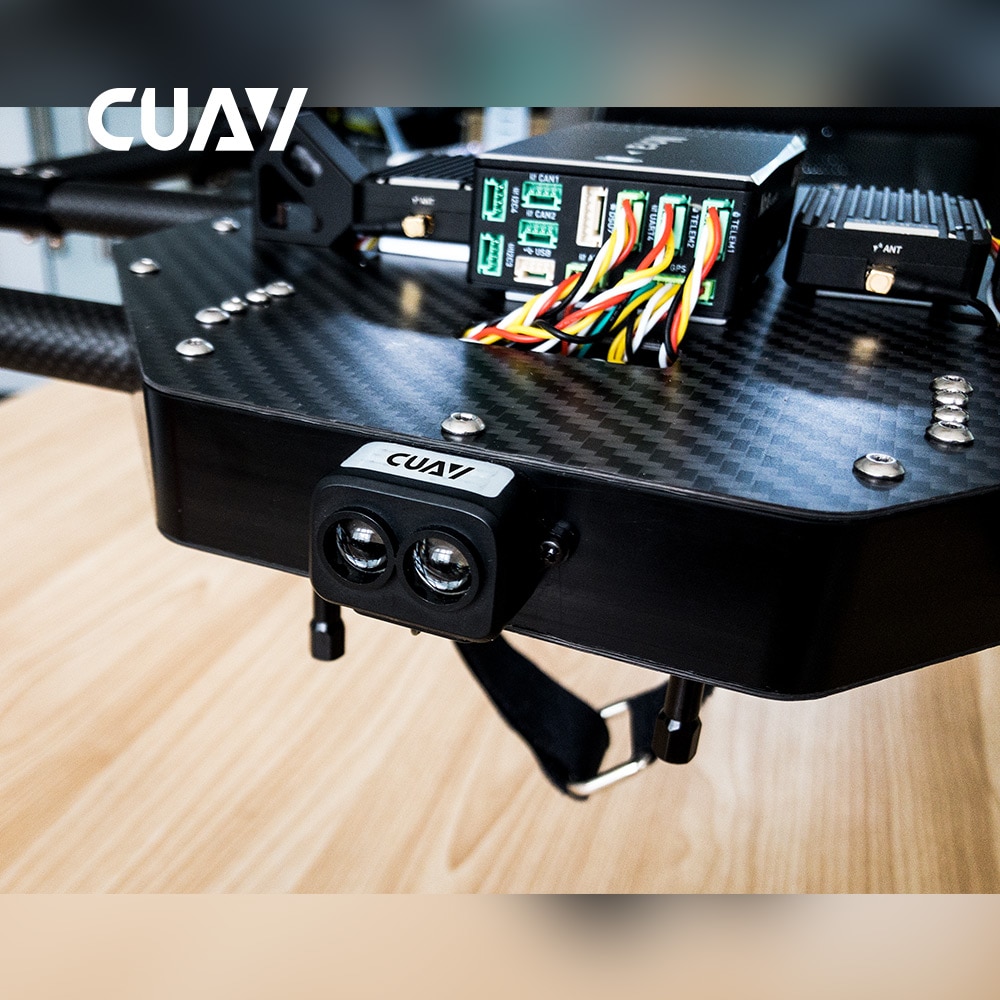

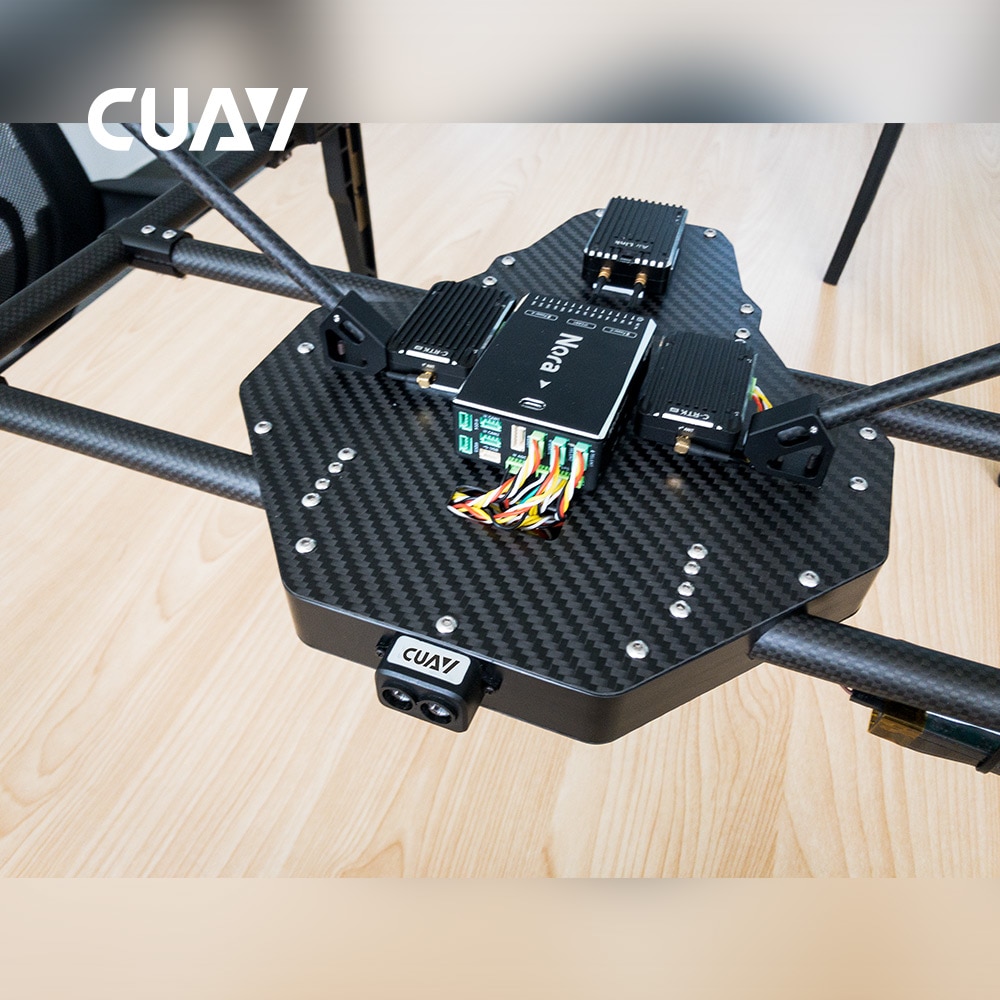

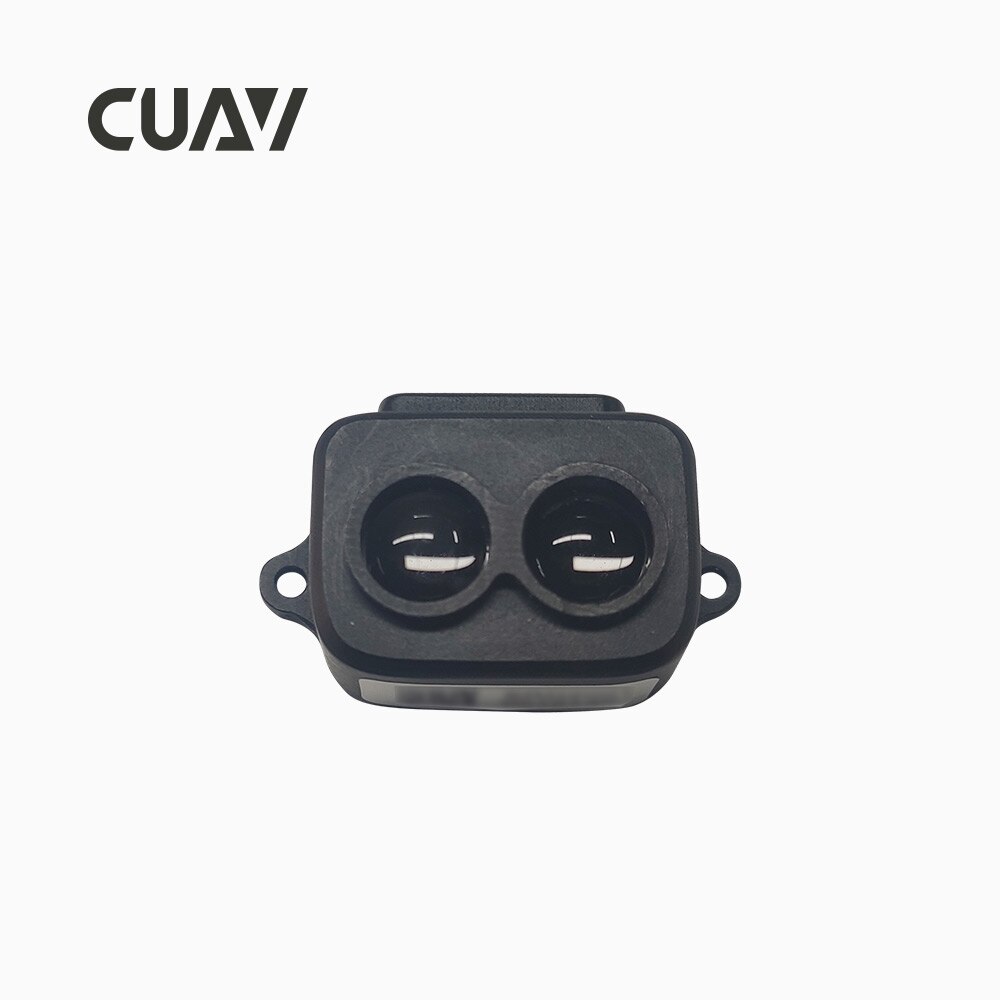

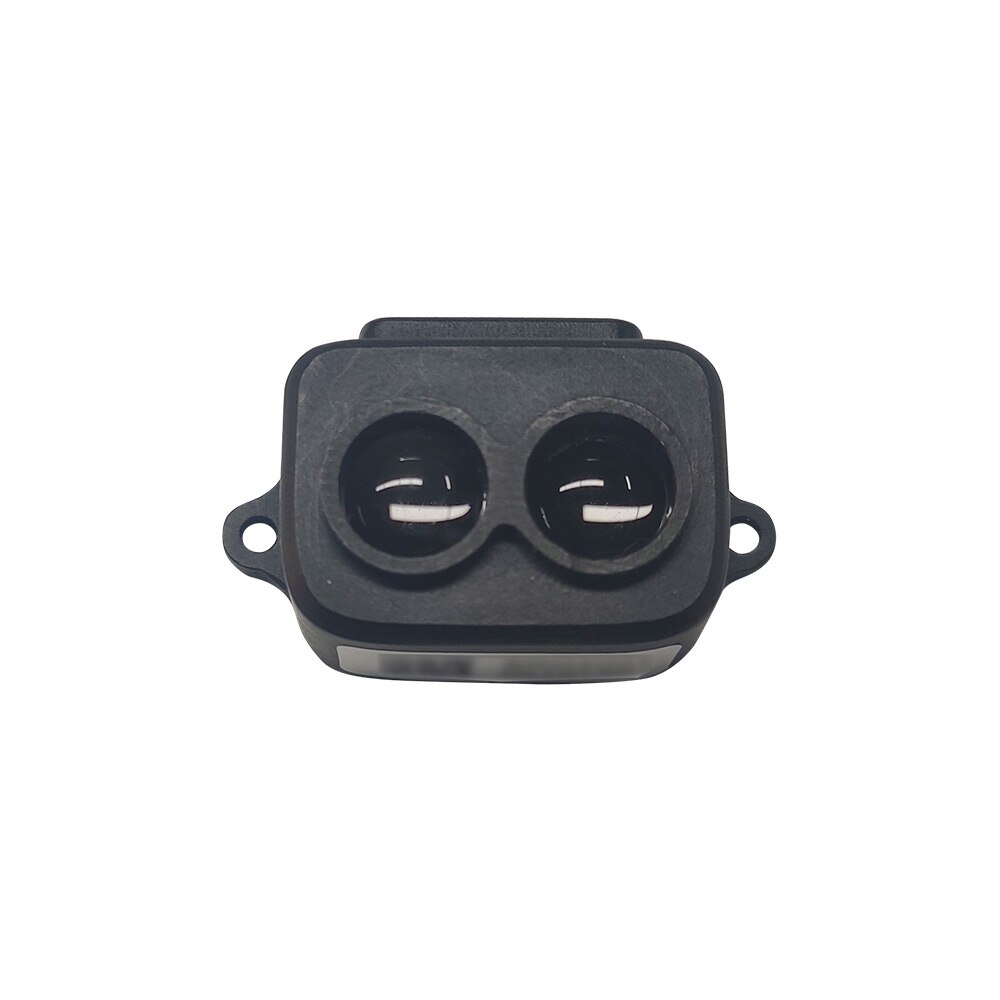

CUAV TF-Luna LiDAR Module Fly Drone Short-Range Sensor Measure Distance oOperating Range 0.2M to 8M for Pixhawk APM px4 PIX
Product Description
|
Description
|
Value range
|
|
Power supply voltage
|
3.7V-5.2V
|
|
Average current
|
≤70mA
|
|
Peak current
|
150mA
|
|
Power consumption
|
≤350mW
|
|
Communication signal level
|
LVTTL (3.3V)
|
TF-Luna is a single-point ranging LiDAR, based on ToF principle. Mainly used for stable, accuracy and high-frame rate
range detection. The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.
range detection. The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.
TF-Luna is using Time of Flight (ToF) principle to measure the distance and it periodically emits
near infrared modulated waves. TF-Luna calculates the time by measuring the phase difference
between the original wave and the reflection wave and uses that time to get relative distance
near infrared modulated waves. TF-Luna calculates the time by measuring the phase difference
between the original wave and the reflection wave and uses that time to get relative distance
About product
* The product can only be maintained and repaired by qualified professionals, and only original
spare parts are permitted to use for performance and safety reasons.
* This product DOES NOT have polarity and over-voltage protection at all. Please wire and
supply power according to the instructions.
* The working temperature of the product is from -10℃ to 60℃, please do not use it outside
this temperature range to avoid risk and damage.
* The storage temperature of the product is from -20℃ to 75℃, please do not store it outside
this temperature range to avoid risk and damage.
* For safety and performance, please DO NOT open the product casing or remove the IR-pass
filter
* The product can only be maintained and repaired by qualified professionals, and only original
spare parts are permitted to use for performance and safety reasons.
* This product DOES NOT have polarity and over-voltage protection at all. Please wire and
supply power according to the instructions.
* The working temperature of the product is from -10℃ to 60℃, please do not use it outside
this temperature range to avoid risk and damage.
* The storage temperature of the product is from -20℃ to 75℃, please do not store it outside
this temperature range to avoid risk and damage.
* For safety and performance, please DO NOT open the product casing or remove the IR-pass
filter

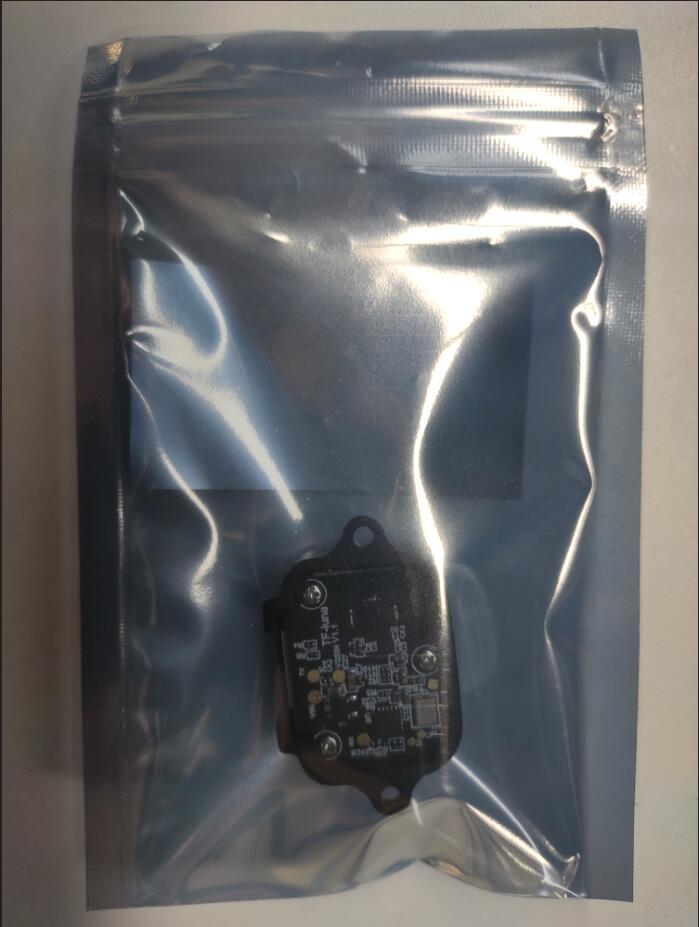

Packing & Delivery
Poly bag packing.
