Description
- Item Type: BALL
- Model Number: T6
- Brand Name: SZRZGT
- Voltage: 12V

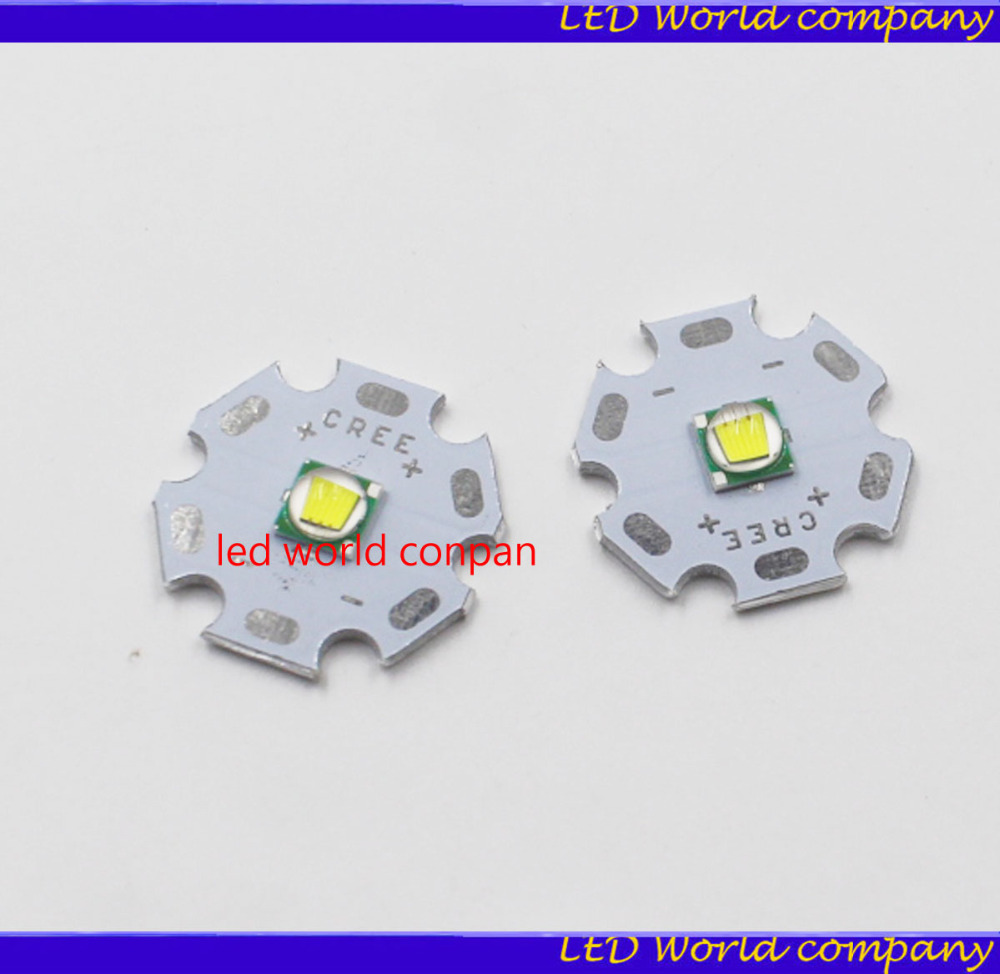

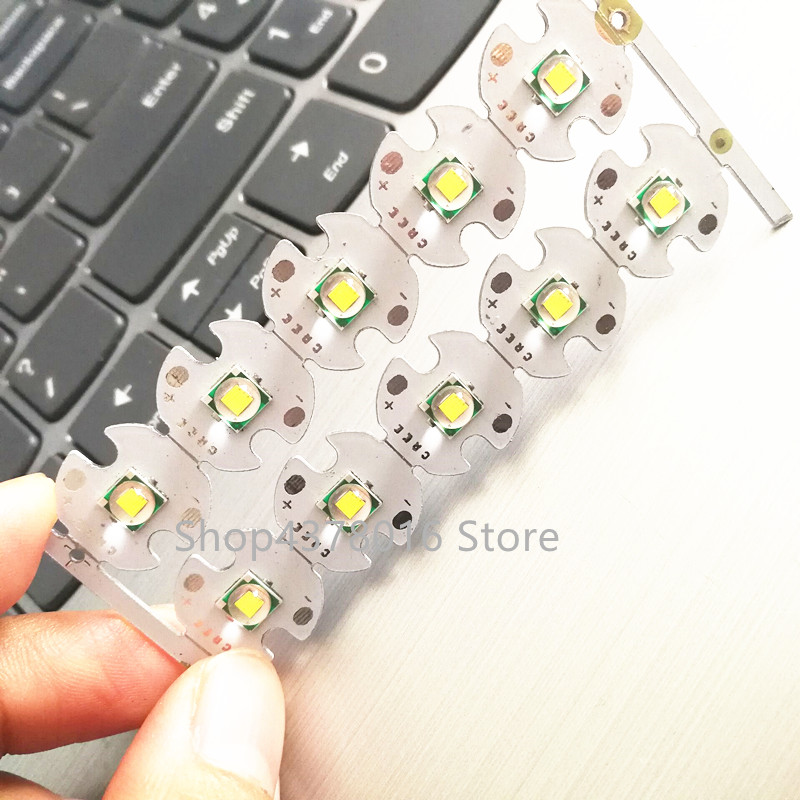

1 0PCS CREE XML LED T6 U2 10W WHITE High Power LED Emitter with 12mm 14mm 16mm 20mm PCB for DIY
XLamp XM-L
Highest-Performing, Commercially Available, Single-Die LED
Delivering breakthrough lumen output and efficacy in the XM package, the XLamp XM-L2 LED is the highest-performing, commercially available, single-die LED. Built on the SC³ Technology Platform, the XLamp XM-L2 LED delivers up to 20% more lumens and lumens-per-watt and double the lumens-per-dollar of the original XM-L. The XM-L2 LED offers the unique combination of high efficacy and high lumen output at high drive currents, delivering an unprecedented 1198 lumens at 116 lumens-per-watt efficacy at 3 A, 25°C.
Features:
Maximam drive current: 3000mA
Low thermal resistance: 2.5C/W
Maximum junction temperature: 150C
Viewing angle: 125′
ANSI-compatible chromaticity bins
Unlimited floor life at <30C/85% RH
Reflow solderable-JEDES J-STD-020C
Electrically neutral thermal path
Technical Parameters:
Quantity:1pcs
Model Type: Cree XML-T6
Emitted Color :White
Color Temperature: 6500-7000K
Viewing Angle: 110 Degree
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF): 3.0A
Power: 10W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°
Diameter :12 14 16 20mm
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable – JEDEC J-STD-020C
Electrically neutral thermal path
Package:
1pcs led
