Description
- Certification: CE
- Origin: Mainland China
- Model Number: CPS-3232
- Phase: Three Phase
- Current Type: DC
- Usage: SVC
- is_customized: Yes

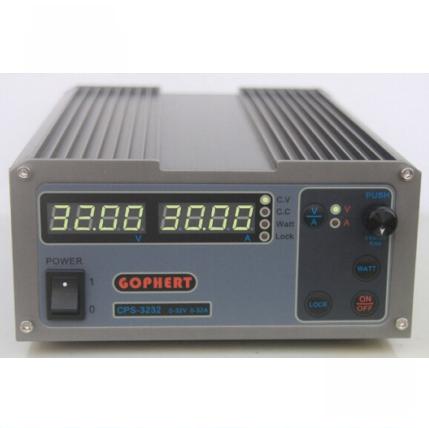

CPS-3232 1000W 0-32V/0-32A High Power Digital Adjustable Laboratory DC Power Supply 220V
Features:
Top performance cost ratio
High power density, smallest and compact
The microprocessor(MCU) control
Using Encoder to set the voltage and current
Four digital volt and current meter
High efficiency, up to 90%.
Low Ripple & Noise: ≤ 30 mVp-p.
Output ON/OFF
LOCK switch
Intelligent protection: Tracking OVP, Tracking OCP, OTP, Output short circuit protection
Full metal enclosure with very low EMI
Intelligent cooling fan speed control
Product Description
|
Model |
CPS-3232 |
|
Operation Voltage Range |
170– 264Vac |
|
Operation Frequency Range |
45 – 65HZ |
|
Output Voltage Range |
0 – 32V |
|
Output Current Range |
0 – 32A |
|
Efficiency (220Vac/full load) |
≥ 88% |
|
Full Load Input Current(220Vac) |
≤5.1A |
|
No Load Input Current(220Vac) |
≤ 180mA |
|
Volt Meter Accuracy |
≤ 0.3% + 1 digits |
|
Current Meter Accuracy |
≤ 0.3% + 2 digit |
|
Constant Voltage |
|
|
Load Regulation (0-100%) |
≤ 30mV |
|
Line Regulation(198-264Vac) |
≤ 10mV |
|
Ripple & Noise (Peak-Peak) |
≤ 30mV |
|
Ripple & Noise (r.m.s) |
≤ 3mV |
|
Set Accuracy |
≤ 0.3% + 10mV |
|
Transient Response Time (50%-100% rated Load) |
≤ 1.0ms |
|
Constant Current |
|
|
Load Regulation(90%-10% Rated Voltage) |
≤ 50mA |
|
Line Regulation (198-264Vac) |
≤ 20mA |
|
Ripple & Noise (Peak-Peak) |
≤ 30mAp-p |
|
Set Accuracy |
≤ 0.3% + 20mA |
|
Size(width× height× depth) |
188×80×238mm |
|
Net Weight |
3.0KG |
