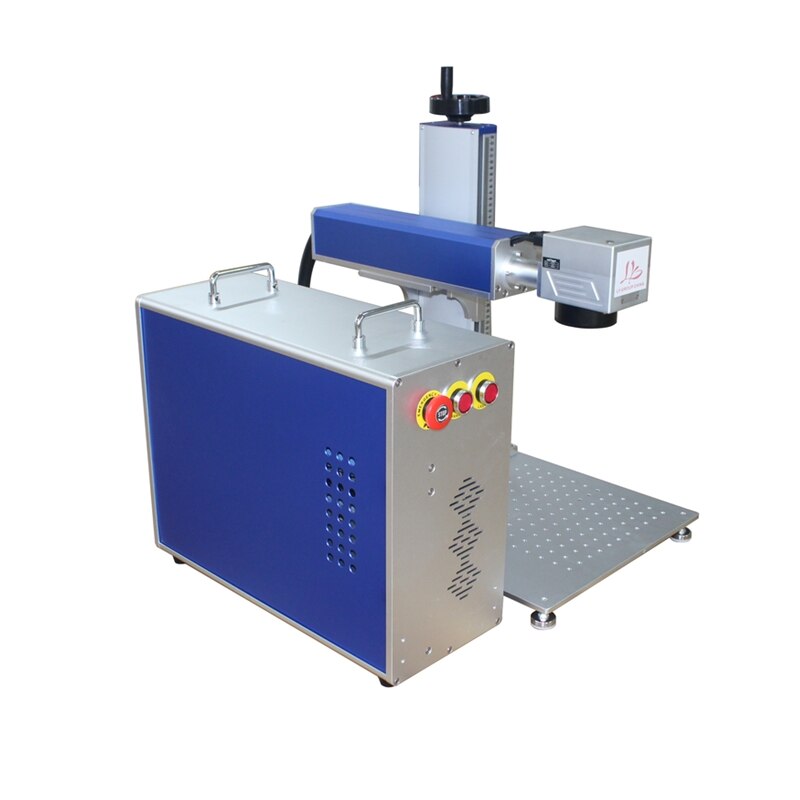

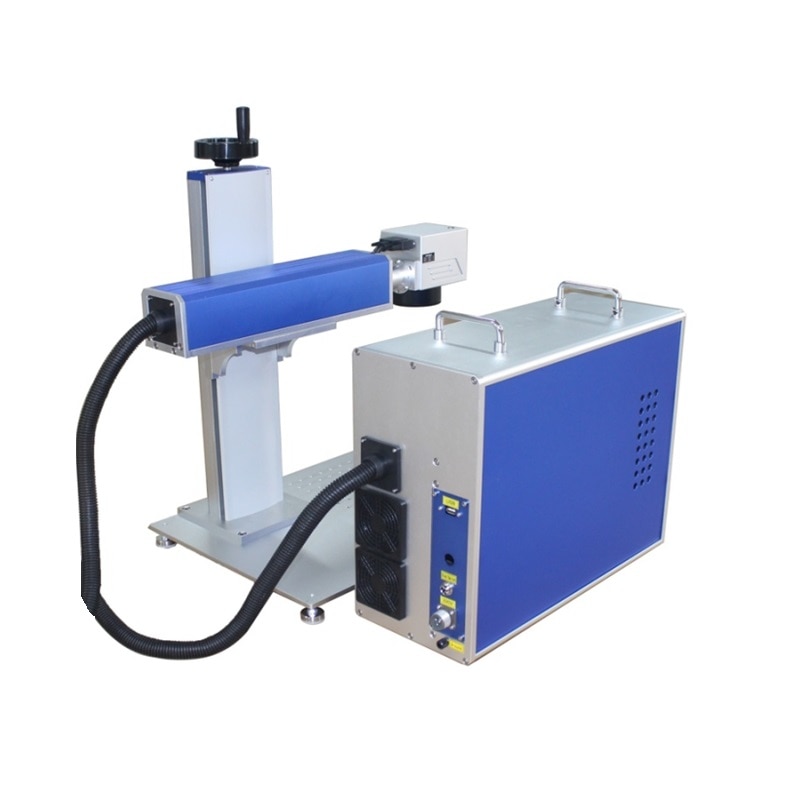

Color Fiber Laser Marking Machine 20W 30W for Color marking on Stainless Steel Nameplate with Rotary Axis 80mm

MOPA means “Master Oscillator Power-Amplifier”, why we say MOPA fiber laser marking machine is the nobility in fiber laser machine series?

Fiber Laser Source Comparison
Fiber Laser Type	Q-Switch Pulse (Normal Fiber)	MOPA Pulse
Model	Q-Switch	MAX(MFPT-20/30)
Laser Output Power	20W/30W	20W/30W
Laser Wave Length	1064nm	1064nm
Technology	By Q-switch	By electrical signals
Impulse Waveform	Cannot adjust	Adjustable
Impulse Width	Fixed 100ns	Adjustable 2-200ns
Max Power	Low ,not adjustable	High ,adjustable
Impulse Frequency	20-80KHz	1-2000KHz
First Impulse	Slow ,no adjustable	Fast ,adjustable
Marking Fineness	Low Quality	High Quality
Surface stripping of alumina sheet	Easy to deform, thick shading	No deformation, fine shading
Anodized Alumina Blackening	Not Support	Support
Temperature sensitive materials	General polymer materials	High temperature sensitive materials (e.g. certain polymer materials)
Deep Carving on Metal	Rough shading	Fine shading
Color marking on Stainless steel	Not Support	Support
PC/ABS plastic Stuff	Easy to mark yellow	Not easy to mark yellow
Transparent paint plastic button	Hard to clean	Easy to clean
Electronics, Semi-conductor, ITO, precision machining	The pulse and the energy is too strong	The light spot is fine and the energy is average
Aluminum materials without oxidation treatment	Cannot be blackened, can only be marked with dark grey

The motherboard supports win10 and supports 32-bit 64-bit.

1:Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,

2: Machine configuration:

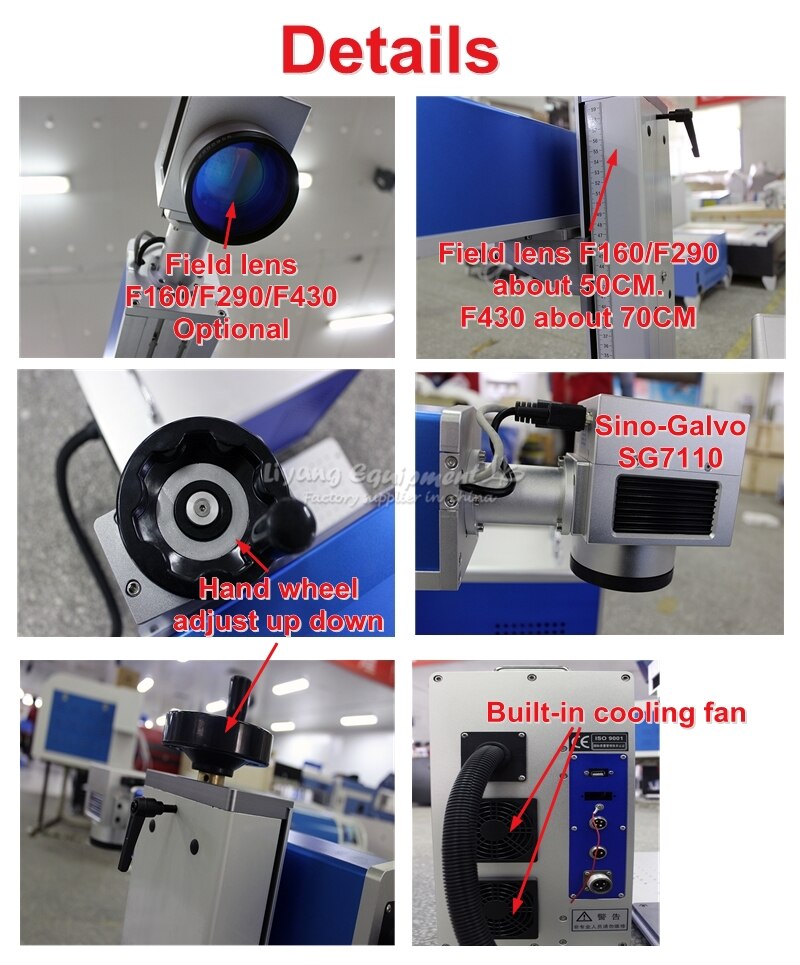

A;Fiber Laser brand: Max

B;SINO-GALVO field mirror & galvanometer,

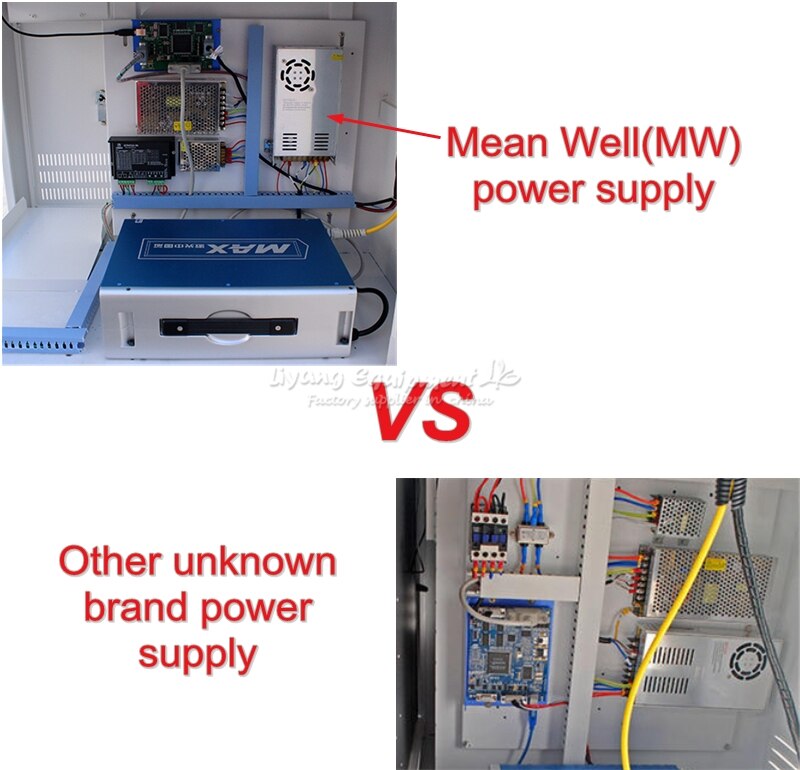

C;Taiwan Meanwell (MW) power supply,

D;Original Golden Orange Board (supports genuine software, supports system-wide operation)

E: Double red lights assisted focusing

F:Rotary axis (Optoinal)

3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine!

4: Never let price become the only guiding factor for the company's business marketing. Expand your own marketing ideas and position high-quality markets.

5: Leopard and cat are similar, but different in quality. If you want a leopard or a cat,
you have the final say, I can provide it. Just the price is different!
