Description

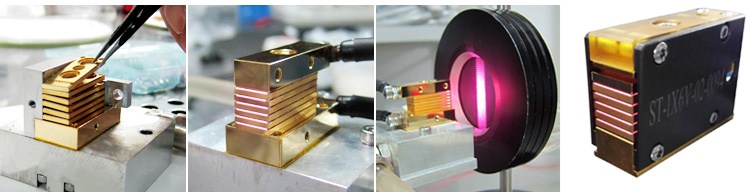

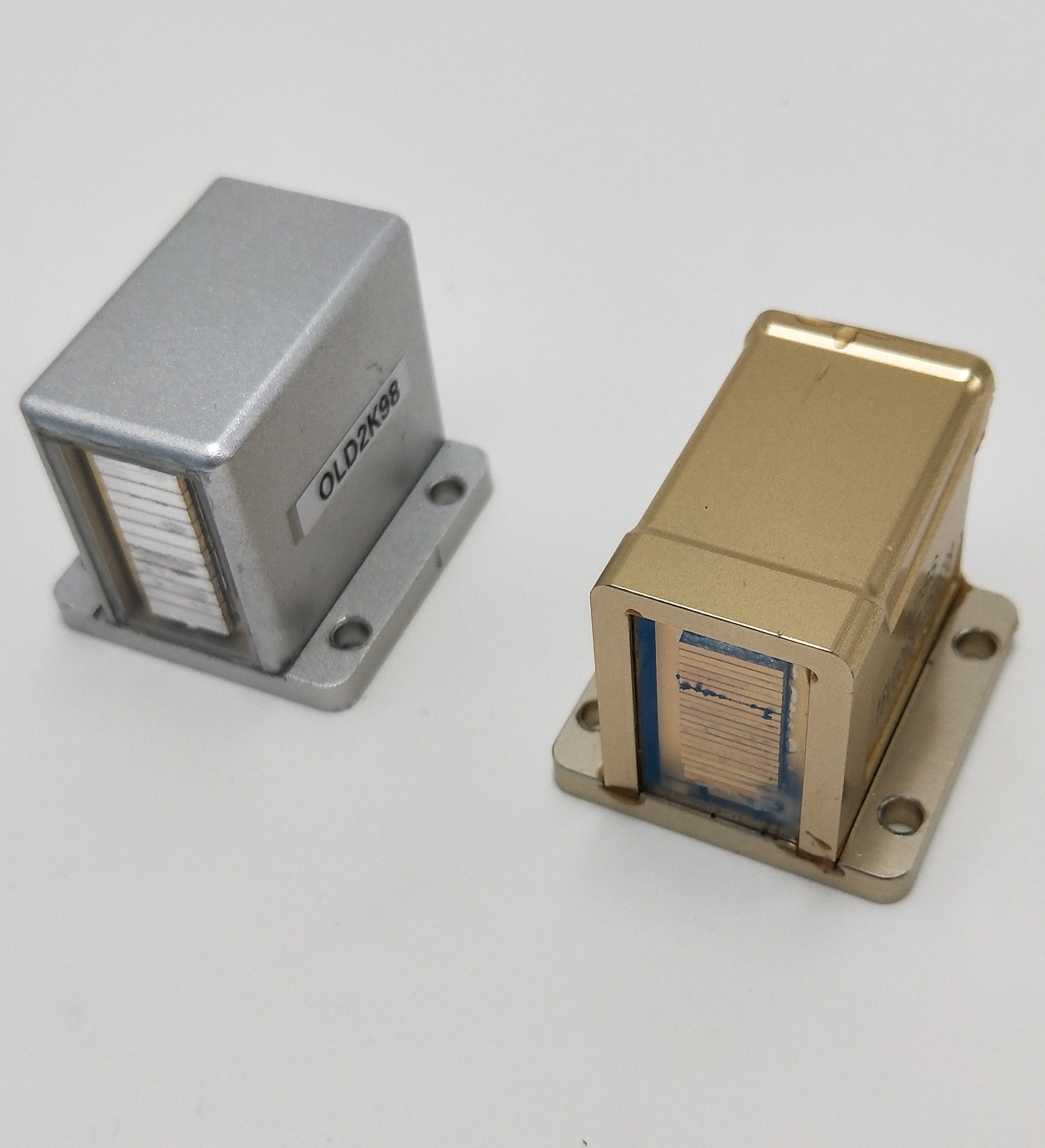

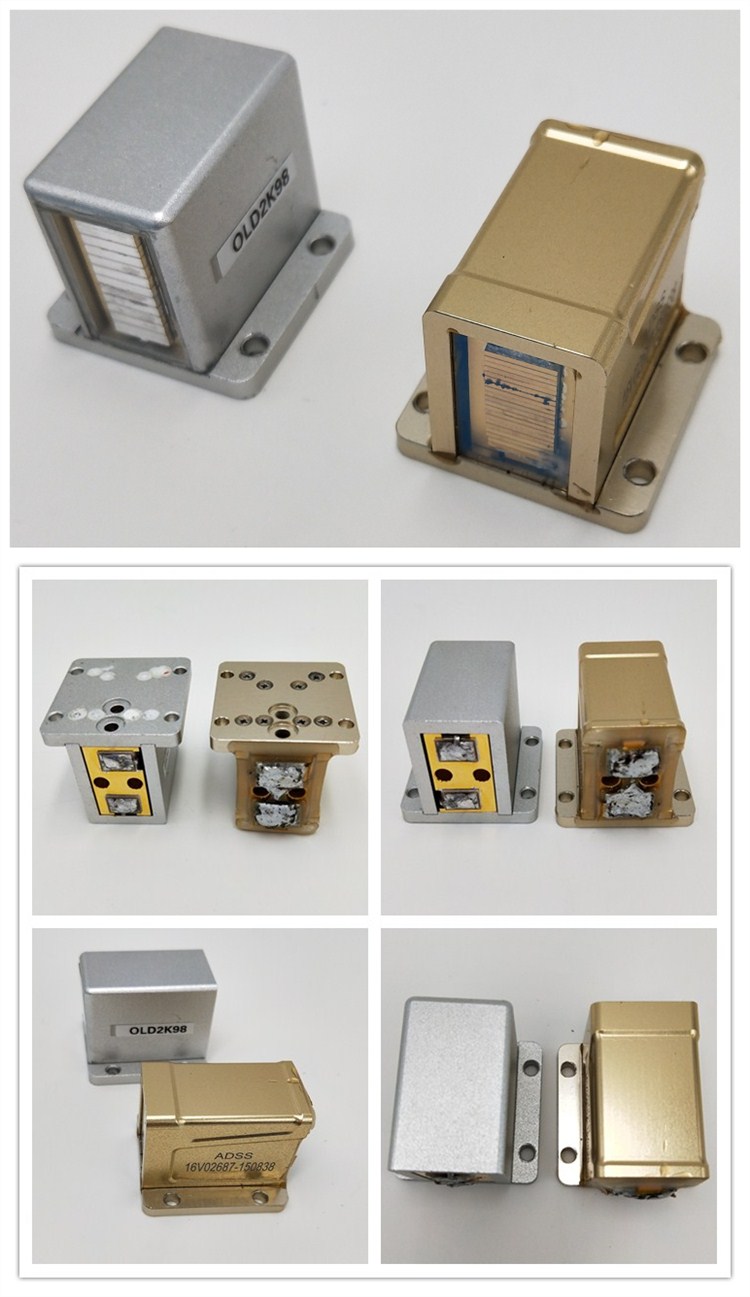

Coherent 500W-800W Diode Laser 755nm 808nm 1064nm Marco Channel Laser Stacks
- Certification: CE
- Warranty: 1 Year
- Spare Parts Type: diode laser
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: Ordinary Product
- Key Selling Points: Long Service Life
- Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Advertising Company
- Weight (KG): 0.5 KG
- Power: 500W-800W
- Product name: Laser Diode
- Laser type: Pulse Laser
- Keywords: Laser Protective Glasses
- Wavelength: 808nm, 755nm. 1064nm
- Output power: 200W- 500W
- Used for: Laser ProtectIve
Product Description
Specification
|
Output power
|
300W/500W
|
600W/800W
|
1000W/1200W
|
||
|
wavelength
|
808nm(800-810nm),755nm,1064nm
|
||||
|
Number of bars
|
1-20 pieces
|
||||
|
Solder type
|
Au-Sn hard solder or soft solder
|
||||
|
Typical pulse width
|
10ms-400ms
|
||||
|
Repetition rate
|
1-10Hz
|
||||
|
Max duty circle
|
20%
|
||||
|
Operation current
|
40A
|
40A
|
40A
|
||
|
Operation voltage
|
<12V
|
<20V
|
<40V
|
||
|

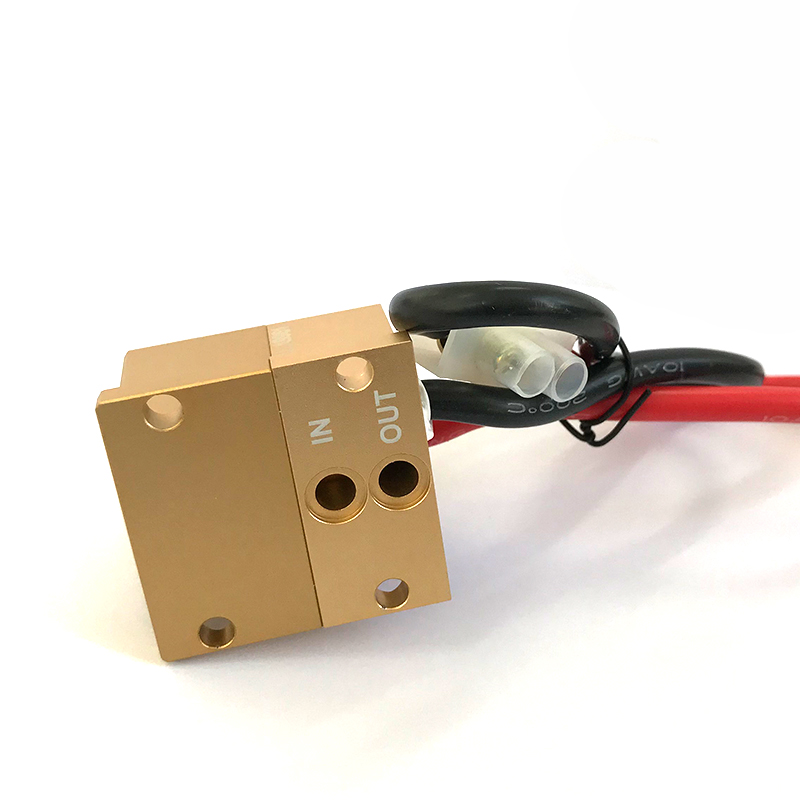

Cooling requirement
|
1. Flow Rate: >4.5L/min
2. Water quality: Industrial grade, anti-freeze possible, particle filter<100µm 3. Chiller water Temperature: 15°C-25°C. |
||||
