Description
- Certification: CE
- Origin: CN(Origin)
- Model Number: 150w RF laser tube
- Model: Q-150 / Q-150i
- Pump Method: RF-Excited
- RF frequency: 81.36MHz
- Laser Resonator: Waveguide
- Wavelength(Q-150): 10.6um
- Wavelength(Q-150i): 9.3um
- Max Average Power(Q-150): 150w
- Max Average Power(Q-150i): 140w
- Output Power Range(Q-150i): 350w
- Output Power Range(Q-150): 5 to 150w
- Beam Quality(M2): less than 1.5
- Pulse Period: 10us(equivalent 100KHz)
- Min.Pulse Width: 3us
- Pulse Pise/fall Time: less than 60us
- PWM Duty cycle: 0% add subtract 100%
- Modulation Frequency: 0 .8 to 50KHz
- Power Stability: less or equal 5%
- Beam Diameter(1/e2)(Q-150): 7.0 add subtract 0.5mm
- Beam Diameter(1/e2)(Q-150i): 6.5 add subtract 0.5mm
- Beam Ellipticity: 0.83 to 1.2
- Range of Wavelength(Q-150): 10.3 to 10.8um
- Range of Wavelength(Q-150i): 9.2 to 9.4um
- Size: 853*151.7*196.4mm
- Weight: 22.5Kg

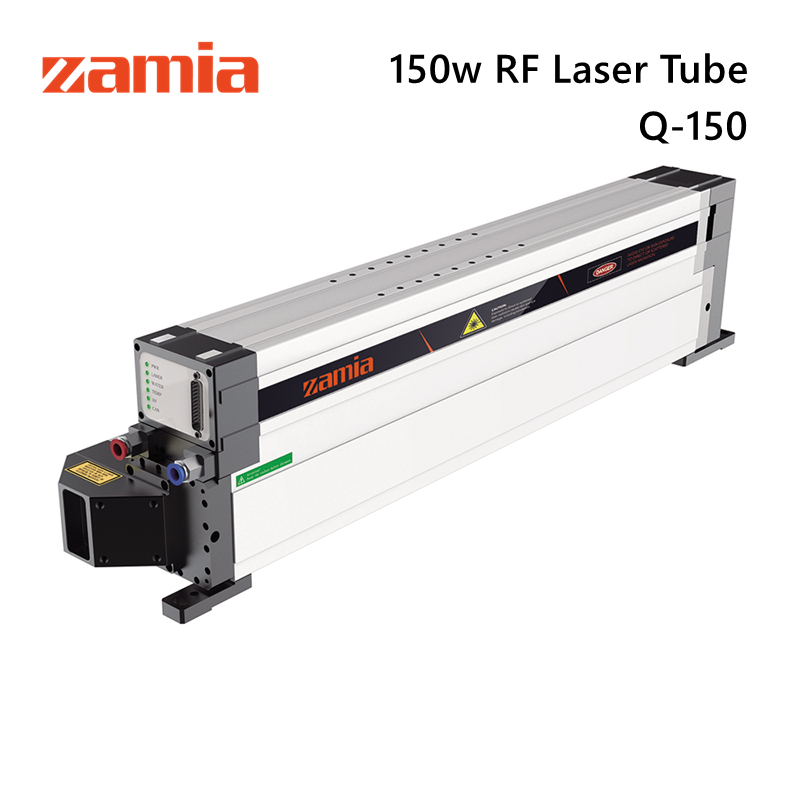

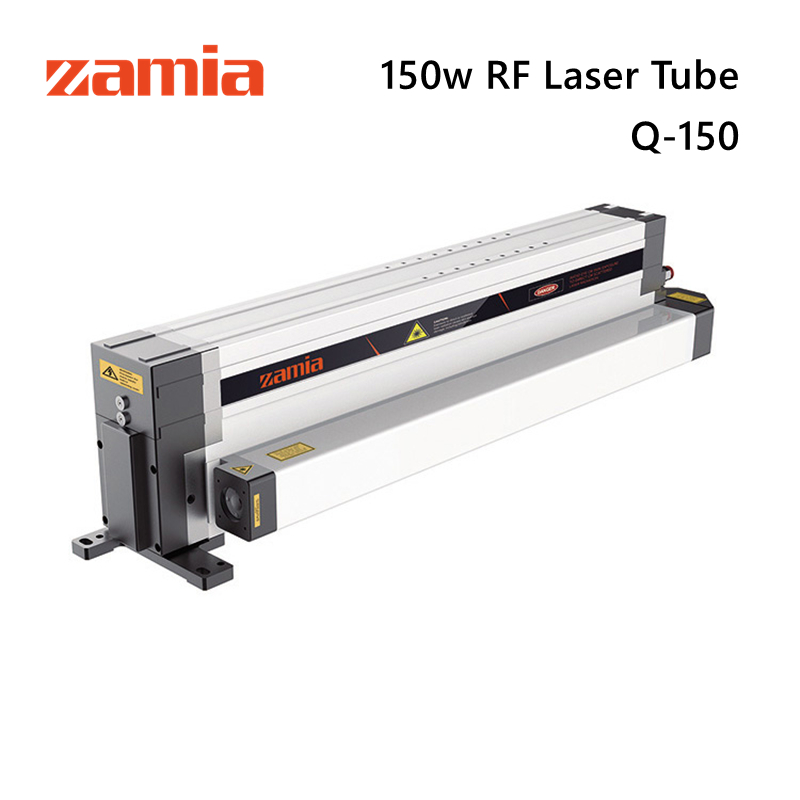

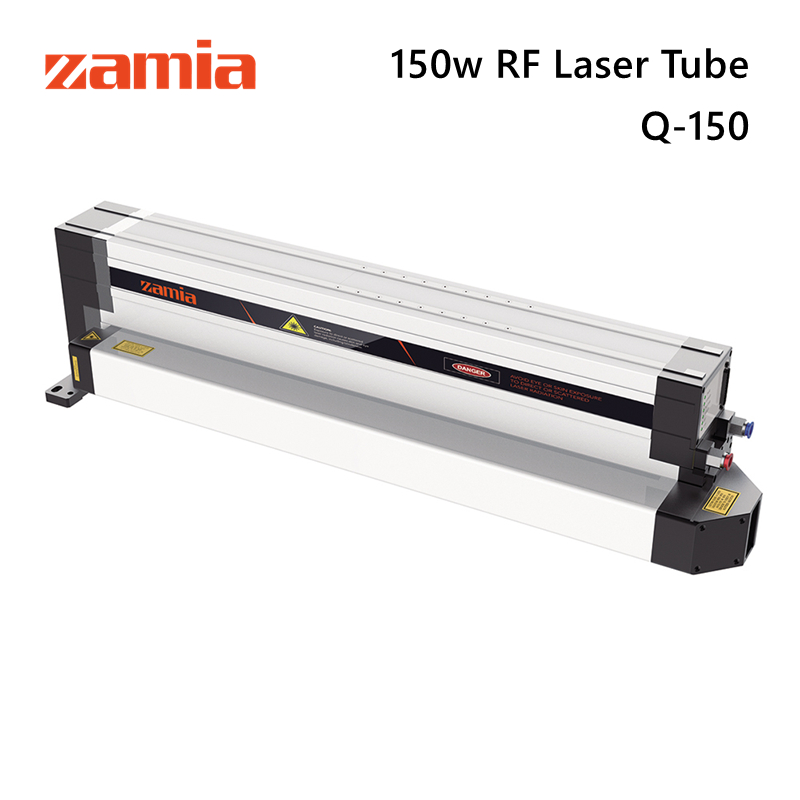

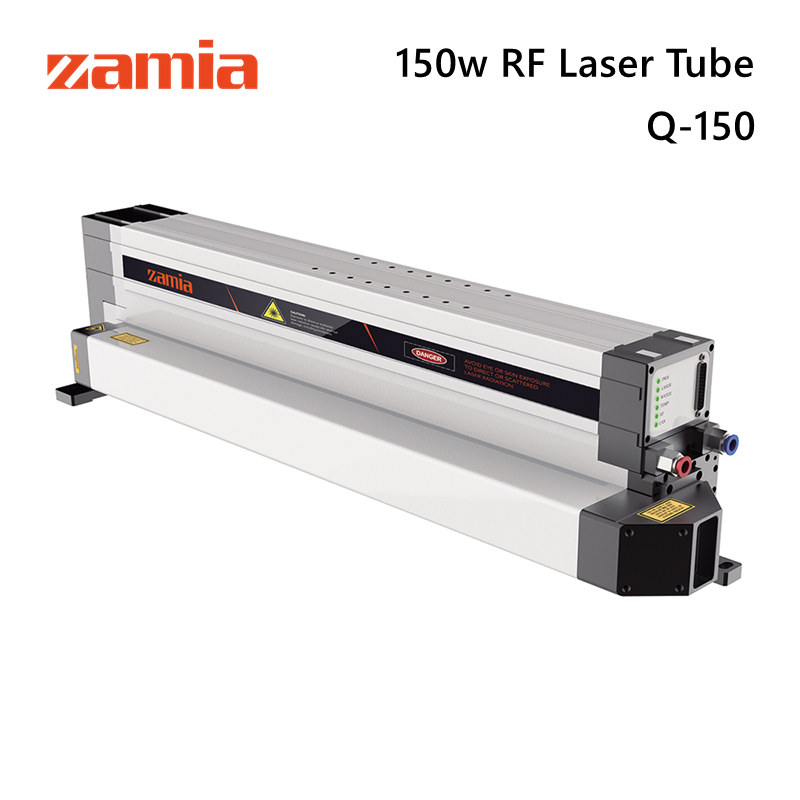

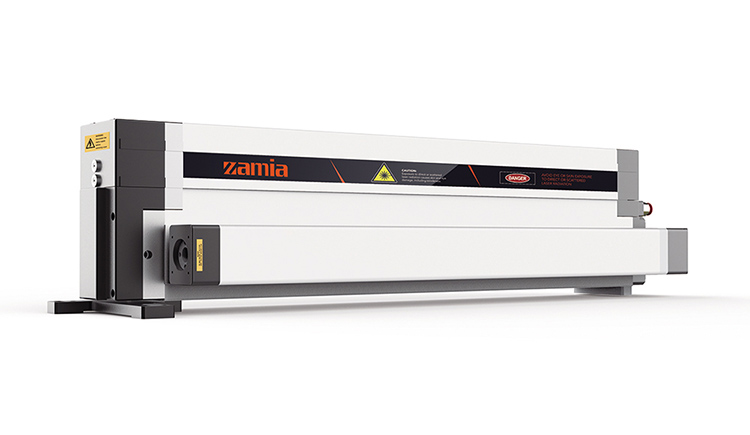

150w RF Laser Tube

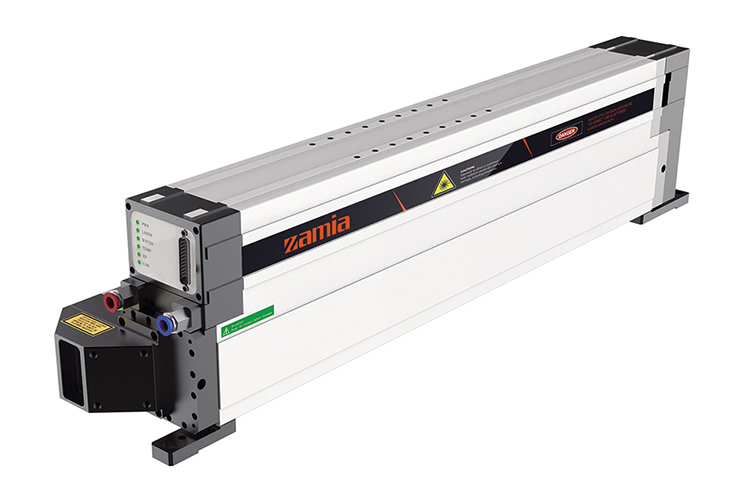

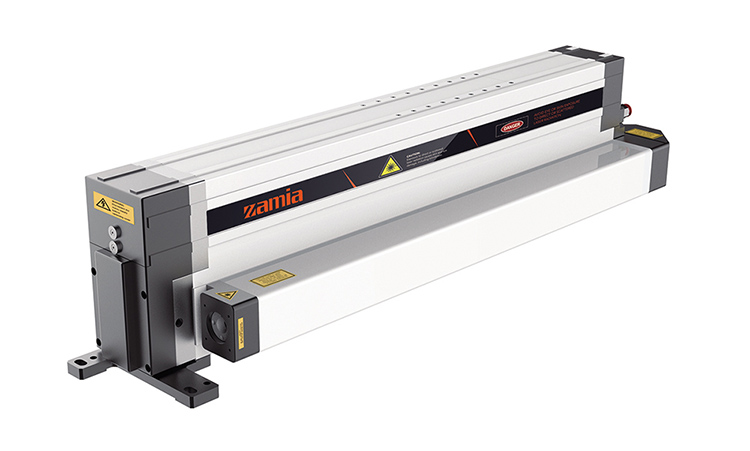

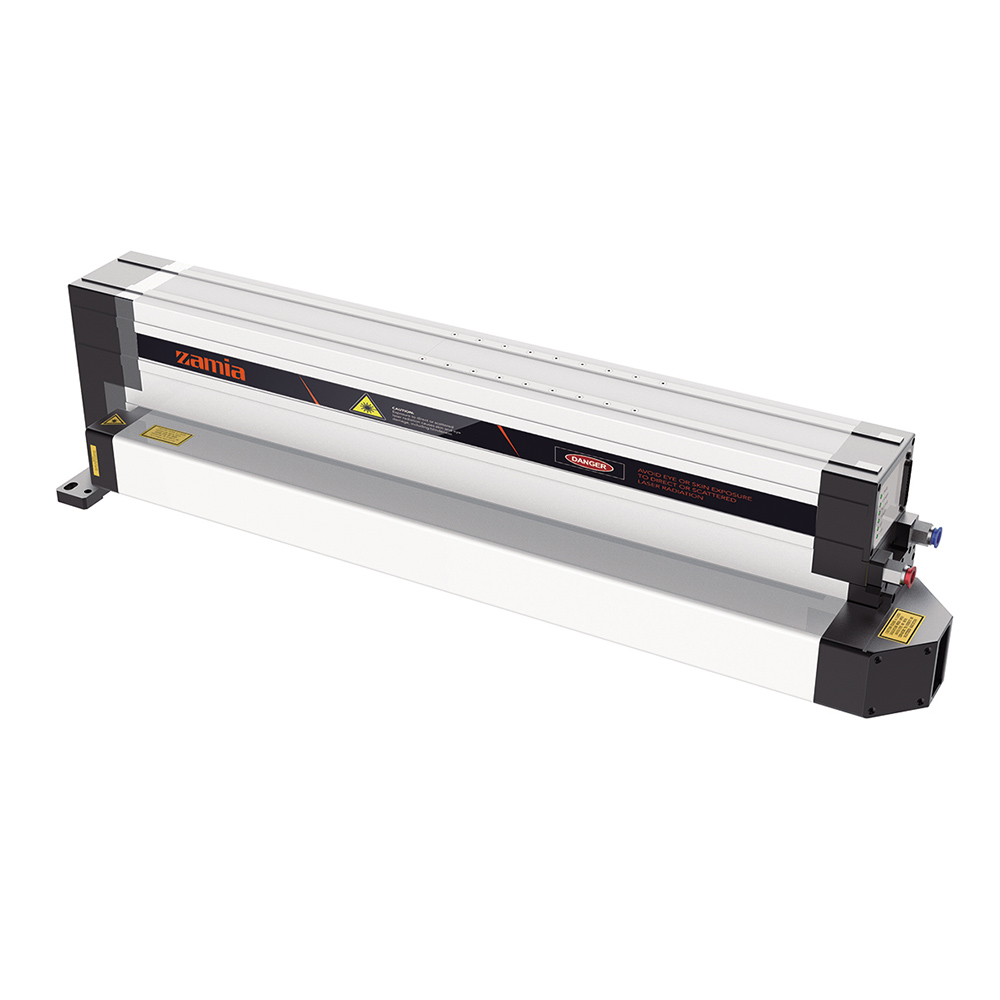

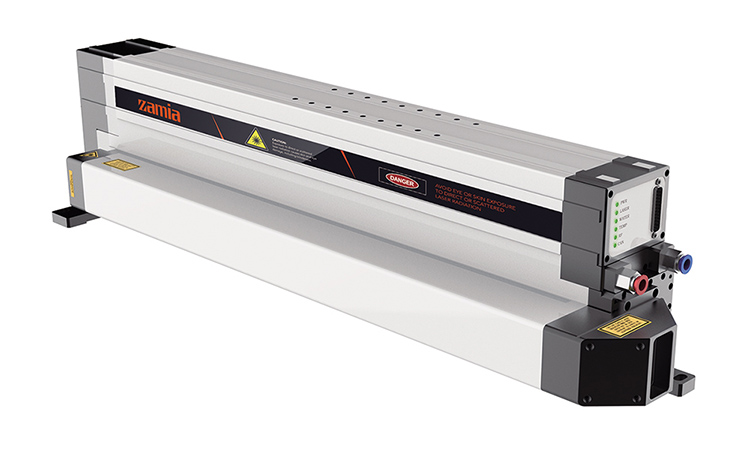

Product Image
Characteristics
– RF power supply and cavity integrated package, appearance simplicity & easy tobe integrated.
– All -metal structure with sealed off design, maintenance free.
– High photoelectric conversion efficiency and fast modulation response.
– Output with excellent beam quality and stable laser power.
– Suitable for a variety of industrial environments, even can last for up to 20,000 hours.

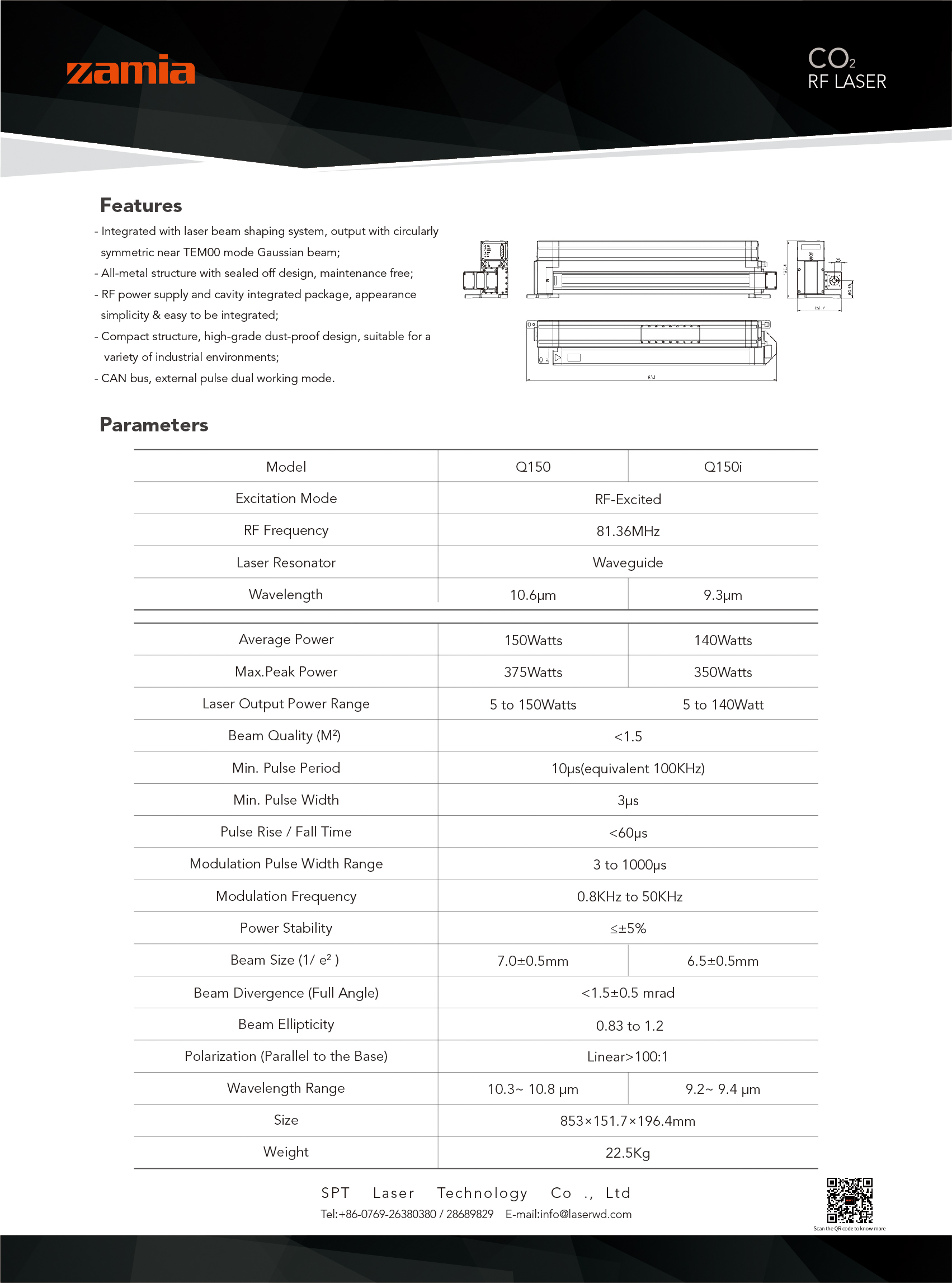

Technical Parameters
Features
1. High Quality
Our factories have passed ISO9001:2015 quality certification. Most of our products have CE Certification, FDA Certification .
2. Factory Price
Striving to improve efficiency and reduce costs, we have absolute predominance in price by selling products online directly to the end users.
3. Service
For international customer we provide professional technology support on all our products by E – mail within 24 hours or MSN / Skype online. Any problems about product, we will provide the step by step instruction for you.
Company Information
SPT Laser technology co,.itd always committed to manufacturing stable laser core for demanding applications. Leveraging our founders’10 years experience in laser industry and deep understanding of the client’s point of view, SPT has raised the standard of quality manufacturing of an entire industry in just few years.
With professional and strong R&D, manufacturing, and sales teams, SPT has a full breadth of perspective on every aspect of laser industry. Focusing on our clients demanding needs, we consistently deliver “Build to Last” laser core. As a professional supplier of CO laser core, SPT offers comprehensive solutions, incorporating technology and manufacturing customizations matching industries and applications’ demands.
SPT product portfolio includes CO laser tubes, CO RF laser tubes, CO laser lenses and mirrors, laser obstacle remover and other laser devices.
Our strict testing process and commitment to the highest international industry standards has led SPT to an un-matched manufacturing quality and highest possible product performance, certified by CNAS, CE and the FDA, supported by several national technology patents. Our products are designed and tested against rigorous standards, and the entire production process is strictly managed under IS09001 quality management system and SGS.
SPT now aims to develop the most advanced and stable laser core ever conceived by balancing a culture of innovation, while striving for consistency and refined systematization of execution. We believe in growing together with our customers, providing high-quality solutions for demanding laser machinery makers and automation equipment integrators.
Our company will attend various laser and photonics exhibitions domestic and abroad every year to introduce our latest technology and products to customers. At the same time, we actively understand the latest information of the laser market and through continuous learning to create better products.
