Description

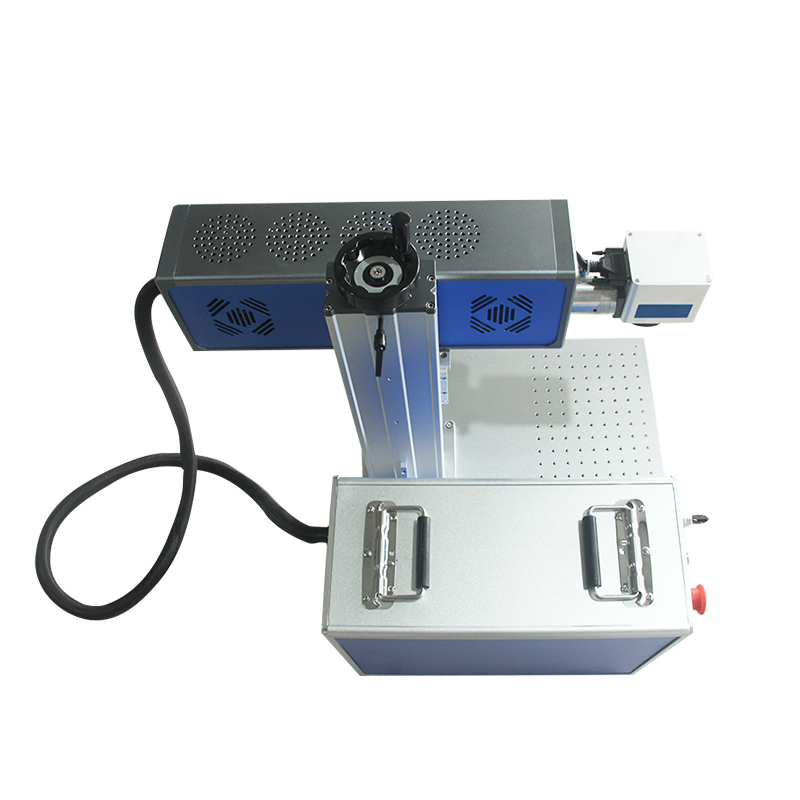

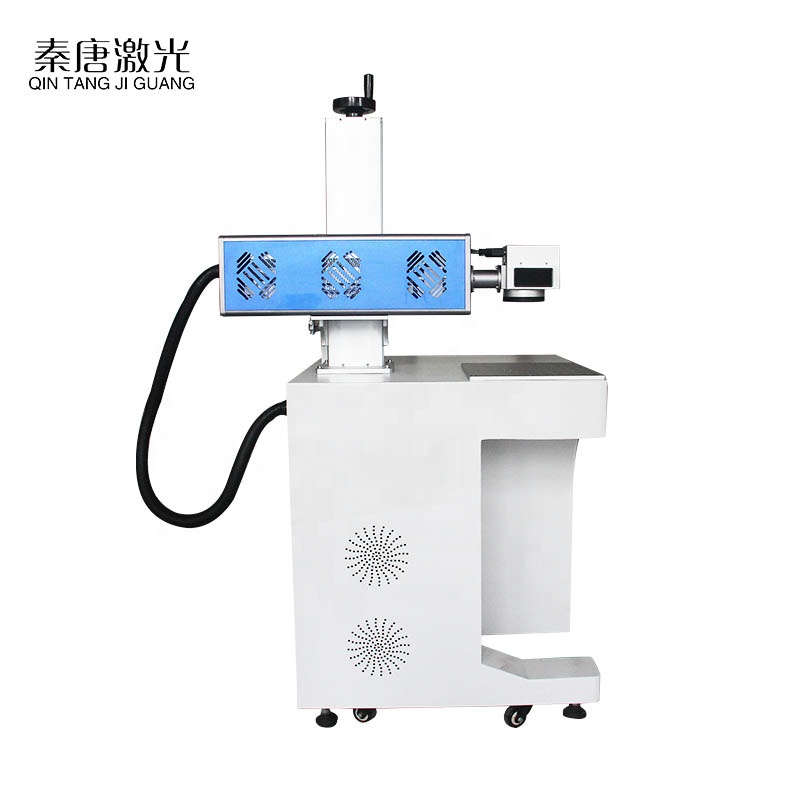

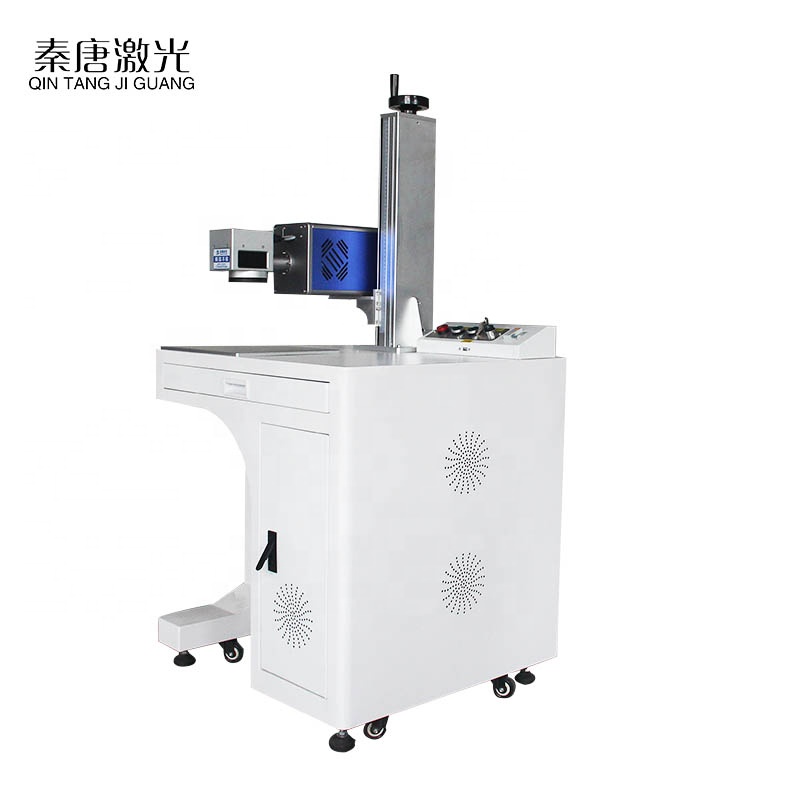

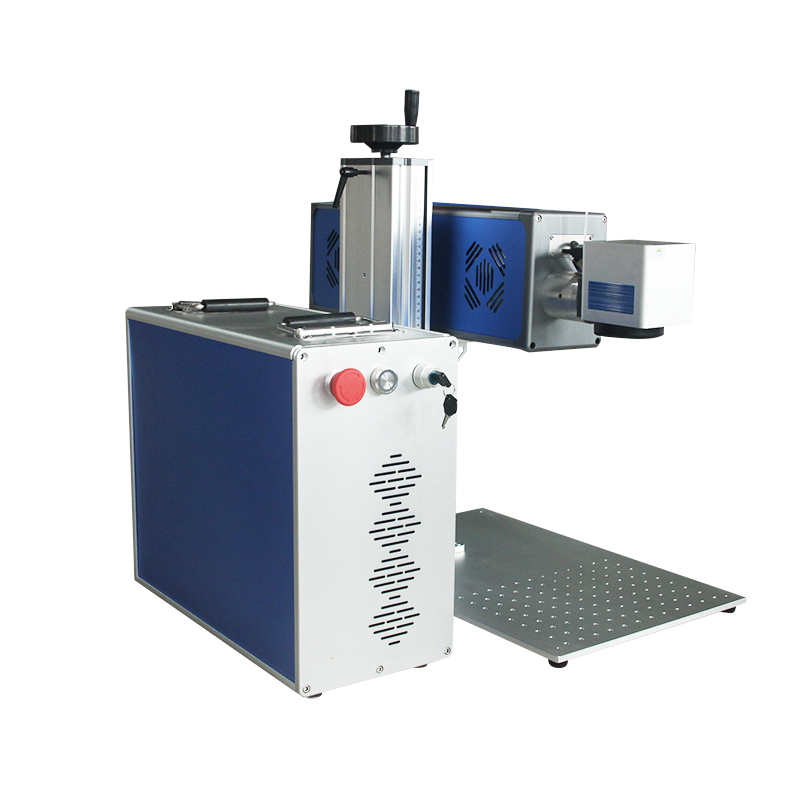

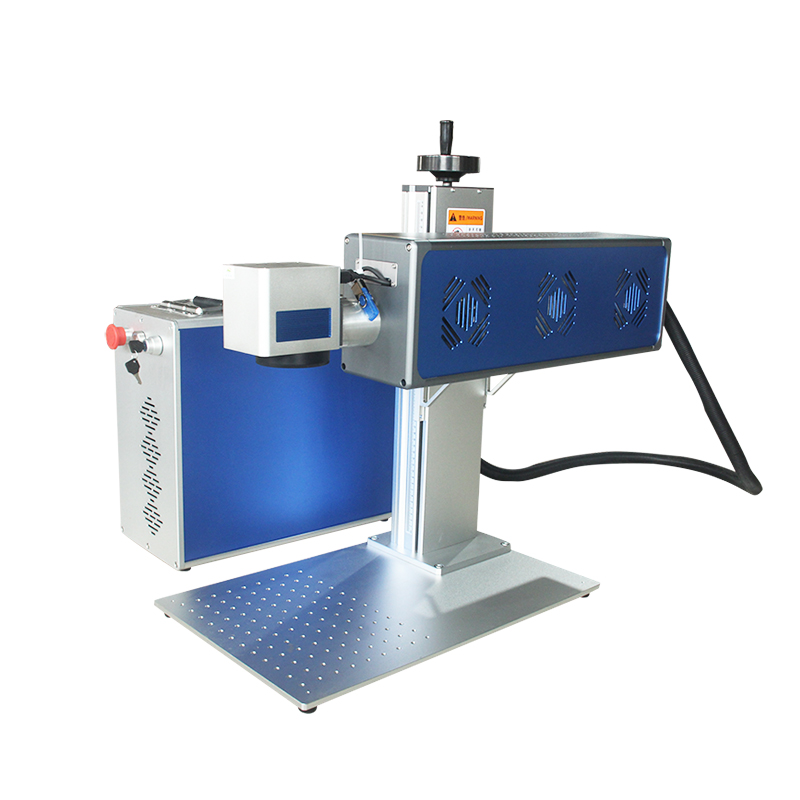

CO2 galvo laser marker machine with 20w 30w 55w metal laser tube CE certificate
Product Description
Specification
|
Machine type
|
Table type or mini split type or mini desktop type
|
|
Laser type
|
CO2 RF metal tube
|
|
Laser power
|
20W/30W/55W/100W
|
|
Laser source brand
|
DAVI (optional)
|
|
marking area
|
110x110mm / 150x150mm / 175x175mm / 200x200mm / 220x220mm /300*300 mm (marking light)
|
|
Max single pulse energy
|
1.0mj
|
|
Pulse duration
|
6-250ns
|
|
Laser Wavelength:
|
10640nm
|
|
Software
|
Ezcad software
|
|
Supports graphical format
|
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF ect.
|
|
Beam quality
|
<1.2
|
|
Pulse repetition frequency
|
20KHz-60KHz
|
|
Laser power density
|
80ZMW/mm2
|
|
Marking depth
|
0-1mm
|
|
Spot size
|
43um
|
|
Minimum character size
|
0.15mm
|
|
Minimum line width
|
0.01mm
|
|
Max position speed
|
800 characters/s
|
|
Repetitive accuracy
|
±0.001mm
|
|
Cooling way:
|
Air cooling
|
|
Operating voltage:
|
110/220V ± 10% /50/60HZ
|
|
Ambient operating temperature
|
15 ° C – 35 ° C
|
|
Packing:
|
International plywood packing
|
|
Dimensions:
|
98*86*110cm
|
|
Gross Weight:
|
100KG
|
|
The whole power consumption
|
500-600W
|
Operating software page
Sample
