Description
- CNC or Not: CNC
- Condition: New
- Model Number: CNC3018 Pro

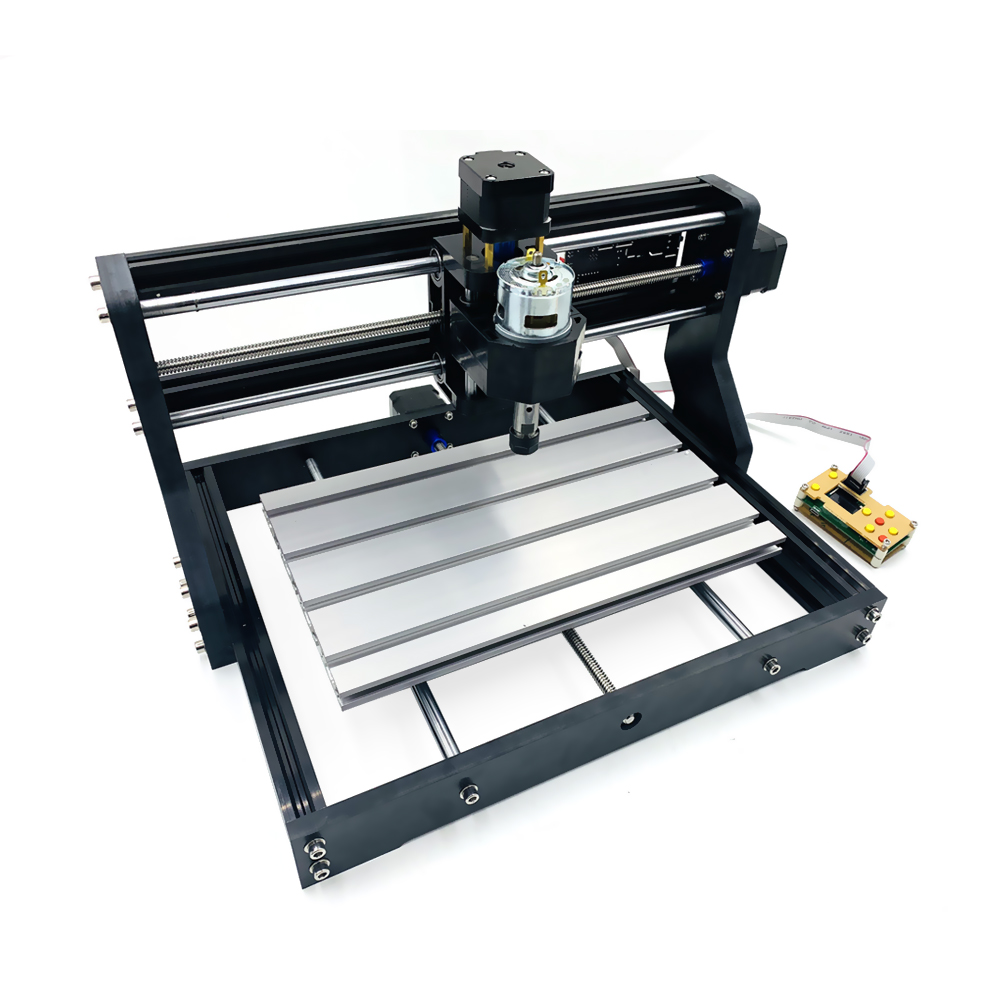

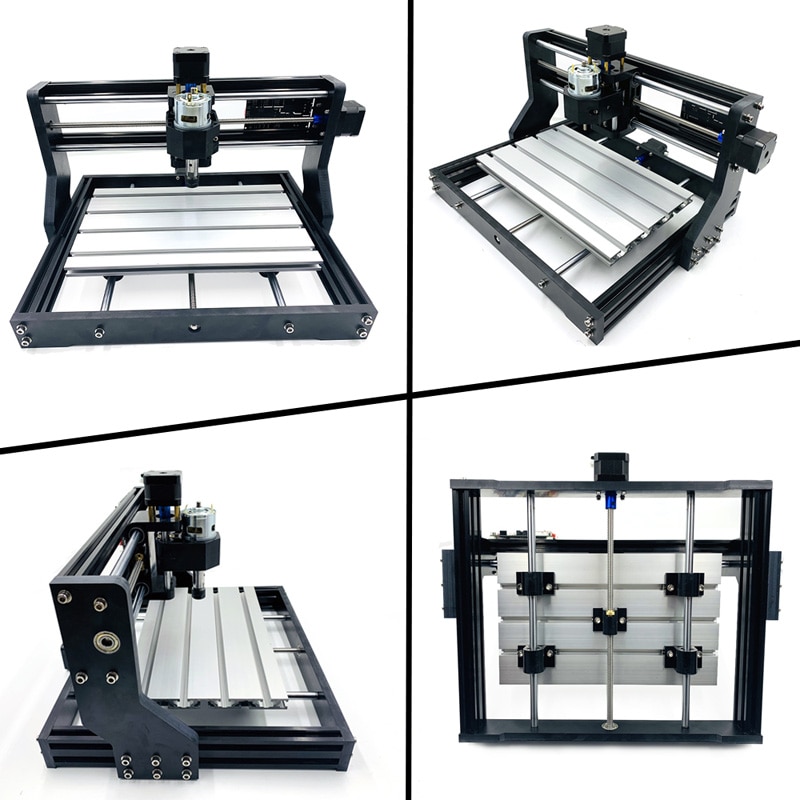

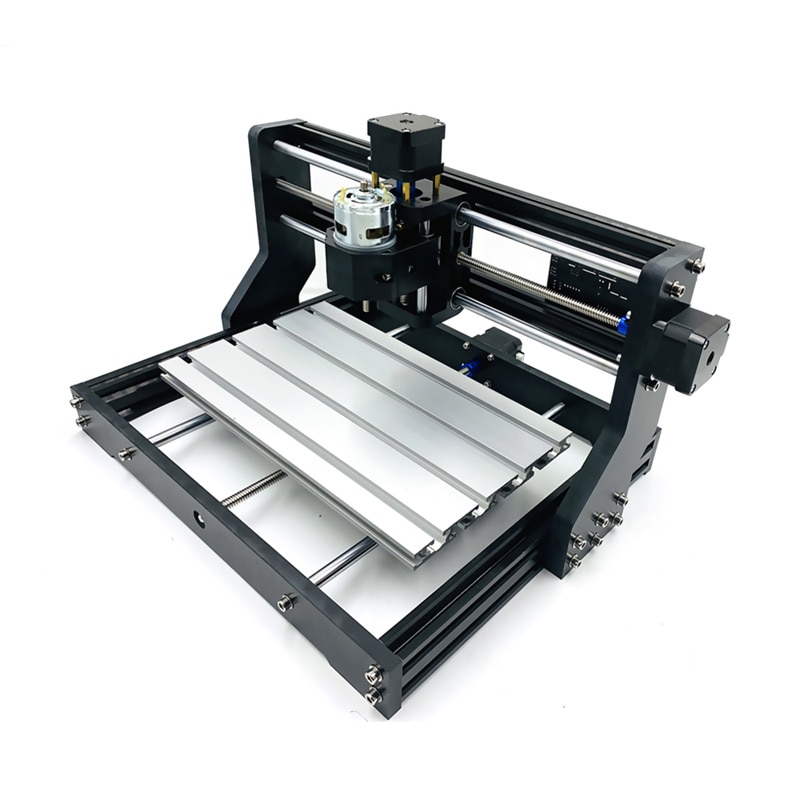

CNC3018 Pro Mini DIY GRBL Laser Engraving Machine ER11 with 500mw 2500mw 5500mw 15W PCB Milling Machine Wood Engraving Machine
This machine is suitable for CNC DIY. This machine is an entry-level learning mode. It is suitable for small-volume entertainment. It can't be compared with commercial machines. It does not support industrial use. This product is needs to be installed by hand. Certain patience.
.
Product information:
working area：30×18×4.5cm
Frame size：33×40×24cm
Mesa：30×18cm
Spindle：775 spindle motor(12-36V)24V:10000r/min
Step motor：Fuselage 1ength 34M,Current 1.33A,12v.Torque 0.25N/M
Power supply：24V 5.6A
Software：GRBL controller (Firmware GRBL v1.1)
supported system：Windows(Do not support Mac)
Drill bits：10pc drill bit
clamps： 4pcs
CNC 3018 Pro Firmware GRBL v1.1 control Diy mini cnc machine,3 Axis pcb Milling machine,Wood Router laser engraving,with offline controller

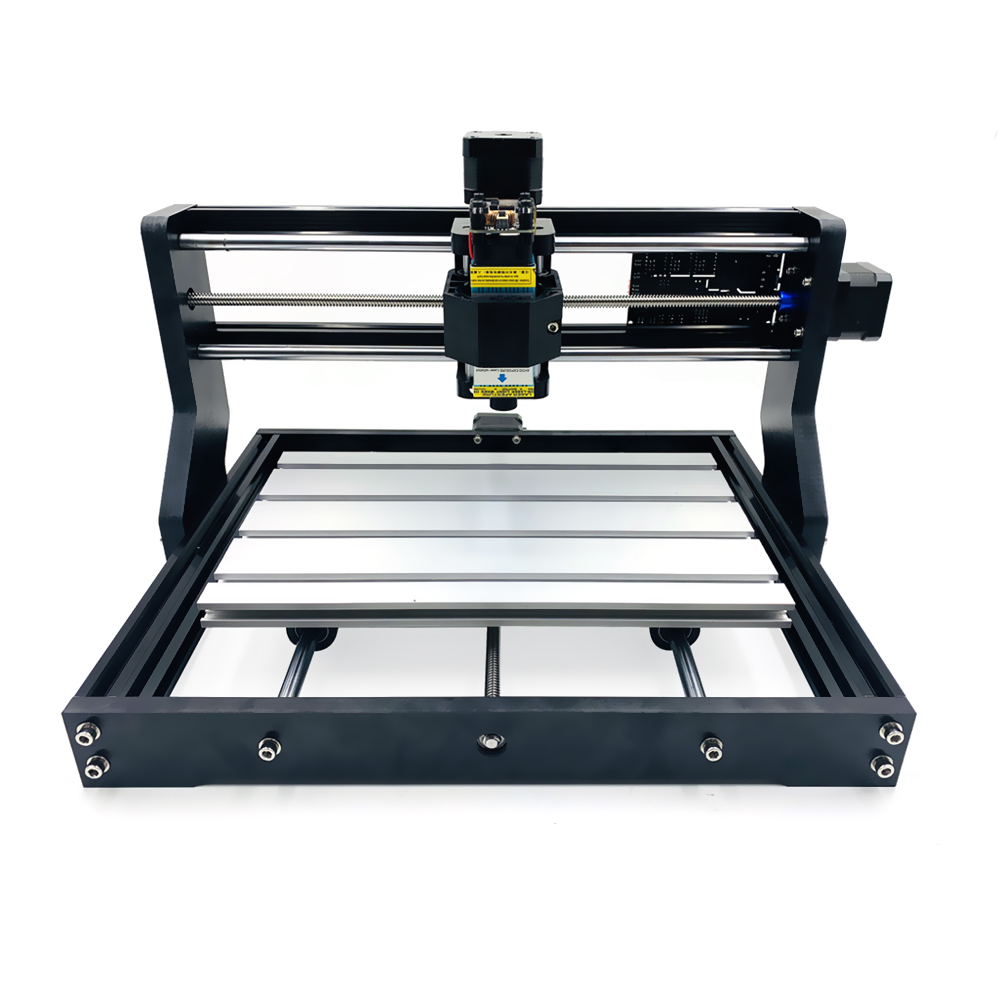

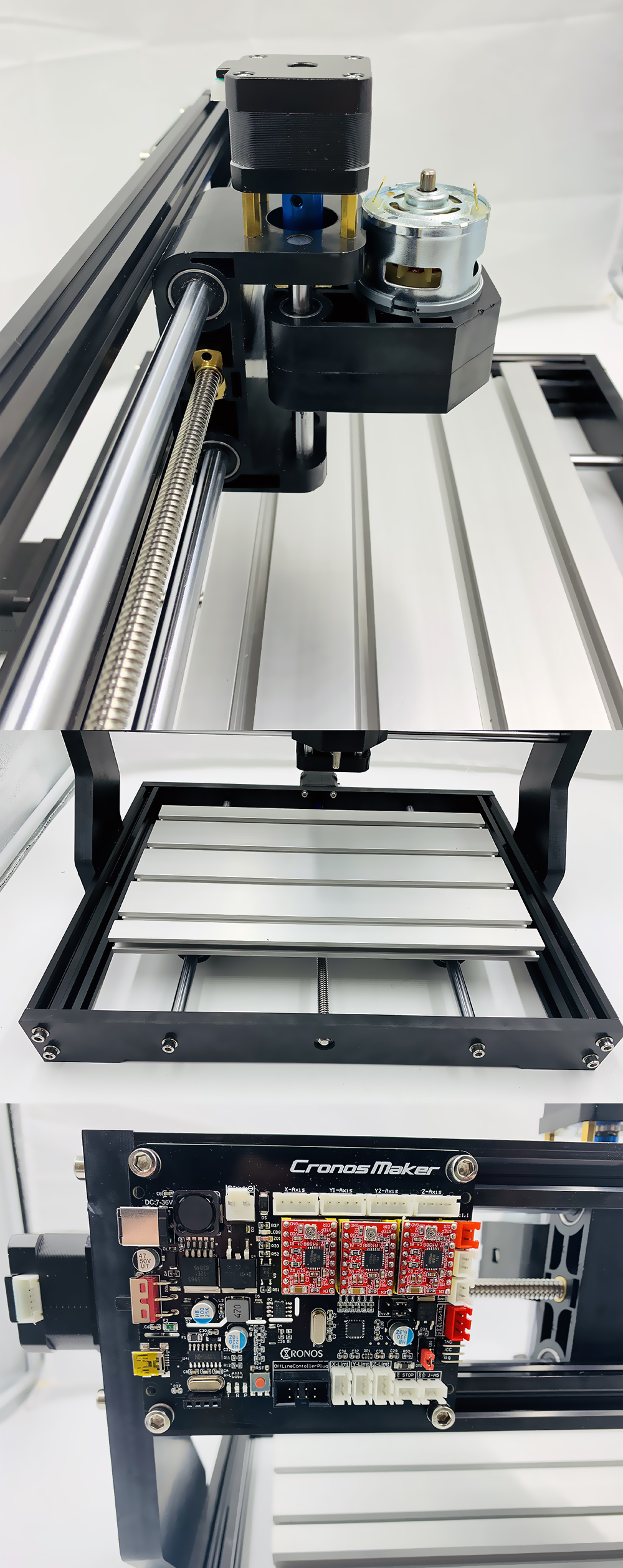

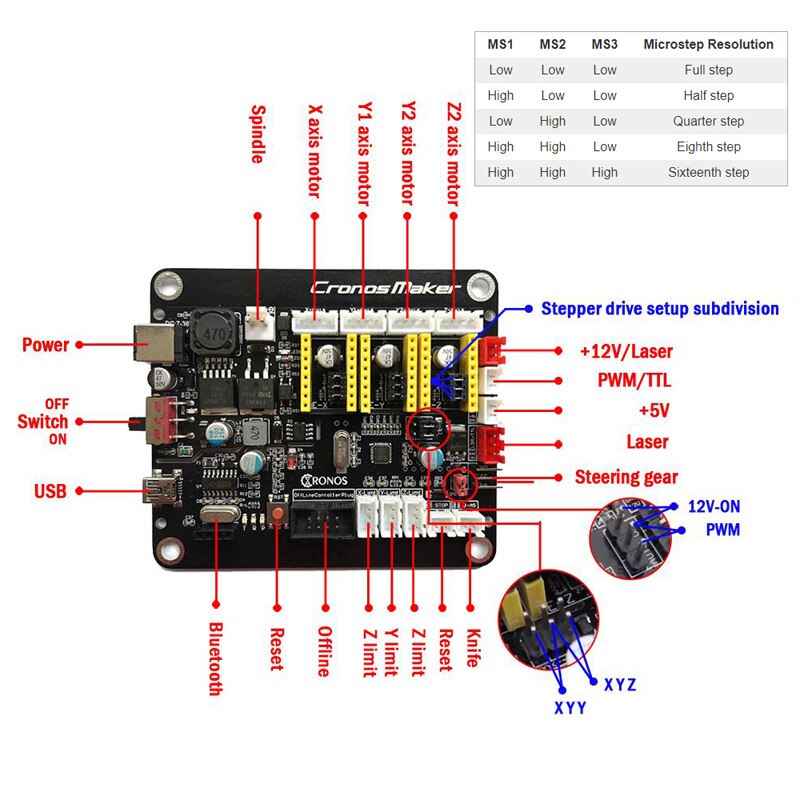

The 3018PRO is easy to operate and supports offline. The control panel is also equipped with a versatile 3018 board. It supports 2P or 3P lasers. Equipped with a laser with a 33mm acrylic blue size.Customers who purchase the standard can install 33mm 2P 3P lasers.
CNC 3018-PRO is an upgraded version of 3018. Control software: GRBL; Supported System: Windows XP / Win 7 / Win 8 / Win 10.
Package inclued:
1 x Full set engraving machine
1 x ER11
4 x Plates
10 x Cutters
Questions:

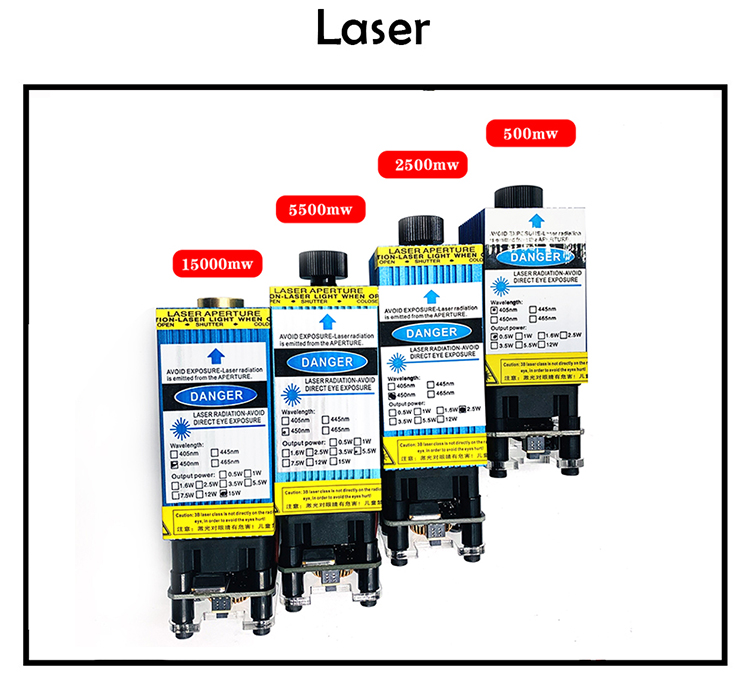

Q: Whats the different between 500mw laser, 2500mw laser, 5500mw laser
A: All these lasers can not engrave/mark on any metal, they are mainly used on engraving wood.
2500mw laser can cut about 1mm normal wood.
5500mw laser can cut about 2mm normal wood, engrave on leather and soft plastic.

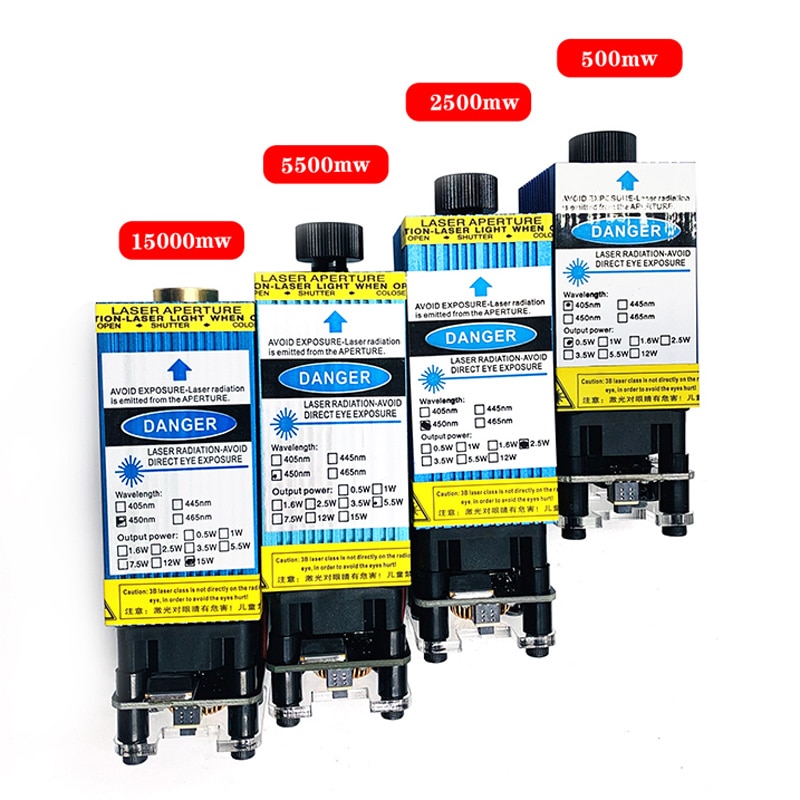

Laser: 500mw 405nm,12v / 2500mw 450nm,12v / 5500mw 450nm,12v
clamps: 4 pcs, Hold the thickness of 0-30mm,size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm
Attention:
This machine does not work on metal. Mainly used to engrave wood. 15000MW Can engrave metal such as stainless steel
Please note MDF is not equal to normal wood, as it doesn’t have a worldwide standard, so you need to test how deep the laser can cut by yourself.
