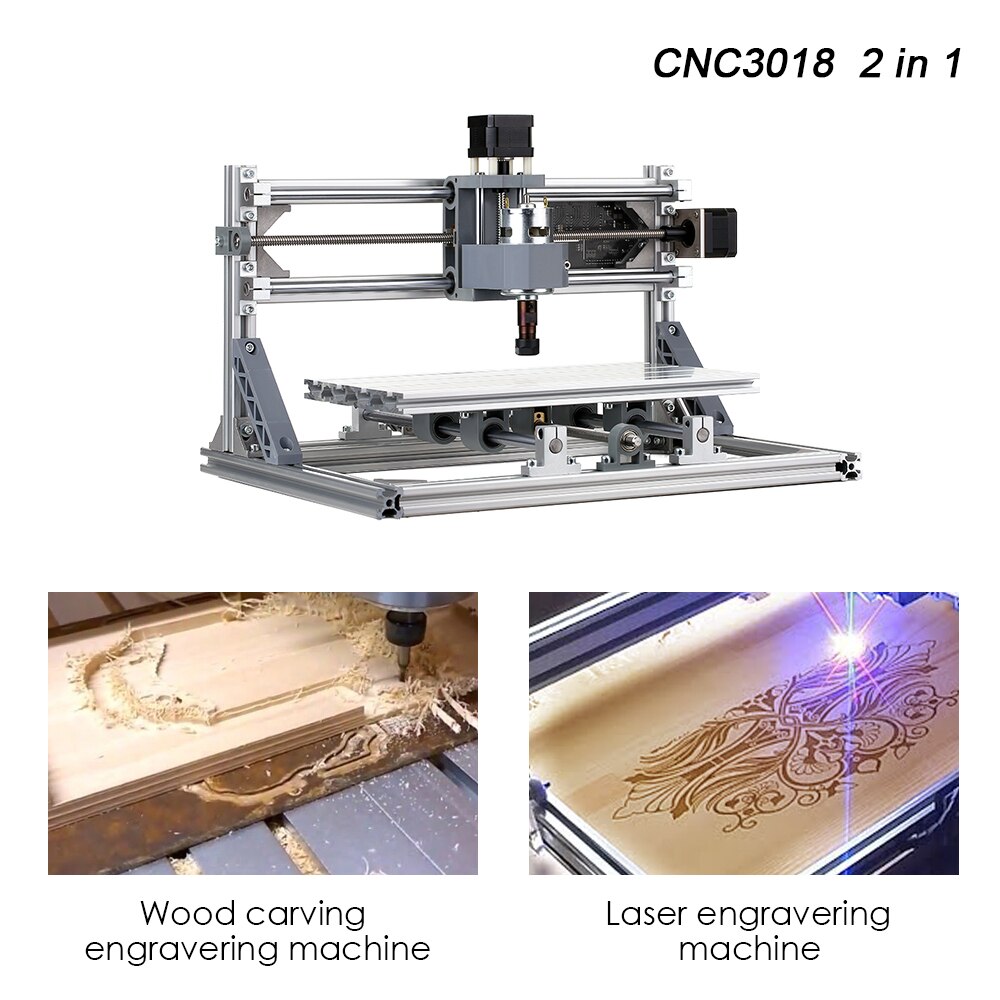

This DIY laser CNC engraving machine is especial designed for DIY fun, study and research with professional GRBL control software, giving you extreme portable experience. This 2-in-1 laser CNC engraving machine features the function of engraving, carving & milling. This carving machine can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material. Drill bit can not engrave hard metal, jade or other hard materials.

Features:
Small and practical, no problem for using on your desk.
The control system is open source (technology that controls system is provided) for some players who like DIY.
Desktop DIY mini CNC engraving machine for carving and more cost-effective than normal engraving machine.
Support our professional English design software for Win 7, XP, Win 8, Win 10.
500mw / 2500mw / 5500mw optional laser module with heatsink, high laser engraving power and long working time.

300 x 180 x 45mm large working area, Control Software: GRBL (include ER11 chuck).
Come with a pair of protective glasses to protect your eyes from getting hurt by laser.
Aluminum alloy and nylon material with fine workmanship show excellence in quality.
Very interesting to install and use, perfect gift for engraving DIY enthusiasts.
Wide application: can be used for print, hand tools and industrial processing.

NOTE:

1. The machine is DIY Kit, Need To Assemble By Yourself.
2. Please wear laser goggles during using and avoid touching the laser directly with your eyes and skin!

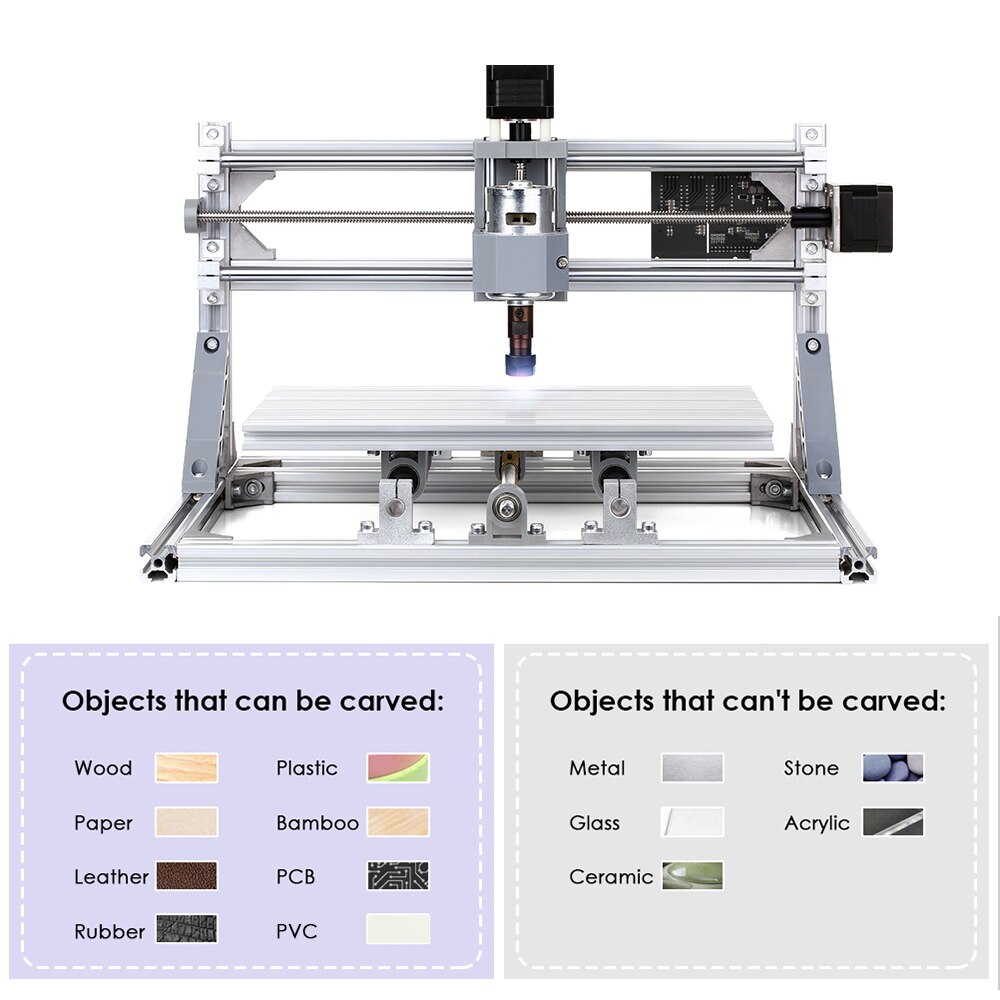

3. Materials can be engraved: wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet or other flammable plastic (such as phone case, mouse, pencil, name card, wallet, plastic comb).
4. Materials can’t be engraved: metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material.

Specifications:
Model: CNC3018
Laser Power: 500mw / 2500mw / 5500mw (Optional)

Laser Wavelength: 12V, 405nm (500mw), 450nm (2500mw/5500mw)
Material: Aluminum + Nylon
Main Color: Silver
Power Supply: AC 110-240V Output 24V 5.6A
Plug Type: EU
Supported OS: Windows XP / Win 7 / Win 8 / Win 10 (32/64)
Supported Formats: jpg / bmp / png
Communication Port: Micro USB

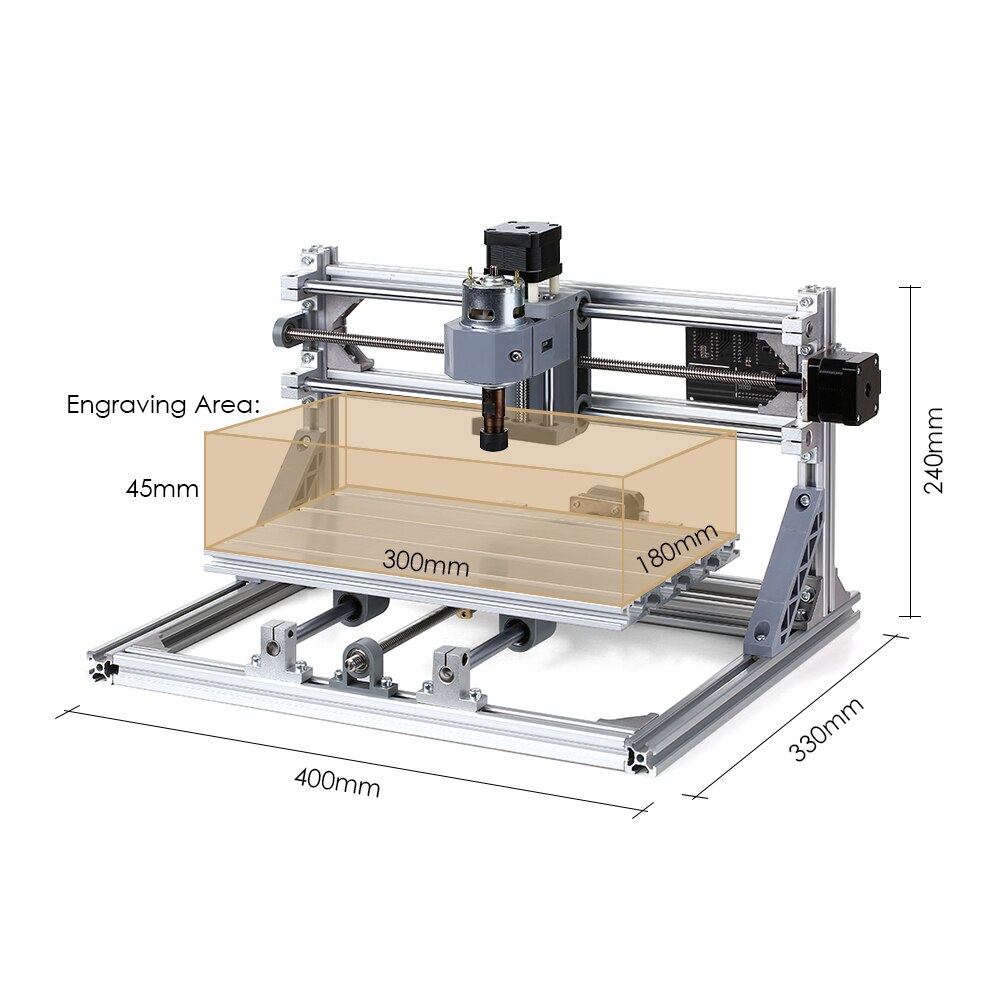

Engraving Area: 300 x 180 x 45mm
Frame Size: 400 x 330 x 240mm(Not include the motor protrusion part)
Table-board Size: 300 x 180mm
Spindle: 775 Spindle Motor 24V: 8000r/min

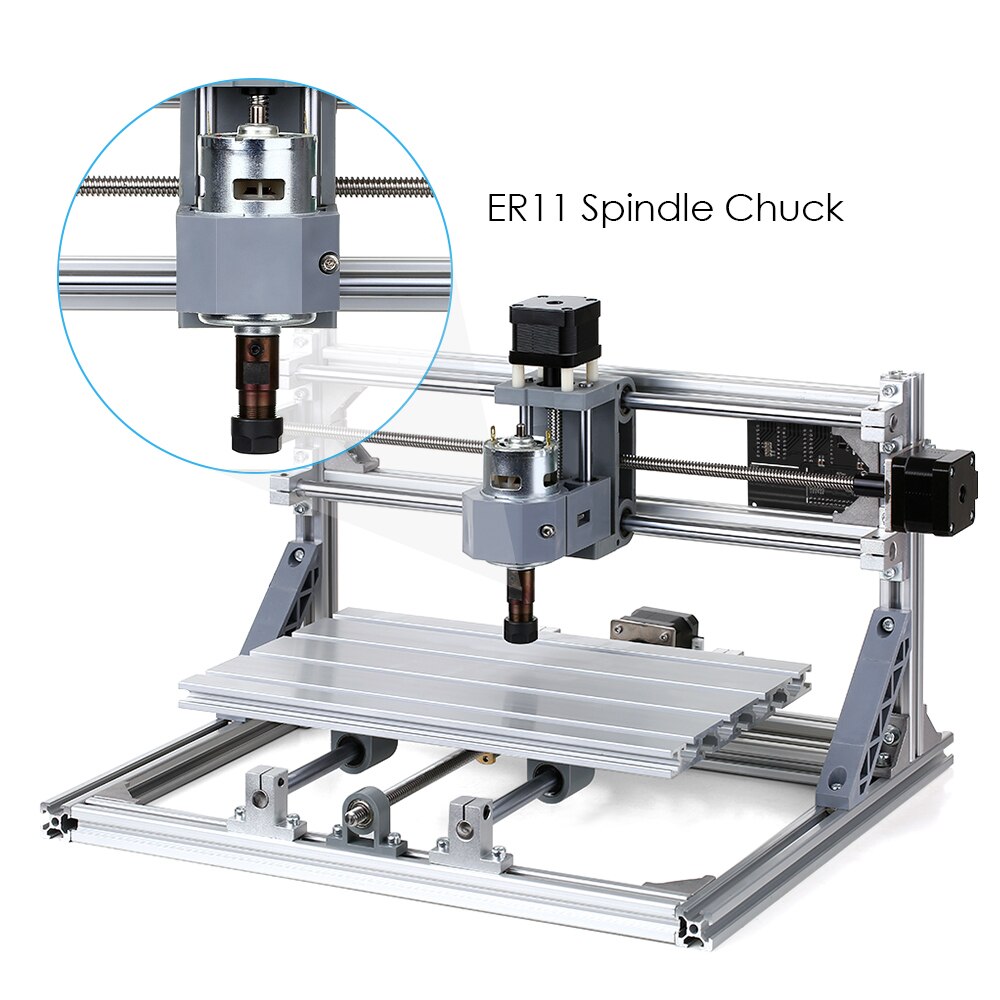

Spindle Chuck: ER11
Step Motor: Fuselage length 34mm, Current 1.33A, 12v. Torque 0.25N/M
Drill Bits: Tip 0.1mm, 20 degree, diameter 3.175mm (Contains 10 pcs)

Software: GRBL Control
Engrave Mode: Image Engraving, Text Carving, Scanning Carving, Contour Carving, Pixel Carving
Laser Quick Replace: Support
Can Not Carve Objects: All metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material.
Can Carve Objects: All wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet, etc.
Package Size: 45 * 23 * 17cm / 17.7 * 9.1 * 6.7in
Package Weight:
500mw 7443g / 16.4 lb
2500mw 7483g / 16.5 lb
5500mw 7573g / 16.7 lb

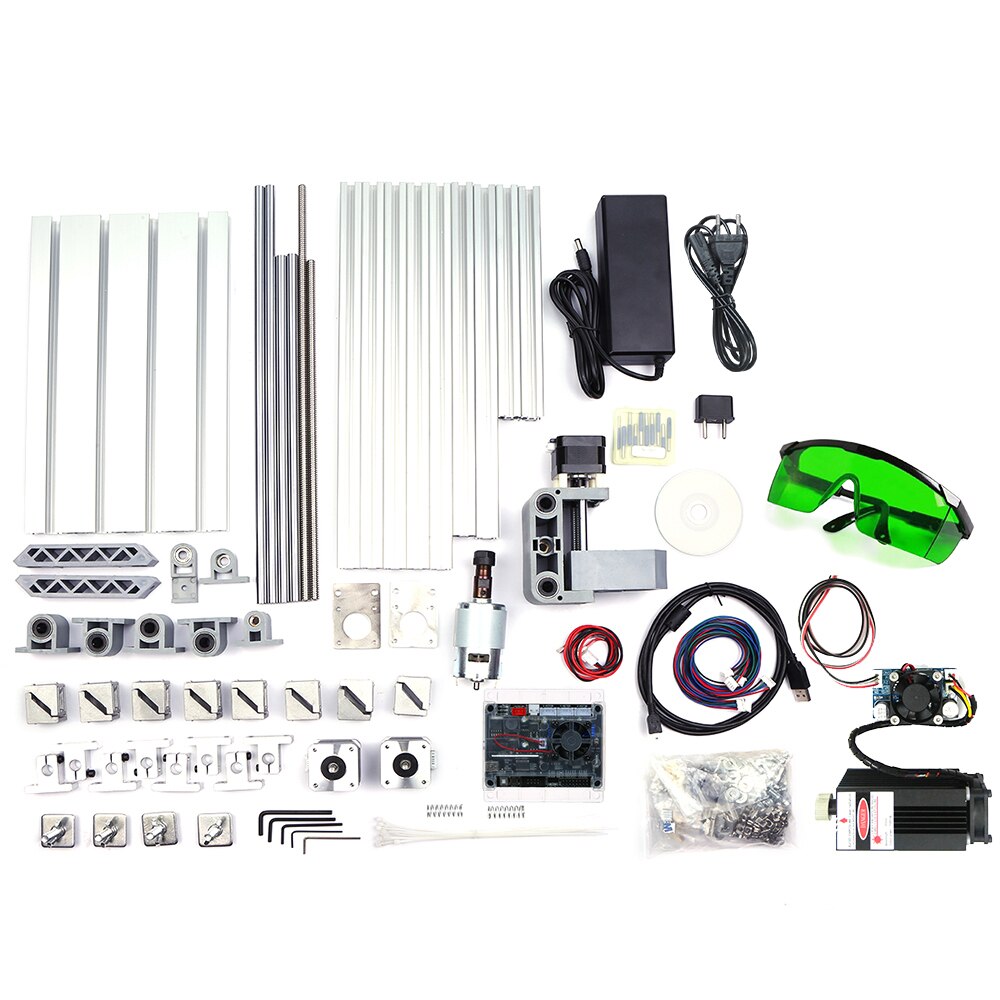

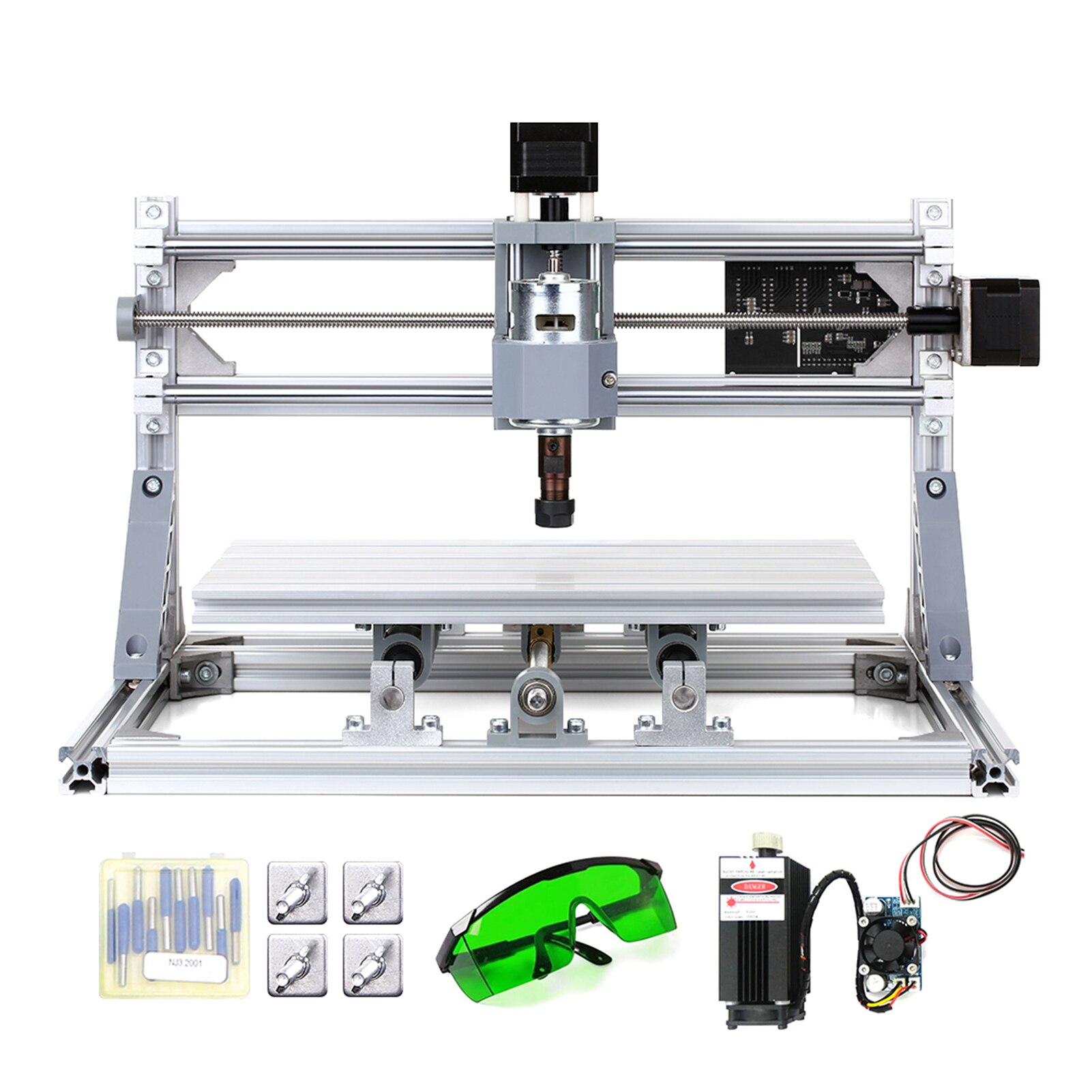

Package List: (DIY Kit, Need To Assemble By Yourself.)
1 * DIY CNC Engraving Machine Kit
1 * Laser Head
1 * Protective Glasses
10 * Drill Bits

1 * ER11 Spindle Chuck
