Description
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- CNC or Not: CNC

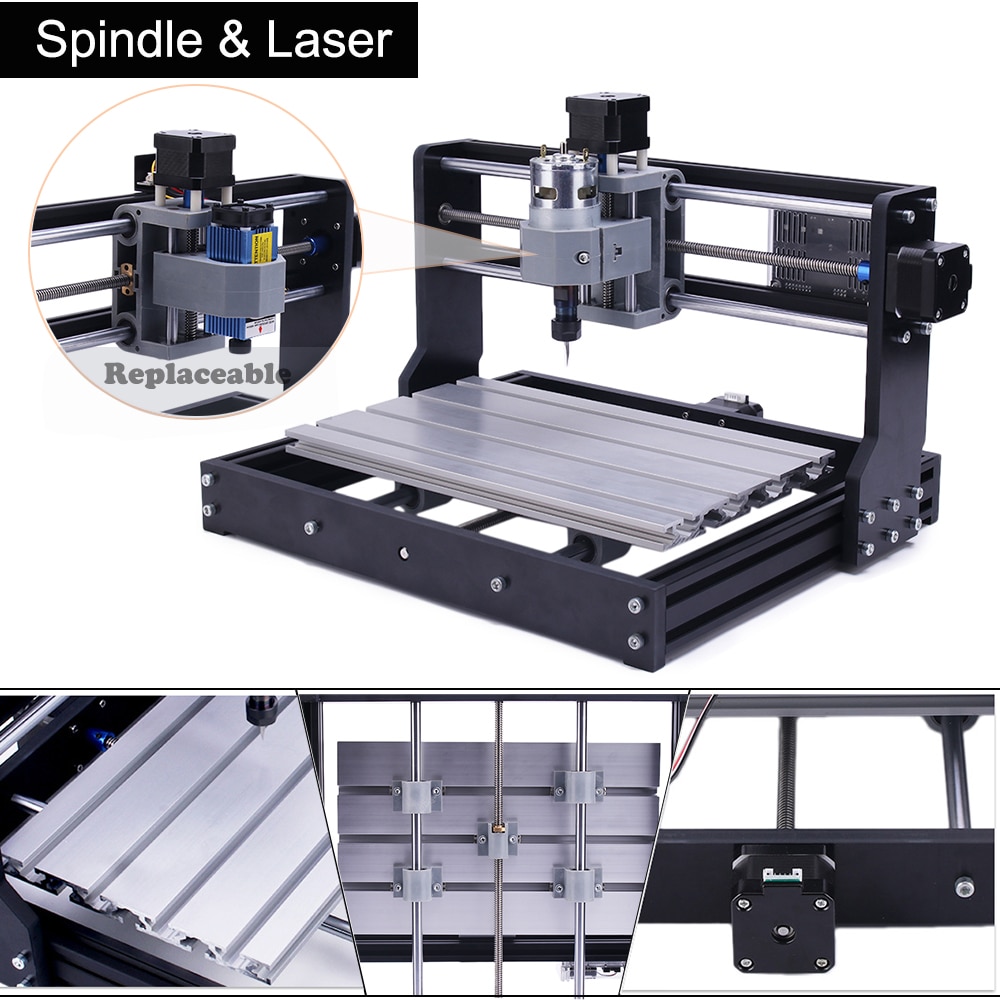

CNC Router 3018 Pro Max 15W 10W 5.5W PWM TTL Laser Engraving Machine GRBL ER11 Collect
-
Laser:Support offline laser output 3P, Support PWM TTL function
-
PVC Frame: Durable, beautiful appearance, high precision and long life
|
Control Software |
GRBL,LaserEngraver,EngraverMaster etc |
|
Construction |
Aluminum +BAKELITE |
|
Working area |
300x180x45mm |
|
Frame size |
400x330x240mm |
|
Input voltage |
AC 100V-240V,50 / 60Hz (EU/US Plug Available) |
|
Output |
24V 5A |
|
Spindle |
775 spindle motor,24V 10000 rpm |
|
Stepper motor |
1.3A 0.25N.m |
|
System support |
Windows XP / Win 7 / Win 8 / Win10 |
|
Collet |
ER11, default size 3.175mm |
|
Drill bits |
Diameter: 3.175mm tip: 0.1mm length: 30mm |
|
Laser (option) |
0.5W/2.5W/5.5W/7W/15W 12V 450nm |
1. Three-axis CNC engraving: wood, plastic, PCB, acrylic, plywood, etc.
2. Laser engraving: wood, plastic, leather, bones, stone, paper, outer casing, etc.
3. 15W laser can engrave metal materials such as SUS 304 stainless steel.
Warranty service
One-year’s warranty,all your after-sales problems under protection.
15-day’s part free warranty,any parts damaged within 15 days after receiving the product will be replaced.
-
Spindle:775 motor,12-36V 10000RPM
-
Collect: ER11, default size 3.175mm
-
10 pcs mini steel tungsten carbide cutters

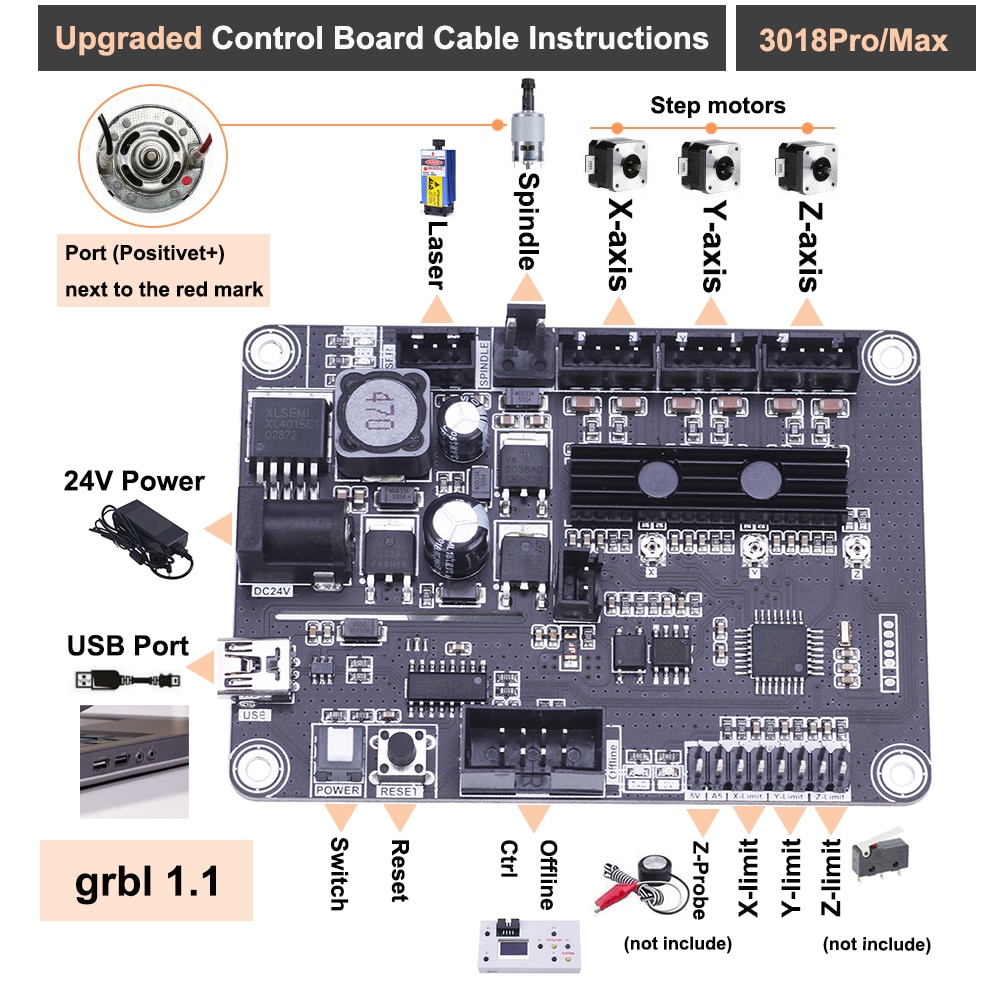

The advantages of Upgraded Control Board
1. Upgraded A4988 step motor drivers with heat sink and GRBL1.1f firmware of control board, stable performance, overcurrent protection to avoid damage.
2. Upgraded control board also supports limit switch, tool setting, steering gear, cooling fan and other functions, supports full-line offline engraving, offline tool setting and engraving.
3. Improved power interface: the original plastic interface changed to all metal shielded interface.
4. USB interface: plug-in type, very strong(The old USB interface is patch soldering, collision and improper use easy to drop.)
5. Improved spindle drive increases the isolation of the optocoupler, so that the control board generates less heat, the spindle speed adjustment is more linear and safe.
5. The stepper motor driver adds a self-recovery fuse. When a short circuit or fault occurs, the power will be cut off and the fault indicator will be displayed.
6. 12V step-down increase the self-recovery fuse, when a short circuit occurs, the power can be cut off in time to avoid damage.
7. Optimize the layout, the control area is separated from the drive area, and the operation is more stable.

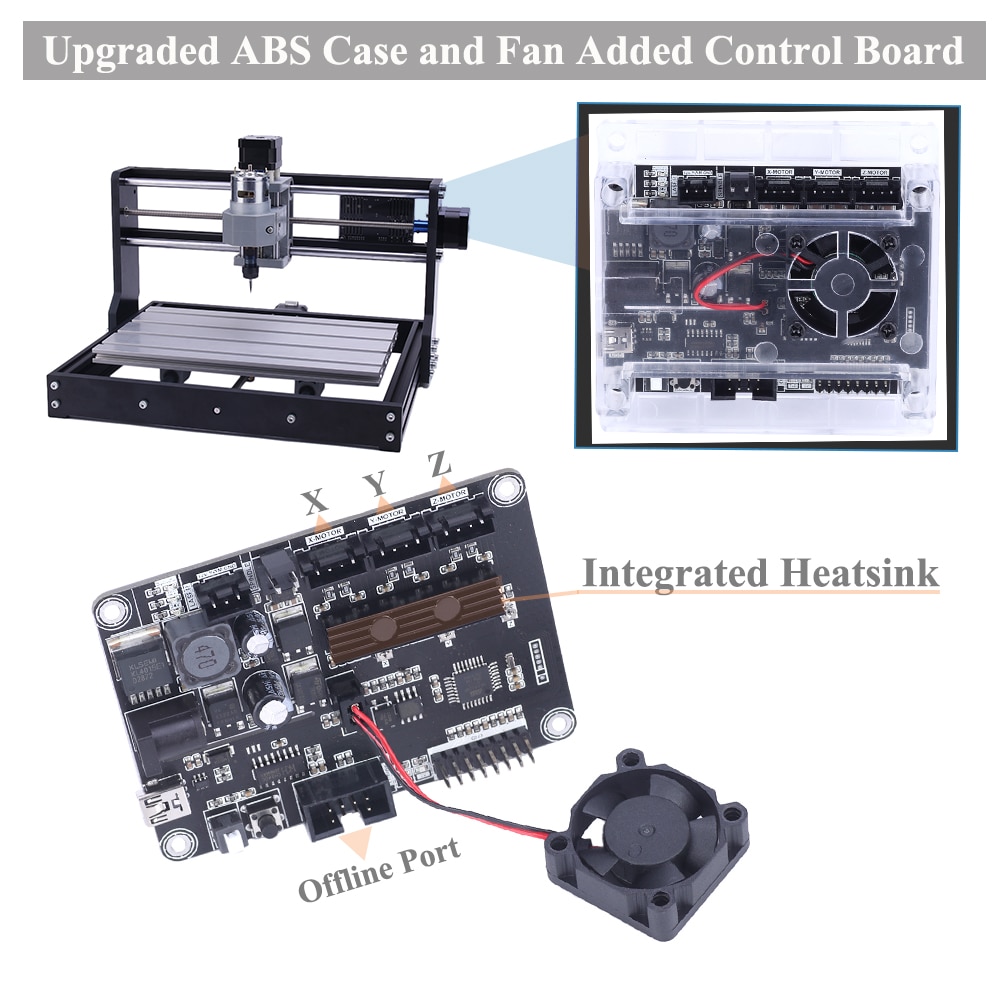

8.Added heat sink to avoid burning the control board or the offline controller
-

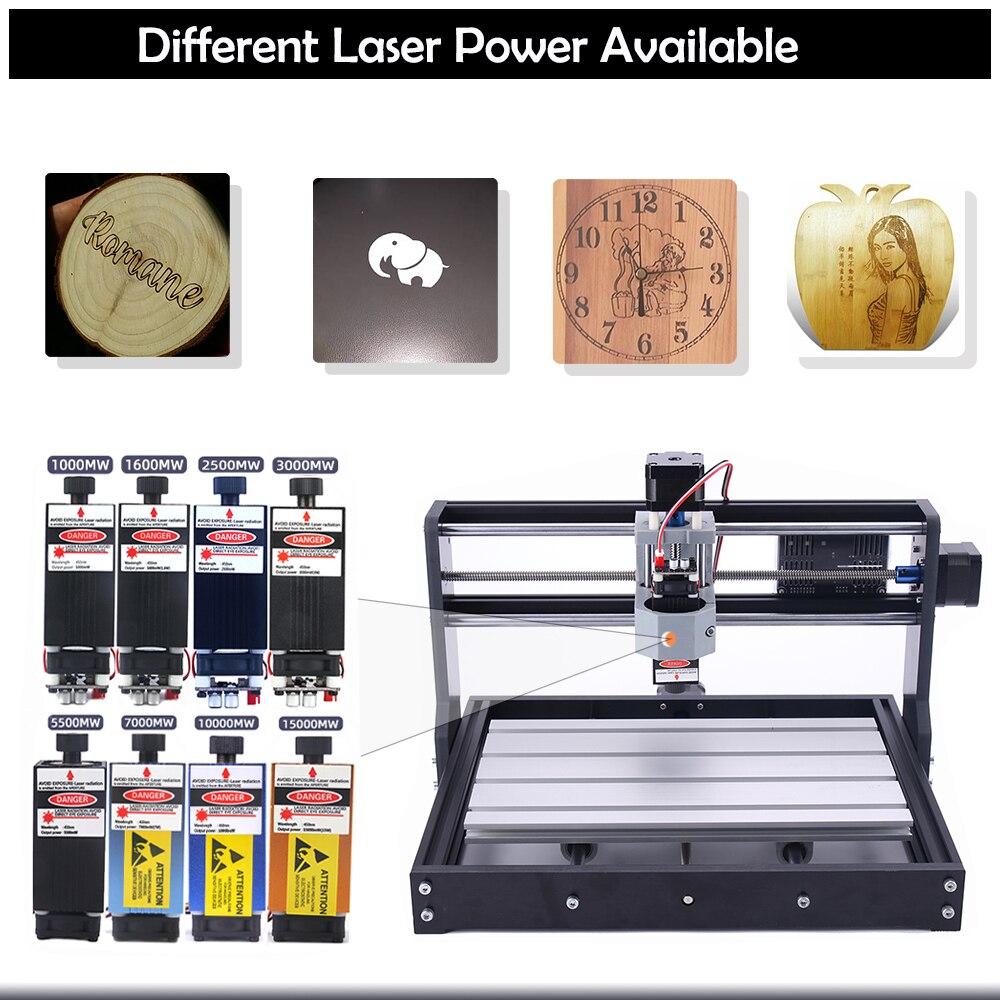

Upgraded 500mW/ 2500mW/ 3500mW / 5500mW/ 15W Laser Module
-
UpgradedBlue-violet laser module, which is 33mm, 3P connection, supports PWM/TTL, power 0-100% adjustable.
-
Laser wavelength: 445nm-450nm blue laser
-
Drive mode: external ACC constant current drive
-
Cooling method: forced air cooling
-
Operating voltage: 12V DC
-
Control interface: 2 * 2.54 (TTL control switch, PWM control power)
-
Shell material: aluminum, surface anodized

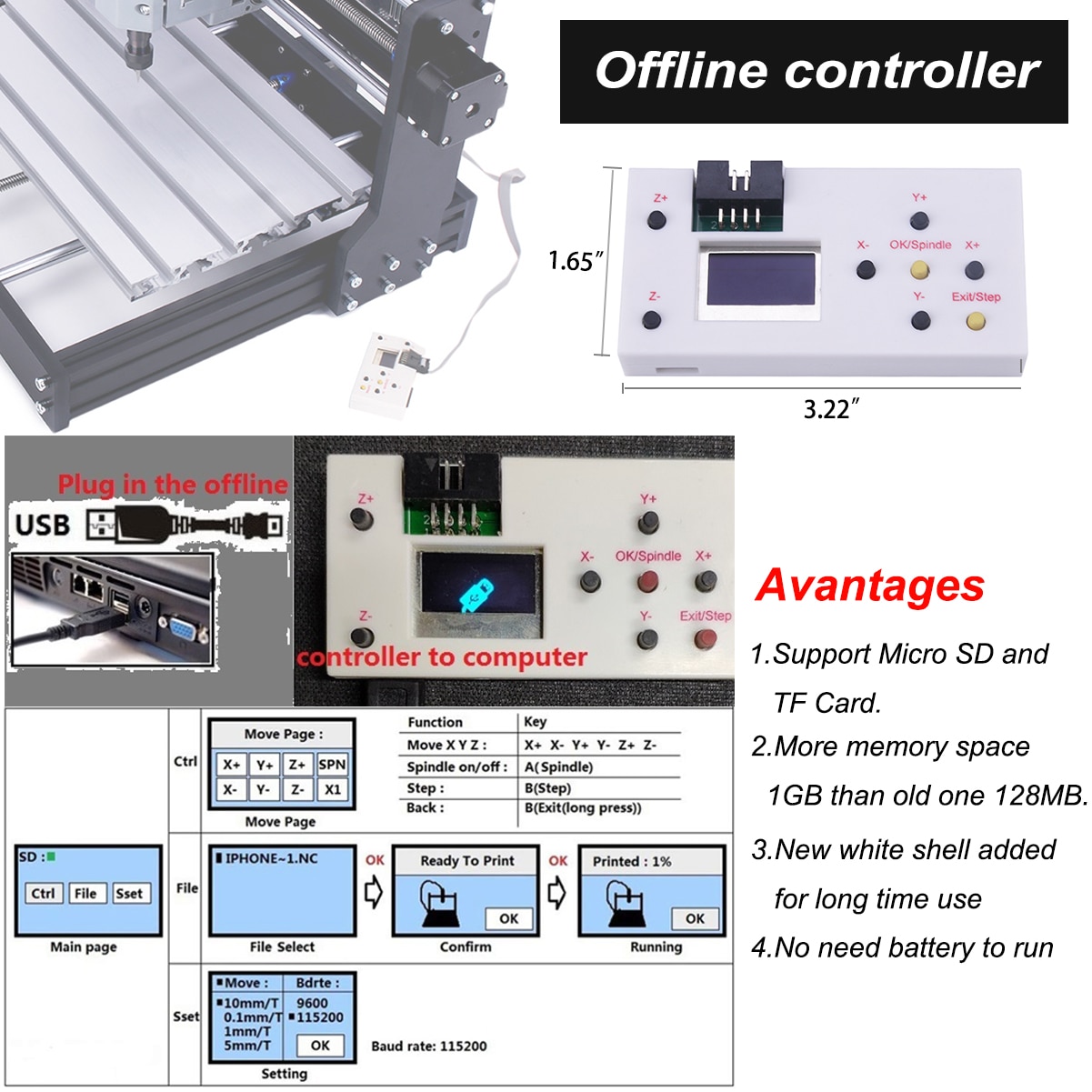

Offline controller : LCD screen with installed 1GB large SD card
About software and instructions
A 4GB USB Flash Drive includes software and installation instructions along with the package.
You can also download from our Web Cloud Disk(We’ll send you after shipment).
Or tell me your email address, we’ll send you the software and installation instructions.
Brief introduction
A.What area it can used for?
CNC 3018 router mini CNC milling machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.
B.What materials it can used for?
It can work forWood, acrylic,plastic,Jade, PCB ,PVCAdvertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home,Ideal formilling, engraving, drilling & cutting.
C. Samples
