Product Description：

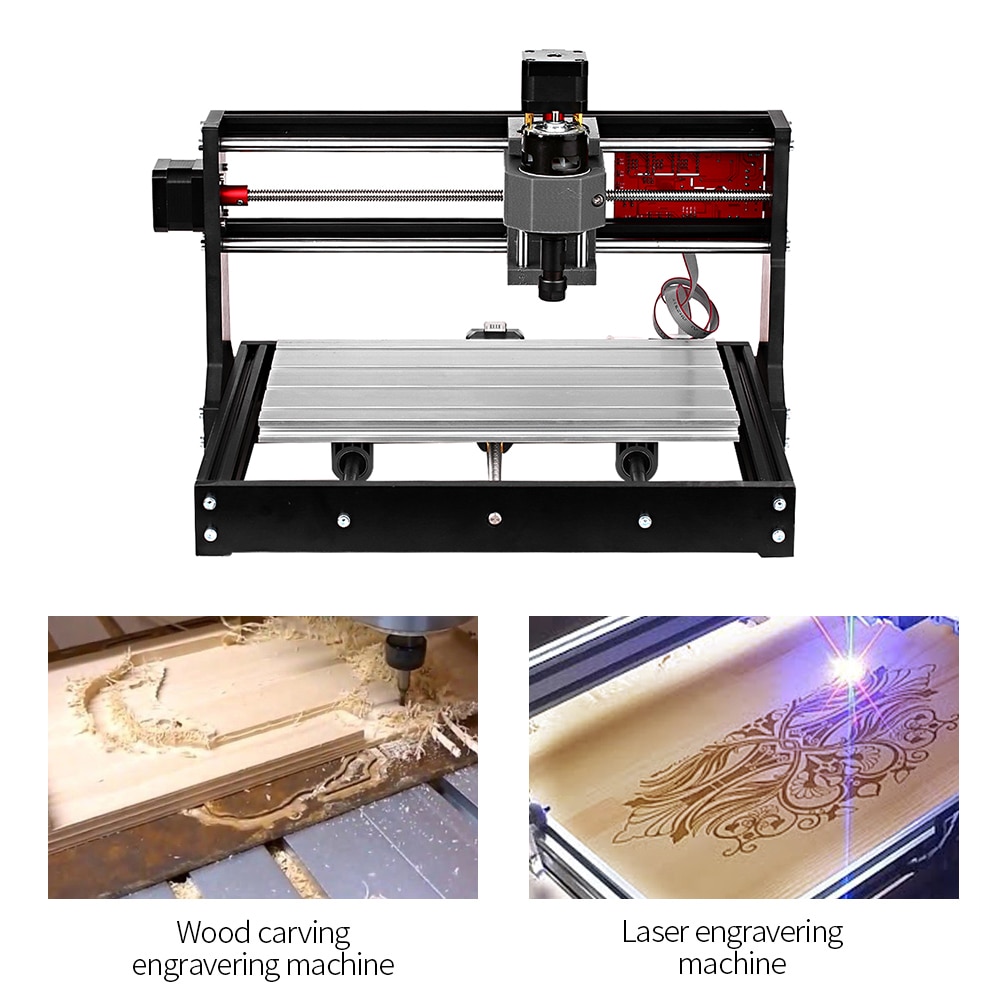

This DIY CNC engraving machine is especial designed for DIY fun, study and research, giving you extreme portable experience. This CNC engraving machine features the function of engraving, carving & milling. This carving machine can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material. Drill bit can not engrave hard metal, jade or other hard materials.

Features:

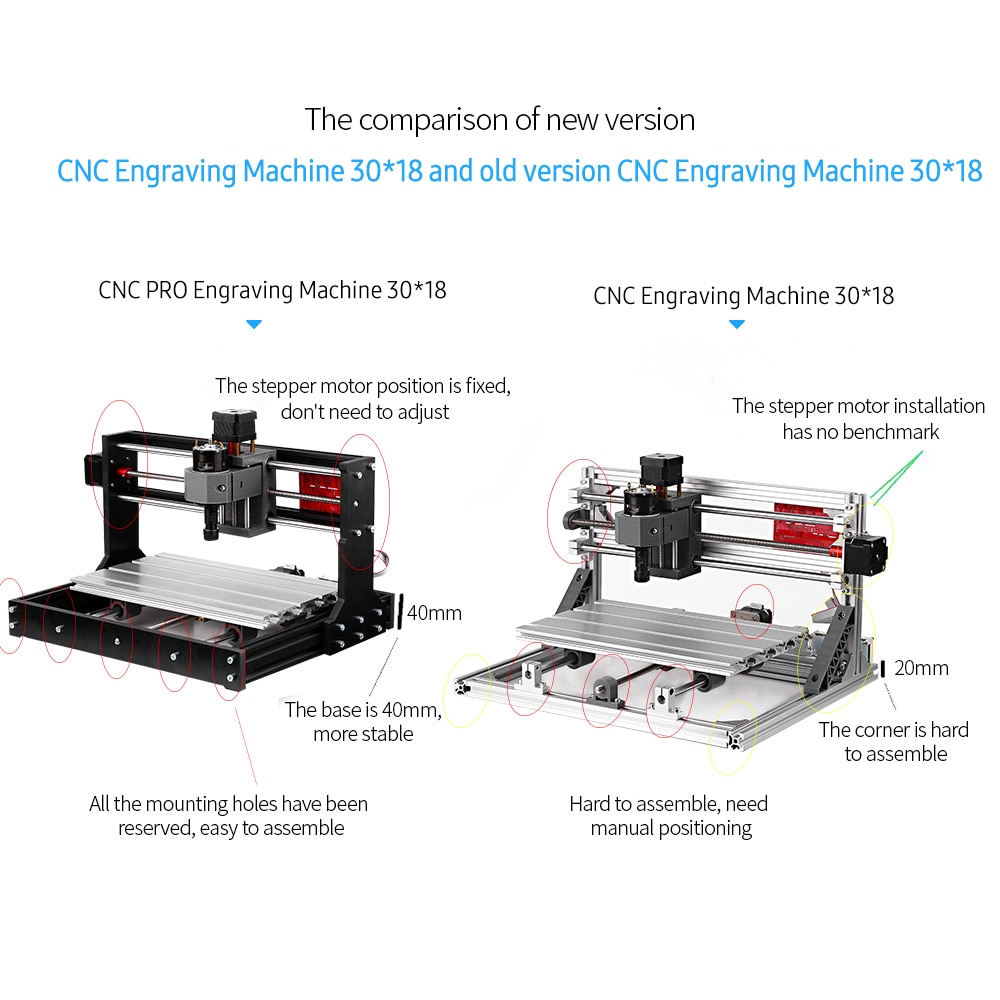

CNC PRO engraving machine 30*18 is an upgraded version, compared to the old model, with an offline offline controller, can be sculpture in the offline state.

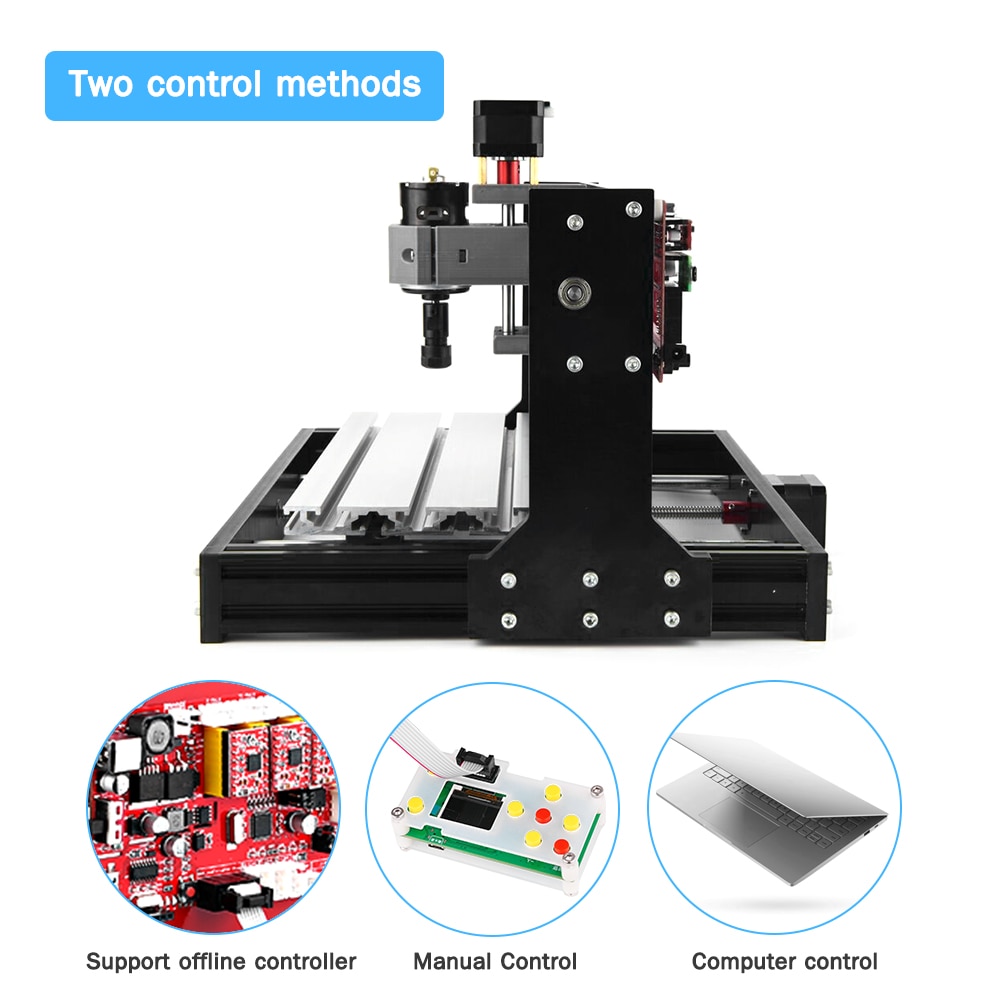

It can be The main two advantages of offline controller:
Do not need to connect computer. You can download the needed carving files into off-line controller.
Don’t need to download any files. The off-line controller can control all actions, can directly do some simple curving, such as punching, curving rectangle shape and so on.
This DIY CNC engraving machine is especial designed for DIY fun, study and research with professional GRBL control software, giving you extreme portable experience.
Made of aluminum and with red oxidation treatment, the all-metal fuselage is durable and good looking.
If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the laser module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity.

Specifications:
Model: CNC 30*18 PRO
Plug: US Plug + EU Adapter
Control software: GRBL
Material: Aluminum + plastic
Color: Silver+Black
Working Area: 300*180x40mm / 11.8*7.1*1.6in

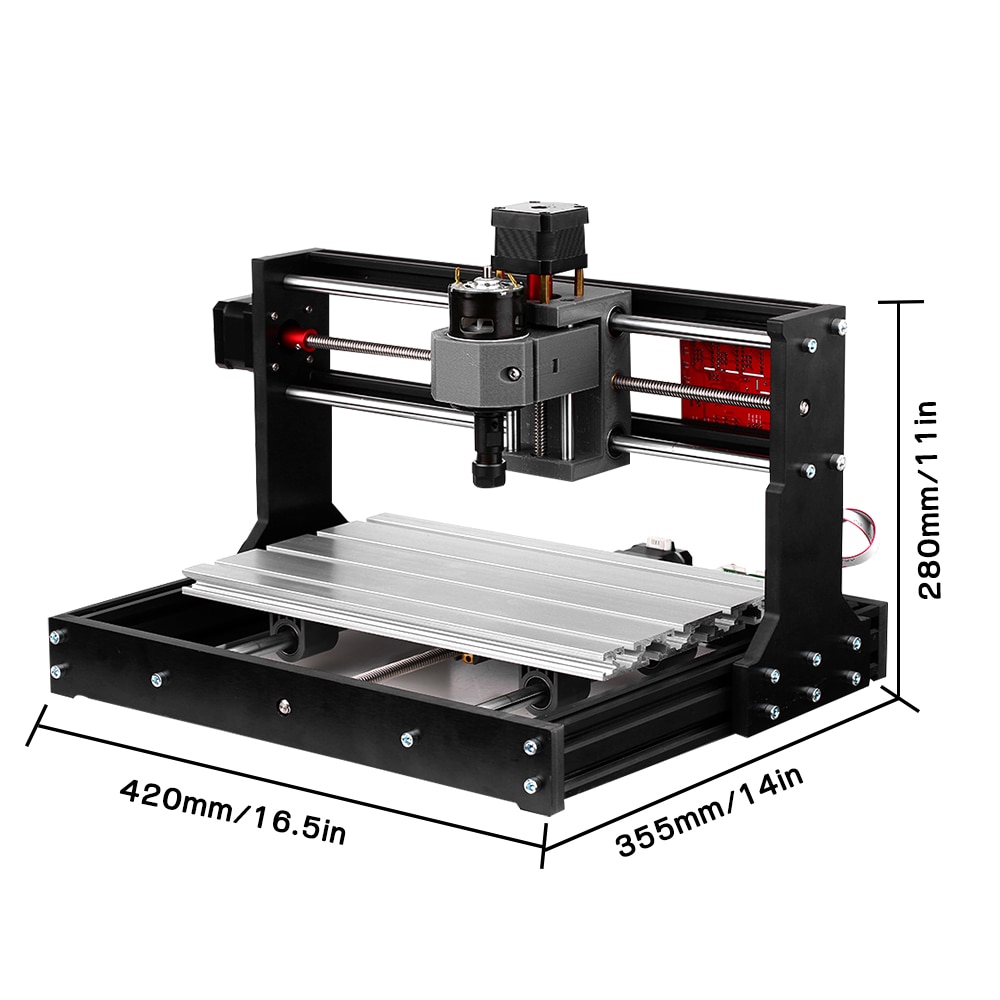

Frame Size: 420*355*280mm / 16.5*14*11in
Spindle: 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
Spindle Chuck: ER11
Step Motor: 1.3A  / 0.25N.m
Power Supply: 24V / 5.6A ((110 V-240 V)
Supported System: Windows XP / Win 7 / Win 8 / Win 10.
Engraving materials: plastic, wood, acrylic, pvc, pcb and other soft materials.
Supported Formats: jpg / bmp / png
Communication Port: Micro USB
Lead Screw: T8
Packing : Carton
Package Size: 7300g / 257oz
Package Weight: 44*25*18cm / 17.3*9.8*7in

Notes:
1. This machine is NOT assembled. You will receive all the parts in the package and you need to assemble it yourself.
2. Please note MDF is not equal to normal wood, as it doesn’t have a worldwide standard, so you need to test how deep the laser can cut.
3. Please wear laser goggles during using and avoid touching the laser directly with your eyes and skin.
4. The shipping package contains CD, you can  get laser engraving tutorial, CNC tutorial ,user guide, software download link, etc. from CD.
5. Offline controller is included in package.
6. The USB and offline controller can not be used together.
7. Software overseas download link QR code and YouTube video QR code for installation instruction are included in the package.

Use Of Method:
1. Connect the power supply and connect the USB.
2. Install the driver.
3. To Determine your Machine’s COM port.
4. Open grblControl software.

Package List:(DIY Kit, Need To Assemble By Yourself.)
1 * Complete Set of Parts and Installation Tools
1 * 5500mw Laser Module
1 * Goggles
1 * Spindle ER11 (Has been Installed)
1 * Woodworking Knife

CNC*3018 DIY CNC Router Laser Engraving Machine New Detail:

Features:
Small and practical, no problem for using on your desk.
The control system is open source (technology that controls system is provided) for some players who like DIY.
Desktop DIY mini CNC engraving machine for carving and more cost-effective than normal engraving machine.
Support our professional English design software for Win 7, XP, Win 8, Win 10.
500mw / 2500mw / 5500mw optional laser module with heatsink, high laser engraving power and long working time.

300 x 180 x 45mm large working area, Control Software: GRBL (include ER11 chuck).
Come with a pair of protective glasses to protect your eyes from getting hurt by laser.
Aluminum alloy and nylon material with fine workmanship show excellence in quality.
Very interesting to install and use, perfect gift for engraving DIY enthusiasts.
Wide application: can be used for print, hand tools and industrial processing.

NOTE:
1. The machine is DIY Kit, Need To Assemble By Yourself.
2. Please wear laser goggles during using and avoid touching the laser directly with your eyes and skin!
3. Materials can be engraved: wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet or other flammable plastic (such as phone case, mouse, pencil, name card, wallet, plastic comb).
4. Materials can’t be engraved: metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material.

Specifications:
Model: CNC3018
Laser Power: 500mw / 2500mw / 5500mw (Optional)
Laser Wavelength: 12V, 405nm (500mw), 450nm (2500mw/5500mw)
Material: Aluminum + Nylon
Main Color: Silver
Power Supply: AC 110-240V Output 24V 5.6A
Plug Type: EU
Supported OS: Windows XP / Win 7 / Win 8 / Win 10 (32/64)
Supported Formats: jpg / bmp / png
Communication Port: Micro USB

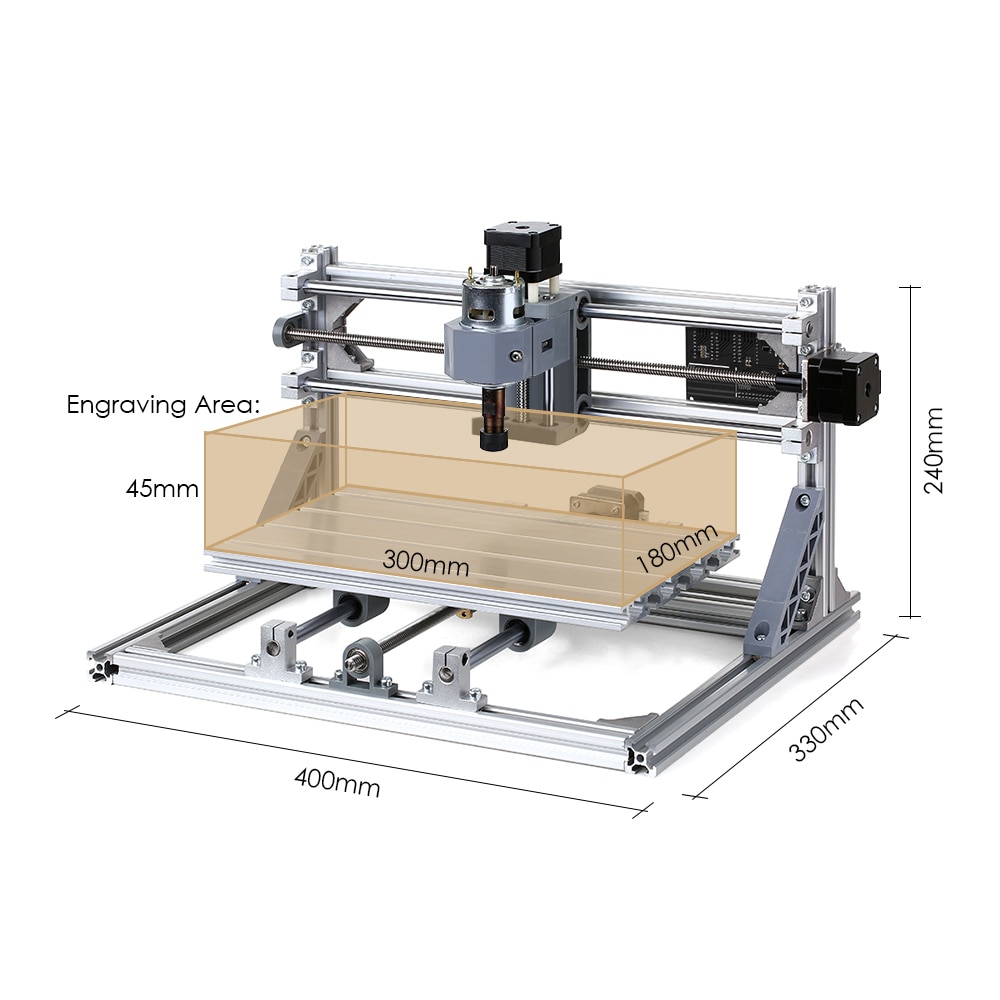

Engraving Area: 300 x 180 x 45mm
Frame Size: 400 x 330 x 240mm(Not include the motor protrusion part)
Table-board Size: 300 x 180mm
Spindle: 775 Spindle Motor 24V: 8000r/min
Spindle Chuck: ER11
Step Motor: Fuselage length 34mm, Current 1.33A, 12v. Torque 0.25N/M
Drill Bits: Tip 0.1mm, 20 degree, diameter 3.175mm (Contains 10 pcs)
Software: GRBL Control
Engrave Mode: Image Engraving, Text Carving, Scanning Carving, Contour Carving, Pixel Carving
Laser Quick Replace: Support
Can Not Carve Objects: All metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material.
Can Carve Objects: All wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet, etc.
Package Size: 45 * 23 * 17cm / 17.7 * 9.1 * 6.7in
Package Weight:
500mw 7443g / 16.4 lb
2500mw 7483g / 16.5 lb
5500mw 7573g / 16.7 lb

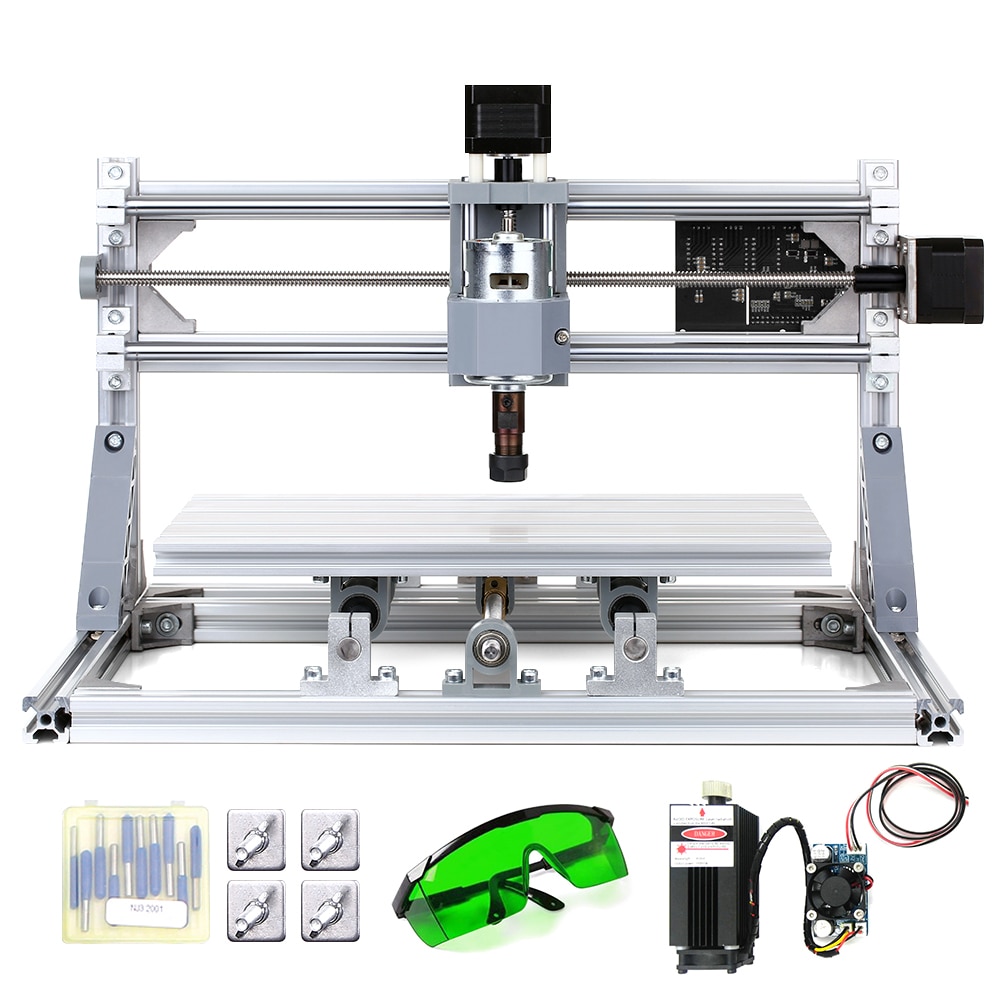

Package List: (DIY Kit, Need To Assemble By Yourself.)
1 * DIY CNC Engraving Machine Kit
1 * Laser Head
1 * Protective Glasses
10 * Drill Bits
1 * ER11 Spindle Chuck
