Product Description
NEJE Master 2/3 Max A40640 80W pro 460 x 810 mm professional laser engraving machine, laser cutter – lightburn – bluetooth – app control
NEJE 3 max A40640 80W pro Description
|
Model
|
NEJE 3 MAX A40640 Laser engraving
|
|

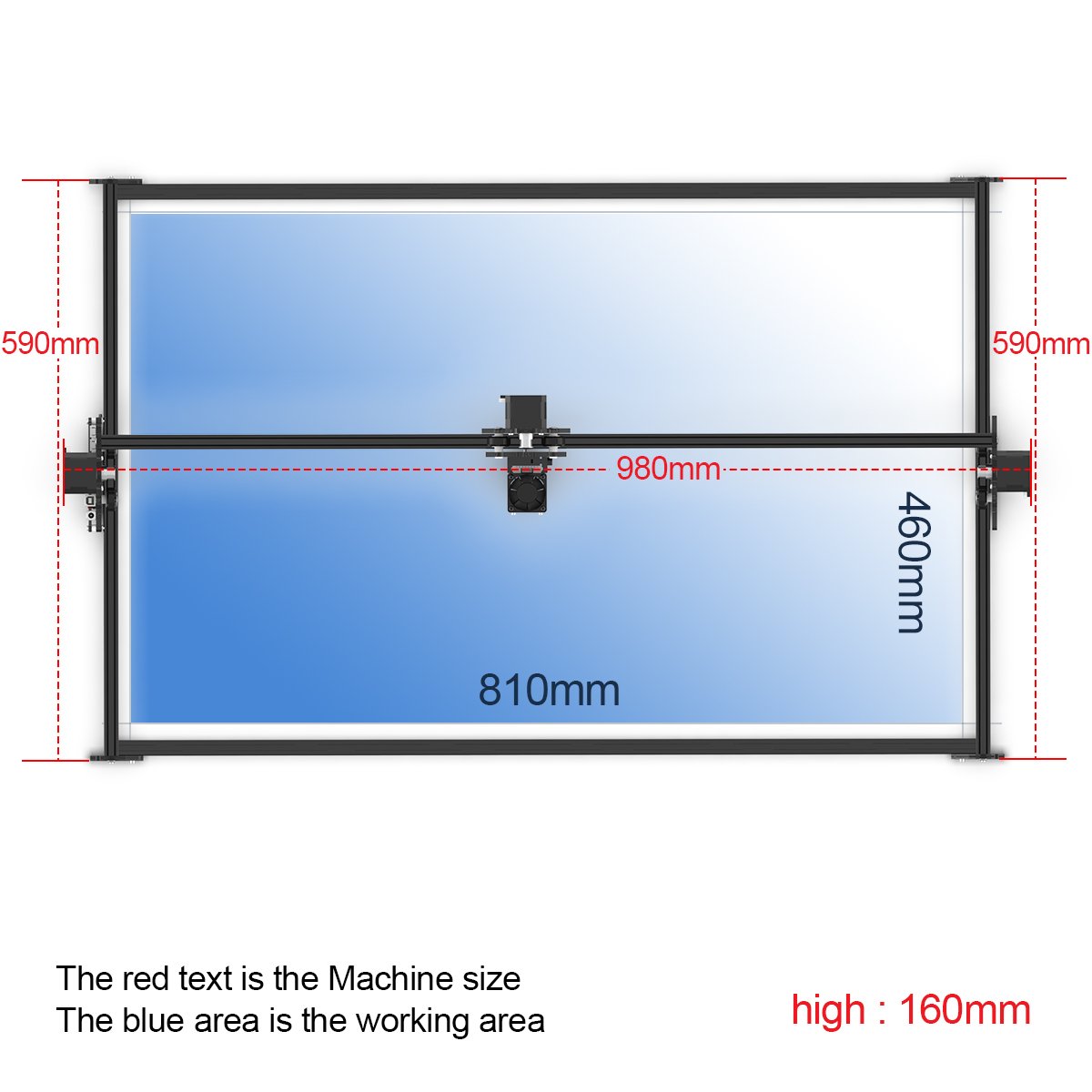

Frame Size (LxWxH)
|
590 x 980 x 160 mm
|
|
Engraving Area (XxY)
|
460 x 810 mm, support extension to
1030*810mm |
|
Material
|
Aluminum alloy + PC
|
|
Dot Pitch
|
0.075mm
|
|
Pixel
|
6133 x 10800 px
|
|
MCU
|
32-bit MCU
|
|
Input
|
12V 5A
|
|
Vertical Carving
|
YES
|
|
Module Height Adjuster
|
YES
|
|
Limit Switch
|
YES
|
|
Technology
|
Y-axis fit adjustable design, X-axis stress fit assembly
|
|
Feature
|
Fit, high precision, stablize, smooth, no oil, easy maintenance, long life
|
|
Drive Design
|
Built-in
|
|
Input
|
80W
|
|
Optical Power
|
10W -15W
|
|
Wavelength
|
450nm
|
|
Number of Diodes
|
2
|
|
Light Source
|
2 X LD + FAC Tech + C-Lens
|
|
Off-Line Working
|
Supported
|
|
Max A40640 Can Engrav
|
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/acrylie/ABS Board/PVC Sheet/PPR/PCBA/Bakelite/Carbon
fiber/paint metal/Anodized Aluminum/ Stainless Steel/brushed glass/cobblestone/brushed ceramic |
|
MAX A40640 Can cut:
|
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Non-woven/cotton/linen/velvet/canvas/acrylie/ABS Board/PVC Sheet/EPE/KT board(
up to18mm)etc |
|
Software
|
NEJE APP for Android, NEJE software for windows, LaserGRBL with firmware GRBL1.1f. LightBurn Software with firmware
GRBL1.1f.LightBurn ( paid software from the official website of Lightburn.) supports Windows. Software for iphone and macOS is under development. |
Users feedback
What NEJE 3 Max has improved::
You can safely and stably upgrade to the latest GRBL firmware through NEJE software, When using the device for the first time, please open the NEJE software to update to the latest firmware. NEJE optimizes the low-light experience in GRBL mode for diode lasers, and the low-light settings can be adjusted through the laserGRBL software. NEJE is compatible with M8, M7, Door functions, and automatically adapts to lightburn, laserGRBL and NEJE software for better automation of processes. The motor is automatically locked when power is turned on, and secondary processing can be performed when repeating the engraving work, so that the position information will not be lost. NEJE win software adds area customization settings, NEJE provides the function of expanding the orbits, both the Y-axis area and the X-axis area can be freely expanded, and the laser module also automatically engraves silently. NEJE 3 comes standard with a high-pressure air assist kit. NEJE 3 adopts all-metal frame + PC CNC structural parts, which improves the stability of the structure and enhances the smoothness of movement. It also adopts easy maintenance driving structure. NEJE 3 Max comes standard with M8 air valve kit for controlling air assist, M7 relay switch kit for controlling smoke exhaust system, and Door switch for emergency stop. NEJE 3 Max is equipped with a towline as standard to organize air pipes and wires for easy installation into a closed box. NEJE has greatly enhanced the anti-static and surge design under the new control system. NEJE has passed the very severe test in the experiment, which has greatly improved the reliability of the NEJE control system. The new system does not require additional grounding to protect equipment. The new laser uses a high temperature resistant window to protect the lens, which effectively improves the service life of the lens.
Specifications:
