Notice:

3018 /3018Pro and 3018Pro Max have the same function and engraving area except the frame material and shape.

This 3018Pro Max is much more light and portable,convenient,Easier to install (Just need about 20 minutes to finish) Frame Material of 3018Pro Max :

High Quality Phenolic Resin Frame Material of 3018: Aluminum alloy Package include: Please Carefully to Choose you want, you’d better contact us. 1.Standard: 3018Pro Max+ER11+4pcs clips+10pcs bits

2.Add Offline Controller: 3018Pro MAX+ER11+4pcs clips+10pcs bits+Offline Controller

3.Add Laser: 3018Pro MAX+ER11+4pcs clips+10pcs bits+Goggle+Laser(Which one you choose)

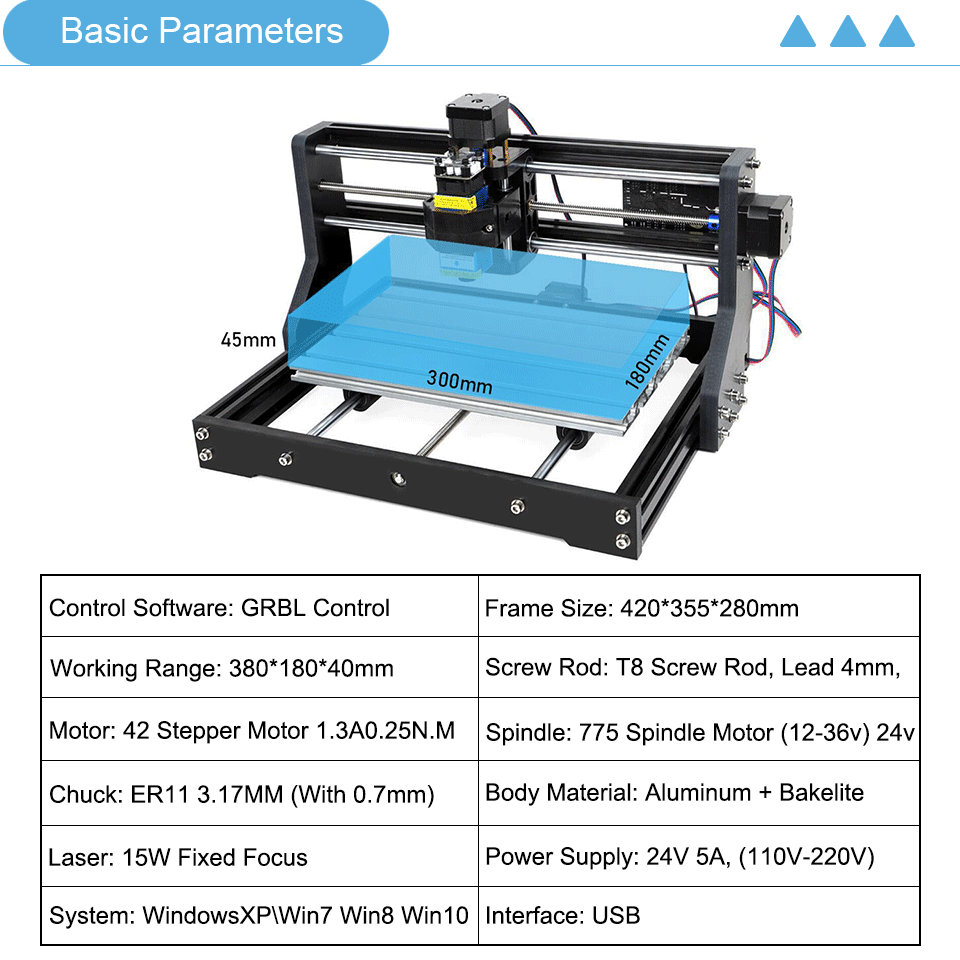

Function and Parameter:

Model: 3018Pro Max

Engraving area: 300x180x45mm;

Aluminum alloy Plate area:300x180mm;

Spindle Motor:DC24V, Max. 120Watt ,10000rpm;

Stepper Motor: DRV8825 , than better A4988 .

Input DC12V,1.3A, 0.3Nm Torque;

Power Supply:Input AC100-240V,50/60Hz, 1.3A,

Output DC24V 5A;

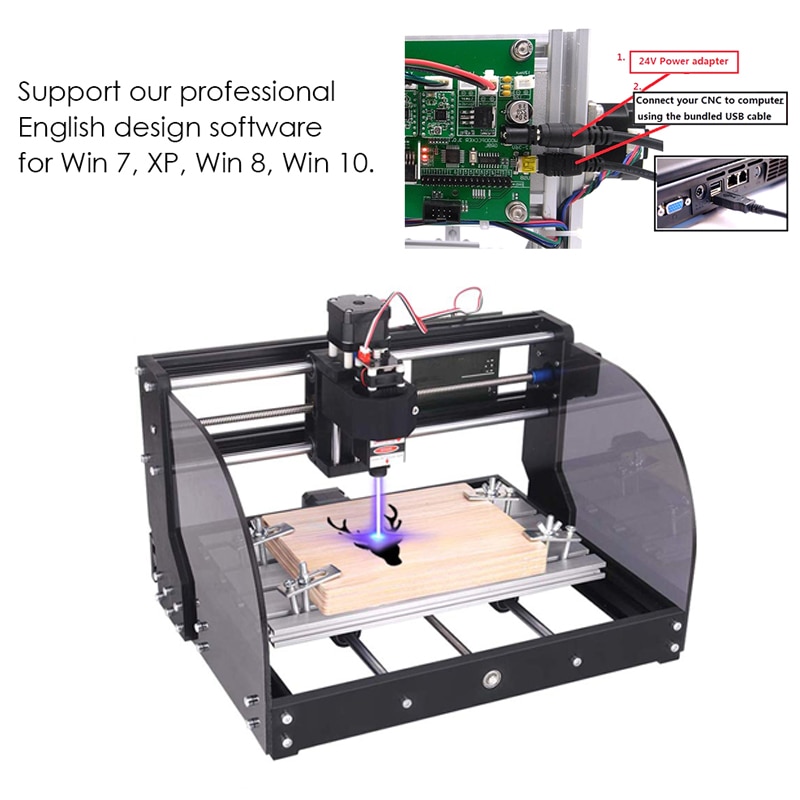

Control Software: GRBL Control;

Available System for PC: Windows XP/7/8/10(Not support Mac OS);

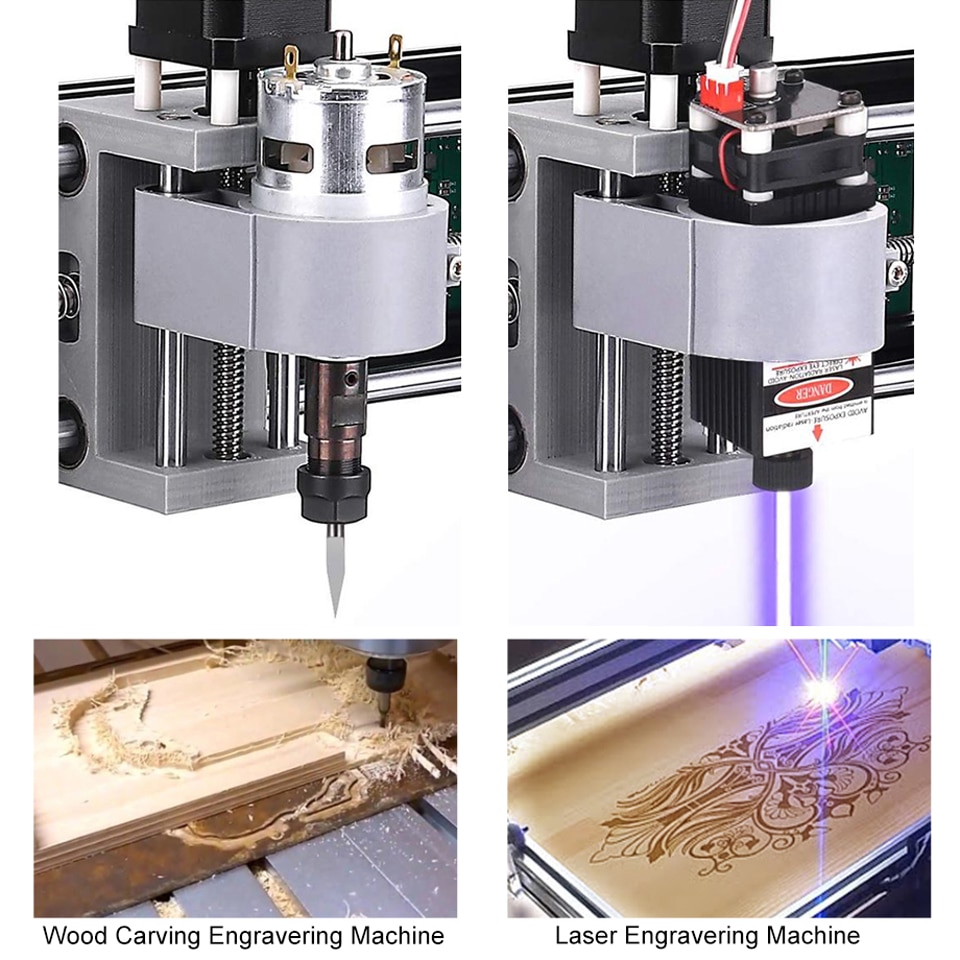

ER11 was installed on the spindle motor 3 Axis engraving for: Wood,Plastic,PCB,Acrylic,Plywood,etc.

Laser engraving for: Wood,Plastic,Leather,Bone,Stone,Paper,Shell,etc.

Note:The 15W fixed focus laser can engrave on stainless steel and anodized aluminum.

Notice

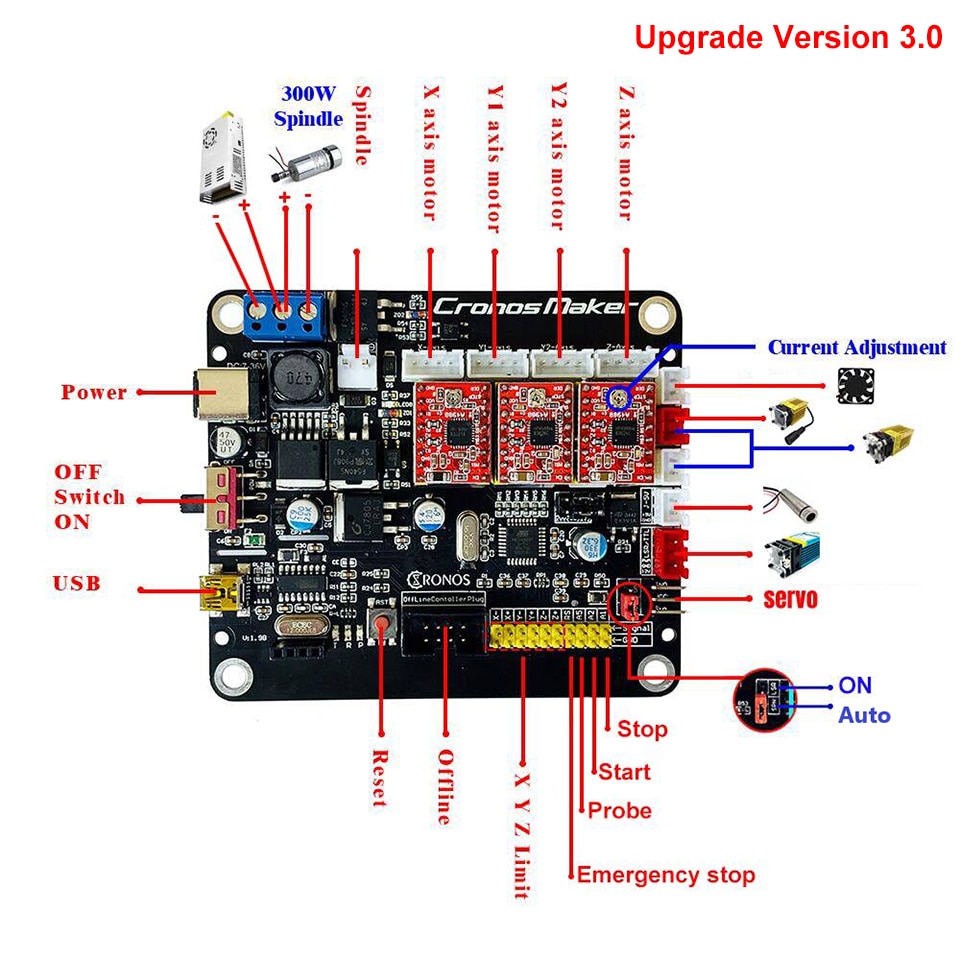

The cost does not include customs clearance fees and customs duties. We can help buyers clear customs. 1.PCB(how to connect) 2.Offline Controller (optional)

Laser

500/2500/3500/5500mW/15W Laser Optional

Product Detail

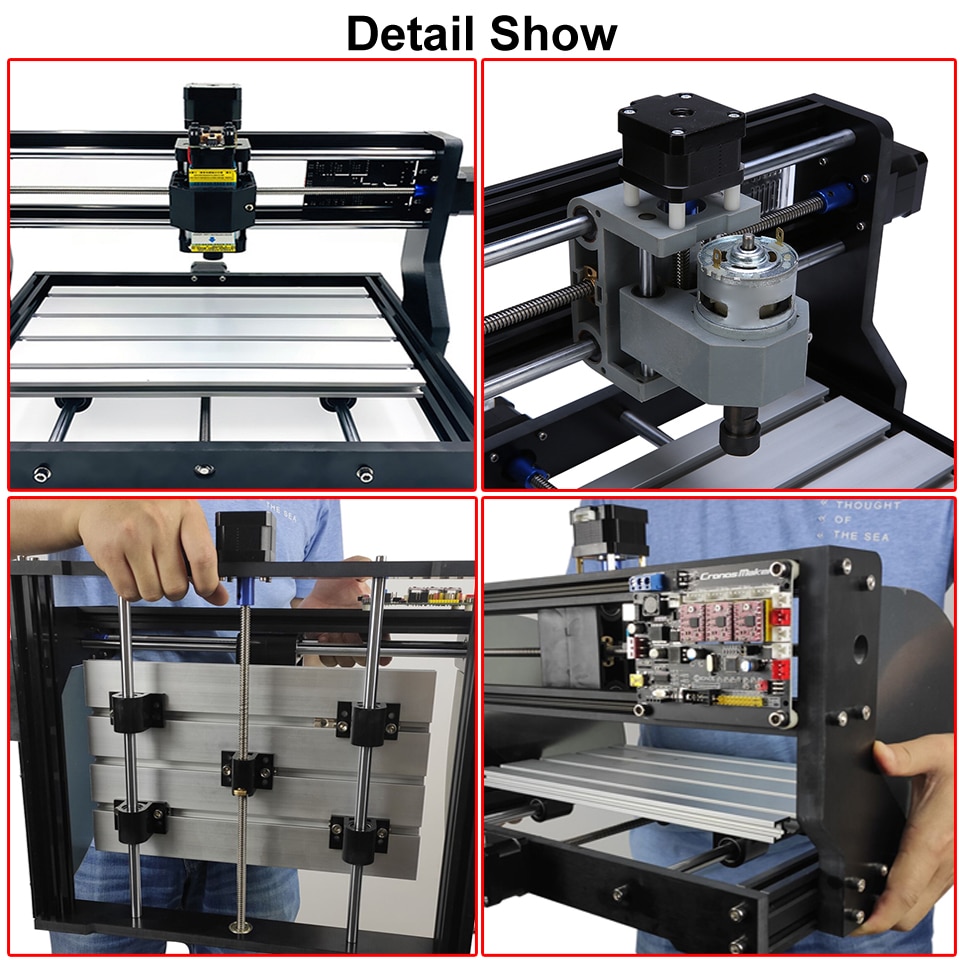

High-quality Product Details

Soft

About soft USE

Package List

 AS PHOTO ,IF YOU HAVE ANY QUESTION , PLEASE CONTACT US.

Laser Engraving Machine
