Description
- Brand Name: YOOCNC
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: 3040/6040/8060
- CNC or Not: CNC
- Is Smart Device: NO
- Spindle Collet: ER11/ER20 3.175mm
- Spindle Power: 800W/1500W/2200W
- Limit switch: YES

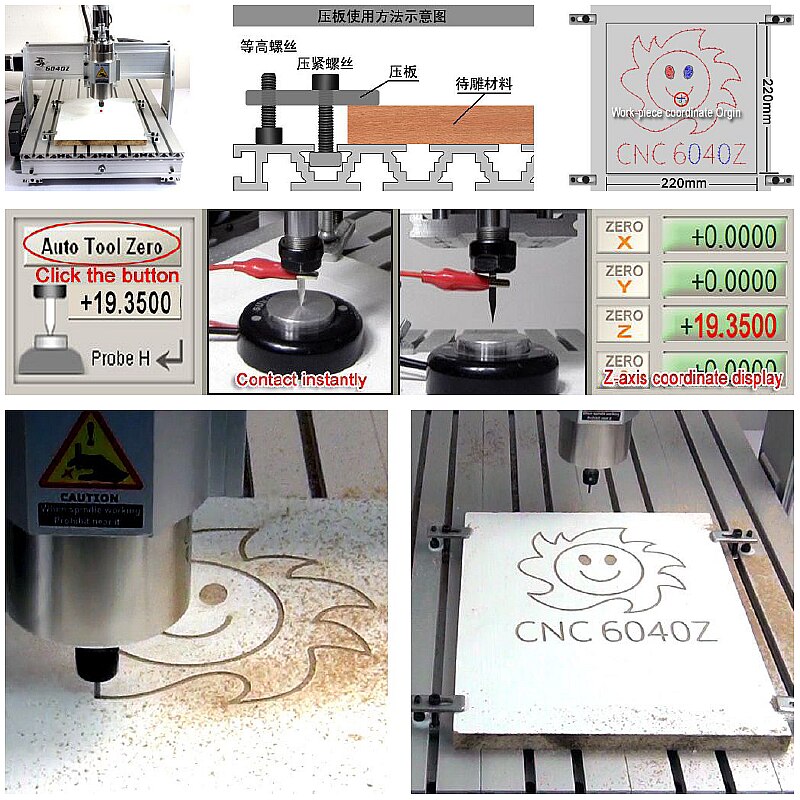

- Tool auto-checking: YES
- Interface: Parallet port /usb port
- Type of screw: Ball screw 16mm, Pitch 5mm
- Stepper motor and drive: two-phase hybrid stepping motor 57BYGH56-2.5A, 8 segments drive.
- Repeat positioning Accuracy: 0.03mm
- Maximum operating speed: 4000mm/min (Engraving speed: 300-3000mm/min)
- Software Compatability: Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Package has CD , CD include detail english manual and software , it is very easy for operate the machine ,
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
|
MODEL |
3040/6040/8060 |
|||
|
Attribute |
3axis-LPT |
3axis-USB |
4axis-LPT |
4axis-USB |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Interface |
LPT port |
USB port |
LPT port |
USB port |
|
Limit switch |
Yes |
yes |
Yes |
Yes |
|
Tool auto-checking |
Yes |
Yes |
Yes |
Yes |
|
Spindle Motor: |
800/1500/2200W |
800/1500/2200W |
800/1500/2200W |
800/1500/2200W |
|
Type of screw |
Ball screw |
Ball screw |
Ball screw |
Ball screw |
|
Weigh |
56 |
56 |
60 |
60 |
|

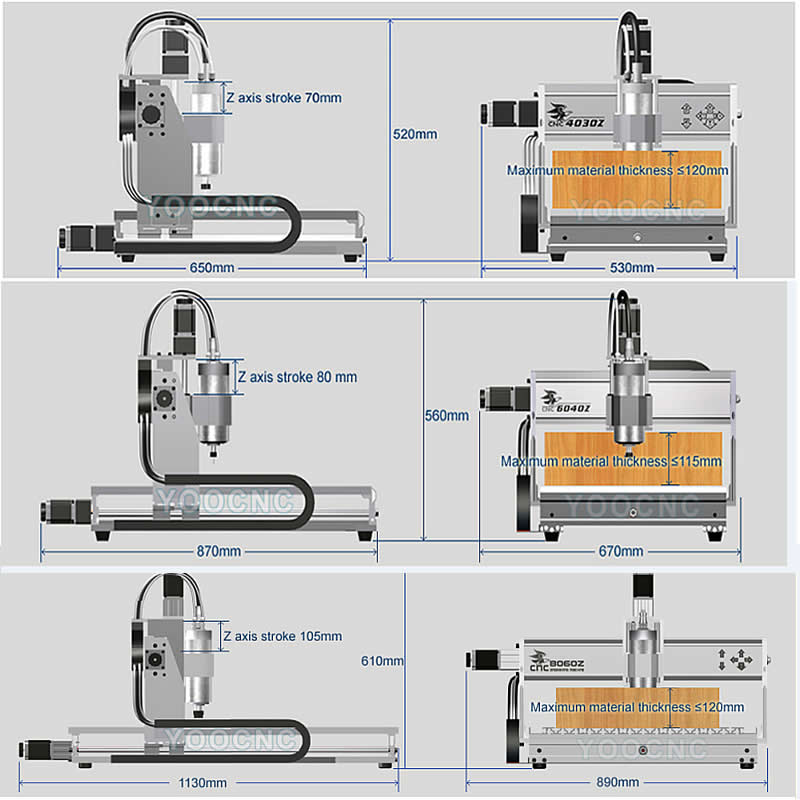

Machine Dimensions: 3040 6040 8060 |
650X530X520mm 870X660X520mm 1130X890X610mm |
|||
|
Rack material: |
6061 and 6063 Hard aluminum alloy |
|||
|
Engraving area: 3040 6040 8060 |
395X285mm 575X375mm 790X580mm |
|||
|
Z-Axis Stroke: 3040 6040 8060 |
70mm, 80mm, 105mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
≤ 115mm |
|||
|
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||
|
Type of screw: |
3040/6040 :Ball screw 1605, Pitch 5mm 8060: Ball screw (XZ axis 1605, Y axis 2005) |
|||
|
Spindle motor: |
800W/1500W/2200W VFD water cooling spindle , 0-24000r/min |
|||
|
Collet type: |
800W/1500W ER11,1/8″(3.175mm) Collet/ 2200W er20 |
|||
|
Stepper motor and drive: 3040 6040 8060 |
two-phase hybrid stepping motor 57BYGH56-2.5A, 8 segments drive. two-phase hybrid stepping motor 57BYGH76-3A, 8 segments drive. 60BYGH86-3.5A, Each axis independently driven |
|||
|
Maximum operating speed: |
4000mm/min (Engraving speed: 300-3000mm/min) |
|||
|
Repeat positioning Accuracy: |
0.03mm |
|||
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||
|

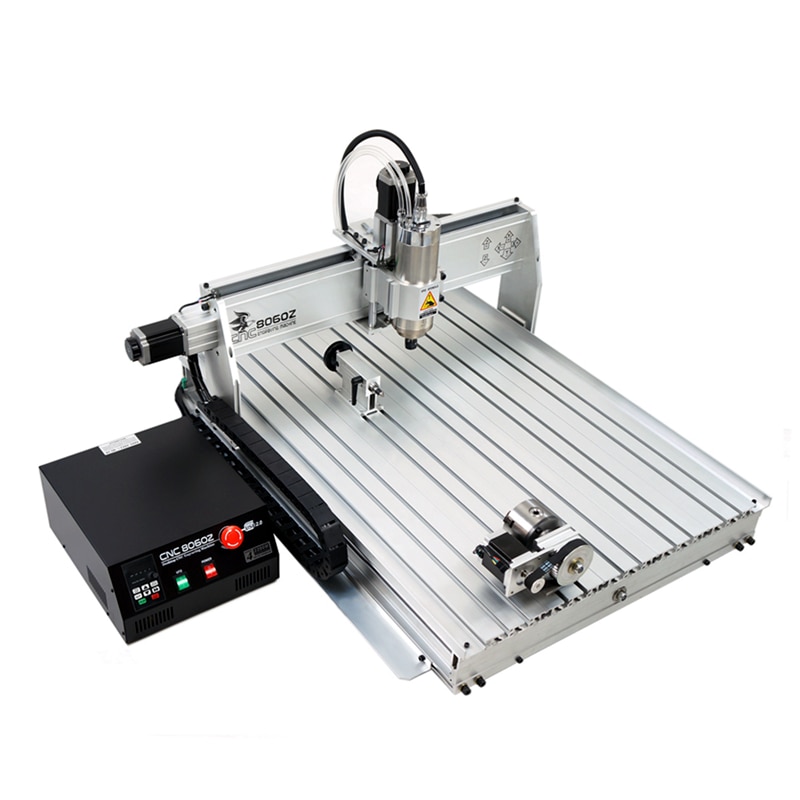

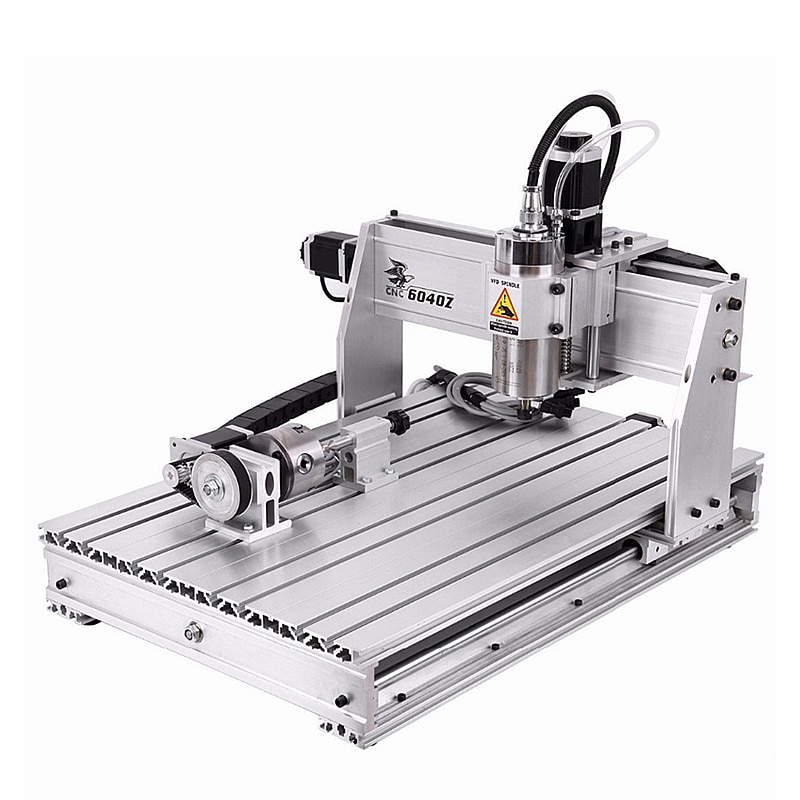

Rotation Axis (4th Axis) Description: |
Center height: H = 60mm Maximum turning diameter: ≤ 110mm Deceleration ratio: 3:1 Stepper motor: NEMA23BHH76-3A Weight: 4.2KG |
|||
