CNC 3040 Plus Metal Frame Engraver Laser/Spindle 2 in 1 with New Multifunction GRBL Control Box GRBL DIY Pcb Milling Machine

$279.07 – $740.52

SKU: 1005003101805061 Category:

Description

  • Brand Name: MASTER JIANG
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: CNC 3040 Plus Engraving machine Kits
  • CNC or Not: CNC
  • Is Smart Device: NO

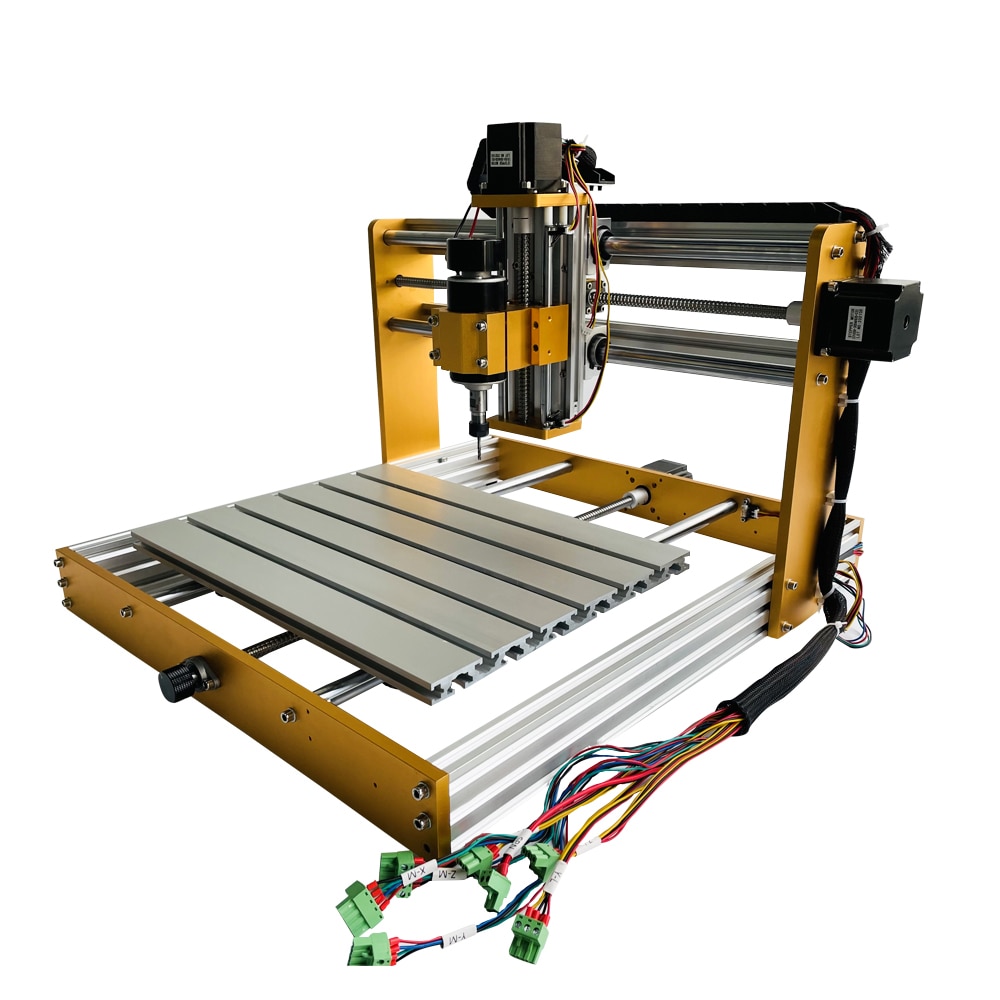

CNC 3040 Plus Metal Frame Engraver GRBL DIY Pcb Milling Machine, Laser/Spindle 2 in 1 with New Multifunction GRBL Control Box Milling Machine Equip

Specification:

Model: CNC 3040 Plus

Working area: 300 x 400 x 120 mm (about 11.81 x 15.74 x 4.72 inch )

Z axis stoke: 120mm, after install limit switch it is 100mm

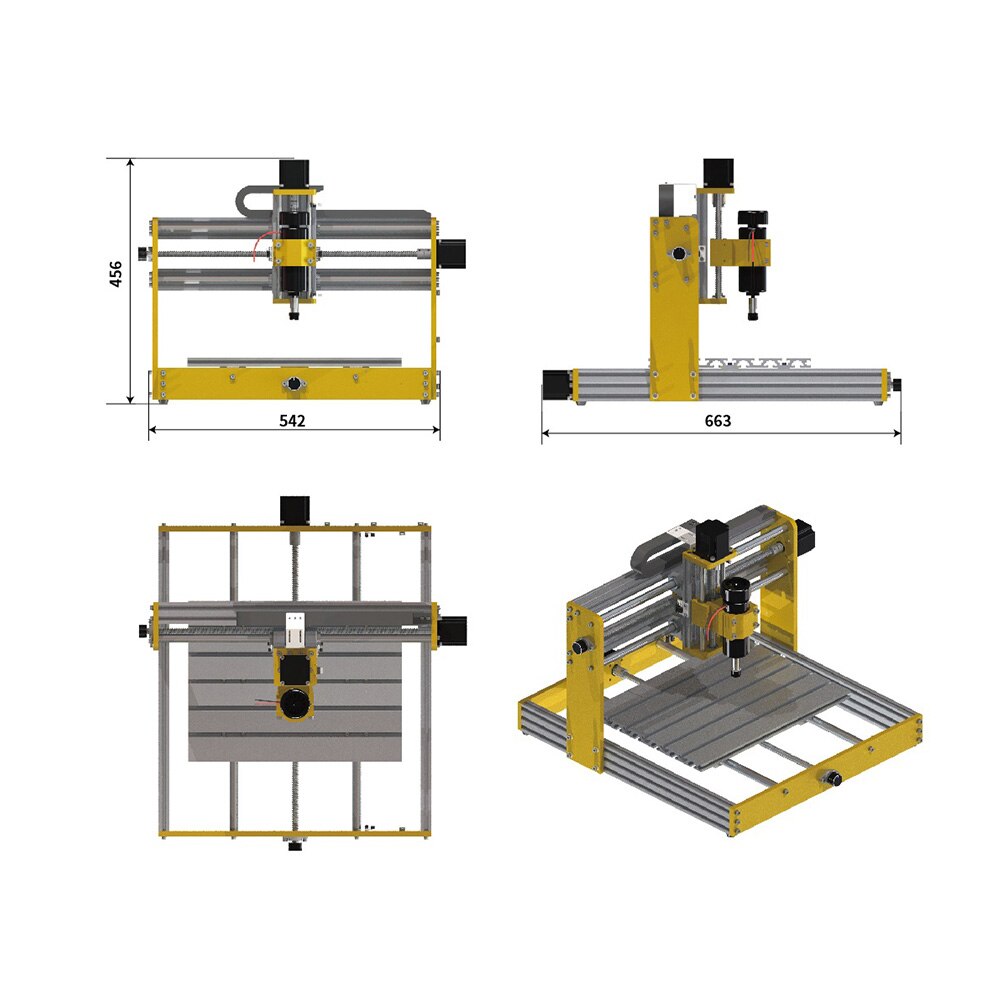

Frame: 542 x 663 x 456 mm (about 21.33 x 26.10 x 17.95 inch )

Material: Aluminum profile 2060

Stepper Motor: Apply to Nema23 57 Stepper motor

Screw: Ball-screw 1204

Optical axis: Diameter 16mm

Control board: GRBL 5.3 Multi-function control board

Supported System: Win 7/8/10

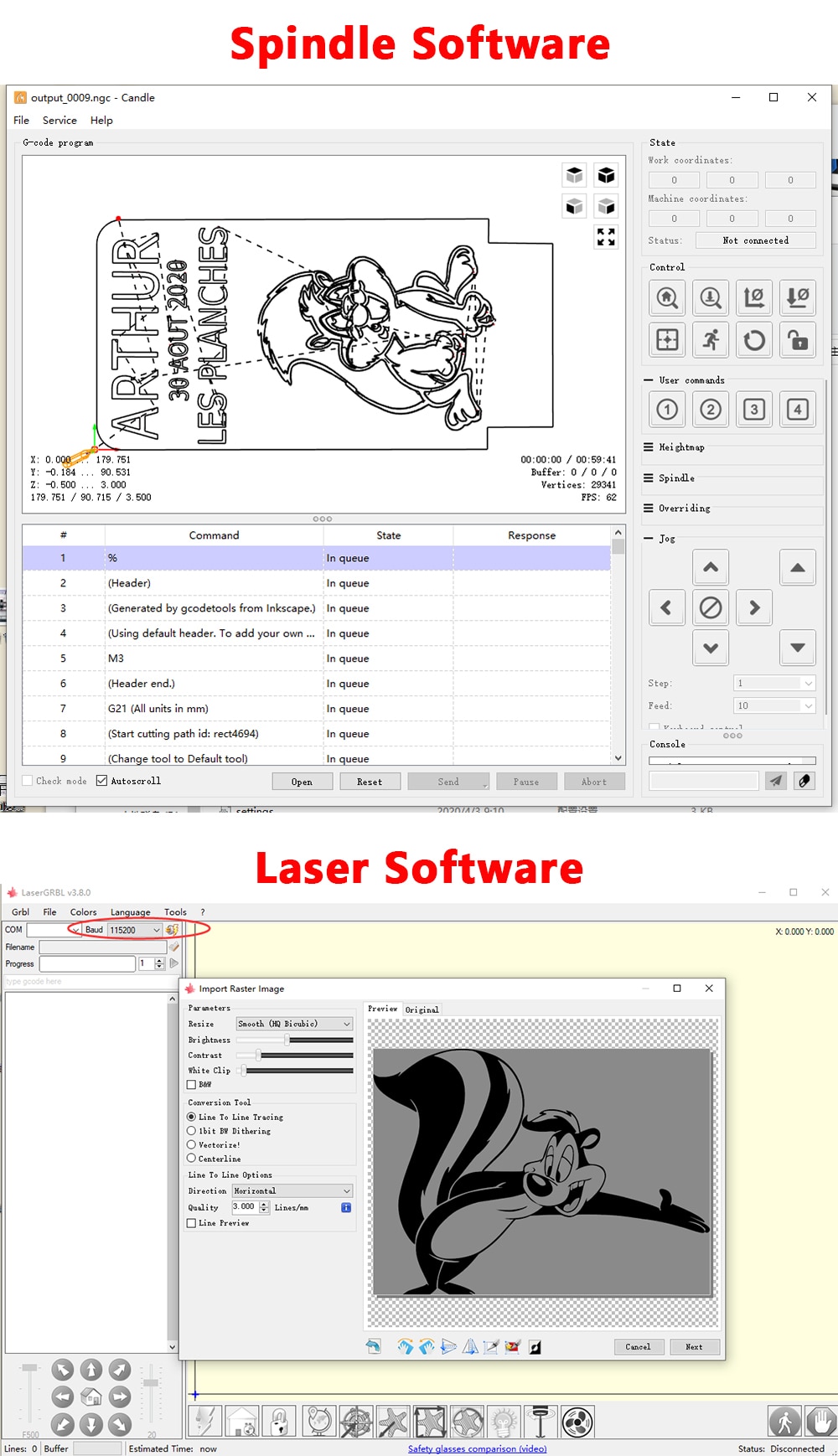

Supported Software: CANDLE 1.1, LASERGRBL, Weidiao and etc.

Suppoted Material: Wood, acrylic, PVC, nylon, epoxy resin, glass fiber PCB board, POM, carbon fiber board

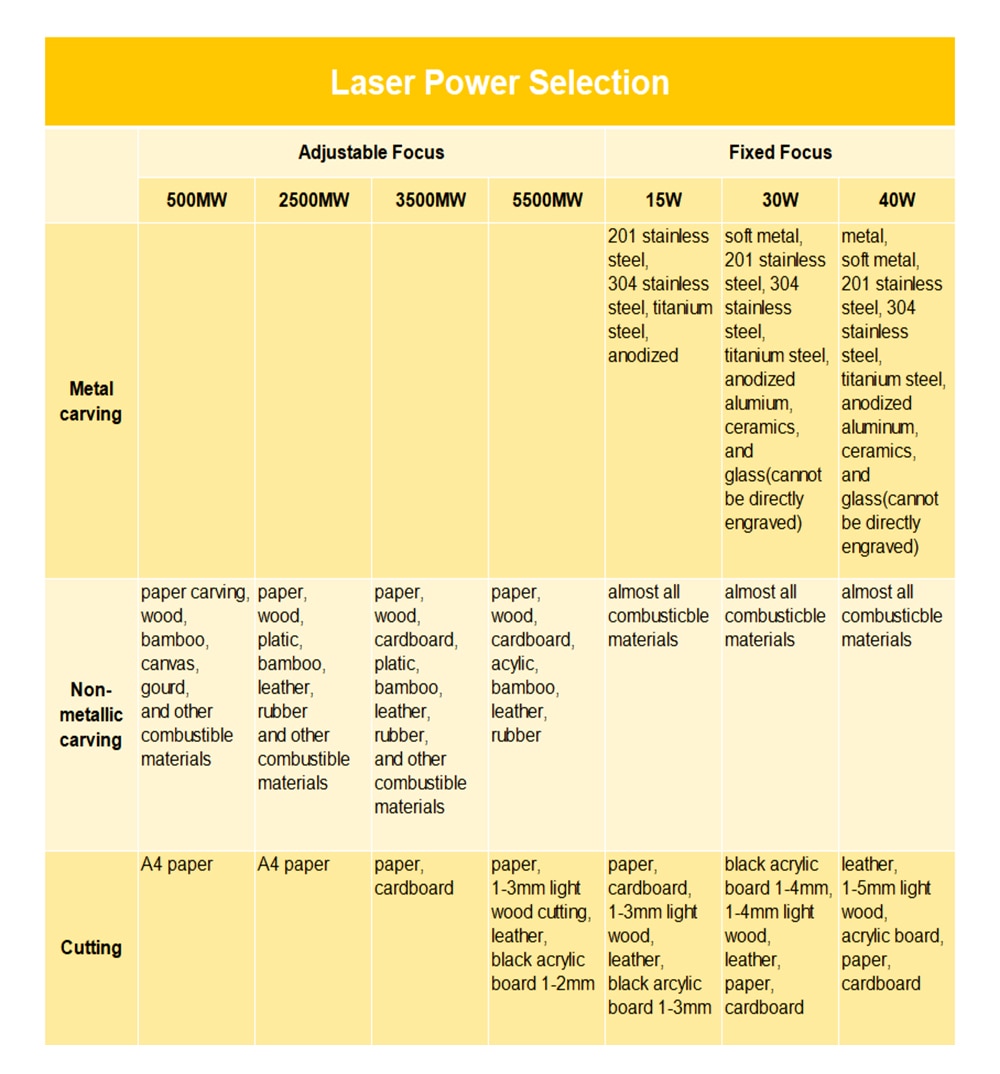

Suppoted Material of Laser: wood, plastic, anodized aluminum, stainless steel (304, 201)

Limit Switch: 6pcs, 3pin cable

Emergency stop switch: 16mm



Features:


1. Z-axis module upgrade 12cm stroke


2. Z-axis adopts customized holes for easier installation


3. Customized limit switch, emergency stop switch installation hole, direct installation, convenient and quick


4. Using ball screws, higher precision and higher work efficiency


5. The control box design integrates the functions of control board, power supply, limit, emergency stop, etc., easy to connect


6. The drag chain and wire clamp are designed to organize all the connecting lines together in a neat and orderly manner


Friendly Reminder:


1. The spindle motor and laser cannot be connected at the same time

2. The offline control board and the SUB data cable cannot be connected at the same time

3. Turn on the power after the electrical connection is completed

4. The positive and negative of the input power must not be reversed, and the reverse connection will burn


5.The laser cannot be used to carve or engrave mirror or reflective materials!

6. This kit is disassemble, needs the customer DIY assembling, needs certain electronic and the Mechanical Foundation.





Package Introduction:

Frame：

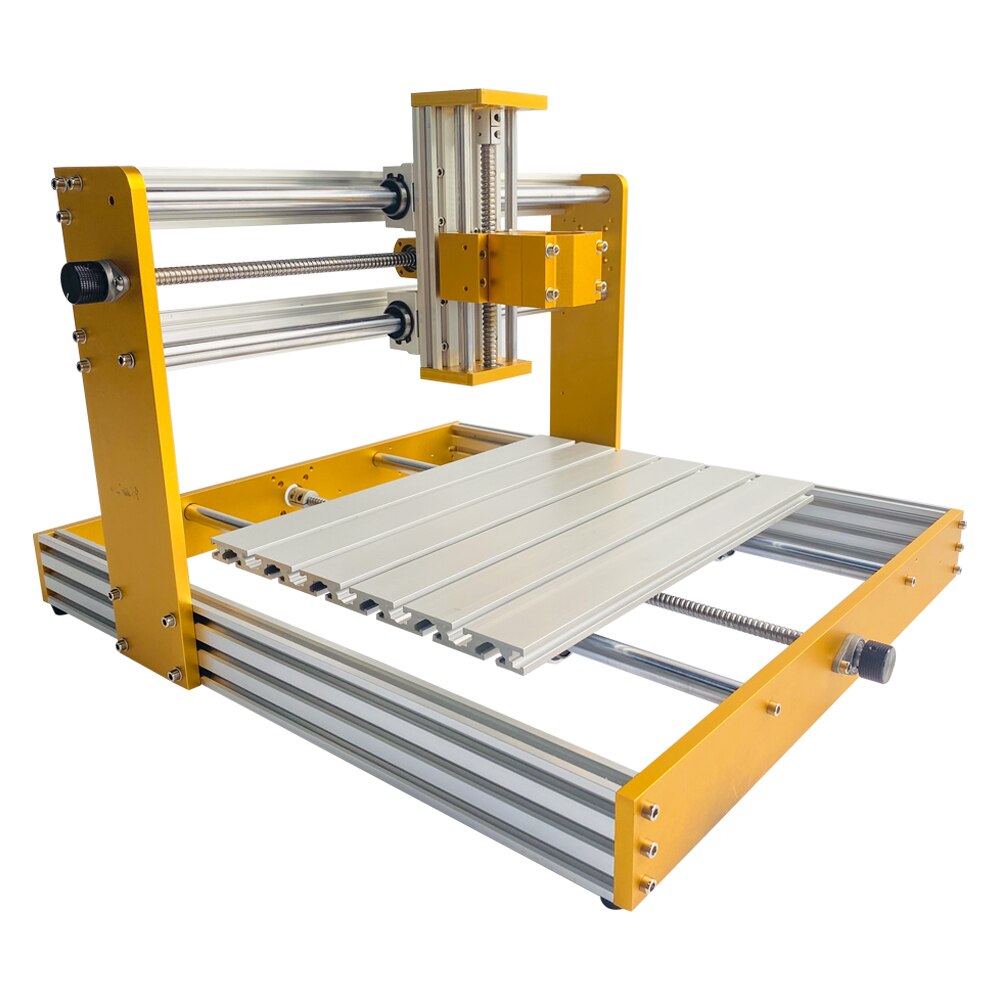

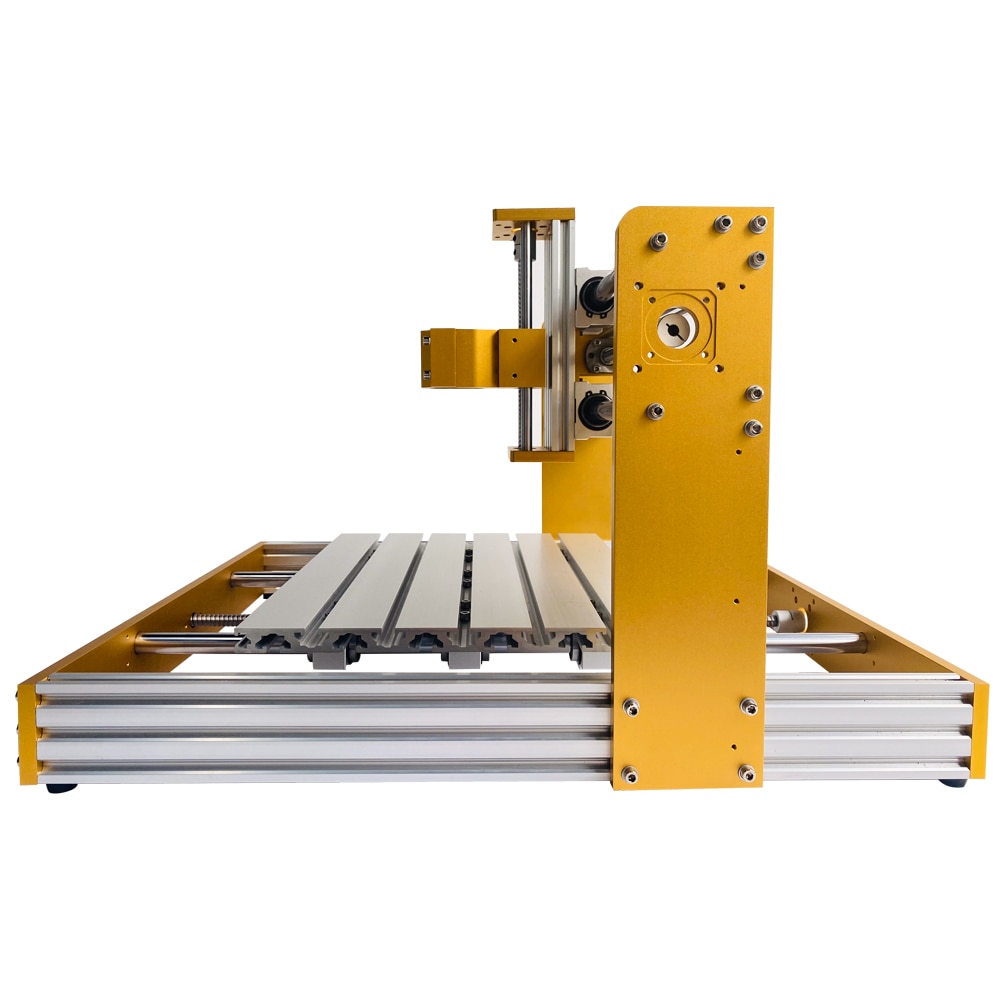

1 x CNC 3040 Plus Metal Frame  (Only frame, shown as picture )


With stepper motor:

1 x CNC 3040Plus Metal Frame
3 x Nema23 Stepper Motor


With 300W/500W:

1 x CNC 3040 Plus Metal Frame
1 x 300W/500W Spindle
1 x Control Box
1 x ER11 Chuck 8mm
1 x Collet 3.175mm
6 x Limit Switch
10 x Drill Bit
1 x Emergency Stop Switch



300W/500W 5.5W Laser:


1 x CNC 3040 Plus Metal Frame
1 x 300W/500W Spindle
1 x Control Box
1 x ER11 Chuck 8mm
1 x Collet 3.175mm
6 x Limit Switch
10 x Drill Bit
1 x Emergency Stop Switch
1 x 5.5W Laser Module (Adjustable Focus)
1 x Laser Protection Goggles
300W/500W 15W Laser:
1 x CNC 3040 Plus Metal Frame
1 x 300W/500W Spindle
1 x Control Box
1 x ER11 Chuck 8mm
1 x Collet 3.175mm
6 x Limit Switch
10 x Drill Bit
1 x Emergency Stop Switch
1 x 15W Laser Module (Fixed Focus)
1 x Laser Protection Goggles

300W/500W 30W Laser:

1 x CNC 3040 Plus Metal Frame
1 x 300W/500W Spindle
1 x Control Box
1 x ER11 Chuck 8mm
1 x Collet 3.175mm
6 x Limit Switch
10 x Drill Bit
1 x Emergency Stop Switch
1 x 30W Laser Module (Fixed Focus)
1 x Laser Protection Goggles

300W/500W 40W Laser:

1 x CNC 3040 Plus Metal Frame
1 x 300W/500W Spindle
1 x Control Box
1 x ER11 Chuck 8mm
1 x Collet 3.175mm
6 x Limit Switch
10 x Drill Bit
1 x Emergency Stop Switch

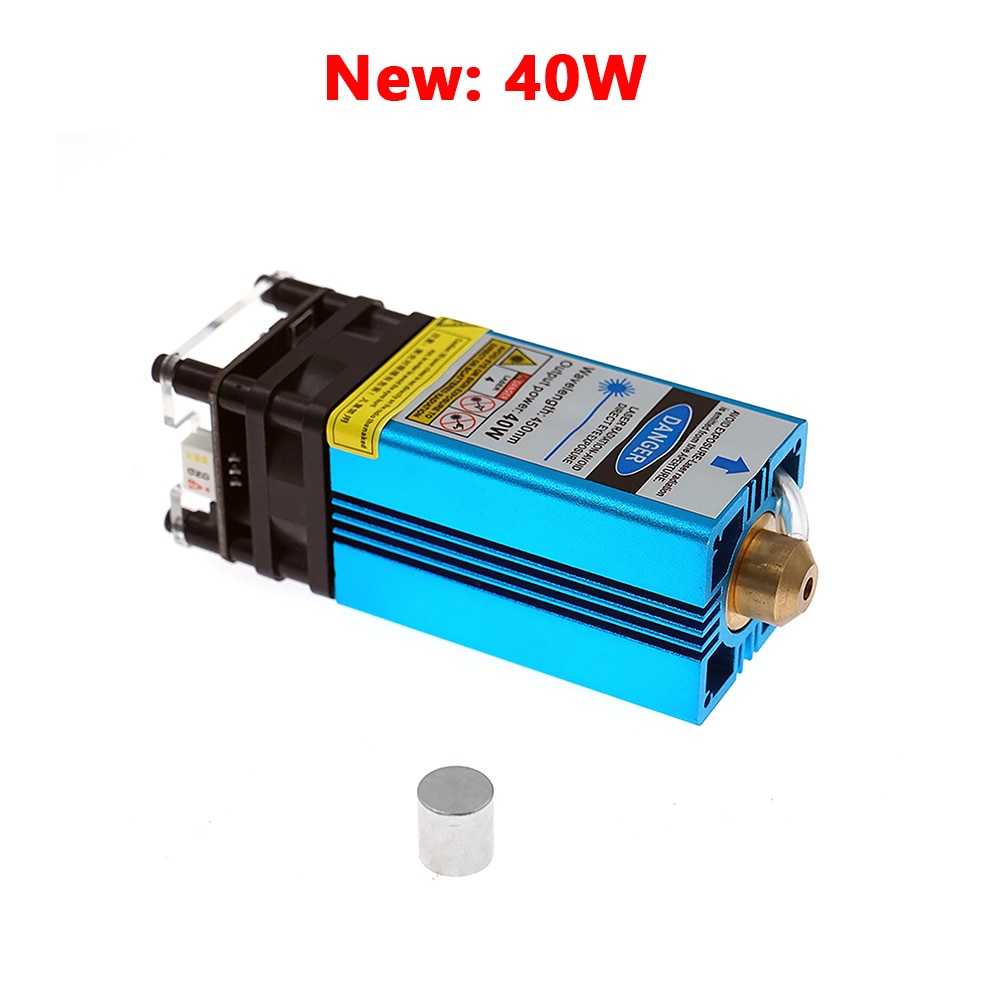

1 x 40W Laser Module (Fixed Focus)
1 x Laser Protection Goggles
