Feature:
X, Y, Z Working Area: 300 x 200 x 40 mm (11.81 x 7.87 x 1.57 inch)

Frame size: 400 x 330 x 240 mm (15.47 x 12.99 x 9.44 inch)

Collet: ER11, defaul size 3.175mm

Stepper Motor: 3 x 42 stepper motors: 1.3A, 0.25N.m

Spindle: 775 spindle motor, 24V: 10000 r/min

Software: GRBL Control Systems, laser GRBL

Supported system: Windows XP / Win 7 / Win 8 / Win 10 Home

Lead Screw: professional T8 T-screw, lead 4 mm, pitch 2mm, double copper nut and poor

Power Supply: 24V 5A power adapter

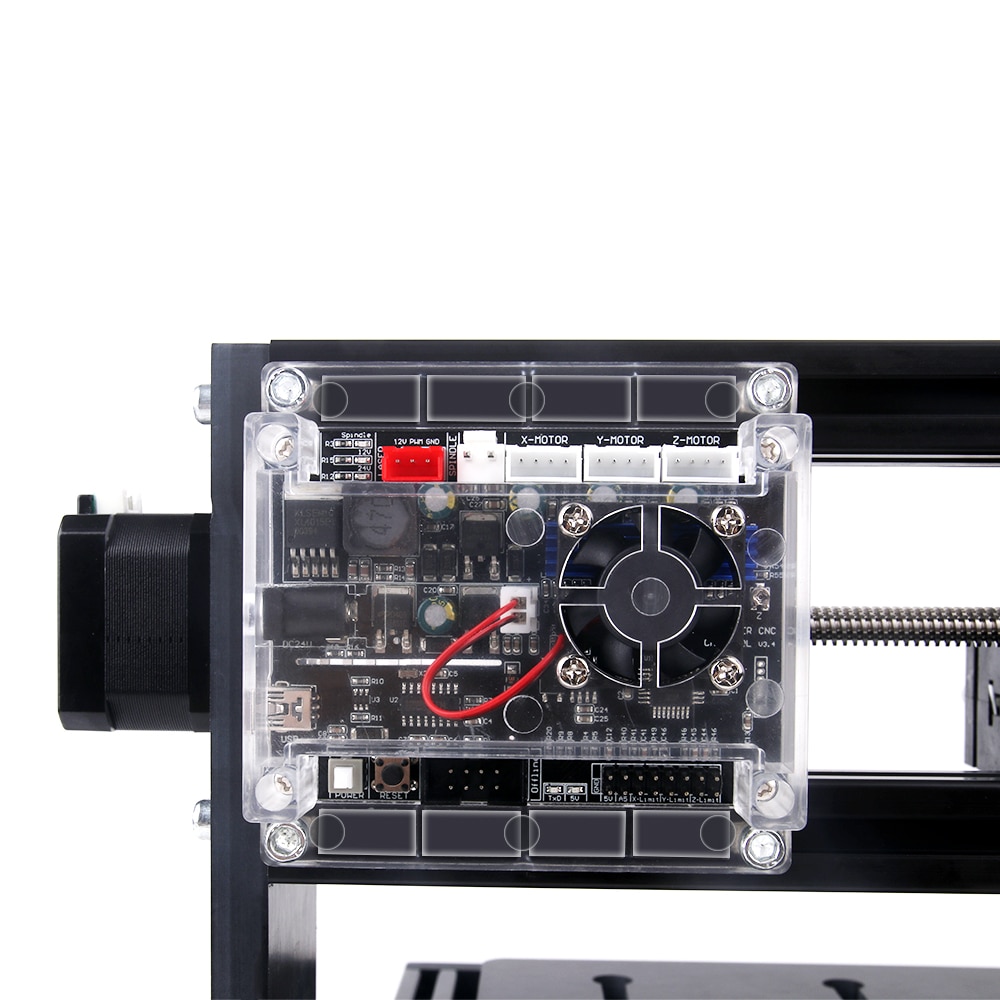

Controller Board: Upgrade GRBL Offline XYYZ 3 Axis Control Board with upgrade A4988 drives for GRBL 1.1f.

Laser Module (Options): Brand new and updated blue lasers, which is 33mm 3P connection, supports PWM/TTL, 0-100% adjustable

Offline work: Support

Offline controller (optional): 1 inch Monitor, 1GB Micro SD with TF card

Application:

Laser Can Engrave:
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam/Paper
/Anodized Aluminum/Ceramics/Stone/Stainless steel (with 15W)

15W Laser Can cut: About 3mm wooden materials
Laser Can Not Engrave:Metal/Glass/PCB/Reflective Material/Transparent Material
Cutters can be engraved:plastic, wood, acrylic, pvc, pcb, wood or the like material

Package Introduction:
(Gift for all sets: 2 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod)
