Description
- Model Number: 3018pro
- Condition: New
- CNC or Not: CNC
Product information:
working area：30×18×4.5cm
Frame size：33×40×24cm
Mesa：30×18cm

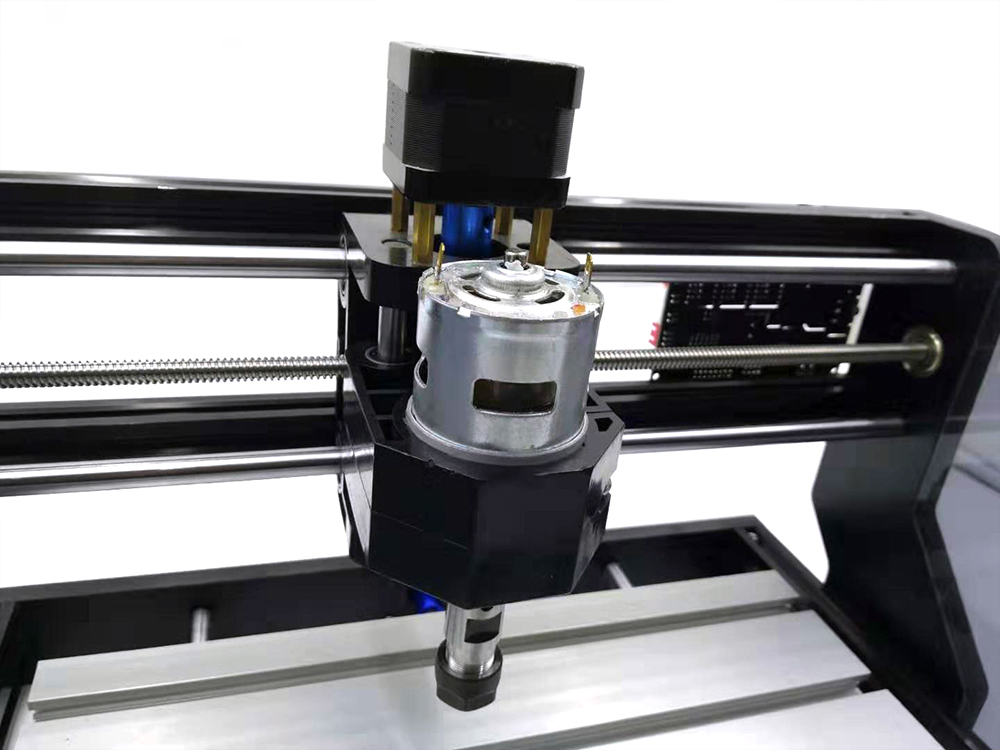

Spindle：775 spindle motor(12-36V)24V:10000r/min
Step motor：Fuselage 1ength 34M,Current 1.33A,12v.Torque 0.25N/M
Power supply：24V 5.6A
Software：GRBL controller
supported system：Windows(Do not support Mac)
Drill bits：10pc drill bit
clamps： 4pcs

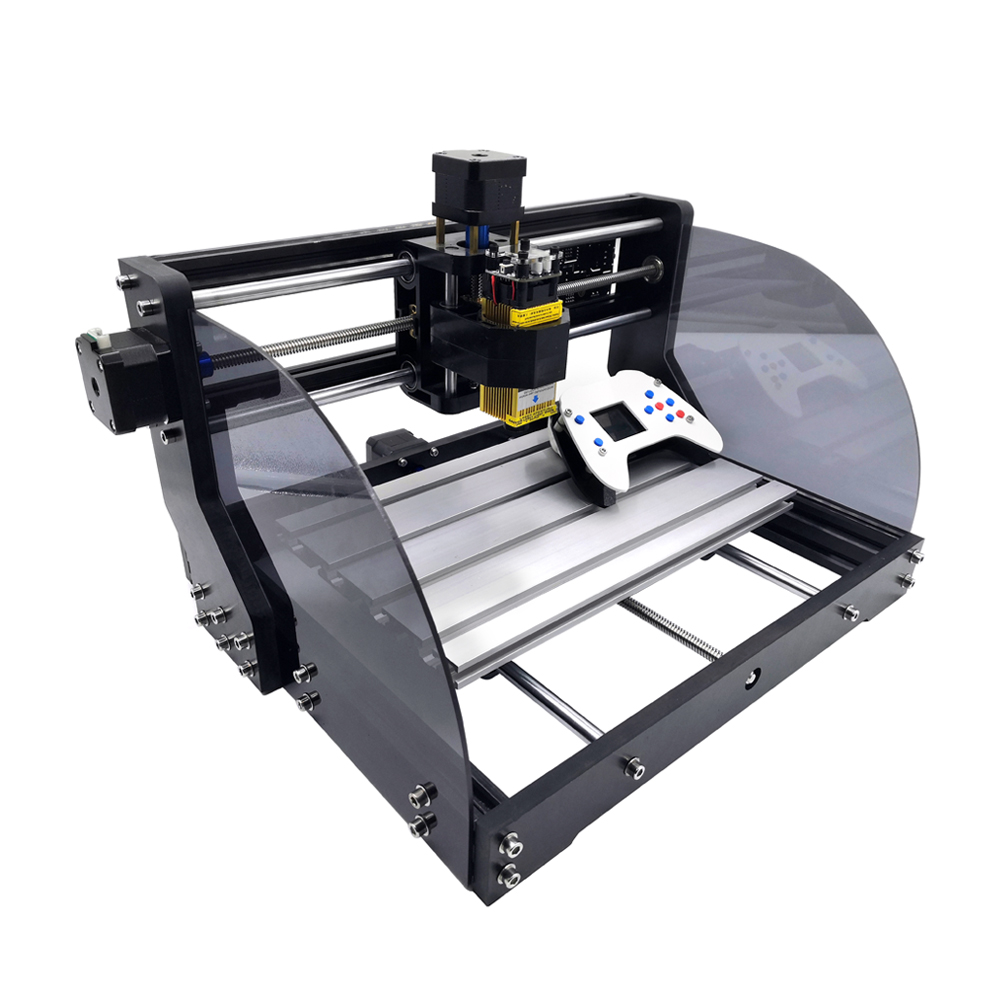

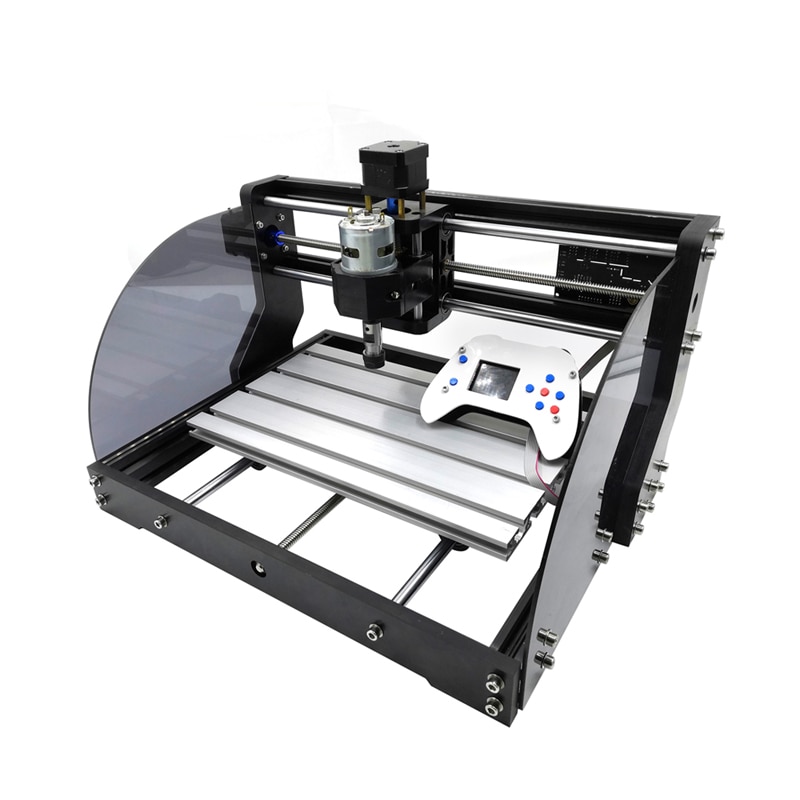

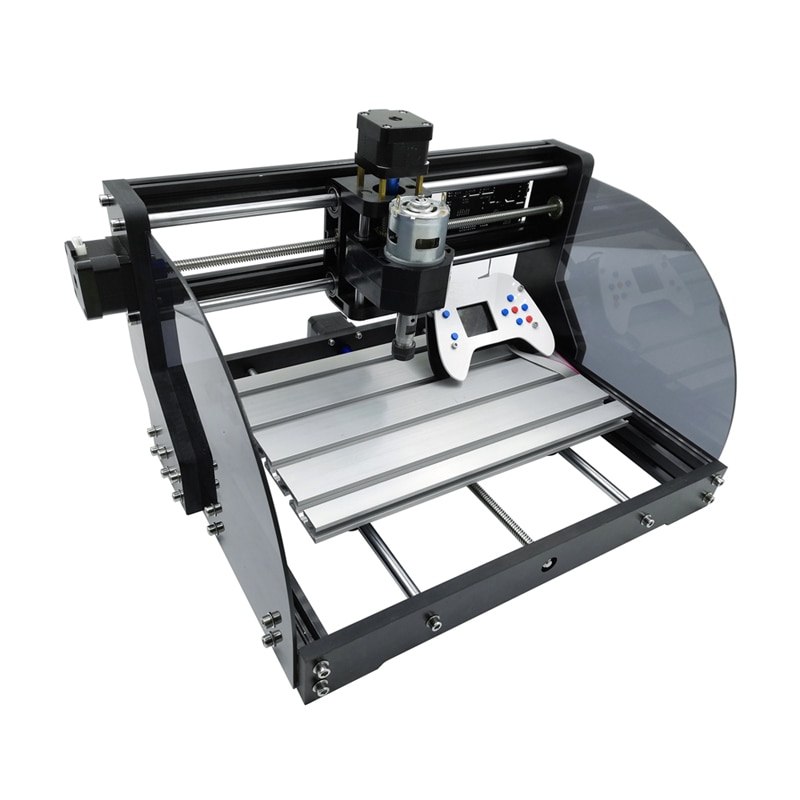

CNC 3018-PRO MAX is an upgraded version of CNC 3018-PRO. Control software: GRBL; Supported System: Windows XP / Win 7 / Win 8 / Win 10.
Package inclued:
1 x Full set engraving machine
Questions:
Q: Whats the different between 500mw laser, 2500mw laser, 5500mw laser
A: All these lasers can not engrave/mark on any metal, they are mainly used on engraving wood.
2500mw laser can cut about 1mm normal wood.
5500mw laser can cut about 2mm normal wood, engrave on leather and soft plastic.
Laser: 500mw 405nm,12v / 2500mw 450nm,12v / 5500mw 450nm,12v
clamps: 4 pcs, Hold the thickness of 0-30mm,size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm
Attention:
This machine does not work on metal. Mainly used to engrave wood. 15000MW Can engrave metal such as stainless steel
Please note MDF is not equal to normal wood, as it doesn’t have a worldwide standard, so you need to test how deep the laser can cut by yourself.
Caveat:
It is forbidden to illuminate the eyes when using or testing, otherwise it will cause unnecessary damage and bear the consequences at your own risk!

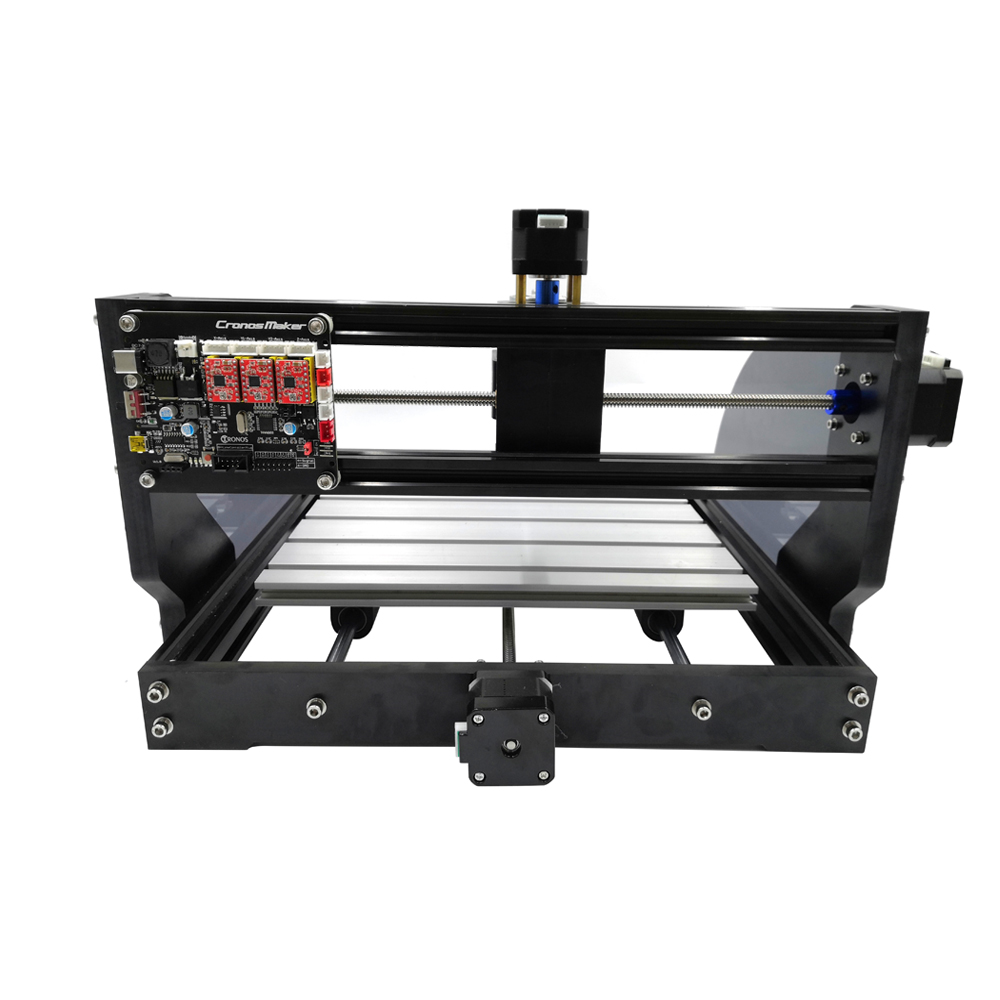

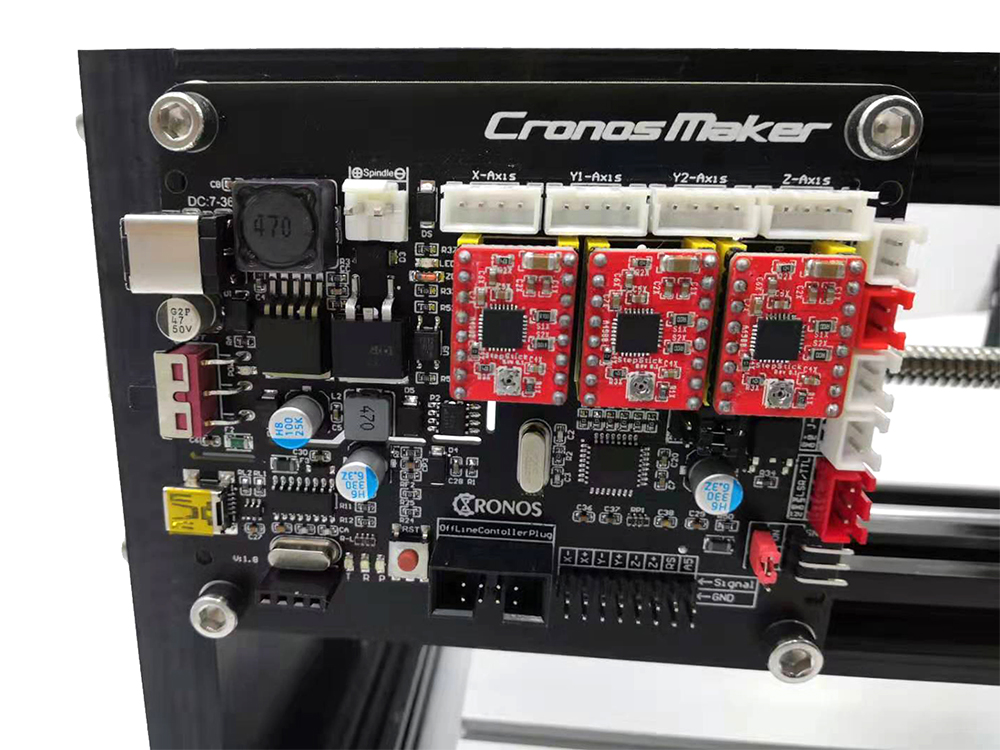

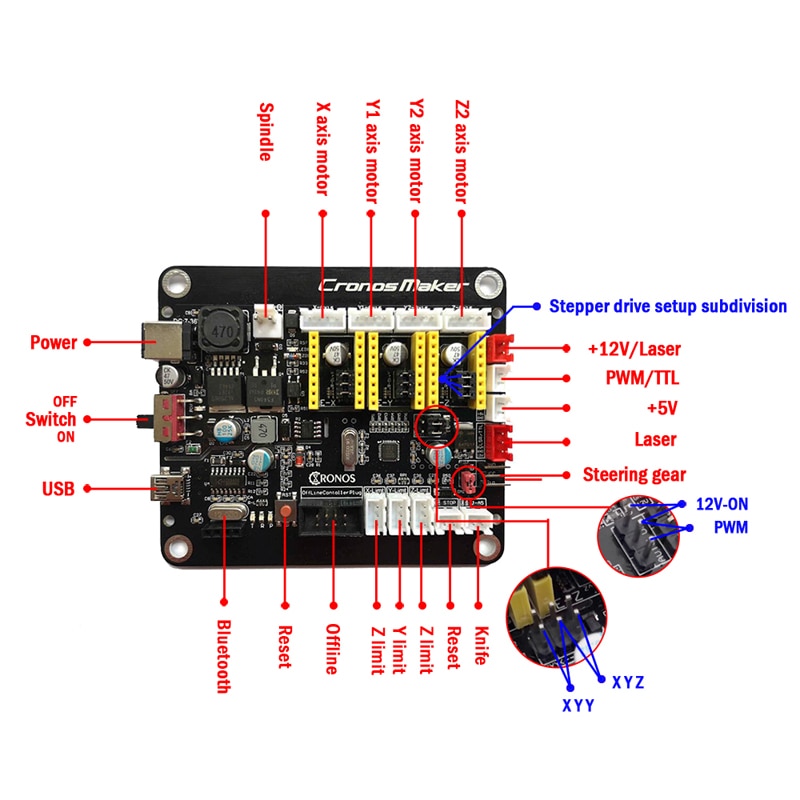

Control board introduction:
1, GRBL1.1f firmware, stable performance

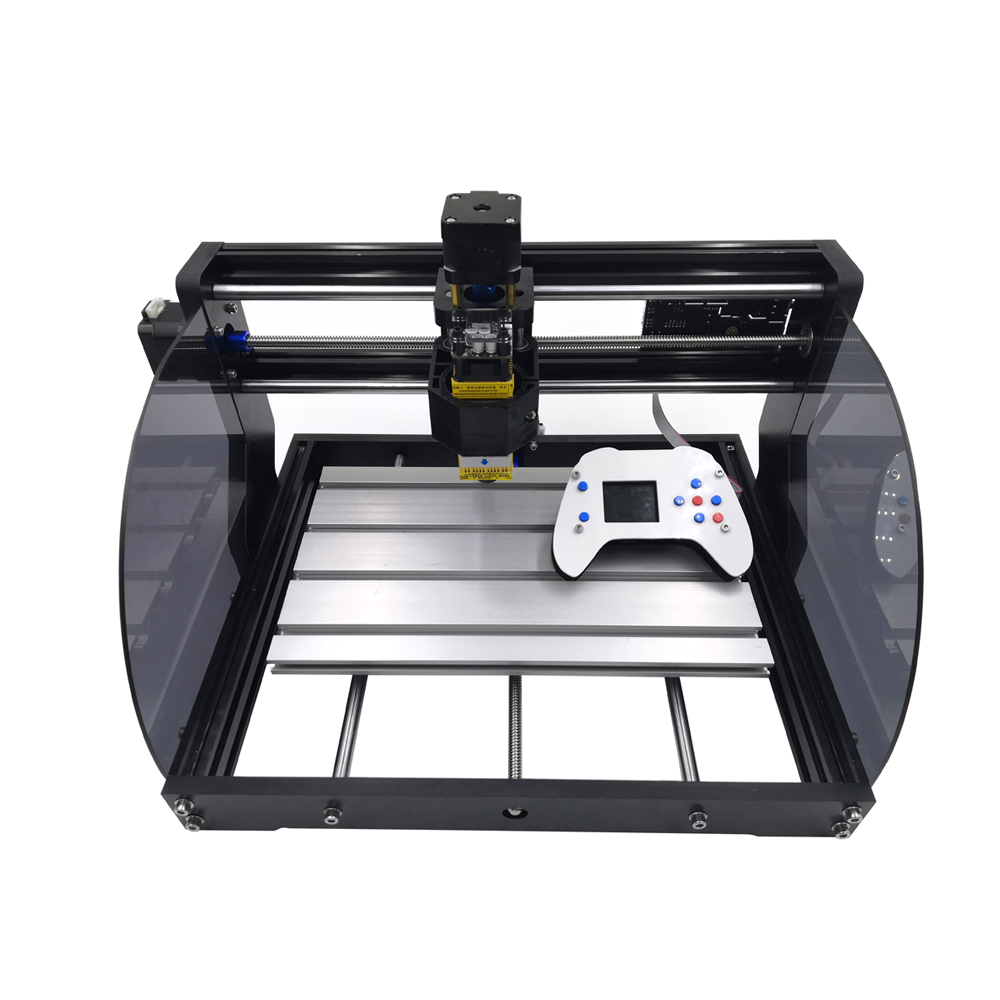

2, offline engraving (optional offline module), offline tool setting, engraving
3, support limit switch, tool setting, steering gear, cooling fan and other functions
4, support 2P / 3P laser, support PWM / TTL signal control, power 0-100% adjustable!
5, the spindle supports PWM power 0-100% adjustable
6, stepper motor over-current protection to avoid damage, upgrade A4988 drive, stable and reliable performance.
7, laser directly into the picture engraving, no programming, no design, simple and convenient!
