CNC 3018 upgrade parts offline controller CNC laser TFT 3.5 lcd module GRBL1.1 touch screen CNC router machine DIY module

$77.52 – $80.58

SKU: 4000829032773 Category:

Description

  • Brand Name: Makerbase
  • Origin: CN(Origin)
  • Item Type: Display Screen
  • Model Number: CNC touch screen

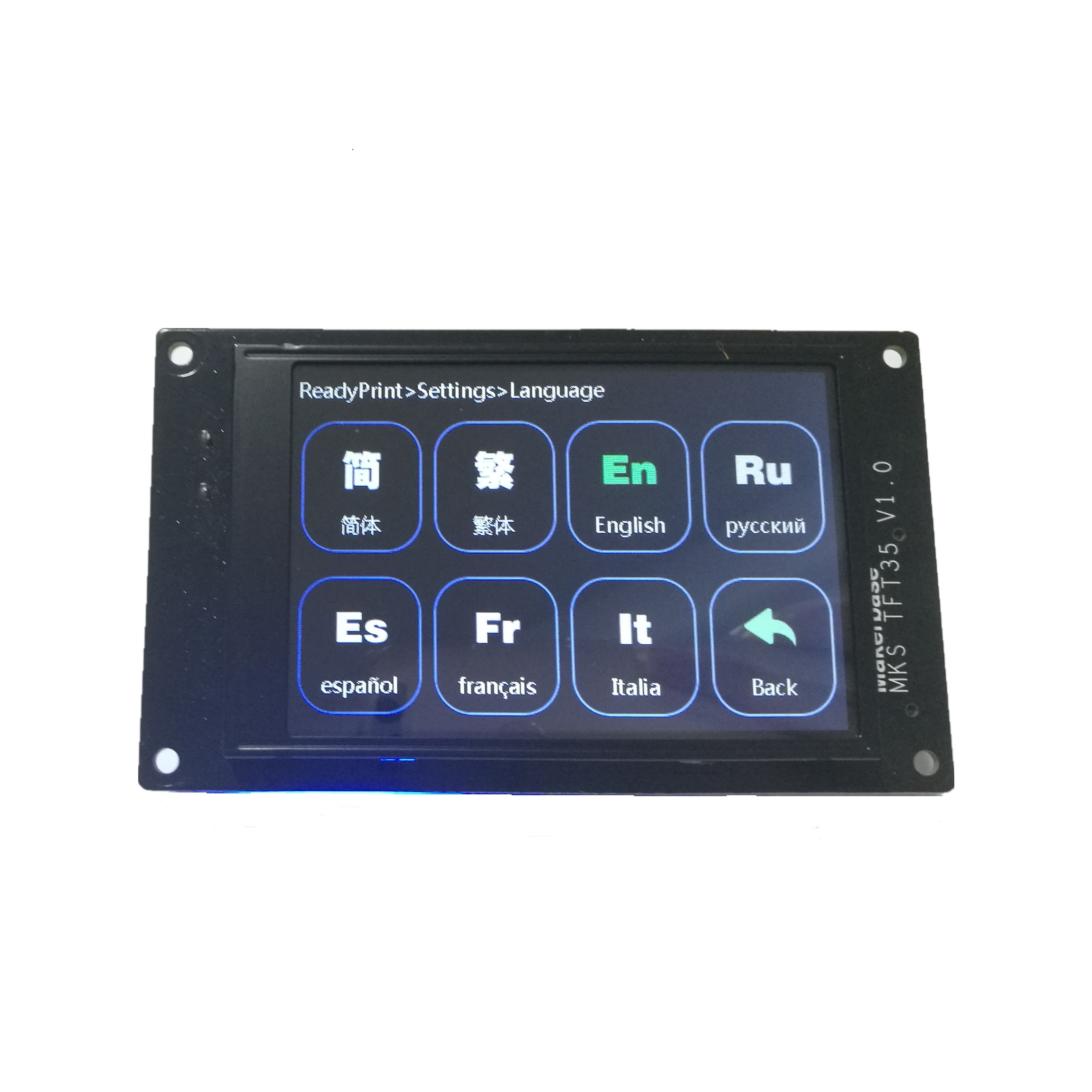

  • Online: 7 type languages
  • Axis: X,Y,Z
  • Comapatible: CNC 3018 pro machine

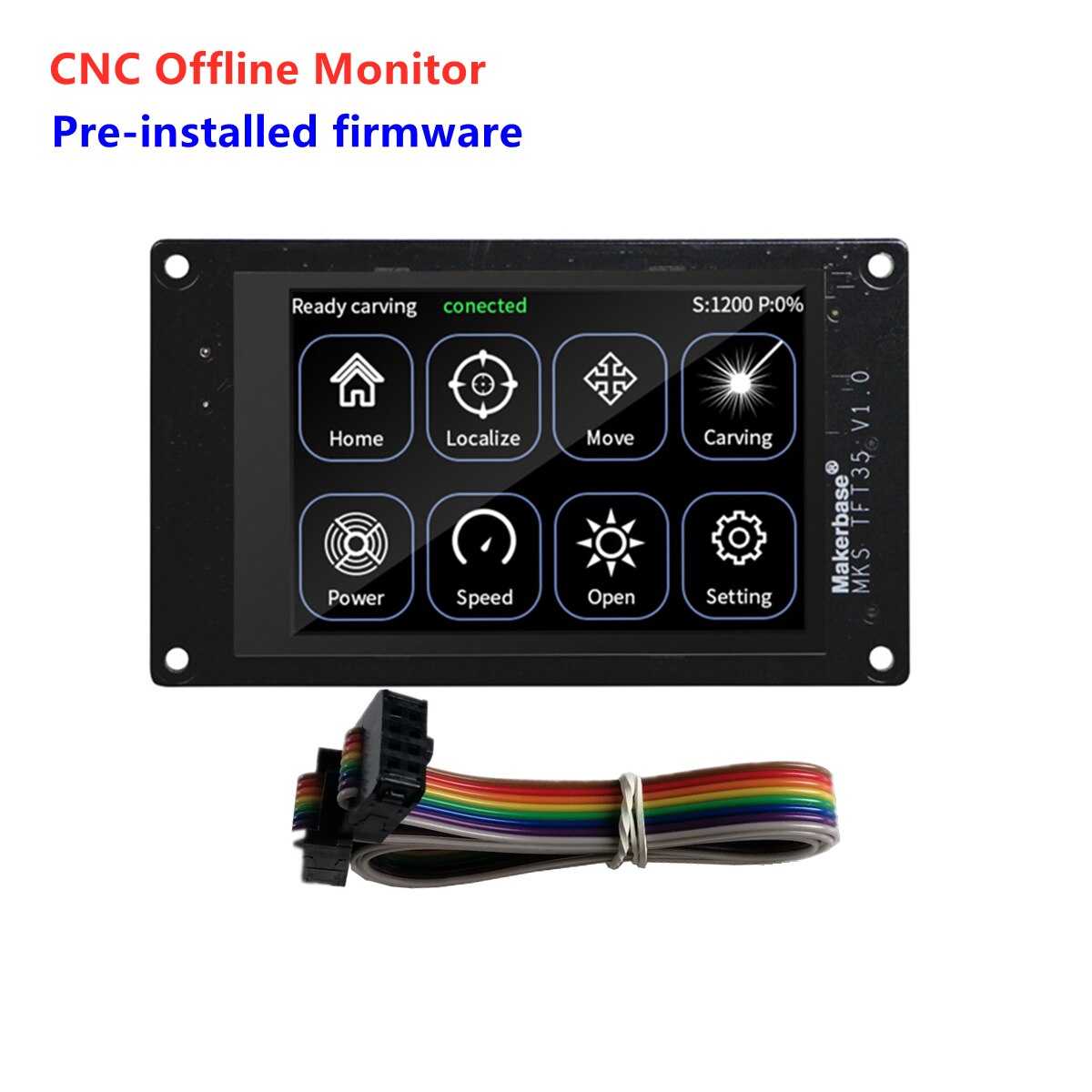

The touch screen already pre-installed firmware.

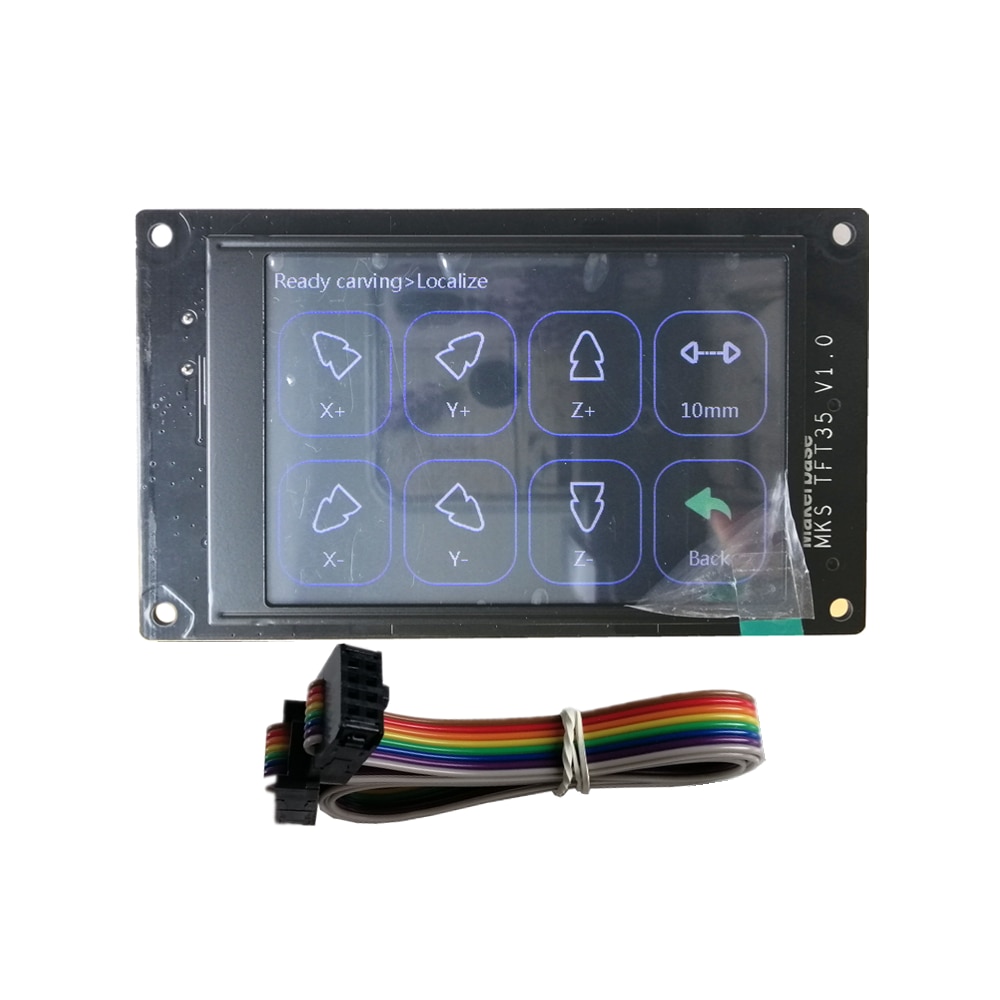

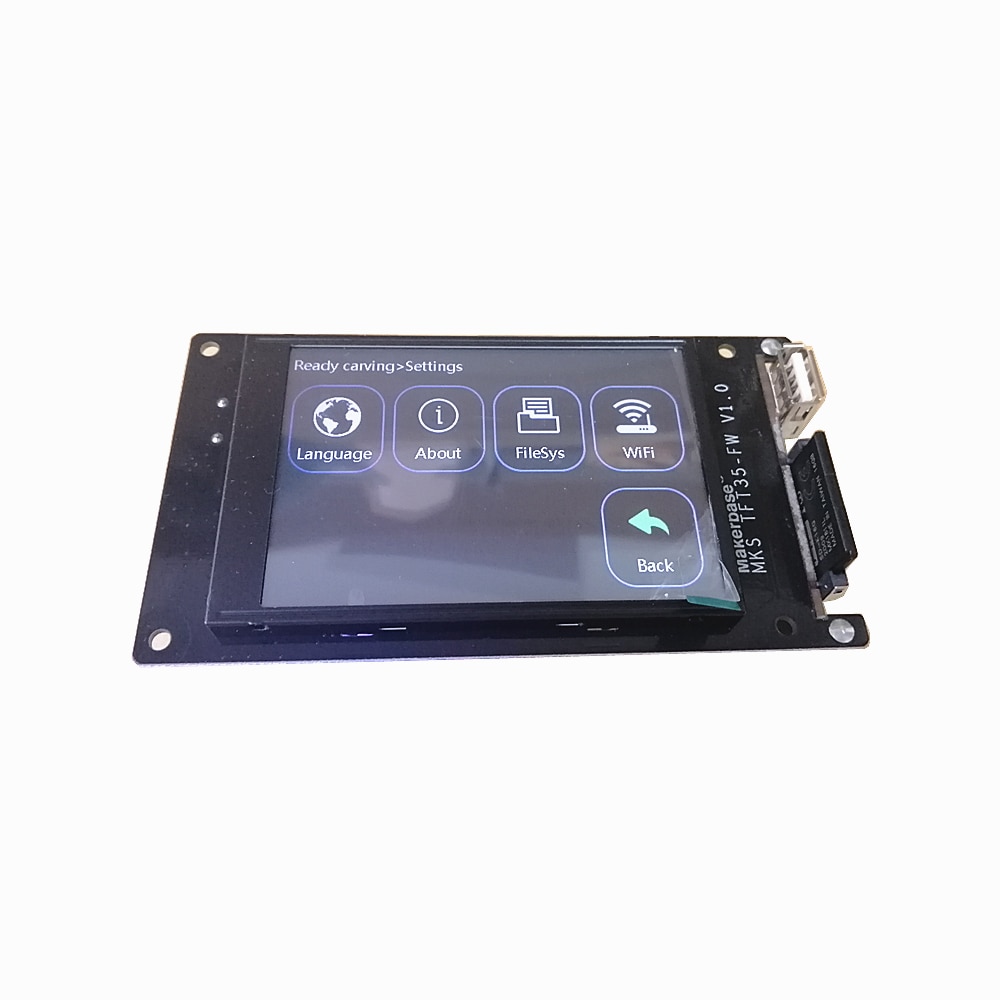

Name: CNC TFT35 Display



Packing list

1 * TFT35 LCD

1 * Flat cable



Wiring

_





Size

size





How to Use

Firmware download
https://github.com/Macrobase-tech/CNC-Firmware



1. Install Xloader to PC,upload GRBL firmware to CNC mainboard.
Select baud rate 115200.





2.Display firmware update

Select baud rate 115200 on TFT35 config.

Copy below files to SD card and plug it to TFT35 display.

3.Wire TFT35 to Aux-1 of CNC board.Then put power on,it will update automatically.



4. Read G-code

   Copy G-code to SD card,plug it to the display. (SD card:1g-16g,Gcode format is nc.)
