Description
- Model Number: 3018Pro Max
- Working area: 300*180*40mm
- Frame size: 400*330*240mm
- Software: GRBL Micro-Carving Butler
- Power supply: 24V 5A power
- output voltage: 110-240V
- material: aluminum bakelite
- Laser: 500mw 2500mw 3500mw 5500mw 15000mw
- Spindle speed: 10000 rpm
- Power type: AC power
- Support system: Windows XP Win 7 Win 8 Win10
- Application: wood plastic leather PVC
- feature 1: MINI laser engraving machine
- feature 2: Desktop Laser Engraving Printer
- feature 3: CNC woodworking engraving machine
- feature 4: CNC Laser Engraver
- feature 5: CNC 3 axis engraving machine
- feature 6: Laser Engraver
- feature 7: 3Axis pcb Wood Router
- feature 8: Laser Engraving
- Condition: New
- Is Smart Device: No
- Origin: CN(Origin)
- CNC or Not: CNC
- Model Number: 3018pro Max

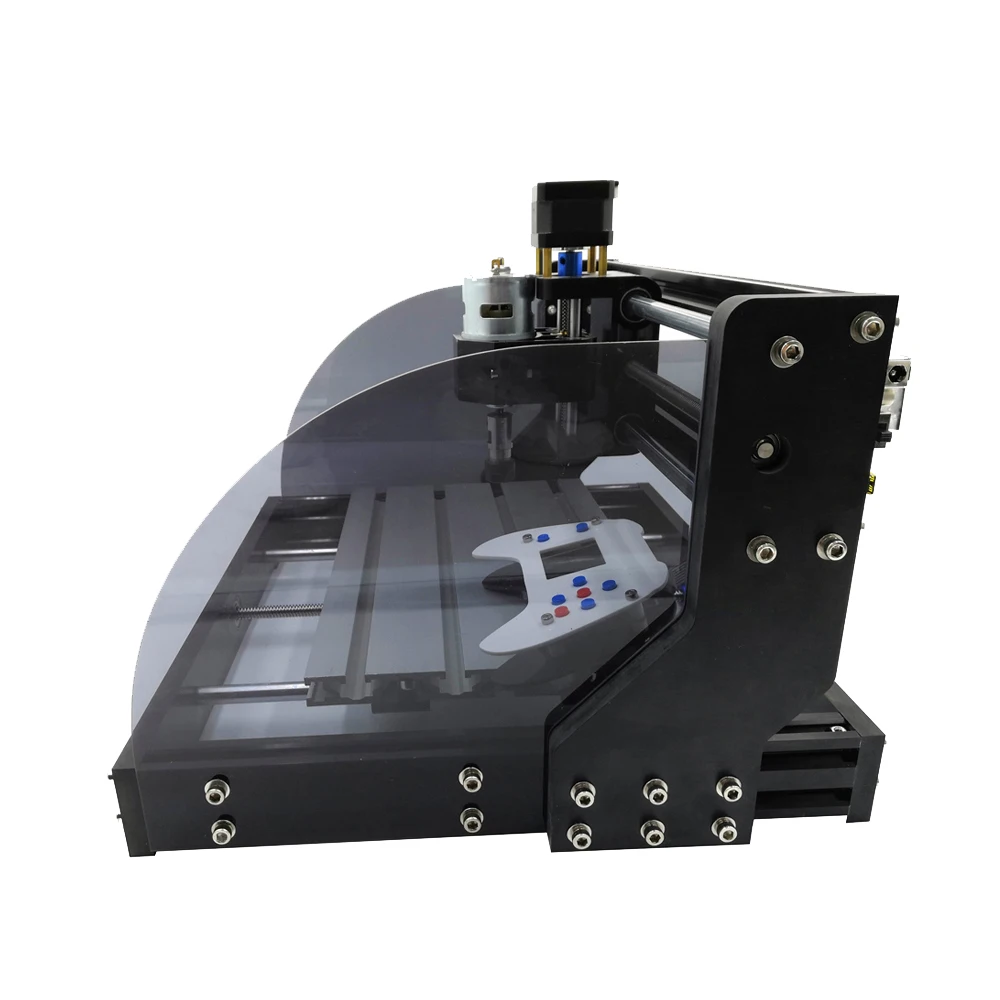

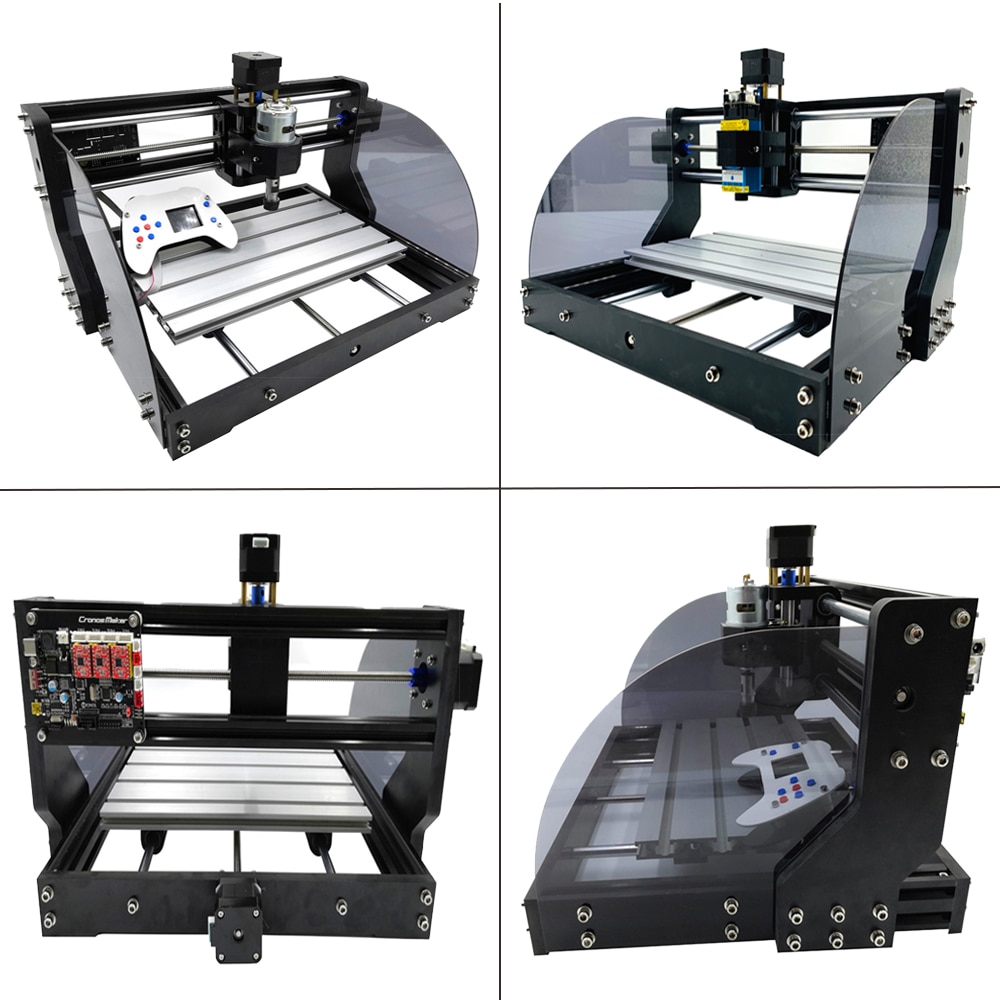

3018 Pro Max Laser Engraving Machine Power 0.5W-15W 3axis CNC Router DIY MINI Woodworking Laser Engraver With Offline Controller
Product description:

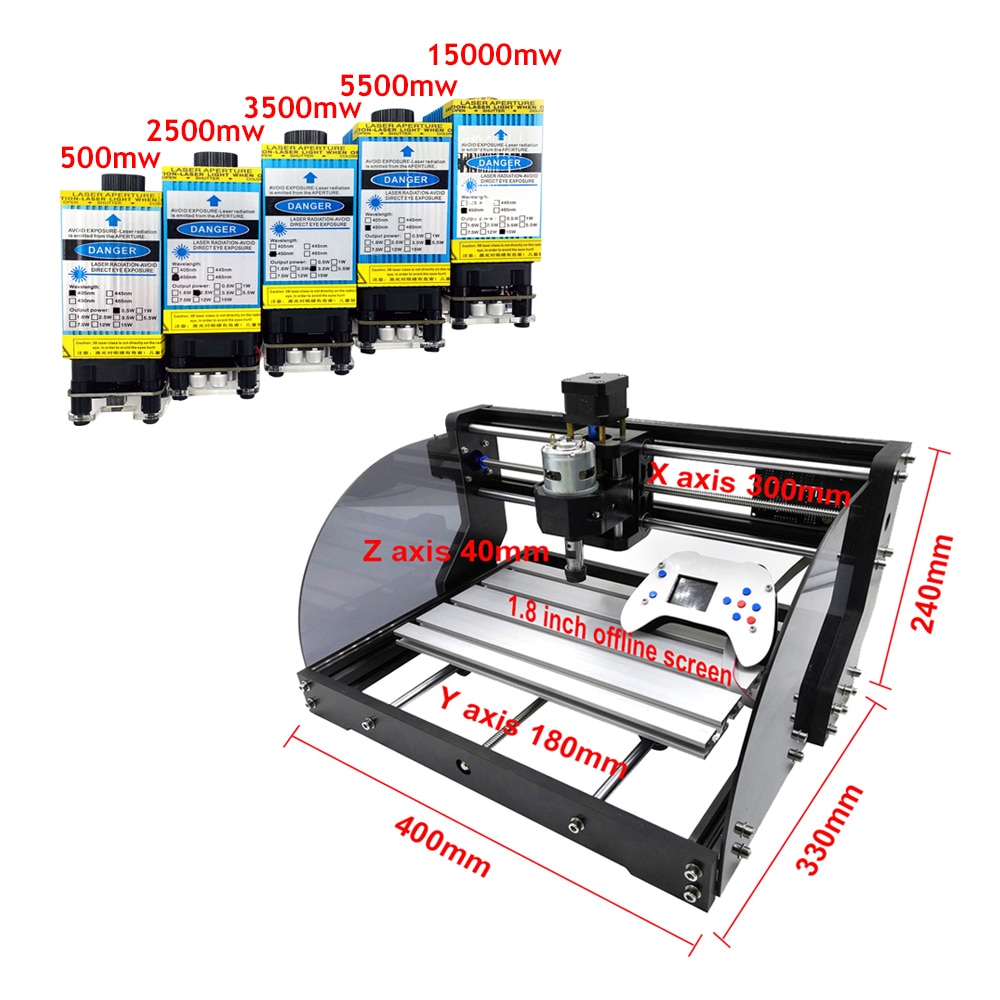

Frame size:400 * 330 * 240mm

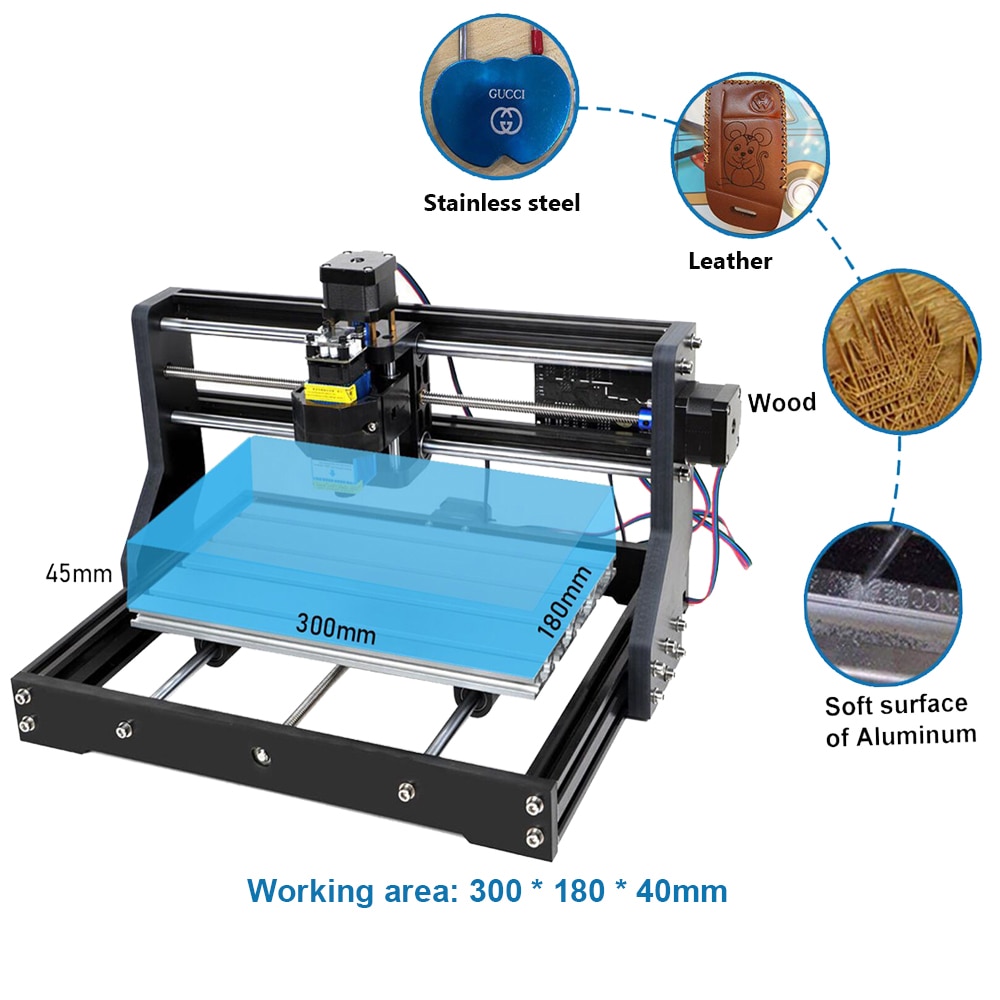

Working area:300 * 180 * 40mm
Spindle:775 spindle motor 24V:10000r / min, support PWM, 0-100% adjustable
Softwear:GRBL control systems,GRBL controller, LiteFire.
Support system:Windows XP / Win 7 / Win 8 / Win10 Home
Stepper motor:Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
Power type:AC power
Material:Aluminum + Bakelite
Power:24V 5A
Output voltage:110V-240V
Plug type:EU US AU UK
Chuck specifications:ER11 3.175MM (can match 0-7mm)
Laser:500mw,2500mw,3500mw,550mw,550mw,15000mw .(15000mw Can engrave on stainless steel and about 3mm wooden materials)
Feature:
1. GRBL1.1f firmware, stable performance
2. The control board is newly upgraded,with offline controller. The whole process of offline engraving, offline knife setting and engraving.
3. support 2P / 3P laser, support PWM / TTL signal control, power 0-100% adjustable!
4. Spindle supports PWM power 0-100% adjustable
5. Stepper motor overcurrent protection to avoid damage, upgrade DRV8825 driver.
6,.Laser direct image engraving, no programming, no design, simple and convenient.
Application:
Can be carved: MDF, balsa, paper, wood, horns, certain plastics, leather, plywood, foam, ceramics, stone, stainless steel. Rubber stamps, photosensitive seals, printing paper, sponge paper are waiting for flammable materials.
It can also be engraved with 201, 316 stainless steel, and some metals have been surface treated (for example: surface paint, anodizing, plating, etc.).
Impossible to sculpt: glass, reflective, transparent material.
Can cut: plastic, wood, acrylic, photovoltaic, leather, printing paper, non-woven fabric.
The 15000mw laser kit can be carved on stone, stainless steel surface and anodized colored aluminum alloy surface.
Package Included:
CNC 3018 PRO Max + 1pcs ER11 + 4 set plates + 10pcs cutters + 1pcs 4G U Disk + 1pcs off-ine controller
CNC 3018 PRO Max + 1pcs ER11 + 4 set plates + 10pcs cutters + 1pcs 4G U Disk + 1pcs off-ine controller + 1pcs Laser module
Package size:45cm × 25cm × 20cm;Weight: 9 kg
Please note: Due to the larger product size, this unit is provided as a kit. You need to assemble it yourself. Includes all tools and parts in the kit. Please provide an email address. We will send the assembly video of the machine.
Follow the tutorial to assemble. If you have any questions, please feel free to contact us. thank you for understanding!
When you receive the package, carefully check all accessories of the laser engraving machine. This product cannot be returned after assembly! If you have any questions, please contact us immediately.

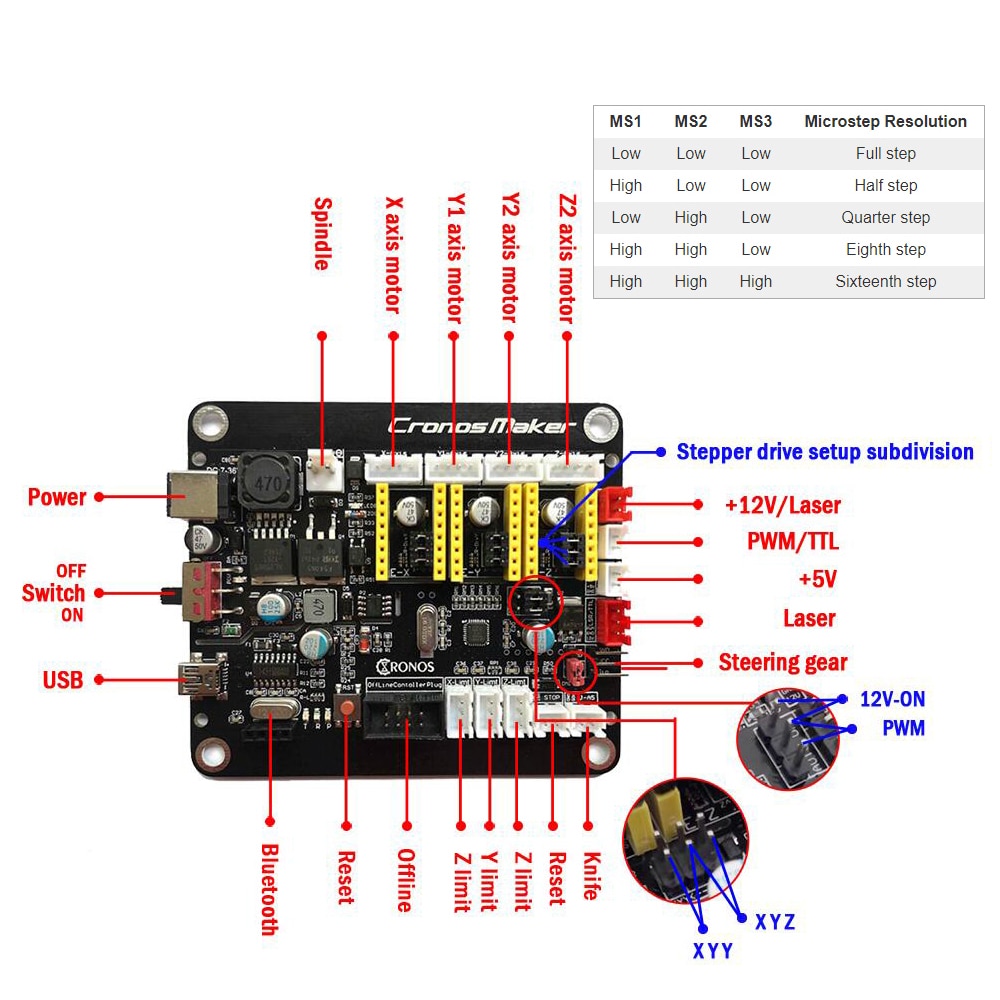

High precision circuit board, X, Y, Z axis control. Stable performance, can work offline during the whole process.

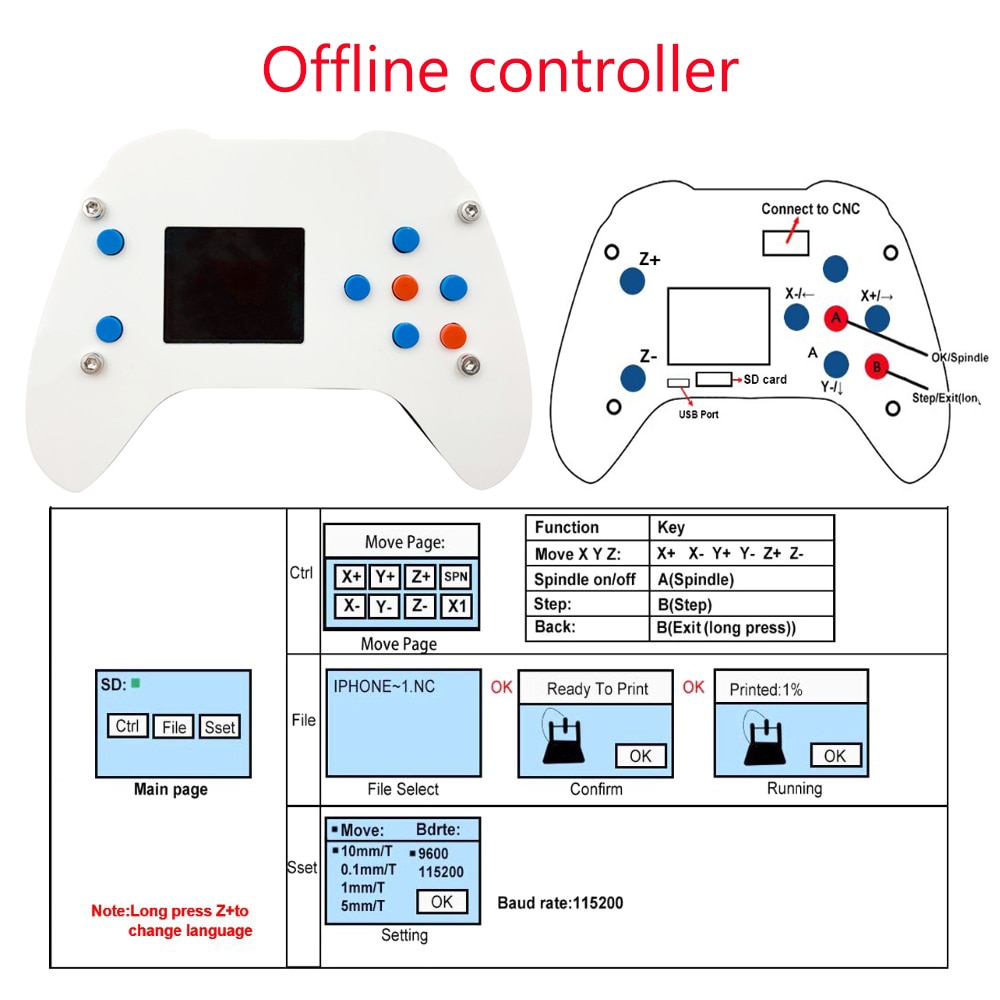

8C new offline screen. Simple operation and easy control.Upgraded laser, support PWM / TTL signal control, power adjustable from 0-100%
Upgraded laser, support PWM / TTL signal control, power adjustable from 0-100%.
Aluminum alloy workbench, thickened and thickened, laser baffle, simple structure, compact design, easy to adjust limit baffle structure for laser testing
