Description
- Brand Name: ZHONG HUA JIANG
- Origin: CN(Origin)
- Certification: NONE
- Condition: New
- Model Number: CNC 3018 Pro Max
- CNC or Not: CNC
- Milling cutter: 3.175mm
- Type: 15w laser engraver
- Softwear: GRBL Controller
- Usage: CNC 3018 Pro Max Laser engraving
- laser: 1W/1.6W/2.5W/3W/5.5W/7W/10W/15W

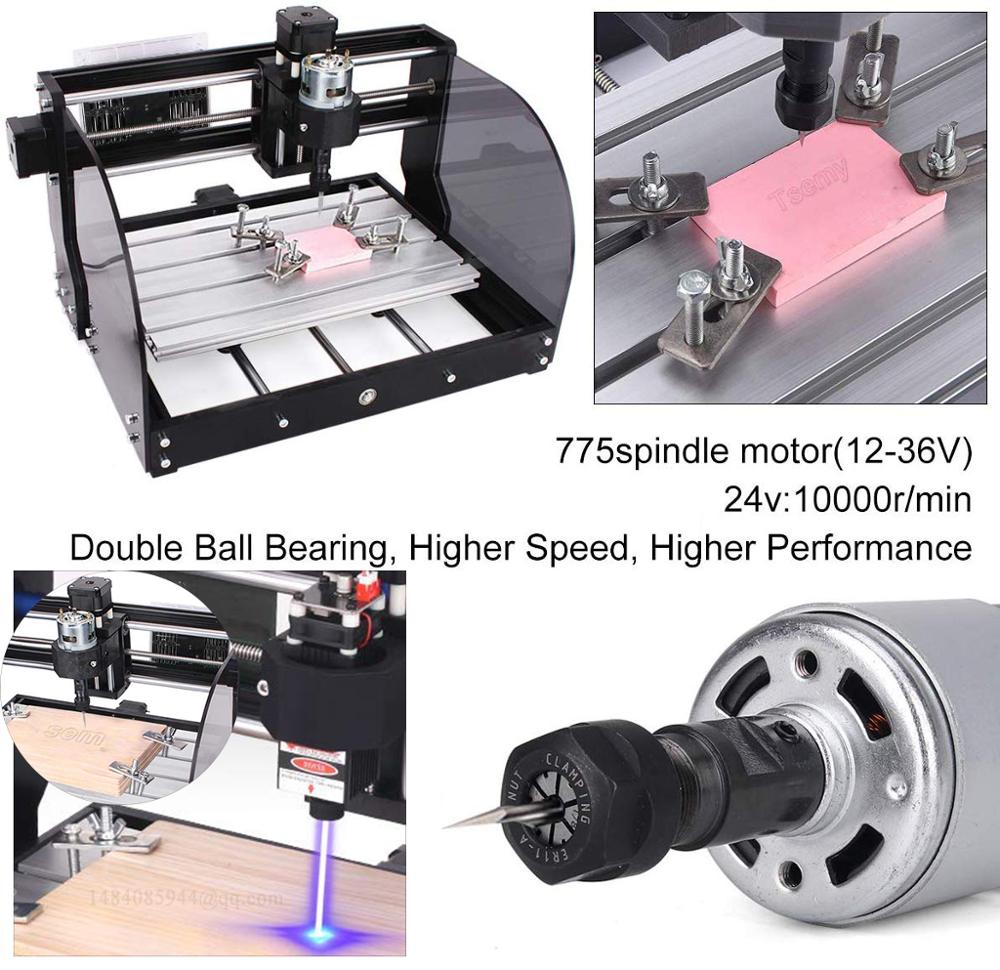

- Spindle: 775 motor
- Working Ares: 30x18x4.5cm
- Function: Wood Router
CNC 3018 Pro Max Laser Engraving Machine DIY 3Axis PCB Milling Machine Laser 15w Wood Router GRBL Control CNC Machine for Metal
Parameter:
Engraving area: 30x18x4.5cm
Aluminum alloy: board area: 30x18cm
Spindle motor: DC24V, maximum 120 watts, 10000 rpm
Stepper motor: input DC12V, 1.3A, 0.3Nm torque
Power supply: input AC100-240V, 50 / 60Hz, 1.3A, output DC24V 5A
Control software: GRBL Control
Screw: Professional T8 T-screw, 4 mm lead, 2 mm pitch, double copper nut
Controller Board: Upgrade GRBL Offline XYZ 3-Axis Control Board with Upgraded A4988 Drive
Supported systems: Windows XP / Win 7 / Win 8 / Win 10 (Mac OS not supported)
ER11 is mounted on the spindle motor
Laser module (optional): new and updated blue laser, 33mm 3P connection, PWM / TTL support, 0-100% adjustable
Offline controller: new version with button battery, 1.8-inch LCD with SD card
Cuter engraving: wood, plastic, PCB, acrylic, plywood, etc.
Laser engraving: wood, plastic, leather, bones, stones, paper, outer casing, etc.
Offline control:
1. Add laser protection plates on both sides to facilitate laser testing.
2. A4988 driver and upgrade board GRBL1.1f firmware upgrade, stable performance, stepper motor overcurrent protection, to avoid damage.
3. The upgraded version of the control board also supports limit switches, tools (such as tools, steering gear, cooling fans, etc.), supports full line offline engraving, offline tool setting and engraving.
4. With the new version of the offline controller, you will no longer need to connect to your computer.

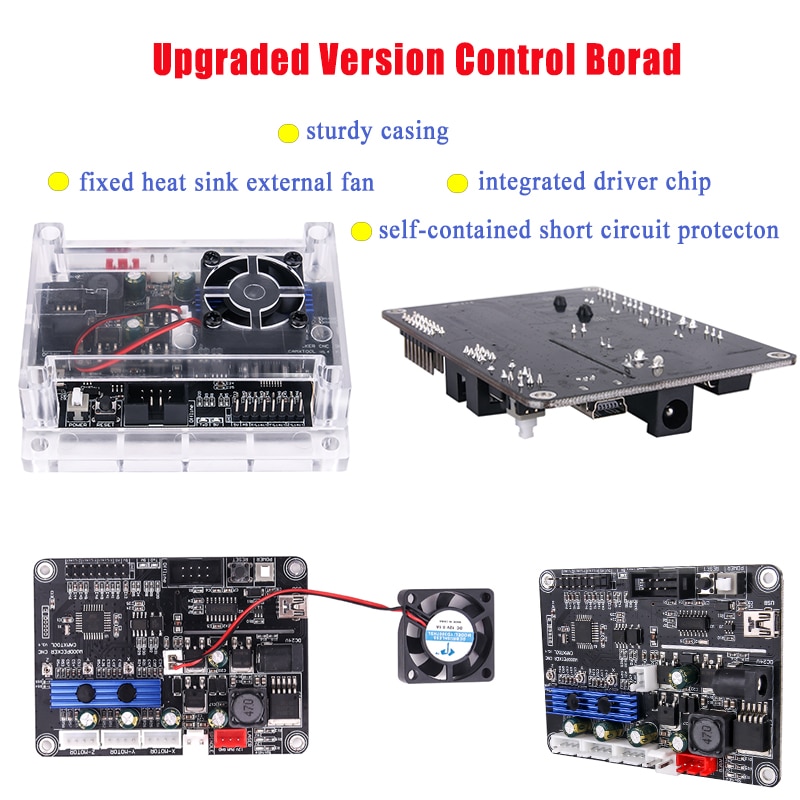

Control borad (new upgrade!!!)
1. Grbl1.1f firmware, stable performance
2. Select the offline module, which can be set offline. After setting, the engraving machine (without computer) can be used directly.
3. Support 2P / 3P laser, PWM / TTL signal control; power 0-100% adjustable
4. Spindle supports 0-100% adjustable PWM power
5. Stepper motor over-current protection to avoid damage; the performance of the upgraded DRV8825 driver is far superior to A4988
6. The laser directly enters the picture engraving, no programming, no design, simple and convenient

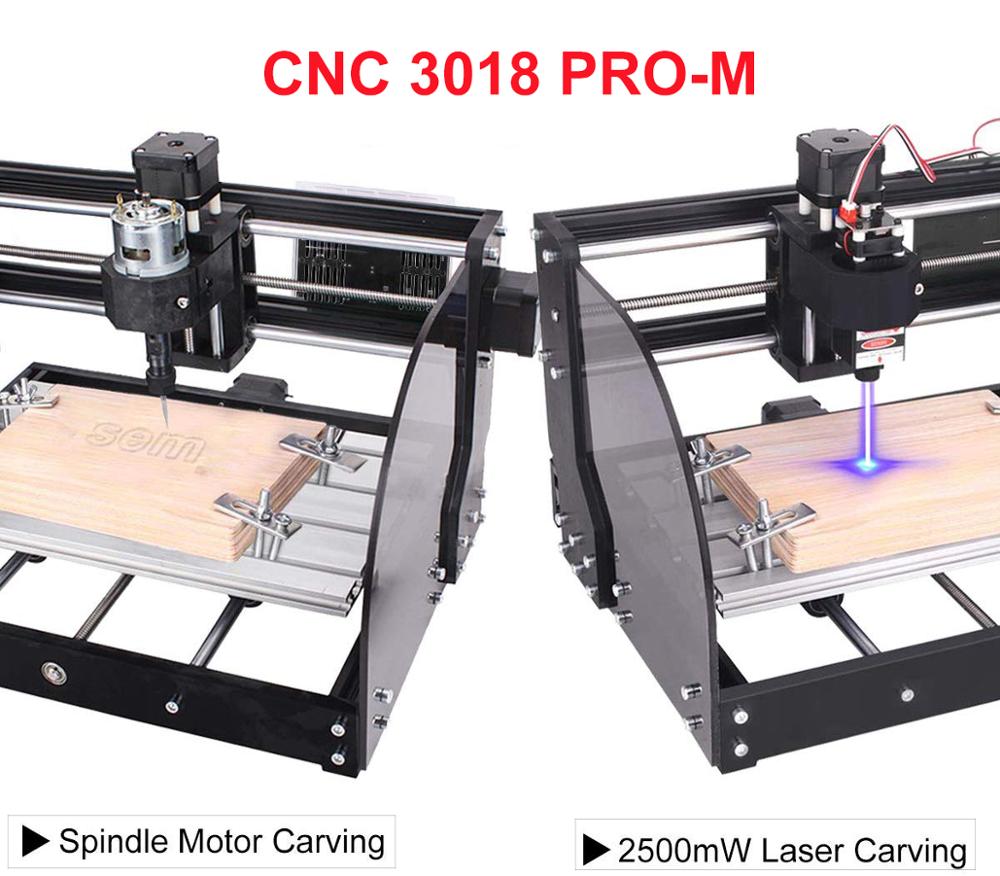

3018 Pro Max:
1.3018 Pro Max has better insulation, mechanical strength, antistatic properties, intermediate electrical insulation, wear resistance and high temperature resistance.
2. Offline controller supports offline work without connecting to a computer
3. Frame: 400 x 330 x 240 mm with upgraded version, mechanical strength, antistatic properties, intermediate electrical insulation, wear resistance and high temperature resistance.
4. A4988 drive with upgrade
5. Laser module (optional): new and updated blue laser, 33mm 3P connection, support PWM / TTL, 0-100% adjustable
6.Offline controller: A new version of the button battery with a 1.8-inch LCD monitor and SD card.
Summary:
The contoured plastic body, small size, light weight, USB interface, GRBL control system is the preferred entry product for learning to use. It can be engraved or laser engraved.
Note: Some components and core components have been assembled and can be assembled manually according to the installation instructions.
Application:
Wood, plastic, acrylic, bamboo, pvc, pcb and other similar materials.
The contoured plastic body, small size, light weight, USB interface, GRBL control system is the preferred entry product for learning to use. It can be engraved or laser engraved.
Note: If you want to buy a control panel or offline controller, please click on the picture directly
About Software:
cnc 3018 software:
https://my.pcloud.com/publink/show?code=XZh0fSkZDn1g9WlY8dkCoFK1lGFnv5XP6PU7
Grbl software:
https://my.pcloud.com/publink/show?code=XZp2ldkZC2NGws1EqH5xTmTfEBTyP5VSBjBV
If you need software, please download the link above.
Any questions, please feel free to contact us

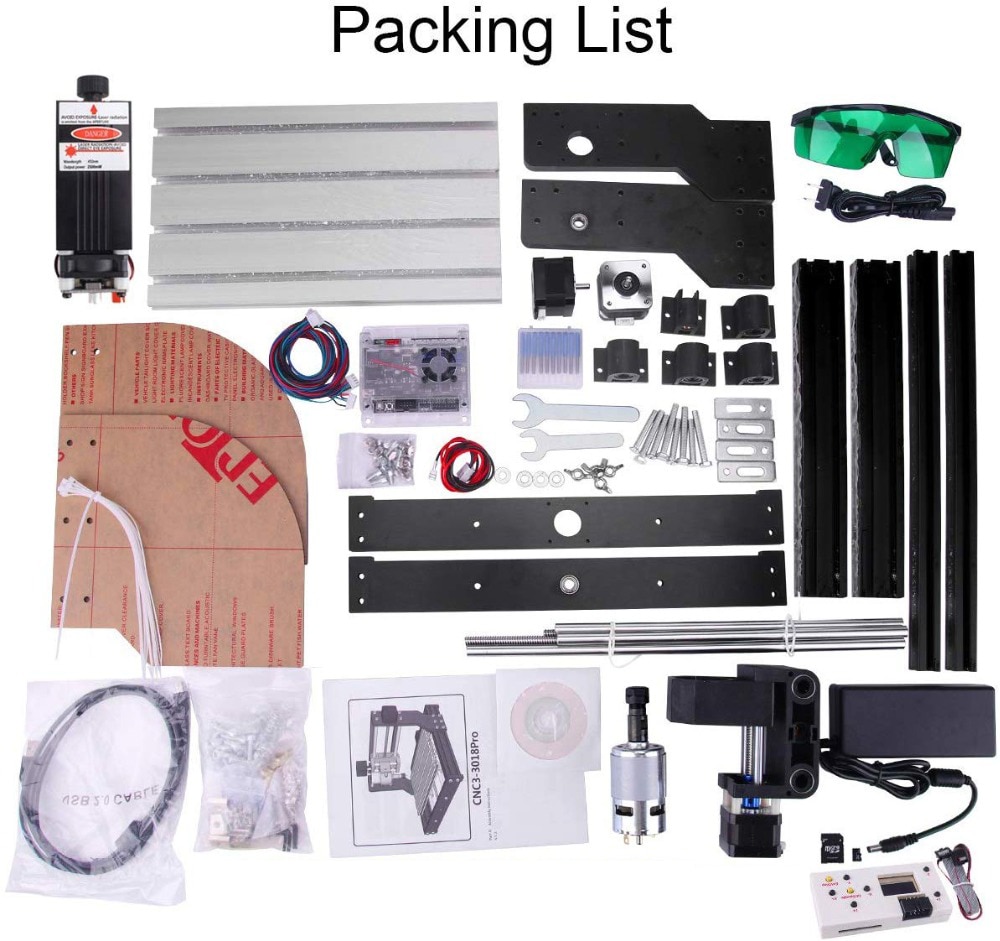

Package Includes:
1: All parts of the machine (with er11)+1pcs offline controller+ 10pcs pcb cutter + 4pcs plates
2: All parts of the machine (with er11) +1pcs offline controller+500mw laser+ Protective glasses +10pcs cutter + 4pcs plates
3: All parts of the machine (with er11) +1pcs offline controller+2500mw laser+ Protective glasses+10pcs cutter + 4pcs plates
4: All parts of the machine (with er11) +1pcs offline controller+3000mw laser+ Protective glasses+10pcs cutter + 4pcs plates
5: All parts of the machine (with er11) +1pcs offline controller+5500mw laser+ Protective glasses+10pcs cutter + 4pcs plates
6: All parts of the machine (with er11) +1pcs offline controller+7w laser+ Protective glasses+10pcs cutter + 4pcs plates
7: All parts of the machine (with er11) +1pcs offline controller+10w laser+ Protective glasses+10pcs cutter + 4pcs plates
8: All parts of the machine (with er11) +1pcs offline controller+15w laser+ Protective glasses+10pcs cutter + 4pcs plates
