Description
- Brand Name: ICROATO
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: 3018pro
- CNC or Not: CNC
- Type: 3018 pro
- CNC: New
- Spindle: 755 motor
- Softwear: GRBL 1.1
- Material: aluminum plastic
- Working range: 300 * 180 * 40mm
- Frame size: 400 * 330 * 240mm
- Power supply: 24V 5.6A (110V -240V)
- Support System: Windows XP / Win 7 / Win 8 / Win 10 / Linux
- Stepping motor: 1.3A 0.25N.m
CNC 3018 PRO BM Laser Engraver Wood Router Machine + Offline Controller GRBL ER11 DIY Engraving Machine for Wood PCB PVC Engrave
Feature:
Working Area: 300 x 180 x 45 mm (about 11.81 x 7.08 x 1.77 inch)
Mesa: 300 x 180 mm (about 11.81 x 7.08 inch)
Frame: 420 x 350 x 270 mm (about 16.53 x 13.78 x 10.63 inch)
Material: Nylon PA6 + Aluminum profile
Machinable thickness: 45mm (height 64mm)
Stepping Motor: 3 x 42 stepper motors
Spindle: 775 spindle motor (12-36V); 24V: 10000 r/min
Collect: ER11 (default 3.175mm)
Connection: PC-USB connection (Windows XP/ Win 7/Win 8 / Win 10 / Offlineline )
Power Supply: 24VDC power adapter (110-240VAC input voltage)
Screw: T8 T-screw, lead 4 mm

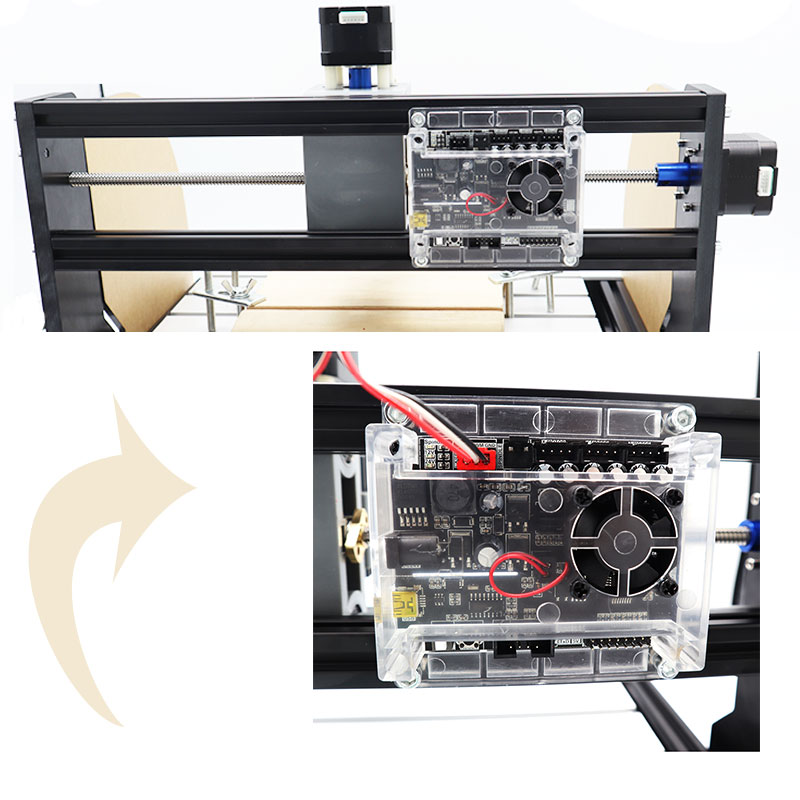

Control Board: upgrade version with shell and fan, better for dust-proof, cooling and extending engraving time and service life, GRBL1.1f firmware, support offline working
Offline Controller: 1 Inch LCD, support gcode, txt, tap, nc, ncc, cnc and other formats processing files, with English instruction and 1GB micro SD card (with TF)

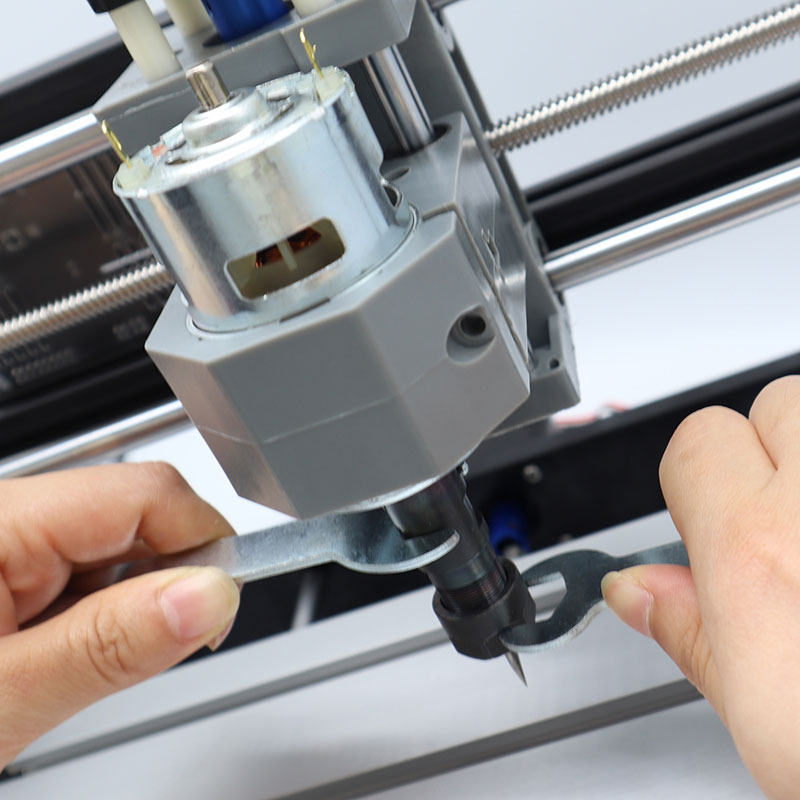

Using with 775 spindle motor (cutters):
