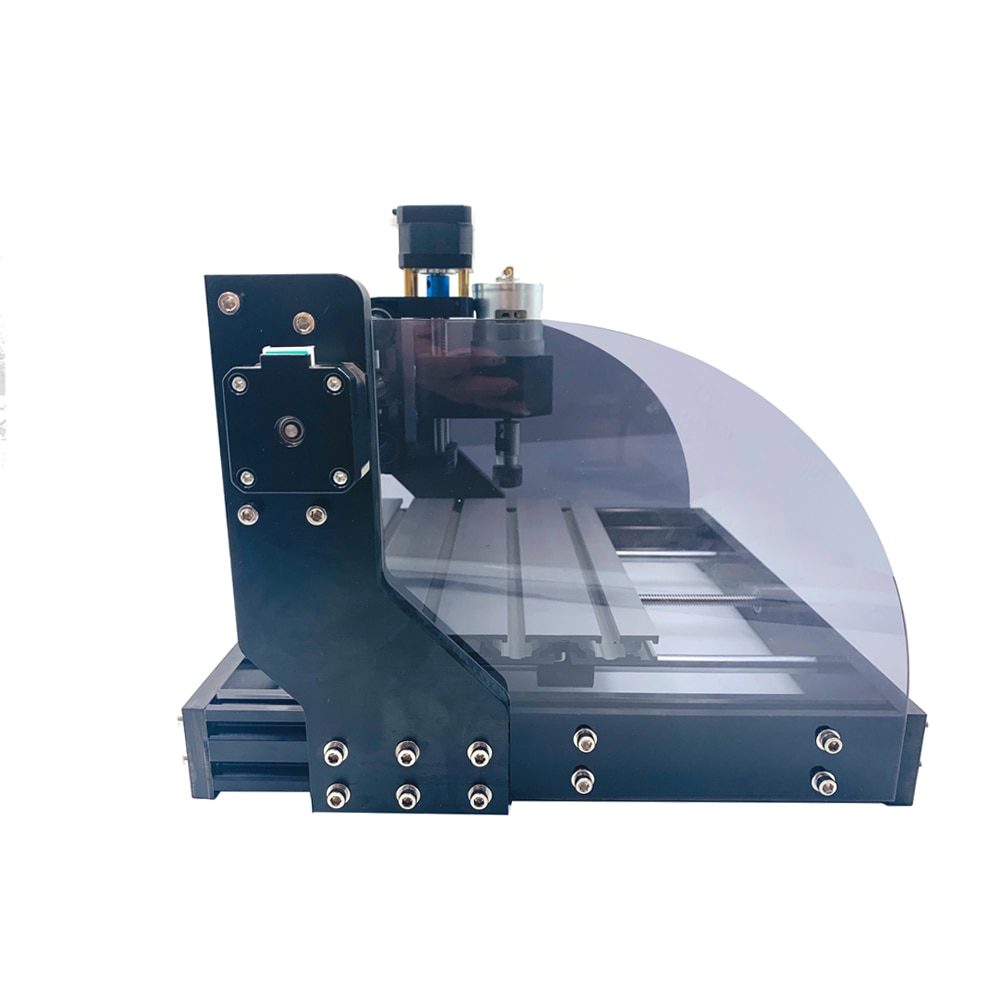

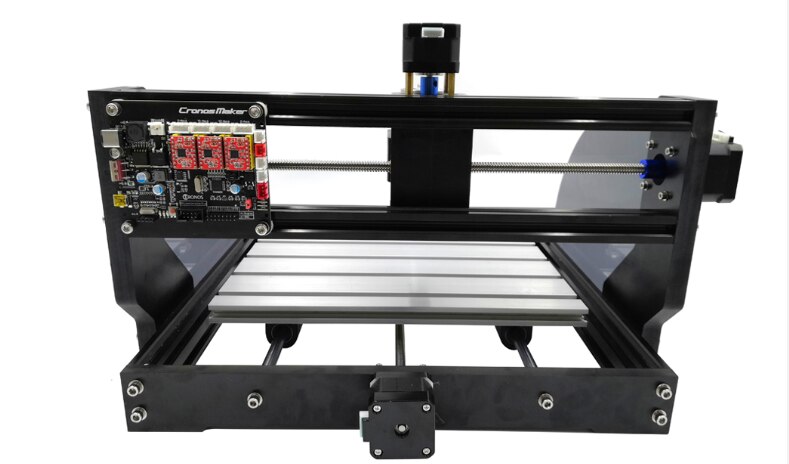

CNC 3018 Pro Max Laser Engraver CNC Wood Router 3 Axis PCB Milling DIY Laser Engraver Machine With Offline Controller 0.5W-15W

Product description:

Frame size: 400 * 330 * 240mm
Working area: 300 * 180 * 40mm
Spindle: 775 spindle motor 24V:10000r / min, support PWM, 0-100% adjustable
Softwear: GRBL control systems,GRBL controller, LiteFire.
Support system: Windows XP / Win 7 / Win 8 / Win10 Home
Stepper motor: Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
Power type: AC power
Material: Aluminum + Bakelite
Power: 24V 5A
Output voltage: 110V-240V
Chuck specifications: ER11 3.175MM (can match 0-7mm)
Laser: 500mw, 2500mw, 3500mw, 5550mw, 15000mw. (15000mw Can engrave on stainless steel and about 3mm wooden materials）

Feature:

1. GRBL1.1f firmware, stable performance
2. The control board is newly upgraded，with offline controller. The whole process of offline engraving, offline knife setting and engraving.
3. Support 2P / 3P laser, support PWM / TTL signal control, power 0-100% adjustable!
4. Spindle supports PWM power 0-100% adjustable
5. Stepper motor overcurrent protection to avoid damage, upgrade DRV8825 driver.
6. Laser direct image engraving, no programming, no design, simple and convenient.

Application:

Can be carved: MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam, anodized aluminum, ceramic, stone, stainless steel.
Unable to engrav: glass, reflective, transparent material.
The 15000mw laser kit can be carved on stone, stainless steel surfaces and anodized colored aluminum alloy surfaces.
Can cut: plastic, wood, acrylic, photovoltaic, leather, printing paper, non-woven fabric.

Please note:

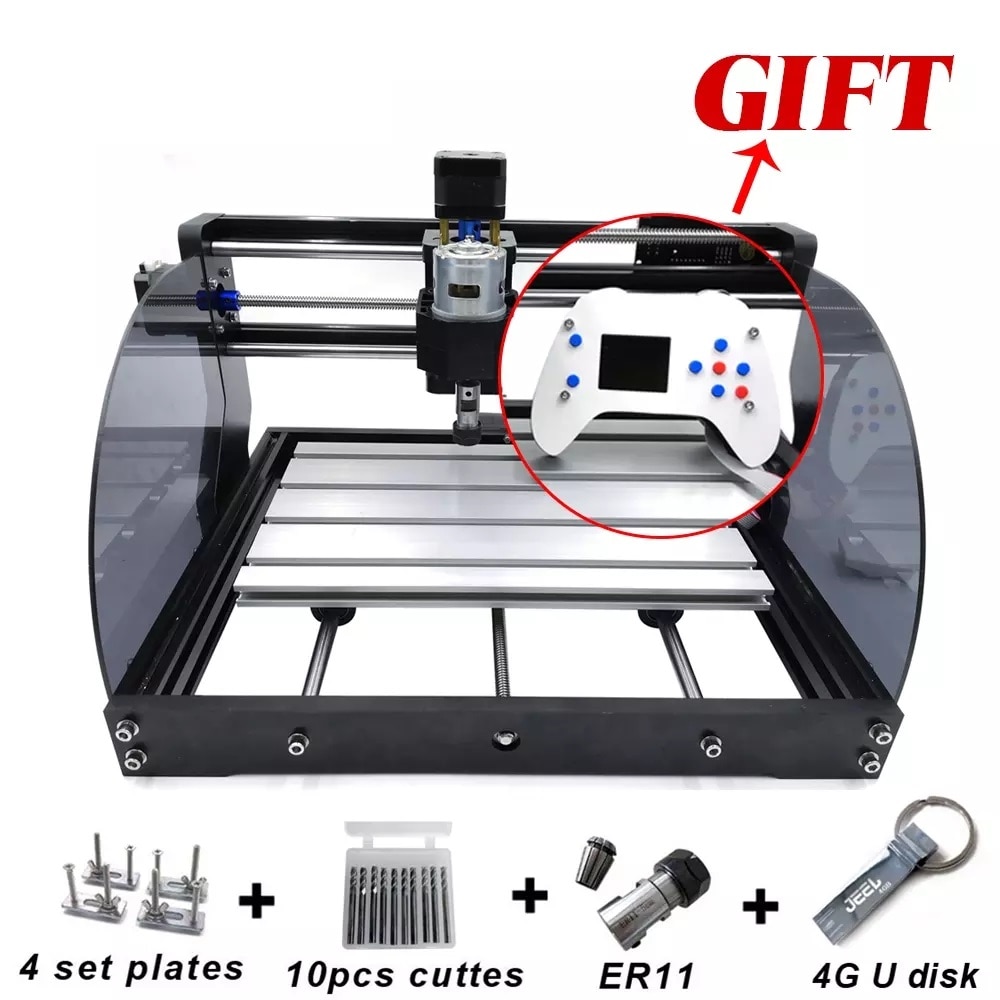

The package sent by this product is an assembly kit. You need to DIY the machine yourself.

When you receive the package, carefully check all accessories of the laser engraving machine. This product cannot be returned after assembly! If you have any questions, please contact us immediately.

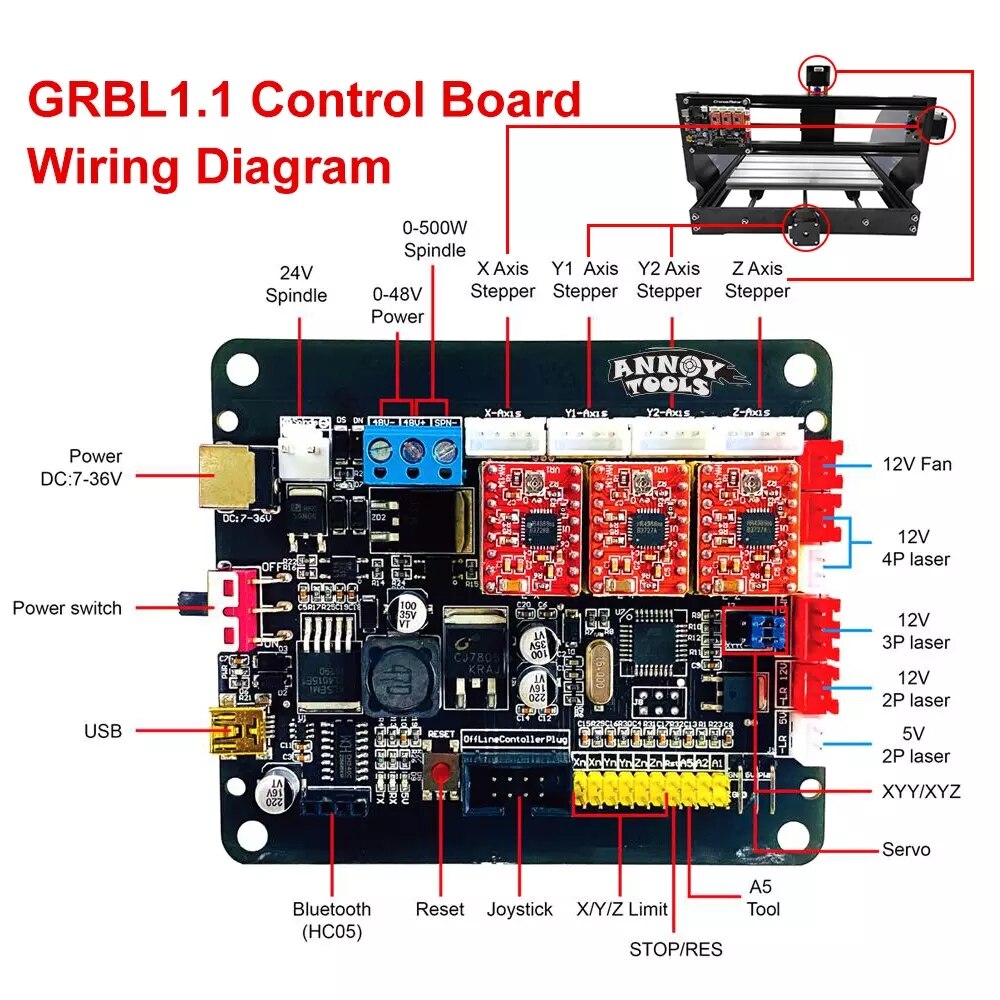

High precision circuit board, X, Y, Z axis control. Stable performance, can work offline during the whole process.

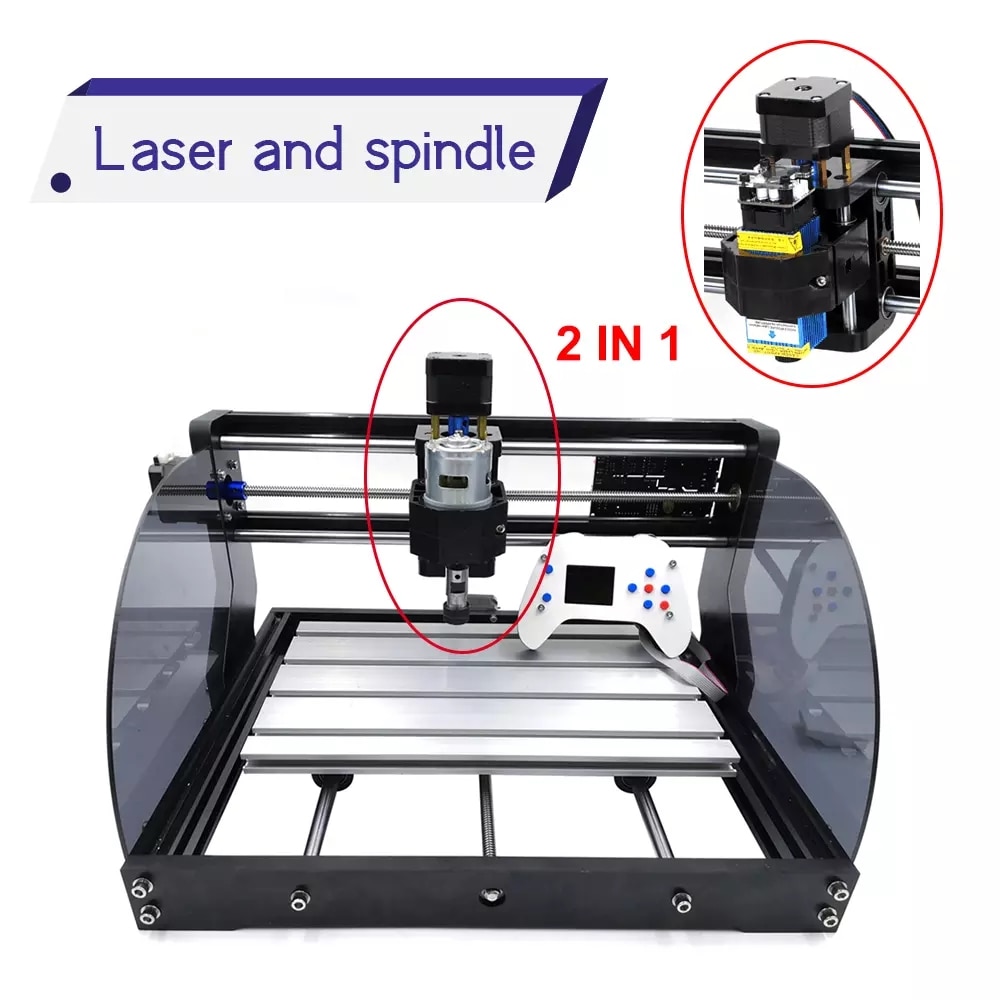

8C new offline screen. Simple operation and easy control.Upgraded laser, support PWM / TTL signal control, power adjustable from 0-100%

Upgraded laser, support PWM / TTL signal control, power adjustable from 0-100%.

Aluminum alloy workbench, thickened and thickened, laser baffle, simple structure, compact design, easy to adjust limit baffle structure for laser testing
