Description
- Brand Name: yofuly
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: 3018PRO-M DIY Engraving Machine
- CNC or Not: CNC
- Working area: 30x18x4cm
- Milling cutter: 3.175mm
- Frame size: 33x40x24cm
- Spindle: 775 motor
- Usage: CNC DIY Milling
- Type: CNC Machine for Metal
- Software: GRBL control
- Function: Wood Router Machine
- Function 1: CNC engraving machine
- Function 2: Laser engraving machine
CNC 3018 Pro Max ER11 Laser Engraver PCB Milling Machine CNC Router Engraving Machine GRBL With 15w DIY Laser Machine
Package Include:
1* DIY CNC Router KiT
1* Offline controller
4* Clamps
1* Laser Goggles
1* 5mm Extension rod
1* ER11 collet kit"(13pcs)
2* 3.175mm(1/8") CNC router bits kit
1* Manual
1*laser (if you order it )
Specifications:
Effective Engraving Area: 300 x 180 x 45mm(11.8 x 7.1 x 1.8”)
Frame Size: 400 x 330 x 240mm(15.7 x 13.0 x 9.4”)
Frame Material: Aluminum+PF
Z-Axis Component Material: ABS
Spindle: 775 motor, 12V; 24V, 10000r / min;
Softwear: GRBL control systems/ Lasergrbl control systems
Rated power: 60W; Maximum power: 120W
Power Supply : AC 24V 5.6A
Stepper Motor : 12v-24v, Torque 0.25N/M, Current 1.33A, fuselage length 34MM
Supported OS: Windows XP, Windows 7 32/64 bits, Windows 8, Windows 10
Drill Bits: Tip 0.2 mm, 20 degrees, Diameter 3.175 mm
Clamps: 4 pcs, hold the thickness of 0-30mm
Laser Head : 5500MW, 12v, 445nm TTL PWM Control

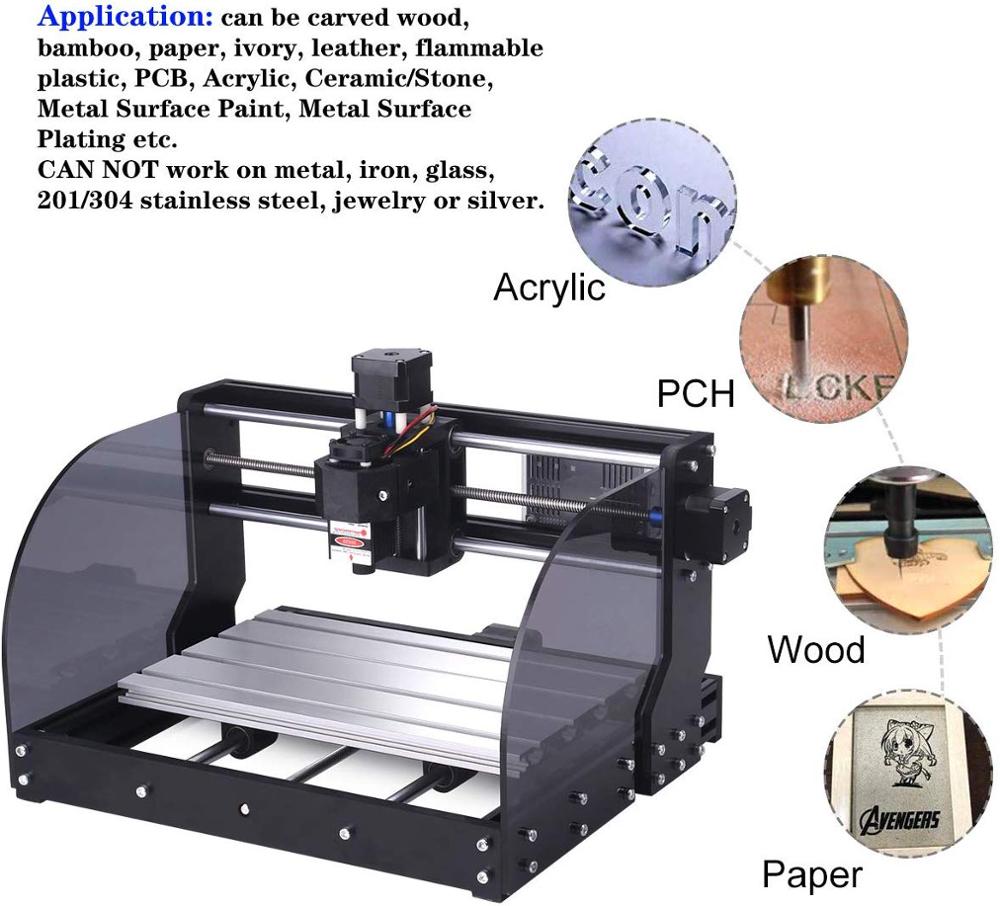

Usage : can be engraved plastic, wood, acrylic, pvc, pcb, aluminum, wood or the like material.
Features:
1. Spindle and drill engraved: Wood,Plastic,PCB,Acrylic,Plywood,etc.
2. Laser engraved: Wood,Plastic,Leather,Bone,Stone,Paper,Shell,etc.
3. You can adjust the focal length of the laser, and you can adjust the laser power in the software

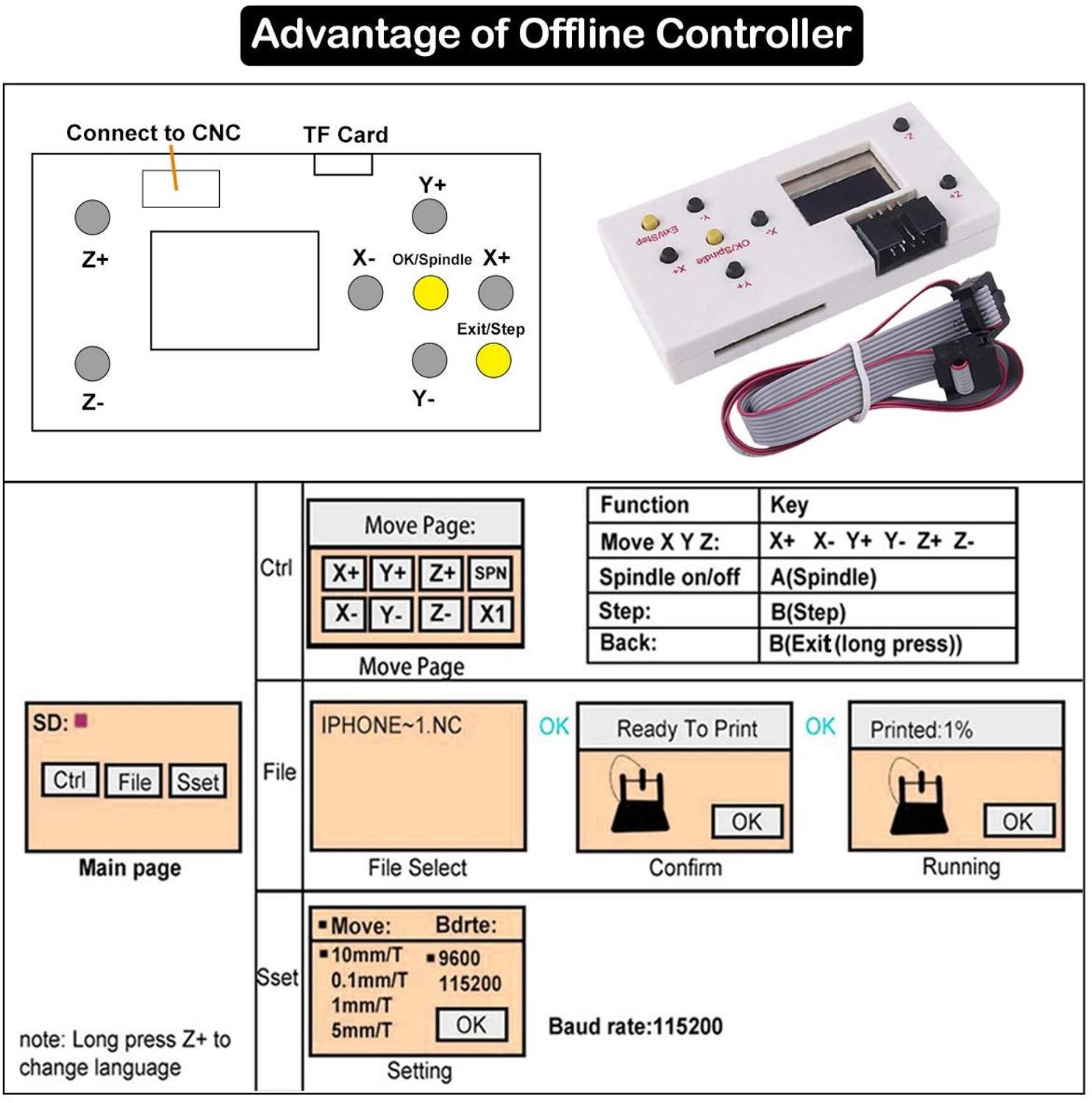

4. Offline controller supports offline work, you will not need to connect to a computer

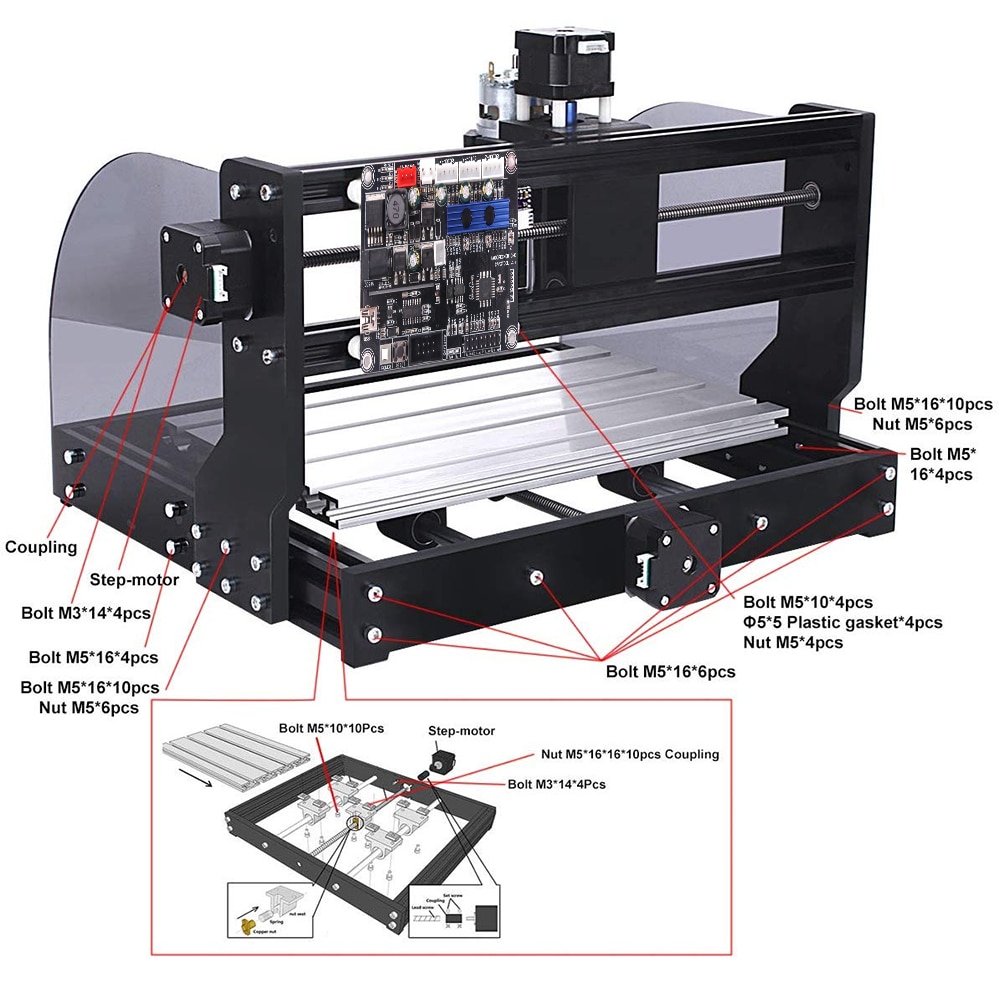

5.Some components and core components have been assembled, simply hand assembled according to the installation instructions,
you can use the rack. More easier to assemble even for not professional users, a great tool for CNC lover.
【About software 】
Regarding software, you can get it through these three methods:
1. The engraving machine we sent is equipped with a U disk, which contains post software and installation instructions.
2. You can download it through this link:
https://my.pcloud.com/publink/show?code=XZh0fSkZDn1g9WlY8dkCoFK1lGFnv5XP6PU7
3. You can provide me with your email address and I can send you software and installation instructions.
