Description
- Brand Name: TALCNC
- Condition: New
- Model Number: laser engraving machine
- CNC or Not: CNC
- Is Smart Device: YES
- Rated input power: 50W
- No-load speed: 5000rpm
- Plunger stroke length: 300mm
- Rated voltage: 24V
- Spindle Power: 300W
1.The laser can be carved including:
Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized
Aluminum/Ceramics/Stone/Stainless steel
Can Not Engrave:Metal/Glass/PCB/Reflective Material/Transparent Material
2.We have a 15W Laser, which can engrave metal materials such as stainless steel and alumina.
3.The blade can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material
4.ER11 needs shrink fitting. Both the spindle and ER11 have the correct diameter,
but ER11 is designed to be minus tolerence to spindle so you cannot put it on directly.
5.We have EU and US adapters and I will send the correct plugs according to your country.
6.If you have any question,feel free to contact me.
|
Machine size
|
455*480*315mm (length, width and height)
|
|
Construction
|
Aluminum alloy sheet metal
|
|
Working area
|
300*180*85mm (length*width*height)
|
|
working desk size
|
300*180mm
|
|
Spindle motor
|
300W and 12000r pm/min
|
|
Maximum engraving speed
|
50-1500mm/min
|
|
Maximum idle speed
|
1500mm/min
|
|
transfer method
|
T8 screw
|
|
Motor drive method:
|
Type 42 1. 5A two-phase stepper motor
|
|
Tool diameter
|
Medium 3.175mm, Medium 4mm, φ6mm
|
|
Overall material
|
Aluminum profile table top
|
|
Engraving machine clamping method
|
Pressure plate clamping
|
|
Guide rails and sliders
|
Linear circular rail
|
|
Control software
|
GRBL
|
|
Processing instructions
|
G code/TAB file/nc file/NCC file
|
|
Laser (options)
|
2500MW/5000MW/10W /15000MW
7W & 15000MW Can engrave metal such as stainless steel ( all laser can not cut plywood) , the stainless steel need to 301 or 304 model This type of stainless steel is possible, other stainless steels are not guaranteed, some can be carved, some are not
|
|
|
Attention:
1.Can engrave:Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc.
2.Can not engrave: Stone, Ceramics, Glass, Reflective or Transparent Material
3018PRO updated style! ! ! The main advantage! ! !
The structure is stable, the appearance is simple, and the assembly difficulty is reduced. Now the 3018Pro machine only takes about 20 minutes to complete the assembly.
Summary:Plastic body with a profile, small size, light weight, USB interface, GRBL control systems, learn to use the preferred entry. Either by inscribing, and can be carved with lasers.
Description: Some components and core components have been assembled, simply hand assembled according to the installation instructions, you can use the rack

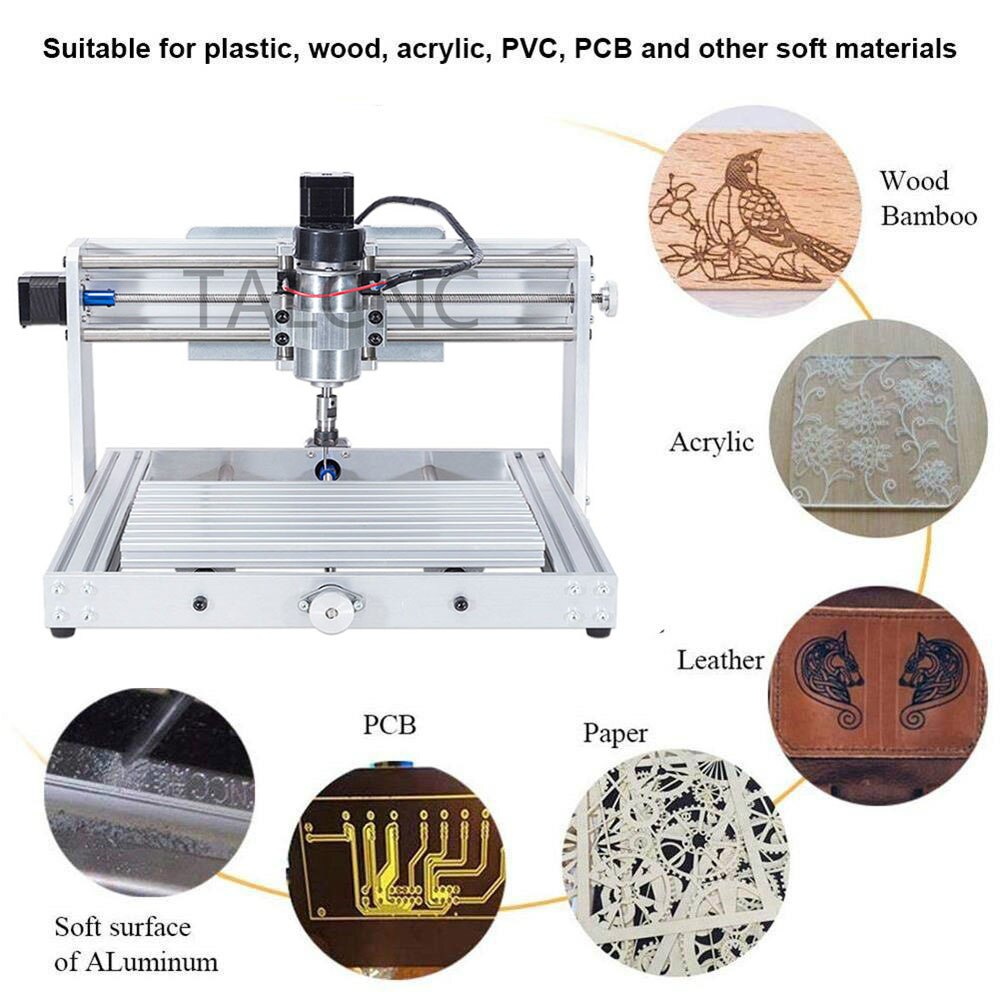

Usage: can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material.
for 15,000mw laser , which can engrave metal materials such as stainless steel and alumina.

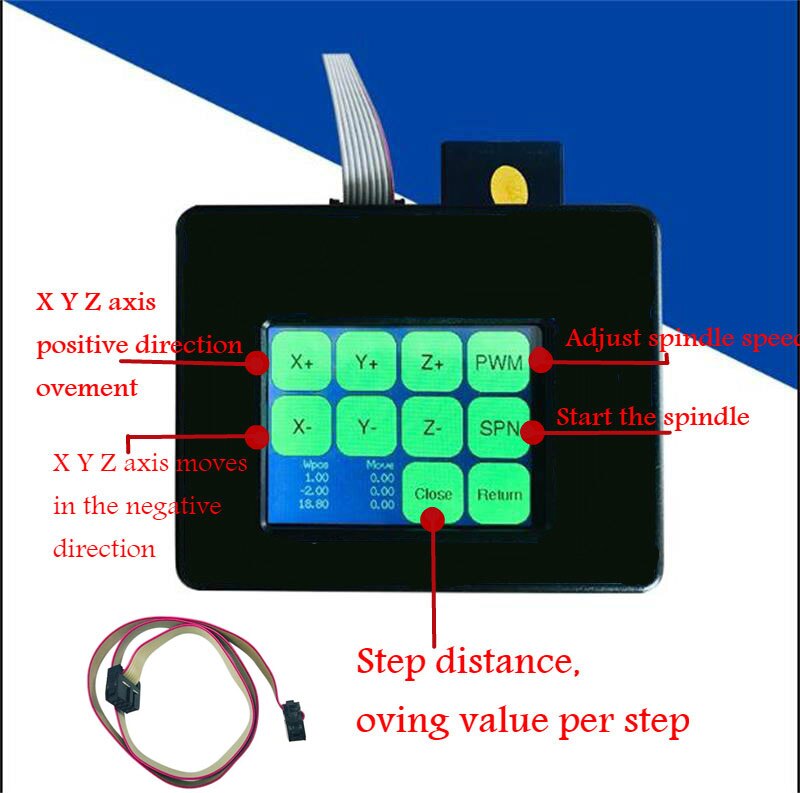

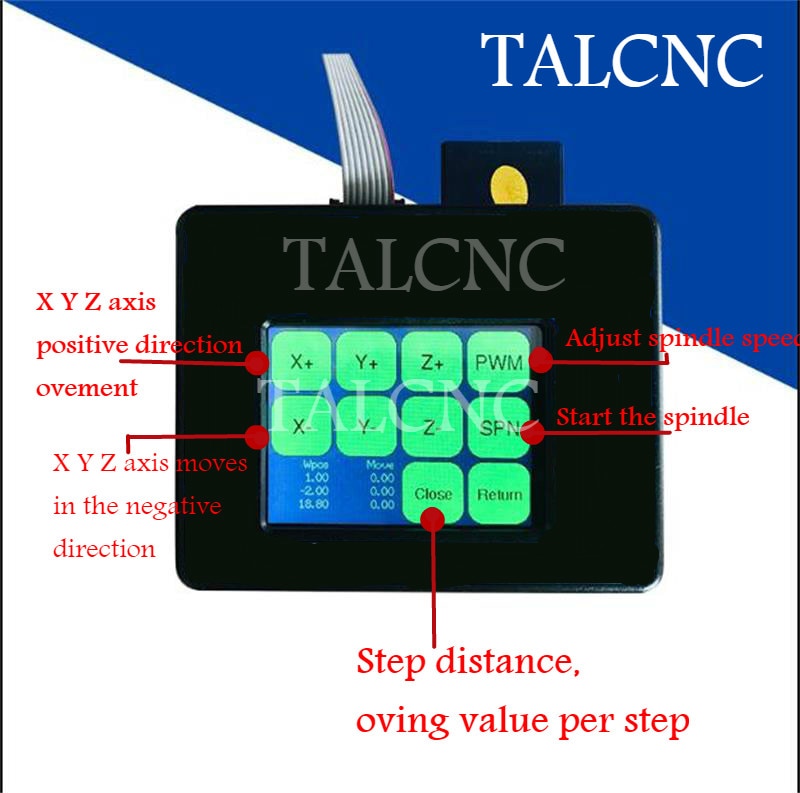

this control board can support with offline controller
Package Introduction: Engraving machine with laser (if you order it with laser )
