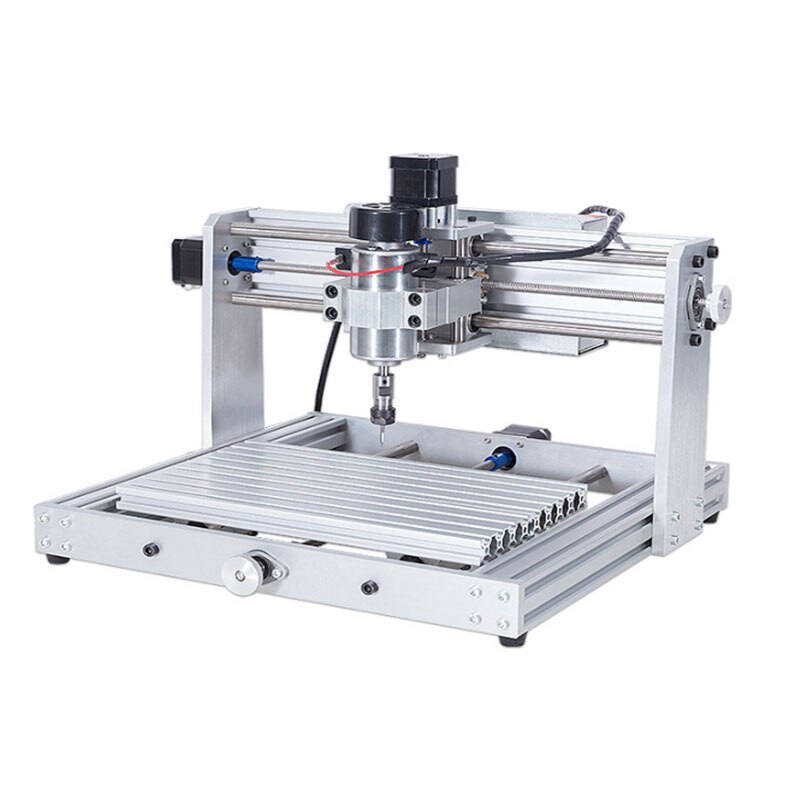

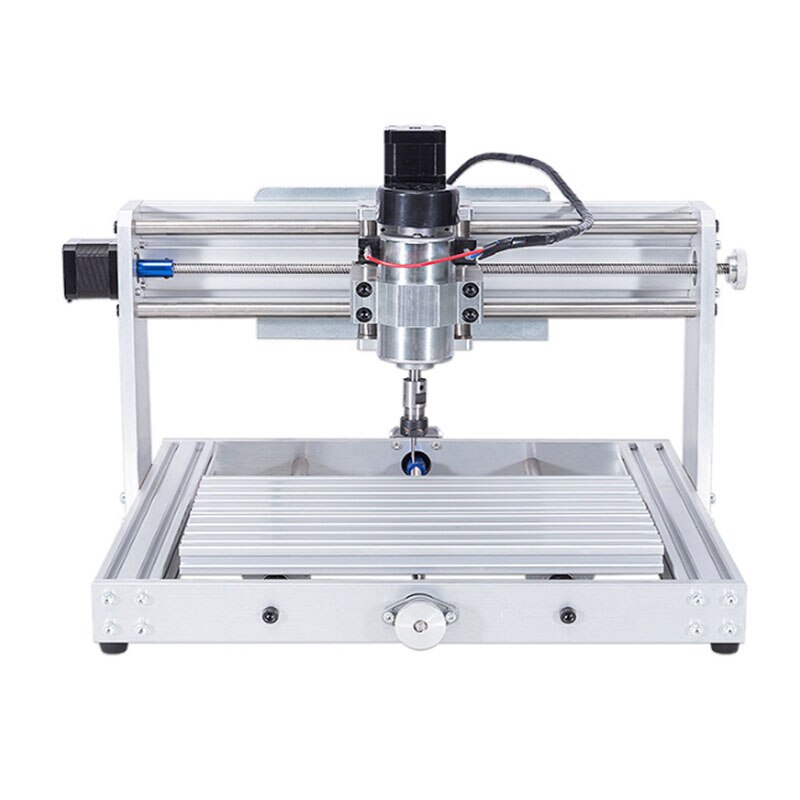

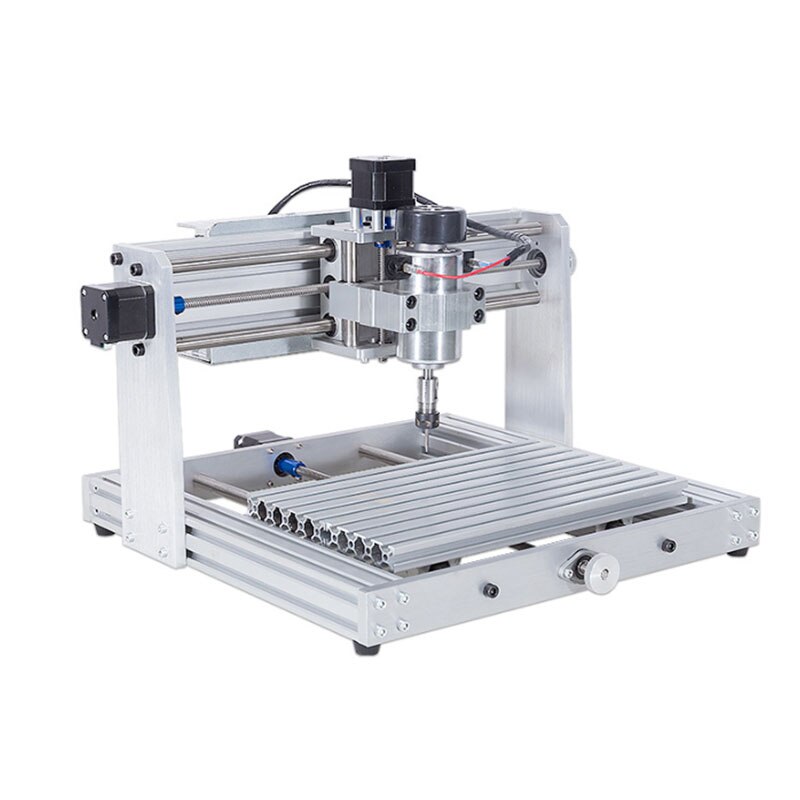

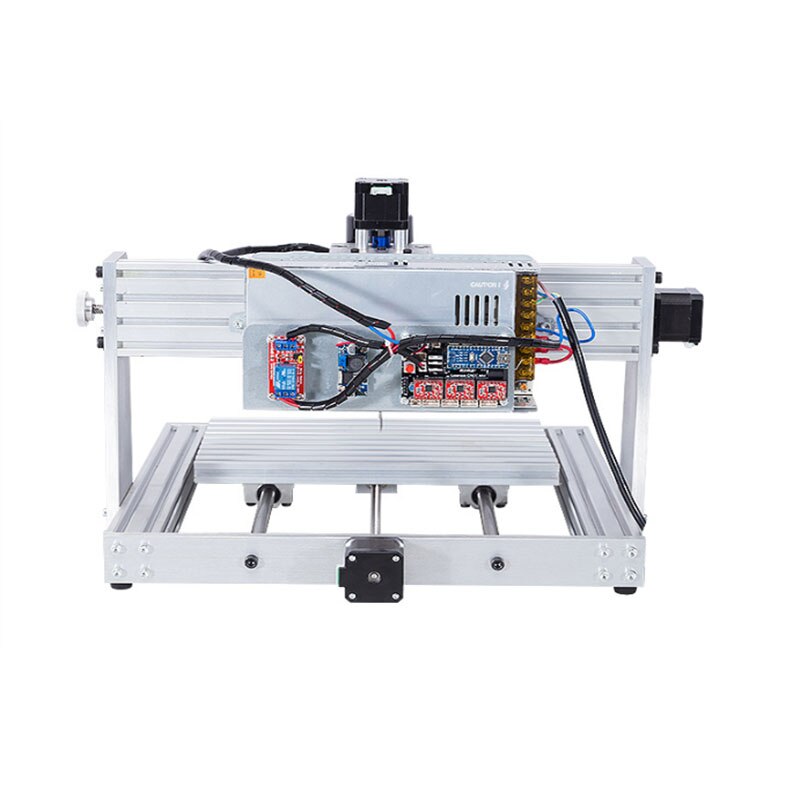

CNC 3018 Pro MAX Engraver With 300W Spindle,15w big power laser engraving 3 Axis pcb Milling machine With ER11 DIY Wood Router

$919.12$1,309.09

SKU: 4001170066843 Category:

Description

  • Brand Name: TALCNC
  • Condition: New
  • Model Number: laser engraving machine
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Rated input power: 50W
  • No-load speed: 5000rpm
  • Plunger stroke length: 300mm
  • Rated voltage: 24V
  • Spindle Power: 300W

1.The laser can be carved including:

 Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized

 Aluminum/Ceramics/Stone/Stainless steel

 Can Not Engrave:Metal/Glass/PCB/Reflective Material/Transparent Material

2.We have a 15W Laser, which can engrave metal materials such as stainless steel and alumina.

3.The blade can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material

4.ER11 needs shrink fitting. Both the spindle and ER11 have the correct diameter,

  but ER11 is designed to be minus tolerence to spindle so you cannot put it on directly.

5.We have EU and US adapters and I will send the correct plugs according to your country.

6.If you have any question,feel free to contact me.







Machine size

455*480*315mm (length, width and height)

Construction

Aluminum alloy sheet metal

Working area

300*180*85mm (length*width*height)

working desk size

300*180mm

Spindle motor

300W  and 12000r pm/min

Maximum engraving speed

50-1500mm/min

Maximum idle speed

1500mm/min

transfer method

T8 screw

Motor drive method:

Type 42 1. 5A two-phase stepper motor

Tool diameter

Medium 3.175mm, Medium 4mm, φ6mm

Overall material

Aluminum profile table top

Engraving machine clamping method

Pressure plate clamping

Guide rails and sliders

Linear circular rail

Control software

GRBL

Processing instructions

G code/TAB file/nc file/NCC file

Laser (options)

2500MW/5000MW/10W /15000MW

7W & 15000MW Can engrave metal such as stainless steel ( all laser can not cut plywood) , the stainless steel need to 301 or 304 model This type of stainless steel is possible, other stainless steels are not guaranteed, some can be carved, some are not




Attention:

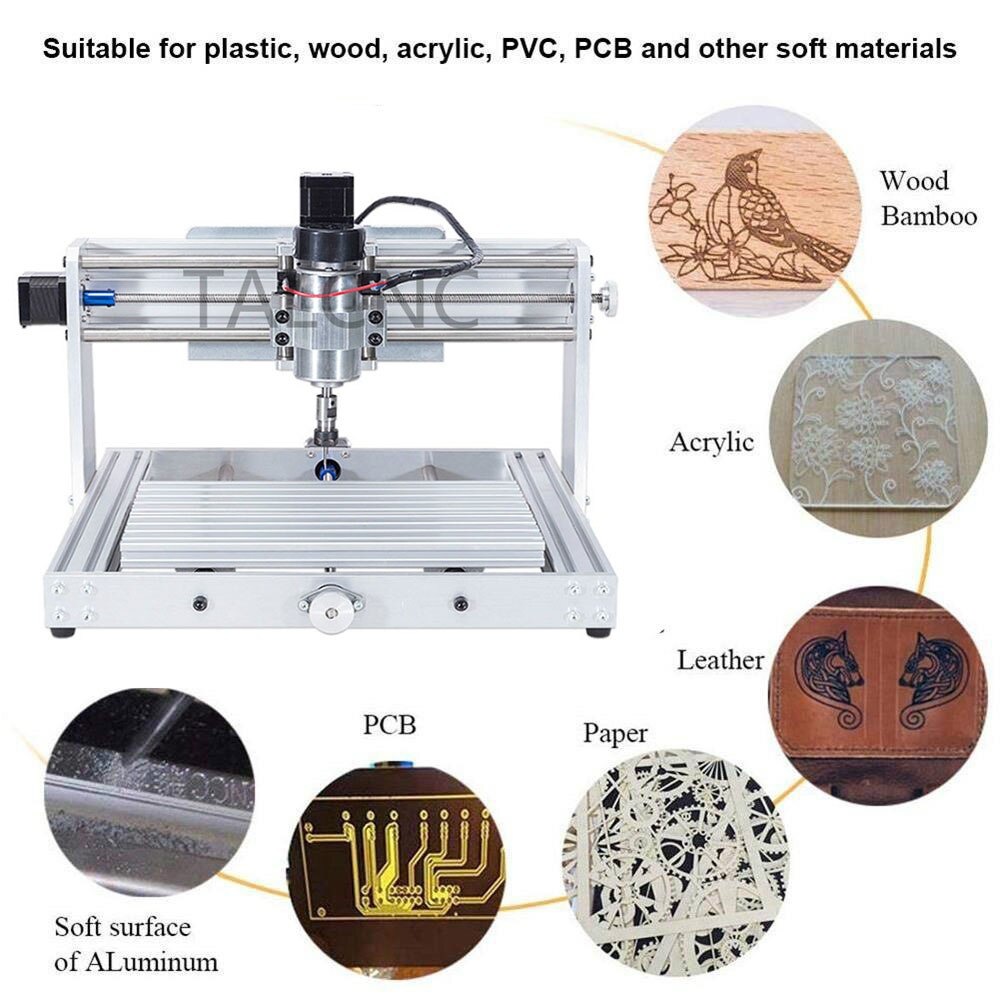

1.Can engrave:Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc.

2.Can not engrave: Stone, Ceramics, Glass, Reflective or Transparent Material



3018PRO  updated style! ! !   The main advantage! ! !

The structure is stable, the appearance is simple, and the assembly difficulty is reduced. Now the 3018Pro machine only takes about 20 minutes to complete the assembly.
Summary:Plastic body with a profile, small size, light weight, USB interface, GRBL control systems, learn to use the preferred entry. Either by inscribing, and can be carved with lasers.
Description: Some components and core components have been assembled, simply hand assembled according to the installation instructions, you can use the rack
Usage: can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material.

for 15,000mw laser , which can engrave metal materials such as stainless steel and alumina.


Package  Introduction:  Engraving machine with laser (if you order it with laser )



300我_meitu_114277559034_469809415_meitu_123564564_meitu_111_meitu_32_meitu_43_meitu_54_meitu_6H08b612f244fd4ed58cda22ead9caf0a9f
