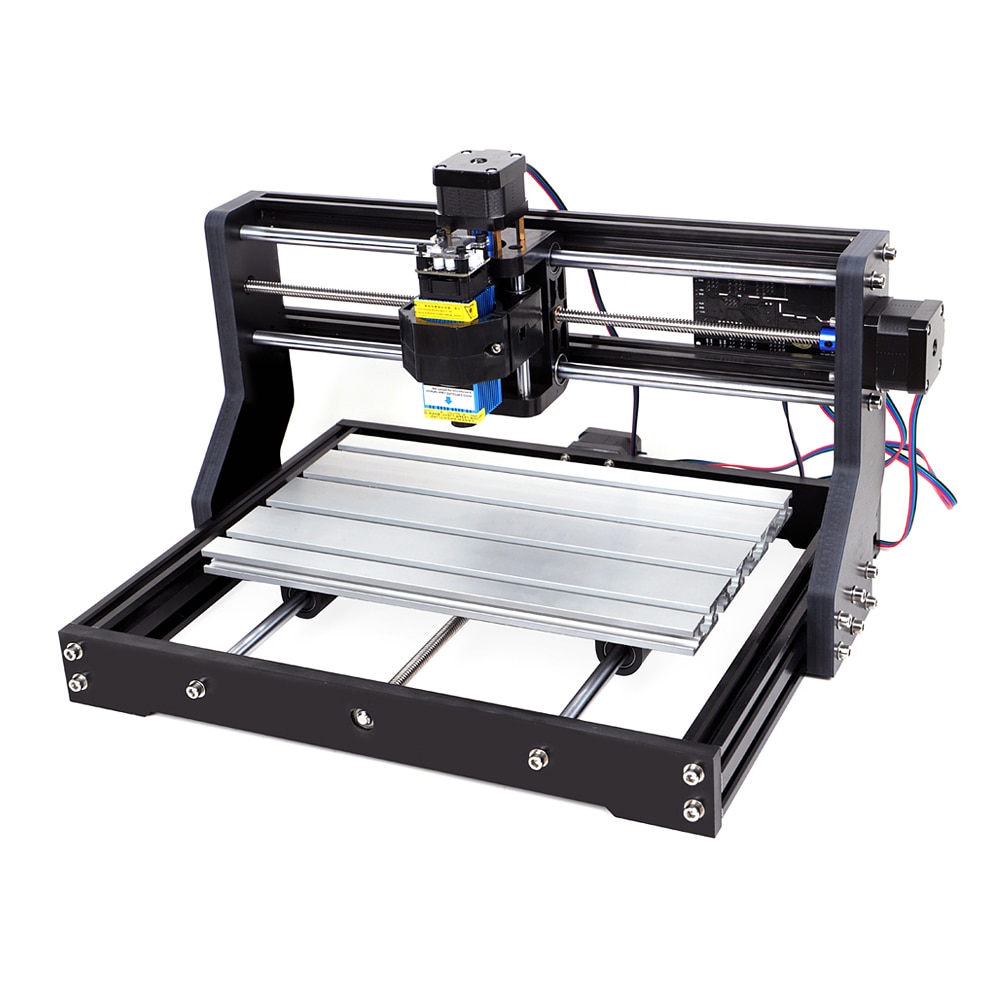

Product description:
Input: 100-240V 50-60Hz
Output: 12V 5A
Material: Aluminum + plastic
Softwear: GRBL control
Working area: 300 * 180 * 40mm
Chuck size: ER11 3.175mm

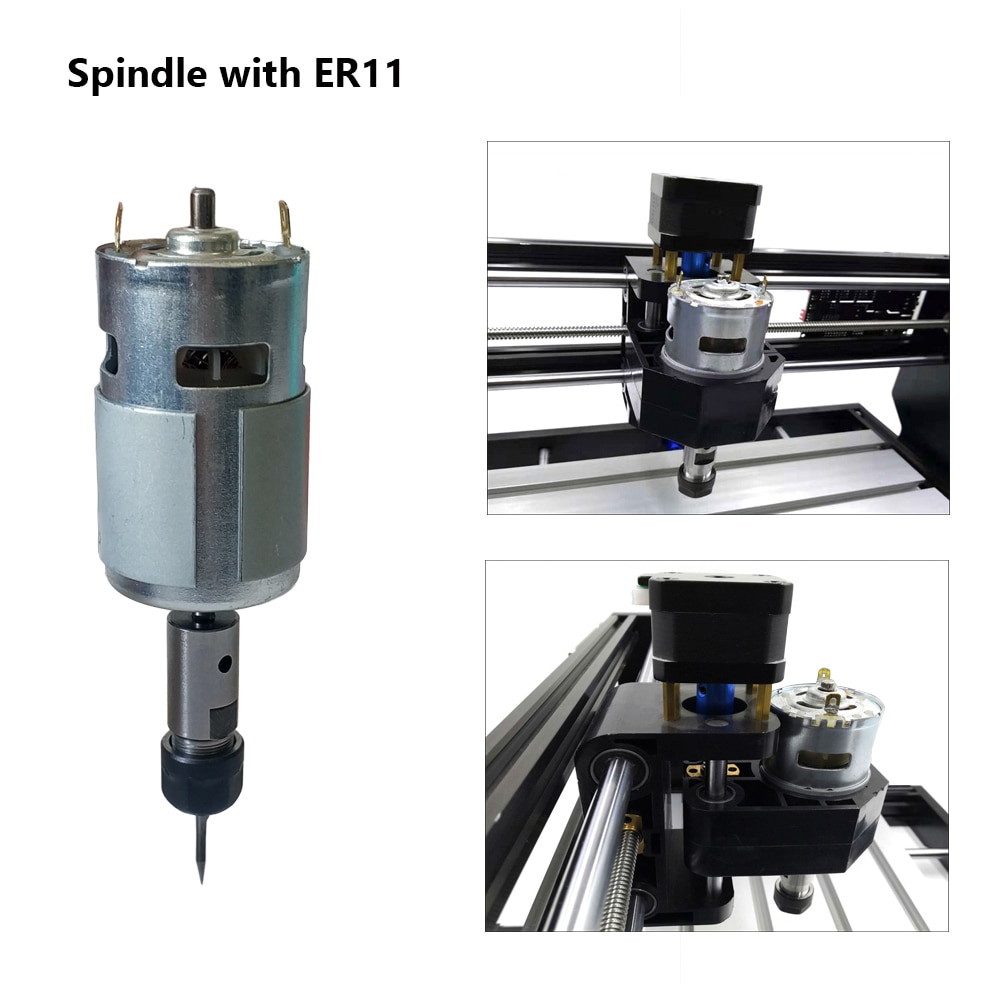

Spindle: 775 spindle motor 24V 10000r/min

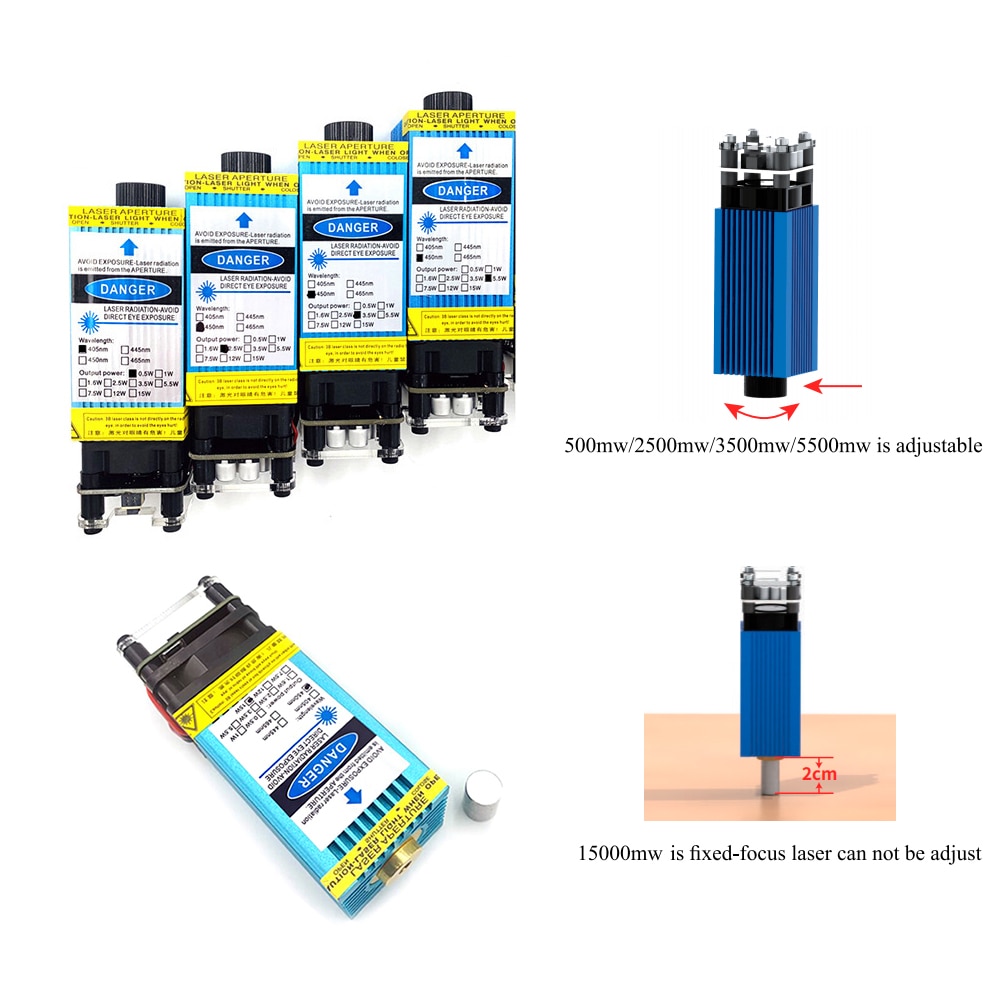

Laser power: 500mw, 2500mw, 3500mw, 5550mw, 15000mw
Support system: Windows XP / Win 7 / Win 8 / Win10

Feature:

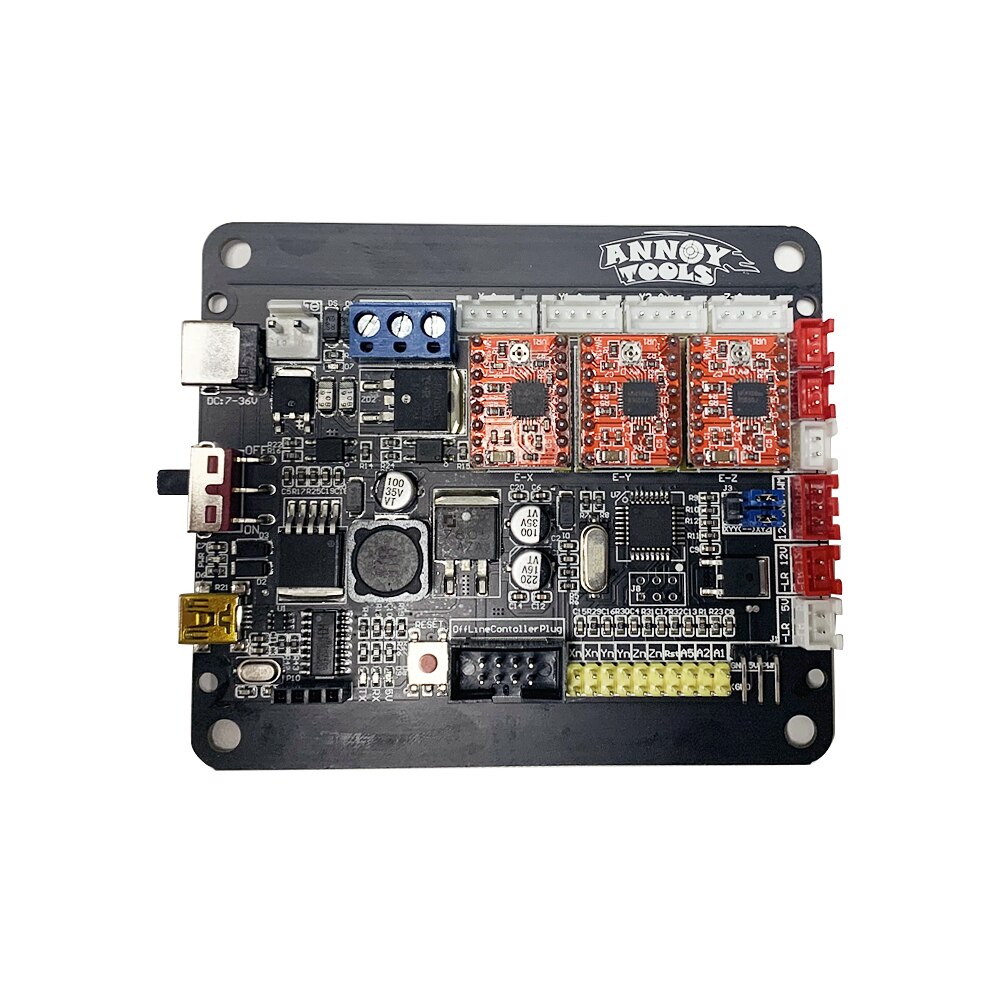

1. New upgrade of body material! Fully upgraded, controllable motherboard, three-axis driver, dual Y-axis, comprehensive functions.
2. Black injection molded parts, professional shell protection, active fan cooling, no heat for long-term use. High accuracy.
3. Avoid stepper motor overcurrent protection damage, upgrade integrated stepper motor driver, 2A high current, high stability.
4. GRBL1.1f firmware, stable performance.
5. Support offline laser output 2P / 3P laser, support PWM / TTL signal control.
6. Power 0-100% adjustable! The spindle supports PWM power adjustable between 0-100%.
7. Laser direct image engraving, (supports offline) can work without connecting to a computer. No programming, no design, simple and convenient.

Application:
Can engraving: Wood, plastic, acrylic, leather, etc.

Friendly reminder: only 15000mw laser can engraving stainless steel surface, non-ferrous aluminum surface, and some surface-treated metal (surface paint, anodizing, plating), but the carving effect is not as good as wood.

Please note:

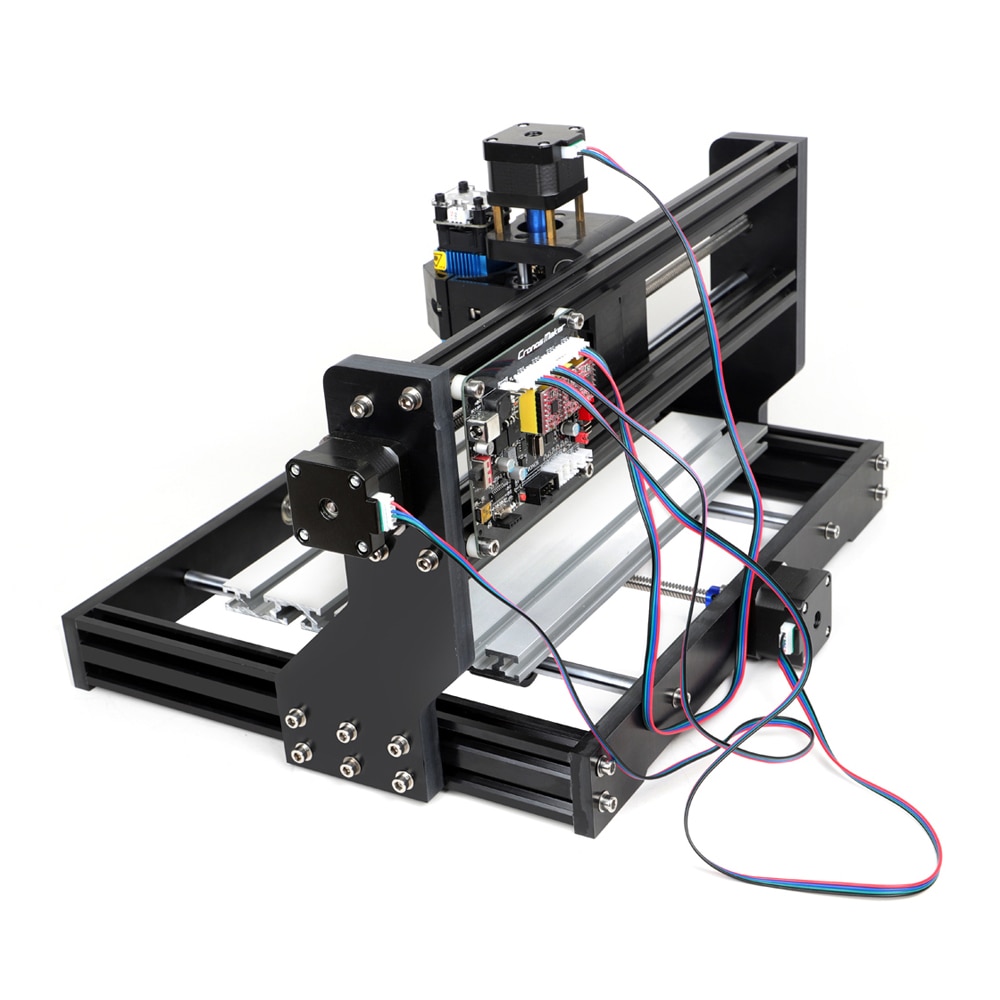

The package sent by this product is an assembly kit. You need to DIY the machine yourself.

When you receive the package, carefully check all accessories of the laser engraving machine. This product cannot be returned after assembly! If you have any questions, please contact us immediately.
