Description
- Brand Name: yofuly
- Origin: CN(Origin)
- Condition: New
- Model Number: CNC3018 PRO
- CNC or Not: CNC
- Working area: 300*180*40mm
- Milling cutter: 3.175mm
- Offline control: GRBL
- Function: Wood Router
- Spindle: 775 spindle
- Usage: CNC DIY Milling
- Type: Mini CNC Milling
- Type1: Wood Router
CNC 3018 PRO Laser Engraver Wood Router Machine 15w Big Power Laser DIY Engraving Machine,cnc 3018 Milling Machine,wood router
Packing Includes:
1.3018pro machine + 10pcs cutters+ 4 plates + extension rod+15w laser (with goggle)
2.3018pro machine + 10pcs cutters+ 4 plates + extension rod+15w laser (with goggle)+Offline controller
Parameter:
|
Software |
GRBL control |
|
Working area |
30*18*4cm |
|
Machine dimension |
33*40*24cm |
|
Spindle |
775 spindle motor (12-36V) 24V: 1000r/min |
|
Stepper motor |
Fuselage length 34mm,Current 1.33A, 12v. Torque 0.25N/M |
|
Power supply |
24V 5.6A |
|
System support |
Windows XP / Win 7 / Win 8 |
Feature:
Please contact us for SOFTWARE AND INSTRUCTION MANUAL download link!

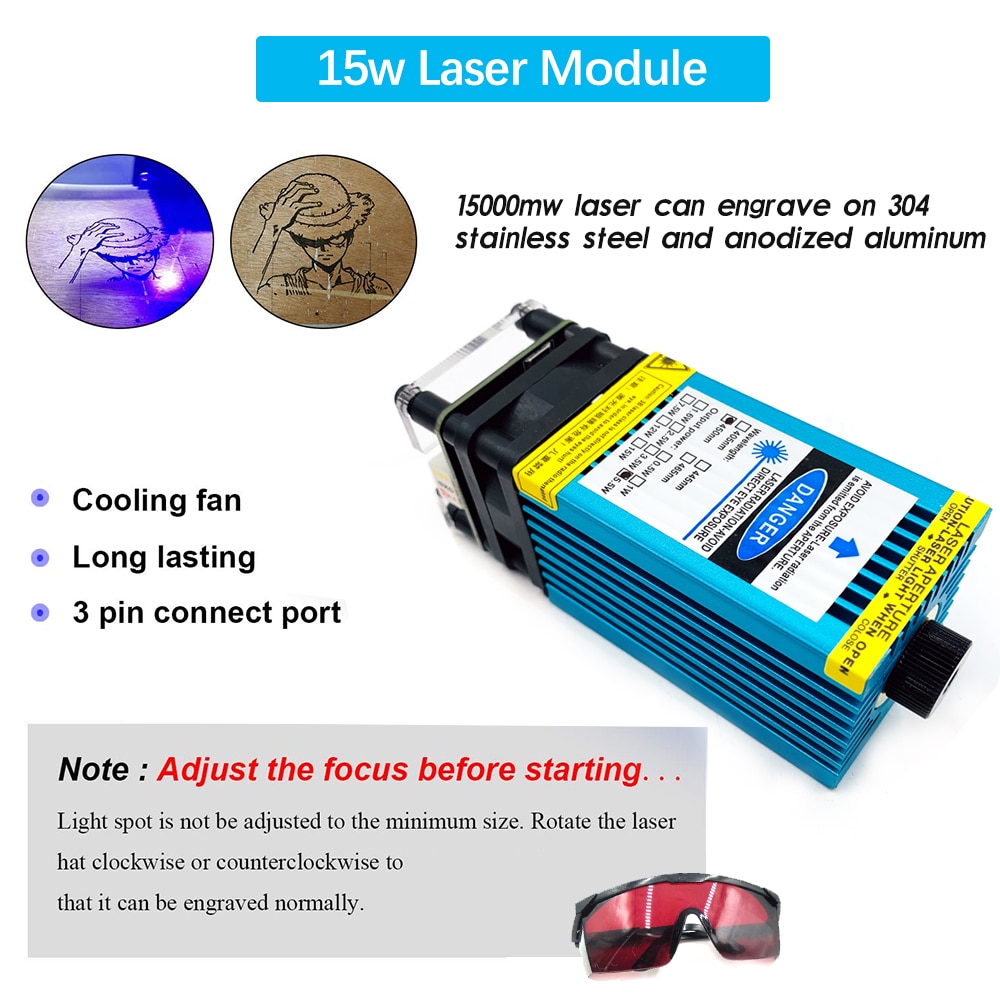

1.The laser can be carved including:
Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam/Paper/Anodized Aluminum/Ceramics/Stone/Stainless steel
Can Not Engrave:Metal/Glass/PCB/Reflective Material/Transparent Material
(We have a 15W Laser, which can engrave metal materials such as stainless steel and alumina.)
2.The blade can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material.
3.ER11 needs shrink fitting. Both the spindle and ER11 have the correct diameter, but ER11 is designed to be minus tolerence to spindle so you cannot put it on directly.

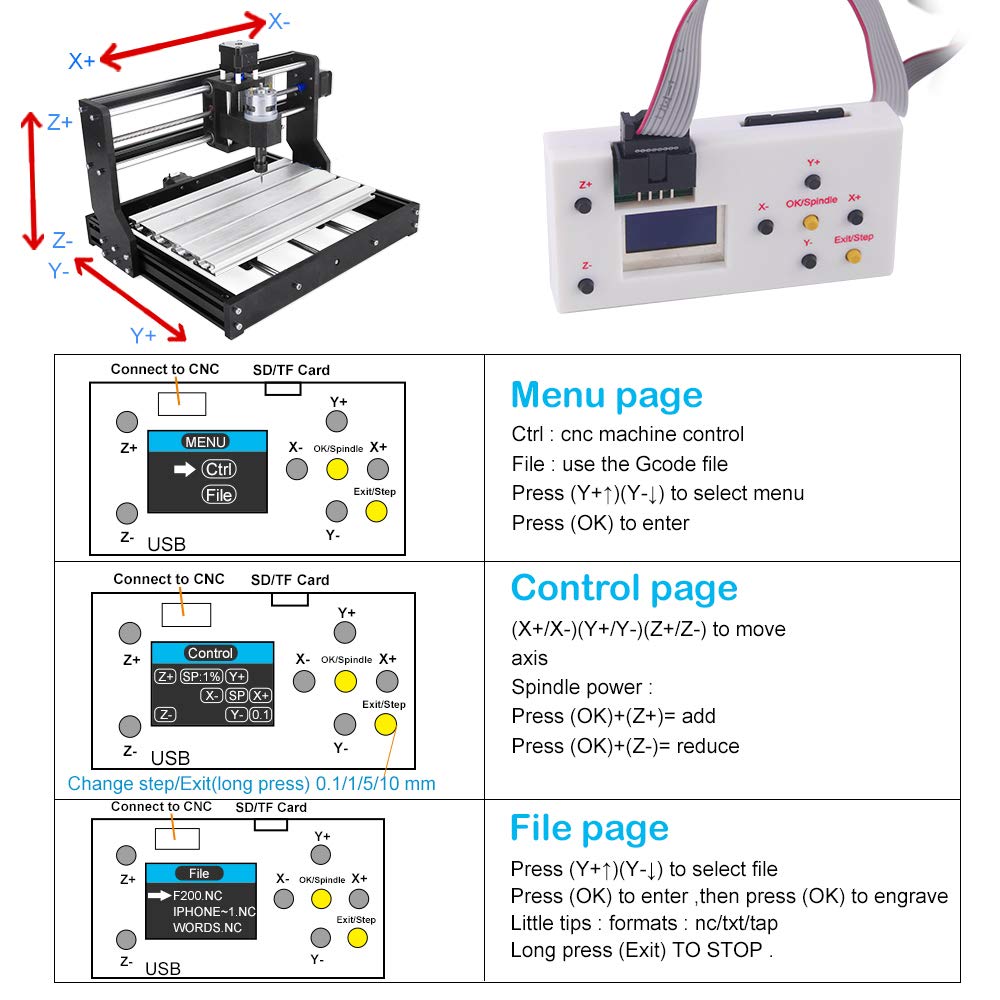

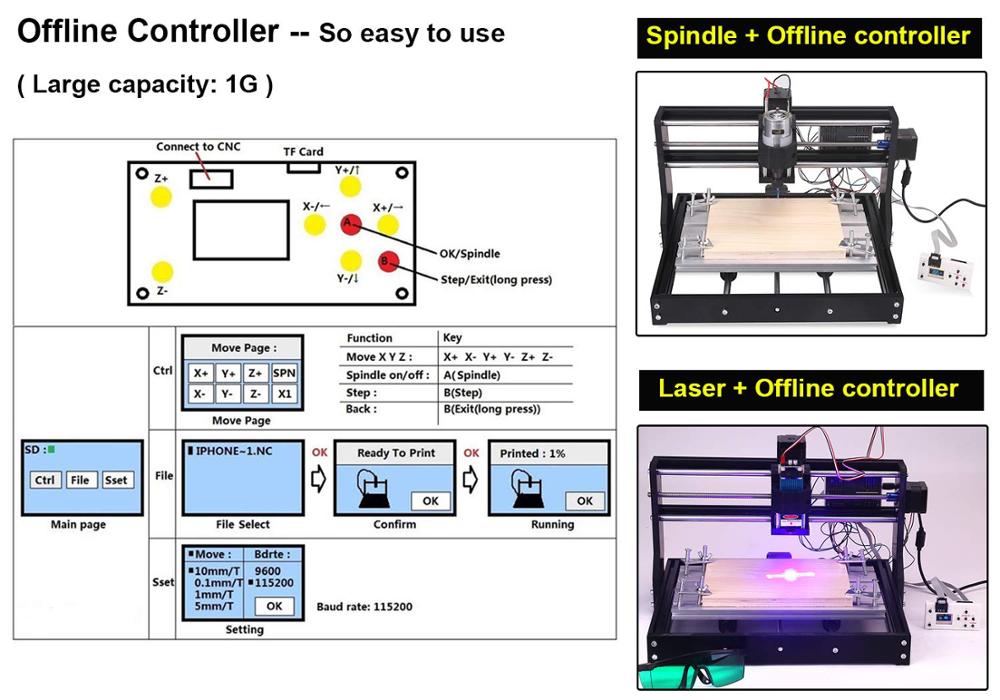

4.Offline controller supports offline work, you will not need to connect to a computer.
5.If you need any question,feel free to contact me.

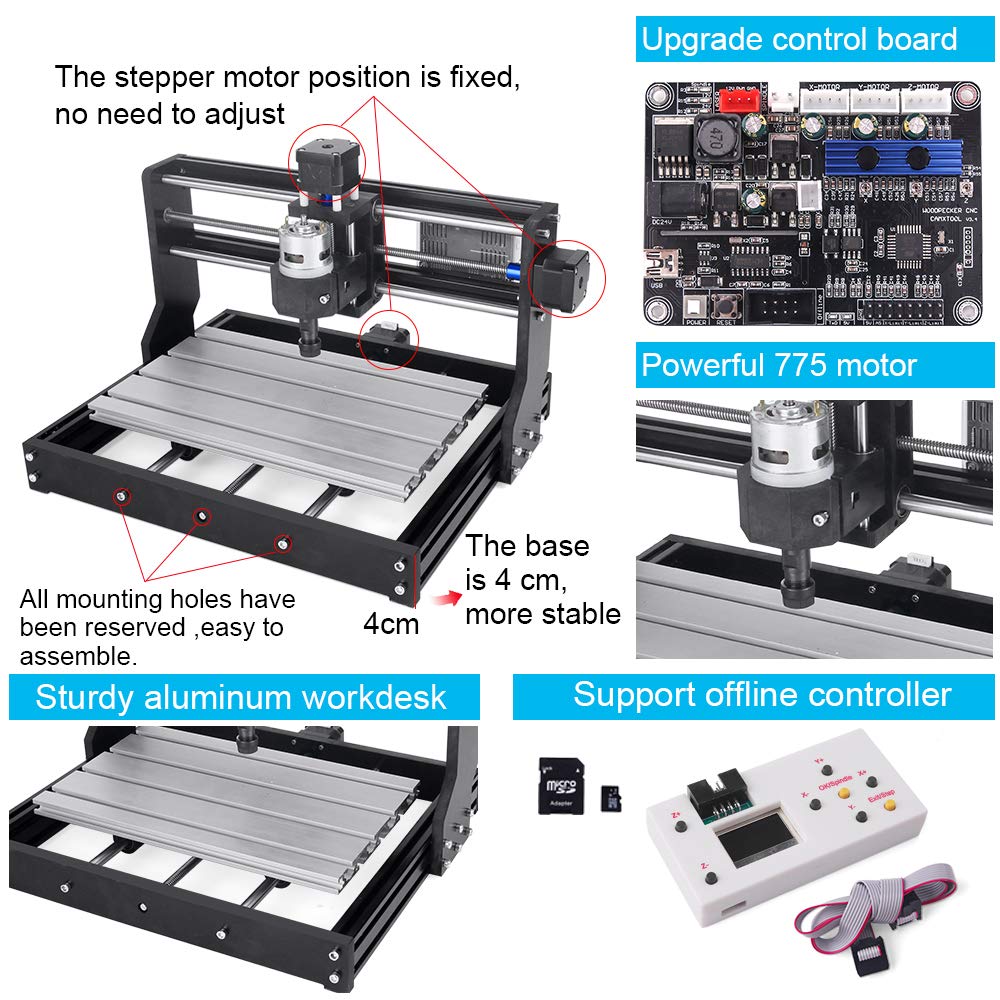

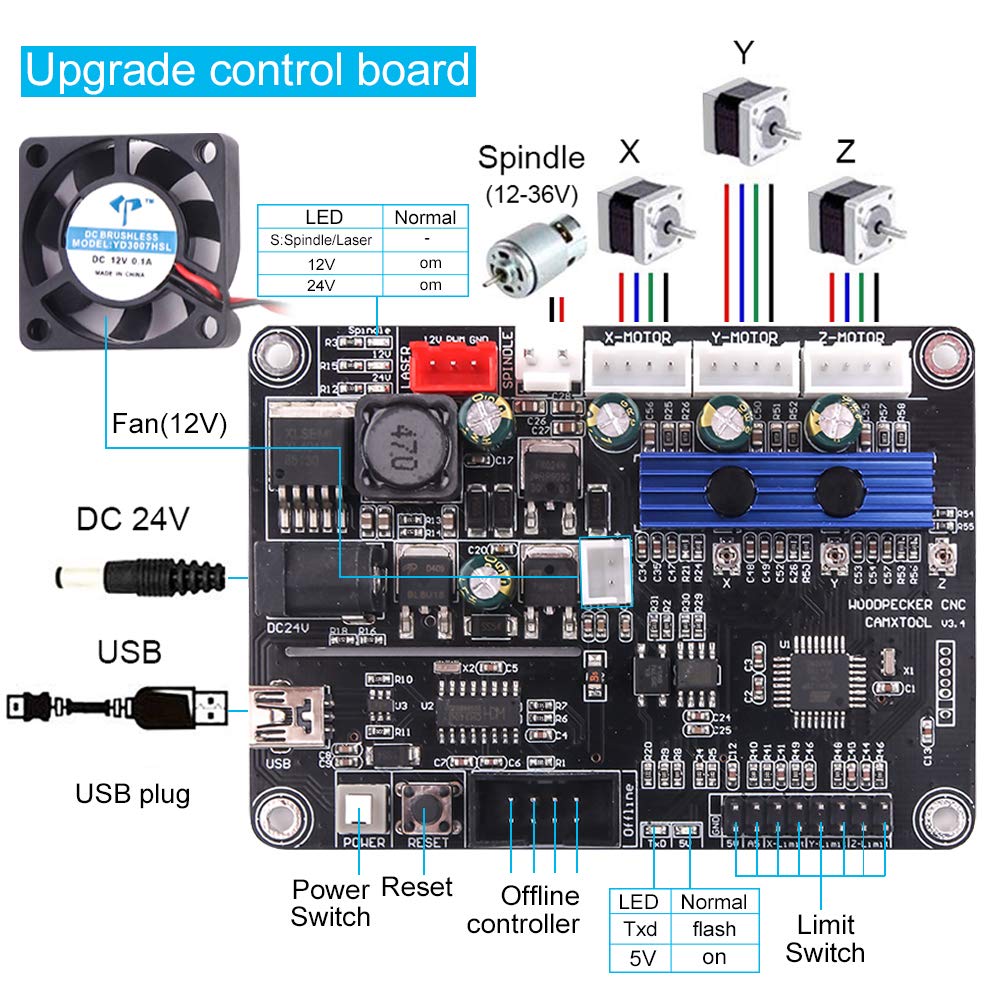

UPGRADE CONTROL BOARD!!
1, Improved power interface: the original plastic interface changed to full metal shielded interface 2, Improve the USB interface: the original USB interface is patch soldering, transport collision and improper use, easy to drop, now changed to plug-in, very strong 3, The spindle drive increases the optocoupler isolation, so that the control board generates less heat, the spindle speed adjustment is more linear and safer. 4, Stepper motor drive replaced with DRV8255, faster, better quality 5, Stepper motor drive increases the self-recovery fuse, when a short circuit or fault occurs, the power supply will be cut off and the fault indicator light will be displayed. 6,12V step-down increase the self-recovery fuse, when the short circuit occurs, the power can be cut off in time to avoid damage. 7, Optimized layout, control area and drive area separation, running more stable 8, Plastic protective case is added to avoid short circuit 9, Added heat sink to avoid burning of control board
If you need the control board,please click this link.
grblControl use
