Description

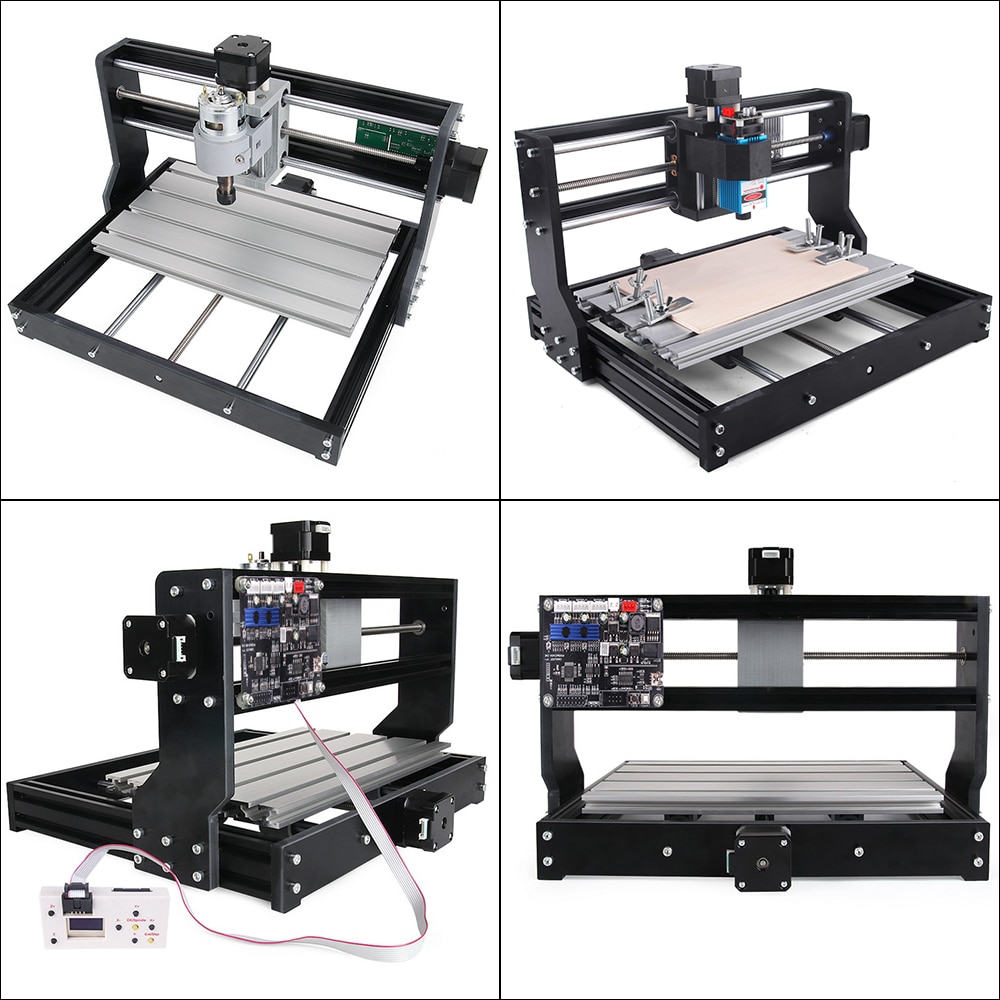

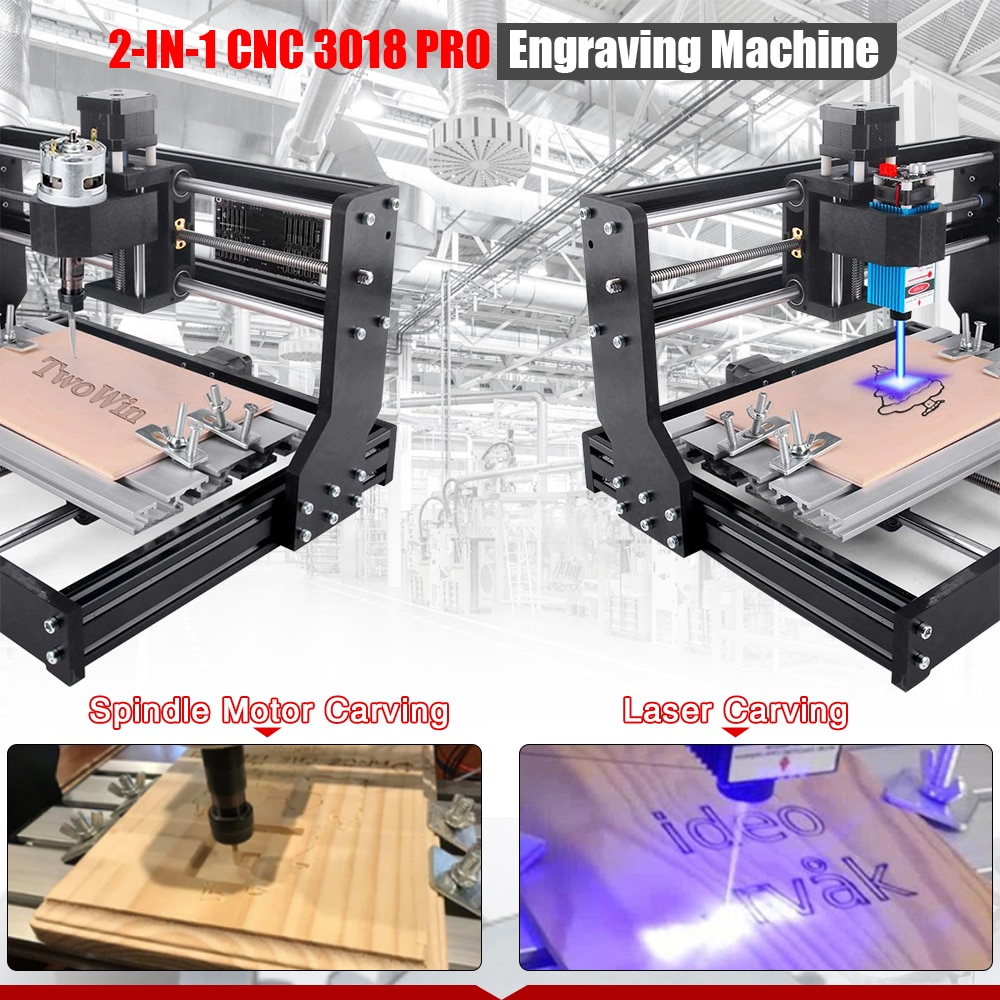

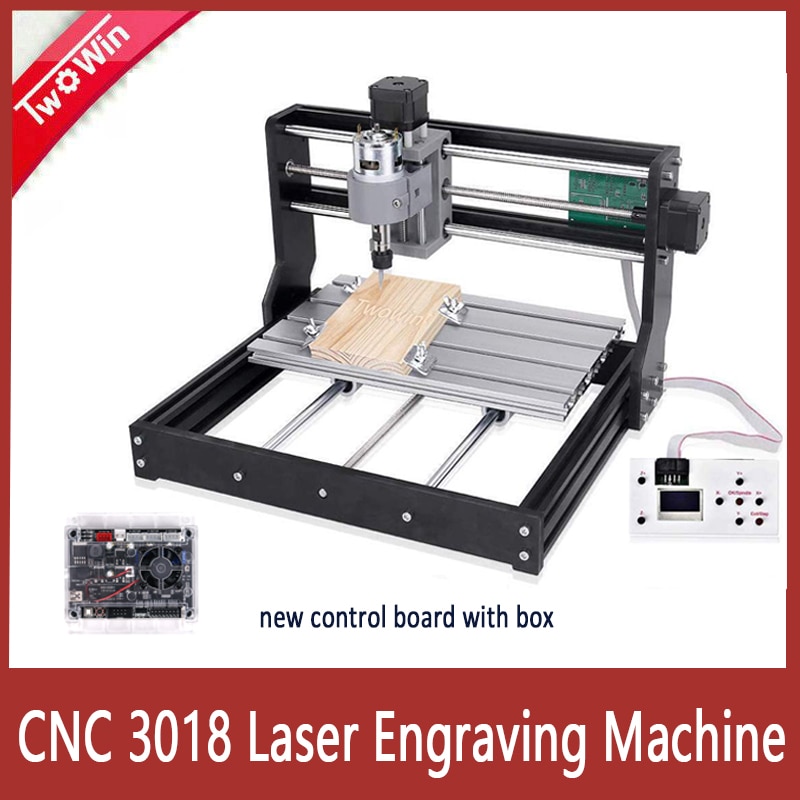

CNC 3018 Pro Laser Engraver 10w/15w Laser CNC Milling Machine 3 Axis GRBL Control Laser Engraving Machine DIY Wood Router
- Brand Name: TwoWin
- Certification: NONE
- Condition: New
- Model Number: CNC 3018 pro Machine
- CNC or Not: CNC
- milling cutter: 3.175mm
- Function: Wood Router milling machine/PCB Milling Machine
- spindle: 775 spindle motor

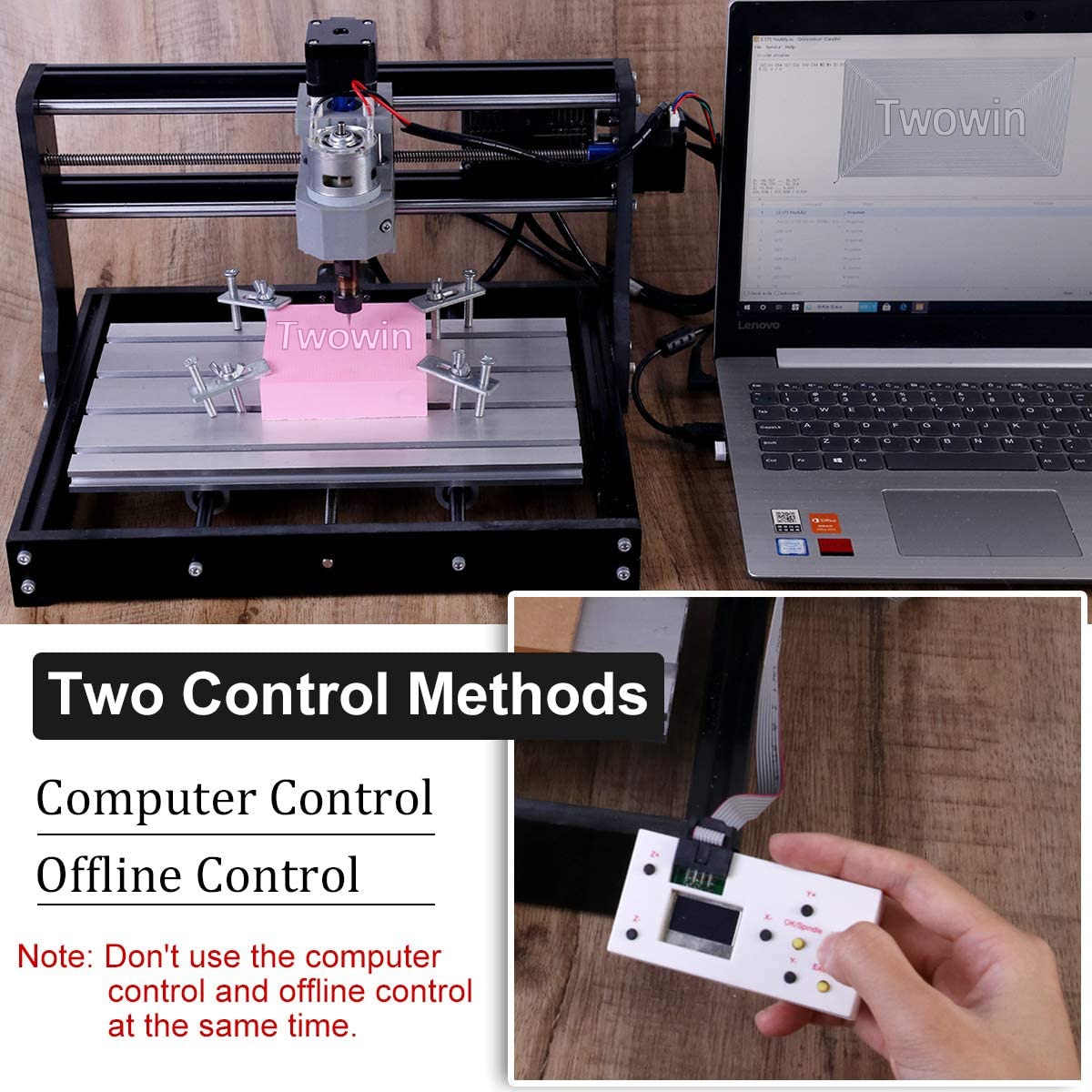

- Control Software: Grbl Controller
- engraving area: 30x18x4.5cm
- Profile Dimensions: 33x40x24cm
- Step Motor: 42 step motor 1.3A 0.25N.M
- Chuck Specification: ER11 3.175MM
- Warranty: 1 YEAR
- Lead Screw: T8 lead screw,lead 4mm
Specification:
Frame Dimensions: 330 x 400 x 240mm (15.7″*13″*9.4″)
Engraving Area: 300 x 180 x 45mm (12.2″*7.1″*1.6″)
Power Adapter: 24V 5.6A Adapter
Stepper Motor: Fuselage length 34mm,
Current 1.33A, 12V, Torque 0.25N/m

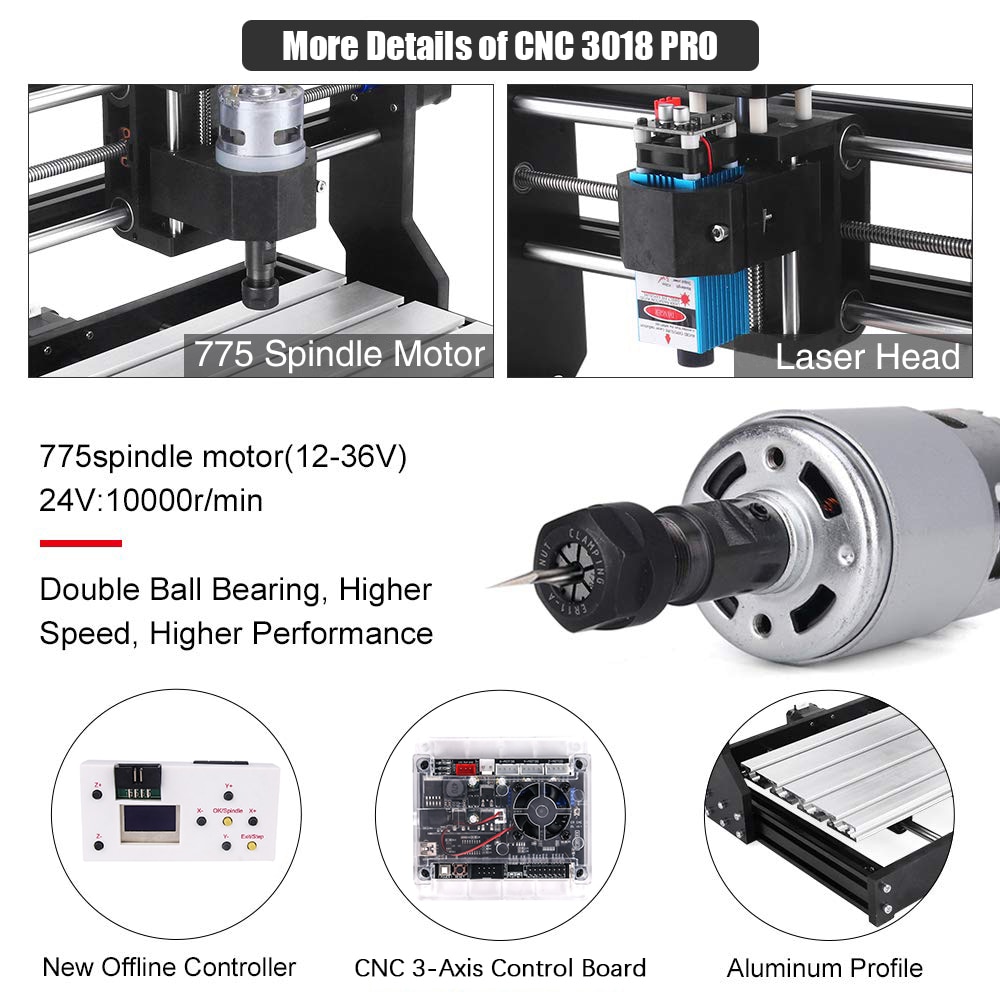

Spindle: 775 spindle motor (12-36V) 24V:10000r / min
Supported System: Windows XP / Win 7 / Win 8 / Win 10 / Linux
Drill bits: Tip 0.1mm, 20 degree, diameter 3.175mm(10pcs included)
clamps: 4pcs, Hold the thickness of 0-30mm, size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm
Can engraved plastic, wood, acrylic, PCB, PVC, wood or other like materials
