CNC 3018 Pro GRBL mini Laser Engrave Machine 5.5W Laser Module 3 Axis pcb Milling machine Bluetooth Wood Router can work offline

  • Home
  • CNC 3018 Pro GRBL mini Laser Engrave Machine 5.5W Laser Module 3 Axis pcb Milling machine Bluetooth Wood Router can work offline

CNC 3018 Pro GRBL mini Laser Engrave Machine 5.5W Laser Module 3 Axis pcb Milling machine Bluetooth Wood Router can work offline

$379.56 – $808.74

SKU: 33011747318 Category:

Description

  • Brand Name: MASTER JIANG
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: CNC 3018 Pro Engraving machine
  • CNC or Not: CNC
  • Is Smart Device: No
  • Laser: No laser/500mw/2500mw//5500mw/15W/Offline Controller
  • Gift: 4 pcs Plates, 10 pcs Cutters, ER11-5mm Extension Rod, Goggles





CNC GRBL 3018 Pro Engraving Machine 3 Axis pcb Milling machine Wood Router laser engraving



1






Feature:



X, Y, Z Working Area: 300 x 180 x 40 mm



Mesa: 300 x 180 mm



Frame: 330 x 240 x 400 mm, features an upgraded version of the BAKELITE for better insulation, mechanical strength, anti static, intermediate electrical insulation, wear resistance and high temperature resistance.



Stepping Motor: 3 x 42 stepper motors: 1.3A, 0.25N.m (1 pcs is installed with holder)



Spindle: 775 spindle motor (12-36V); 24V: 7000 r/min, 36V: 9000 r/min



Software: GRBL Control Systems



Supported system: Windows XP / Win 7 / Win 8 / Win 10 (both 32 bit and 64 bit)



Screw: professional T8 T-screw, lead 4 mm, double copper nut and poor



Power Supply: 24V 5.6A power adapter (110-240V input voltage)

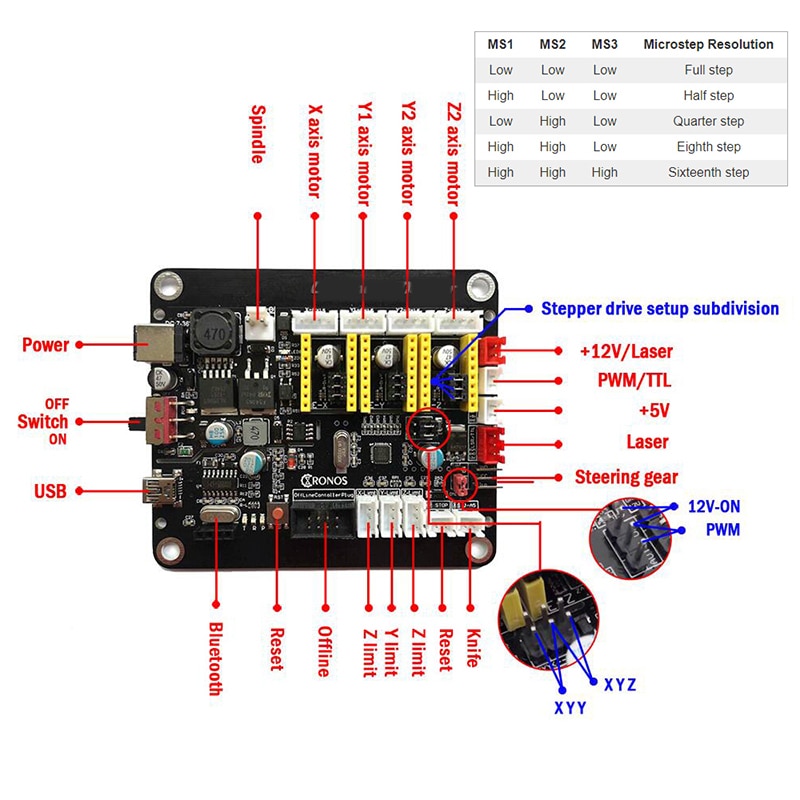

Controller Board: GRBL Offline XYYZ Axis Bluetooth Control Board, 3 pcs A4988 drives



Cutters: Diameter 3.175mm, Tip 0.1mm, Length 30mm



Offline Controller : 1 Inch LCD Monitor Offline Controller (with SD Card)

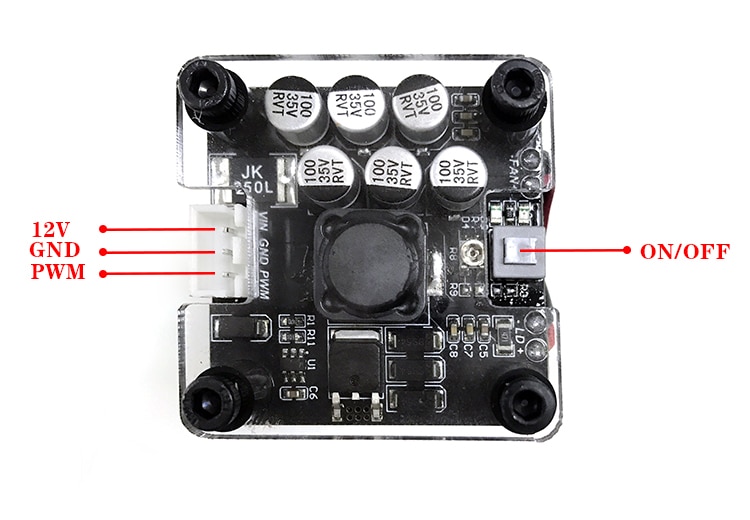

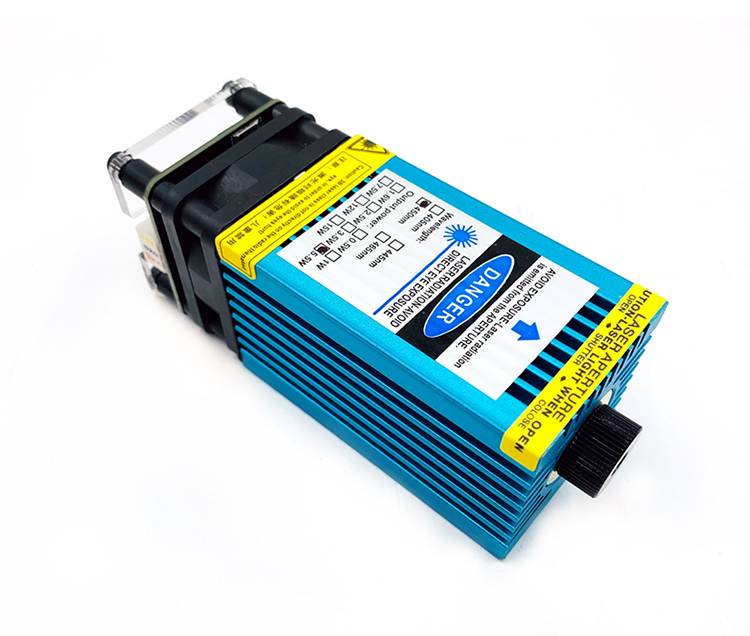

Laser Module (Options): Brand new and updated blue lasers,which is 33mm 3P connection,supports PWM,TTL.

500mw: 12V 405nm

2500mw/5500mw: 12V 450nm

15W: can carving on stainless steel (SUS304, etc) surface and anode colored aluminum alloy surface and cut 3 mm wooden materials











Application:



Wood, acrylic, plastic, Jade, PCB, PVC Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home,Ideal for milling, engraving, drilling & cutting.





Package Introduction:



No Laser: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod



500mW: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod + 500mw Laser Module + 1 pair of Protection Goggles



2500mW: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod + 2500mw Laser Module + 1 pair of Protection Goggles



5500mW: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod + 5500mw Laser Module + 1 pair of Protection Goggles



15W: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod + 15W Laser Module + 1 pair of Protection Goggles



No Laser: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod + 1 set Offline Controller (with SD Card)



3.5W: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod + 3.5W Laser Module + 1 pair of Protection Goggles







Note:



1. Please click here: 100*100mm Lifting Platform or Lifting Platform, if you need one platform for fixed focus laser engraving together.

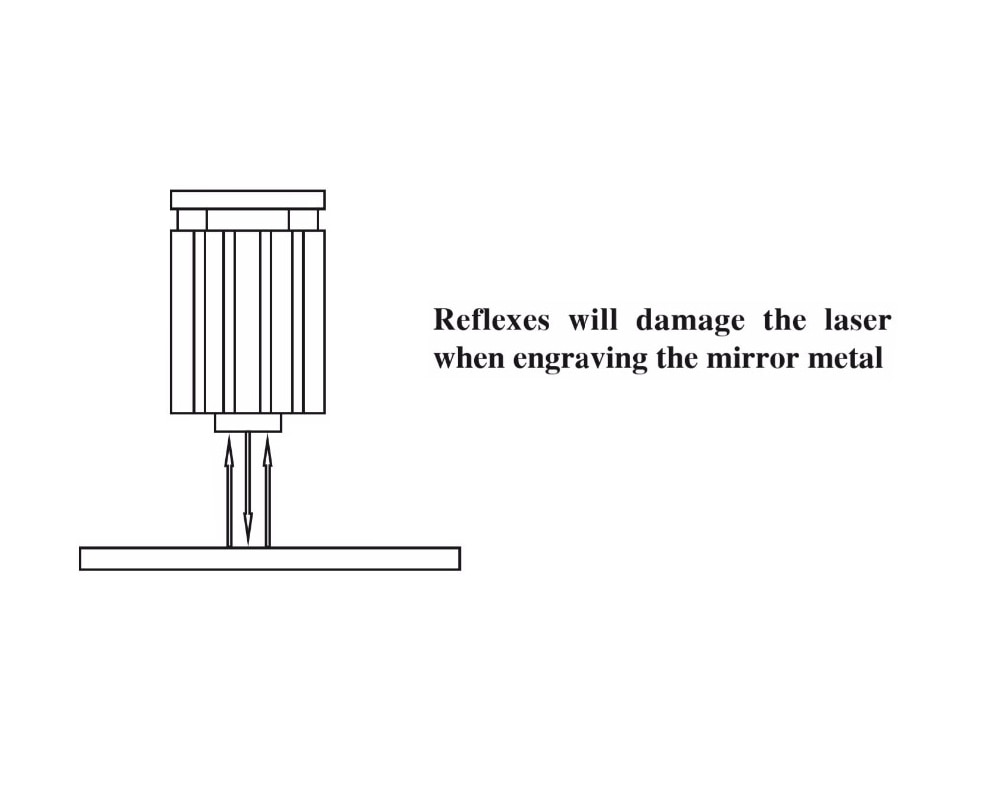

​2. The laser cannot be used to carve or engrave mirror or reflective materials!



3. New Version is with paper Manual (old and new version will be sent in random), if you doesn’t receive it, please kindly contact us or scan the QR Code on photo below for videos:

3018 pro paper manual



4. 2 kinds of offline controller will be sent in random!



未标题-1-1





2

0O1CN01TfKbdb1fQ2lfRCKmN_!!2540194000O1CN01rqCVZ41fQ2lhLnJR9_!!2540194000O1CN01Ty8Mvs1fQ2lk6RK8C_!!25401940001O1CN01o1Sm1m1fQ2lfRArLq_!!2540194000

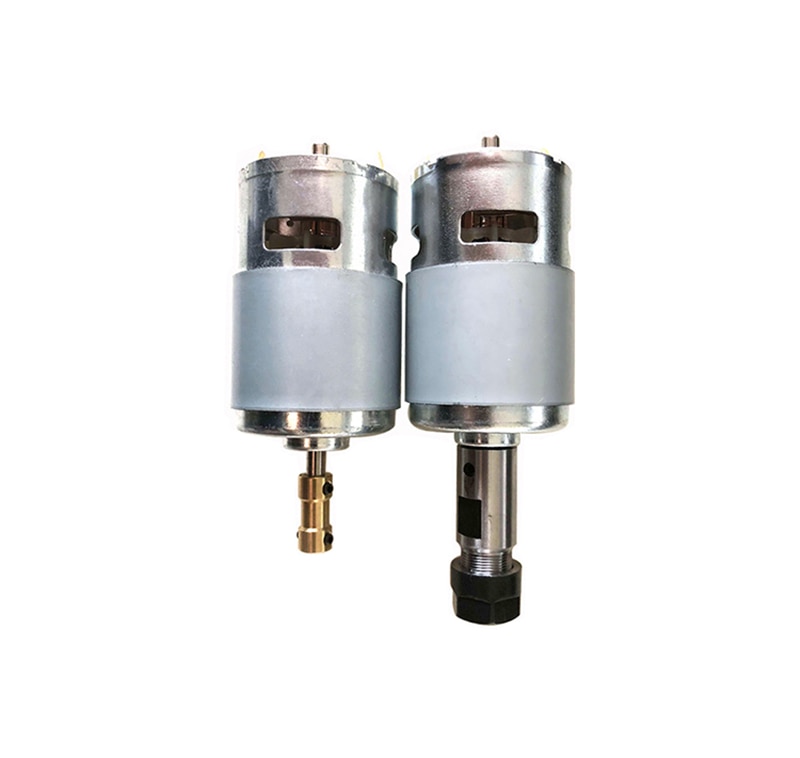

without er11 with er11 O1CN01pgbilO1fQ2lk6WDsB_!!2540194000laser3note

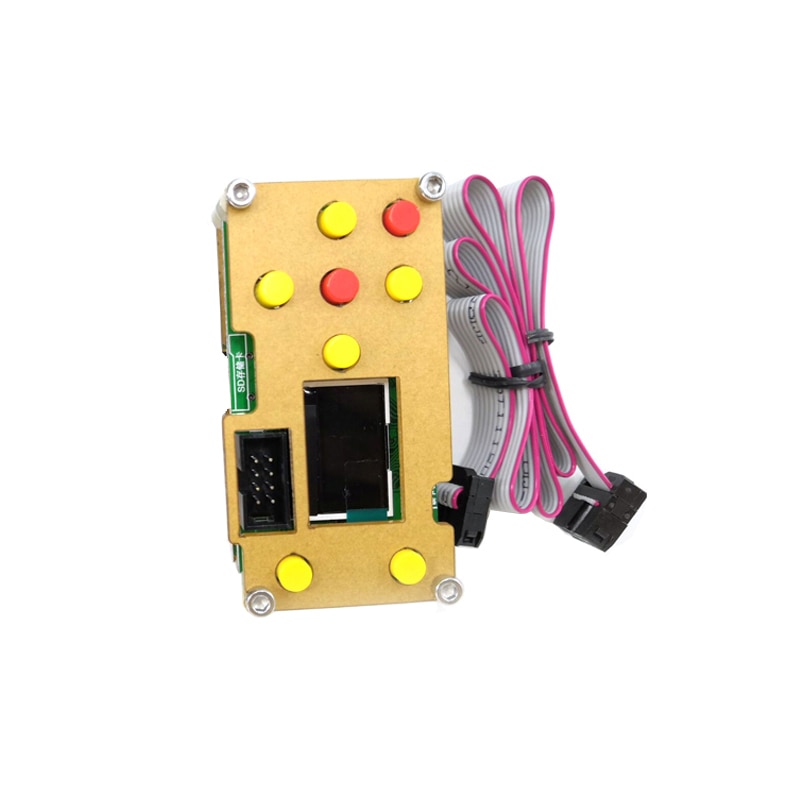

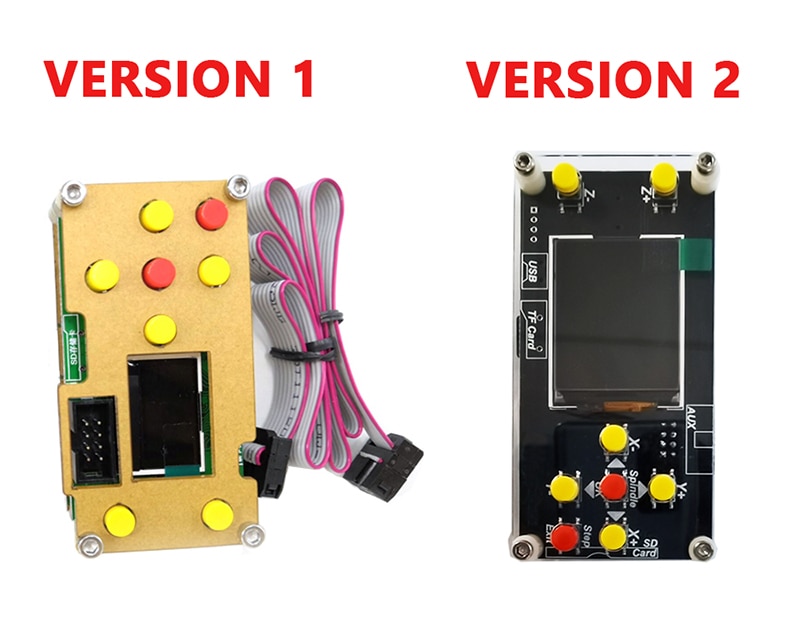

            2 kinds of 1 Inch LCD Offline Controller will be sent in random!



                                                     Version 1

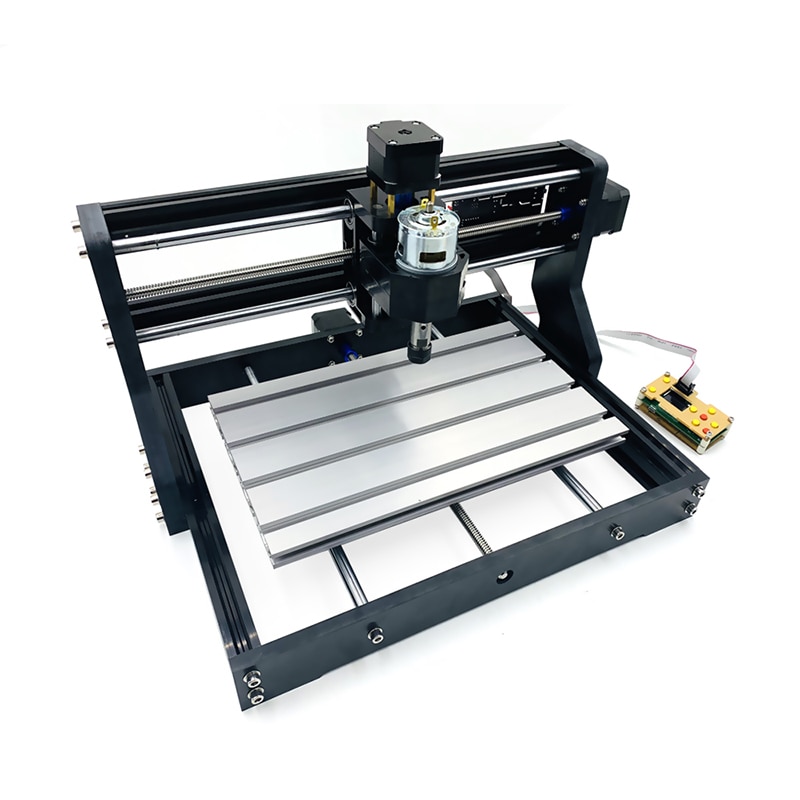

offline controller

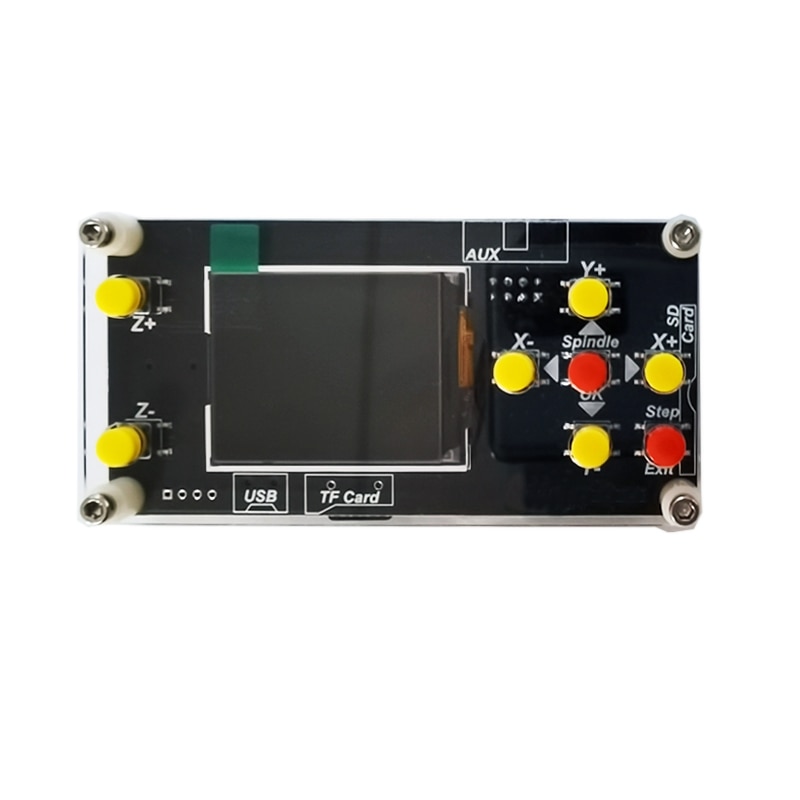

                                                    Version 2

未标题-1

Pack

GRBL Software

GRBL SOFTWARE

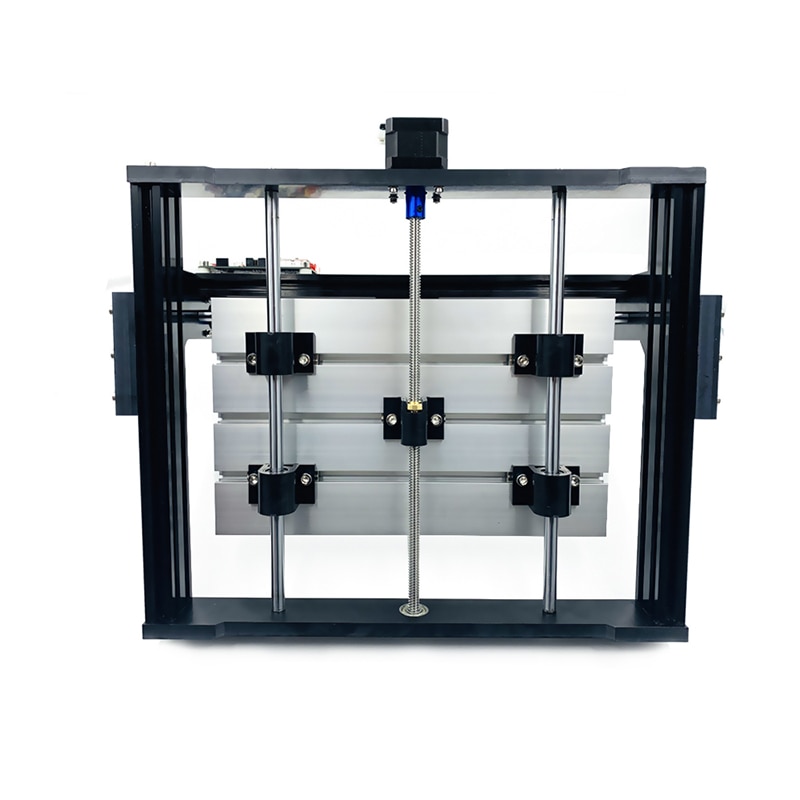

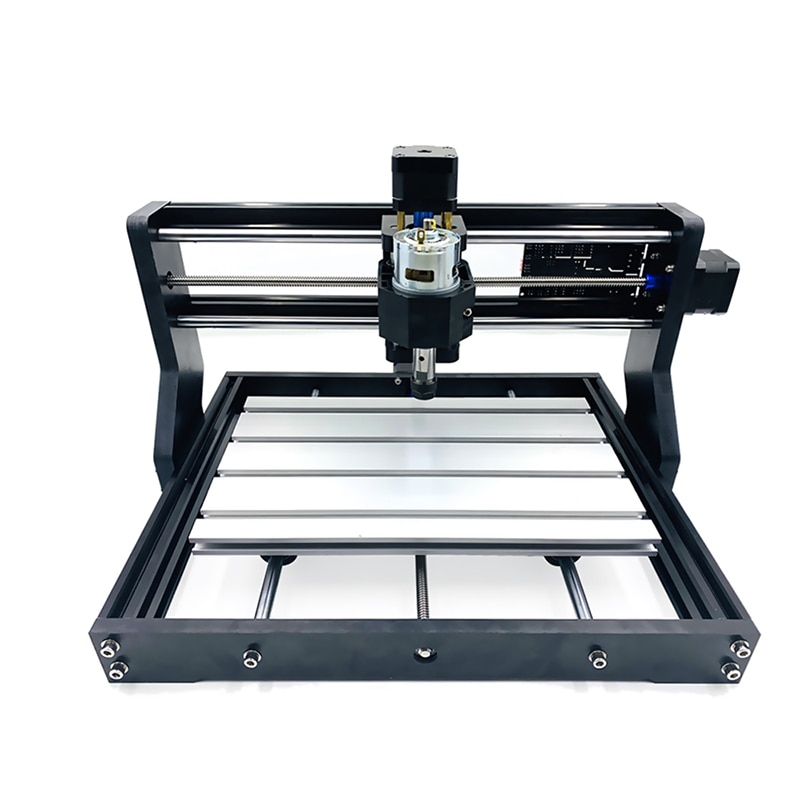

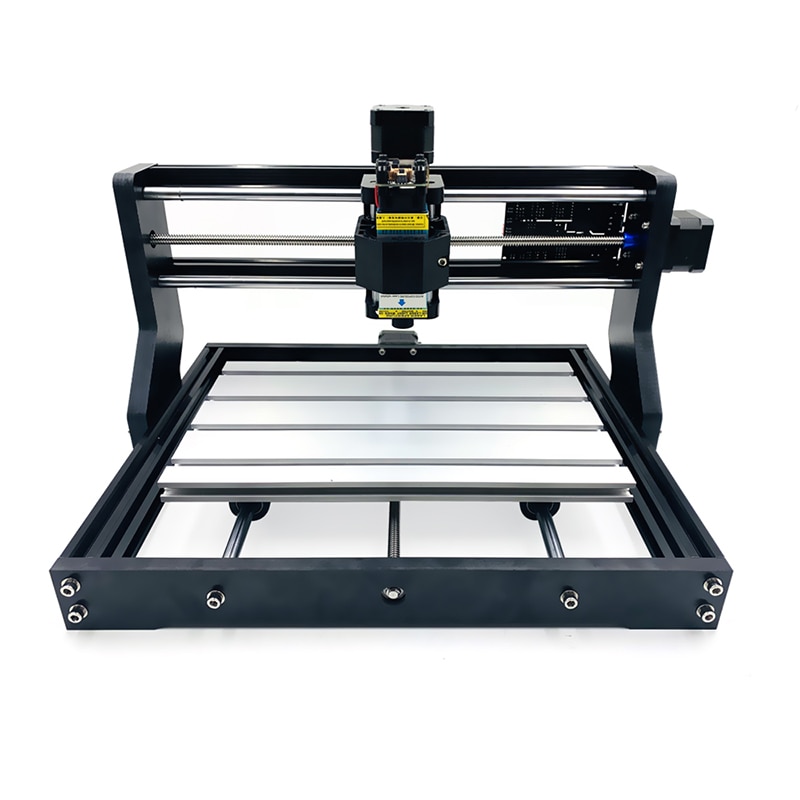

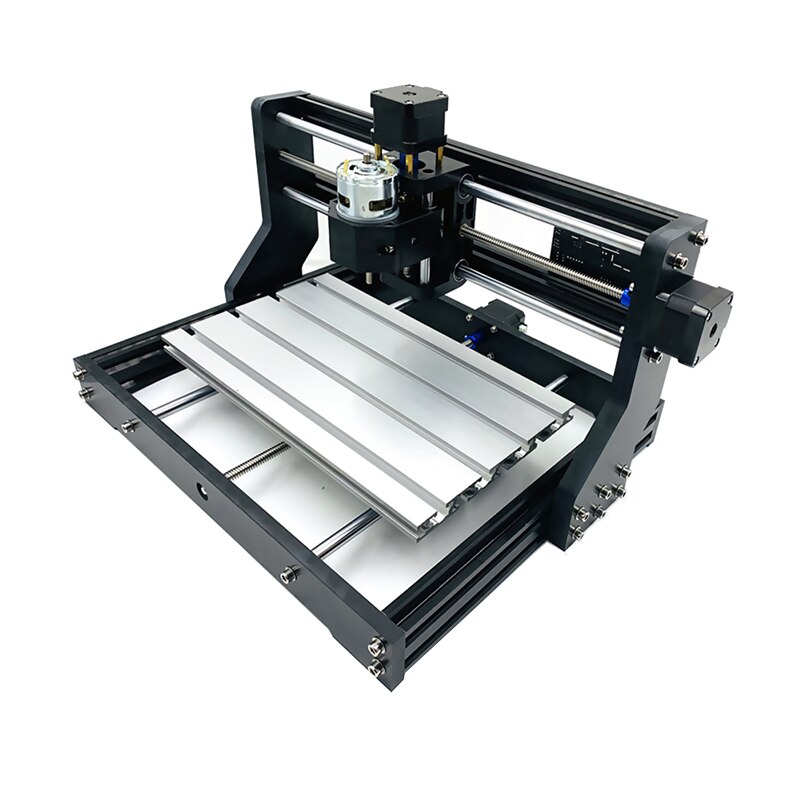

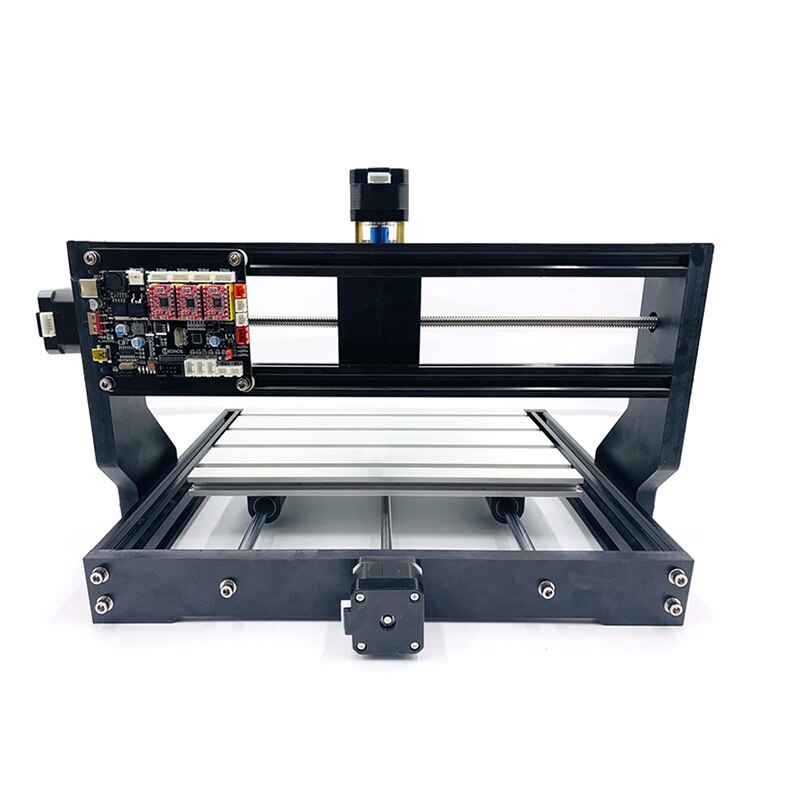

Actual Object

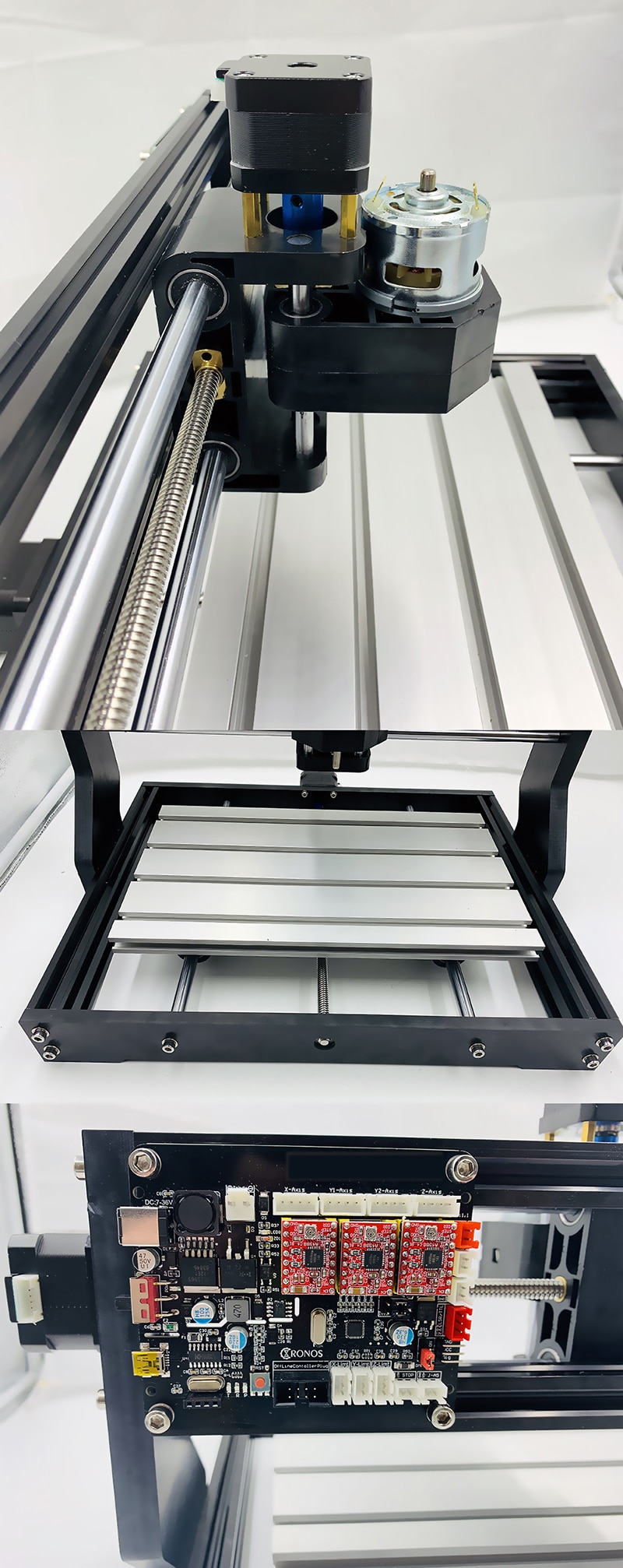

Real item

O1CN018LjFlK1fQ2liiAJOA_!!2540194000

O1CN01VaZcFc1fQ2lgYV4sB_!!2540194000

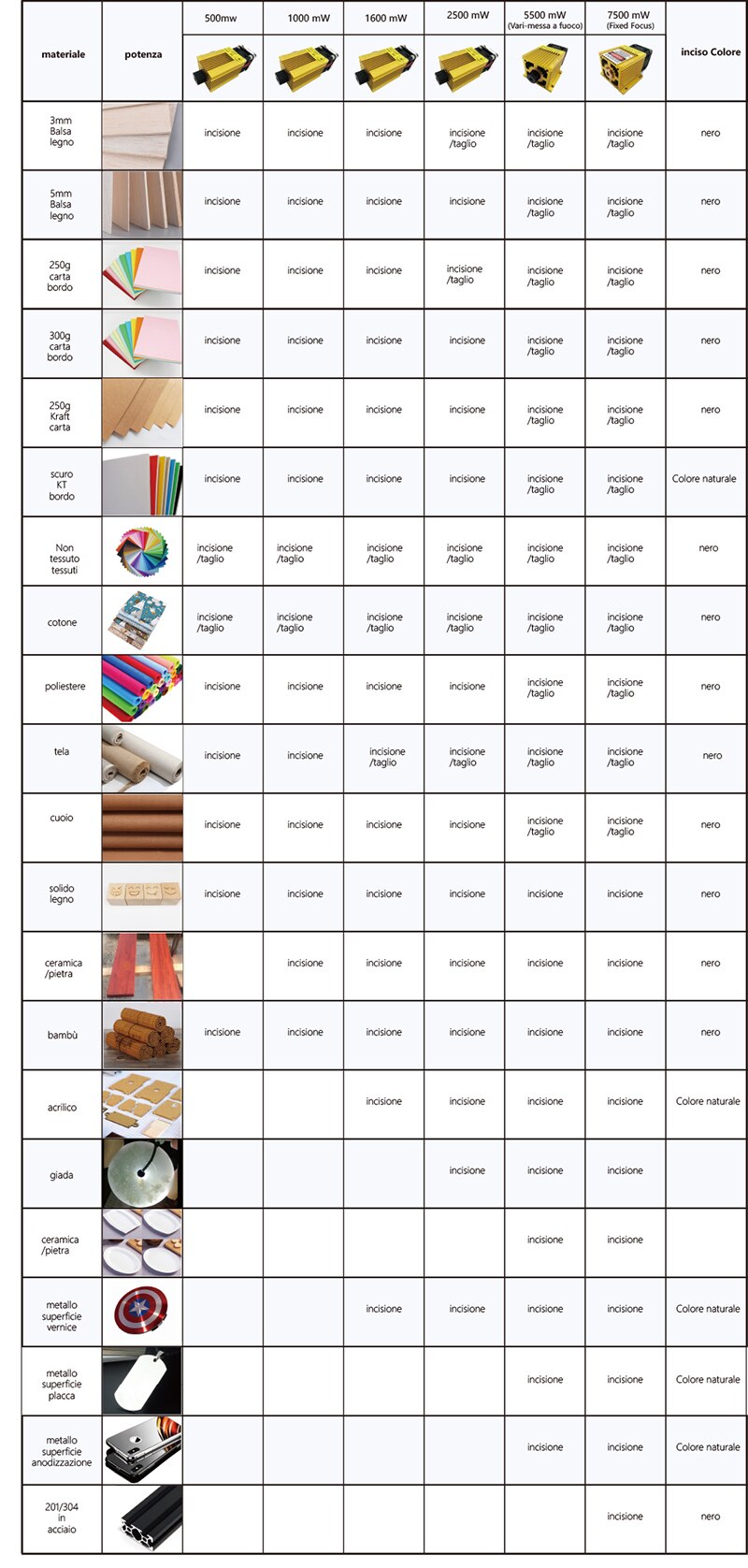

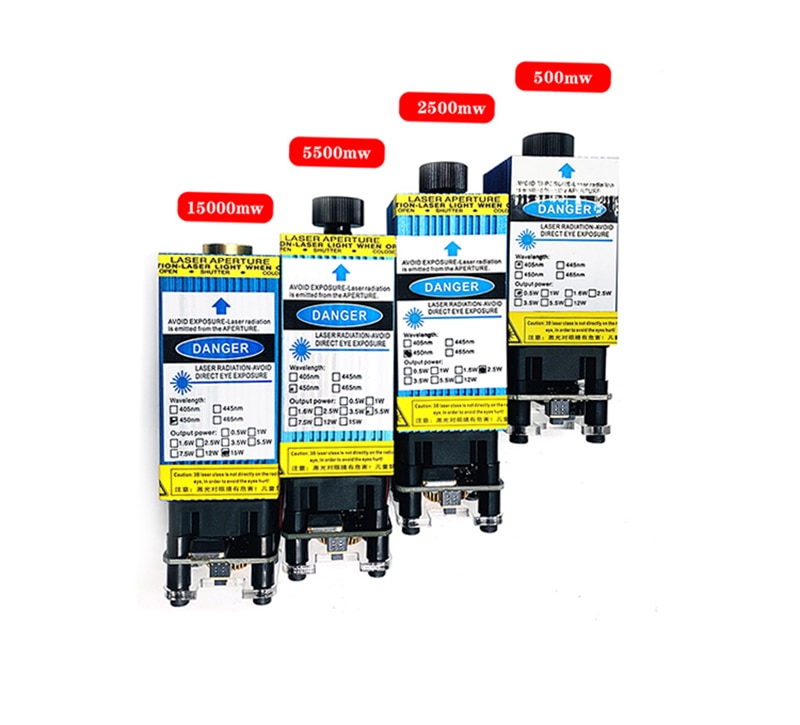

how to choose laser module

3



1. We accept Alipay, West Union, Paypal. All major credit cards through secure
payment processor ESCROW.


2. Payment must be made within 2 days of order.


3. If you can’t checkout immediately after auction close, please wait for a few
minutes and payments must be completed within 2 days.




5



1. Defective or wrong item. We will be offered replacement or refund after
offer receive the pictures to prove it.



2. If you want to replacement, you need to pay sectional shipping fees of re-send.


3. If you want to partial refund, we will refund to you by paypal, thank you.



4


1. We’ll ship out the item within 3 days after payment verified.



2. The address we will ship the item is derived from information. Buyer should
make sure that the shipping address is corrcect.


3. Please contact us if you didn’t receive your goods, we will try our best to solve
the problems.



6





Our goal is 5 stars, if you have any problems about the items or services, please

feel free to contact us, we will try our best to help you and make

you satisfied, thank you!
