Engraving machine parameters
|
|
working area
|
30x18x4.5cm
|
|
Frame size
|
33x40x24cm
|
|
Spindle
|
775 spindle motor (12-36V) 24V: 10000r/min
|
|
Spindle Chuck
|
ER11
|
|
Step motor
|
Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
|
|
Power supply
|
24V 5.6A
|
|
Software
|

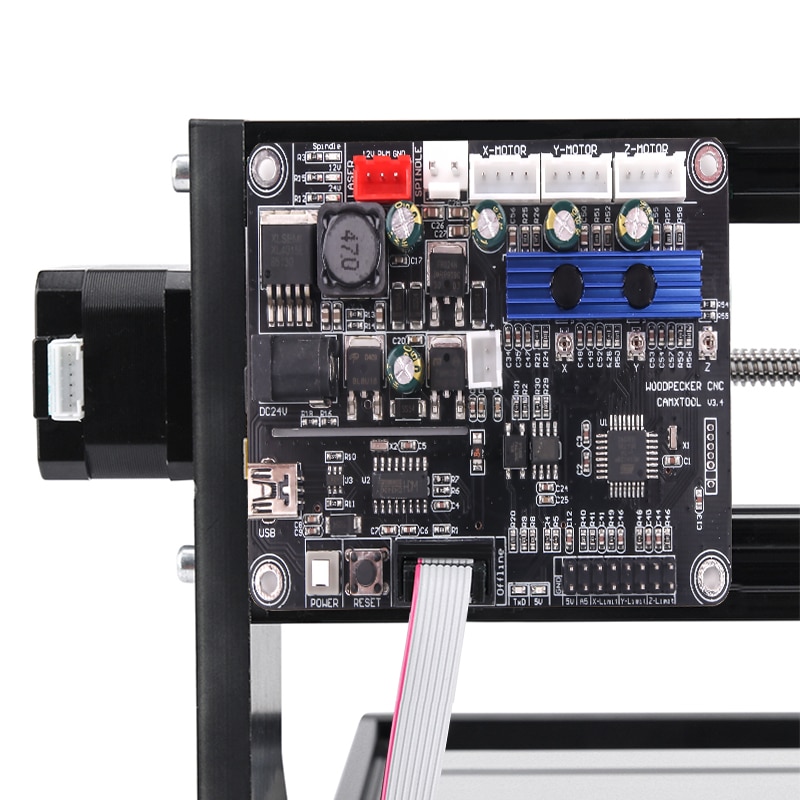

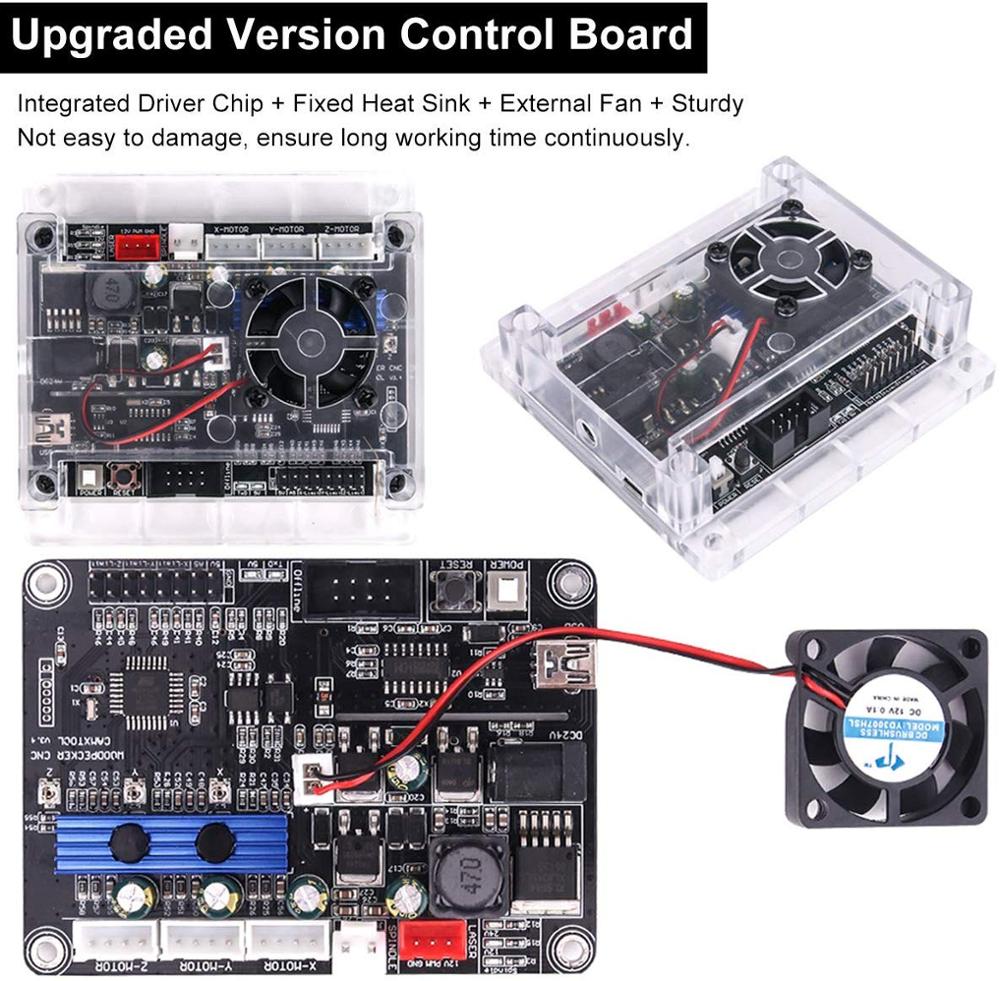

GRBL controller
|
|
supported system
|
Windows(Do not support Mac)
|
|
Drill bits
|
tip 0.1mm ,20 degree , diameter3.175mm.the package include 10pc
|
|
|
|
Laser
|
500mw 405nm, 12v 2500mw 450nm, 12v 5500mw 450nm
|
|
15W: can carving on stainless steel surface and anode colored aluminum alloy surface and cut 3 mm wooden materials
|
|
clamps
|
4 pcs, Hold the thickness of 0-30mm,size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm
|
|
3 Axis engraving
|
Wood,Plastic,PCB,Acrylic,Plywood,etc.
|
|
Laser engraving
|
Wood,Plastic,Leather,Bone,Stone,Paper,Shell,etc.
|
|
Note
|
One year warranty for all products from the date of purchase
|

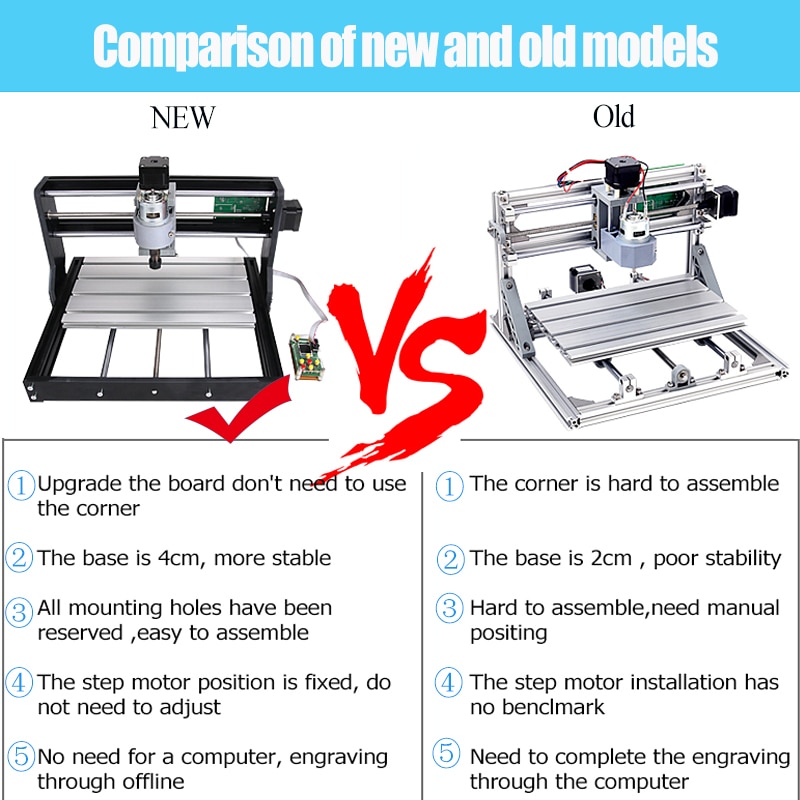

Why choose this machine ?
1. No need to locate all places, the assembly difficulty is greatly reduced, and the precision is high.
2. There are no corner pieces, one piece is formed, and there is no error.
3. The base is 4 cm high, high strength and high stability.
4. Positioning when installing the motor, no adjustment is required.

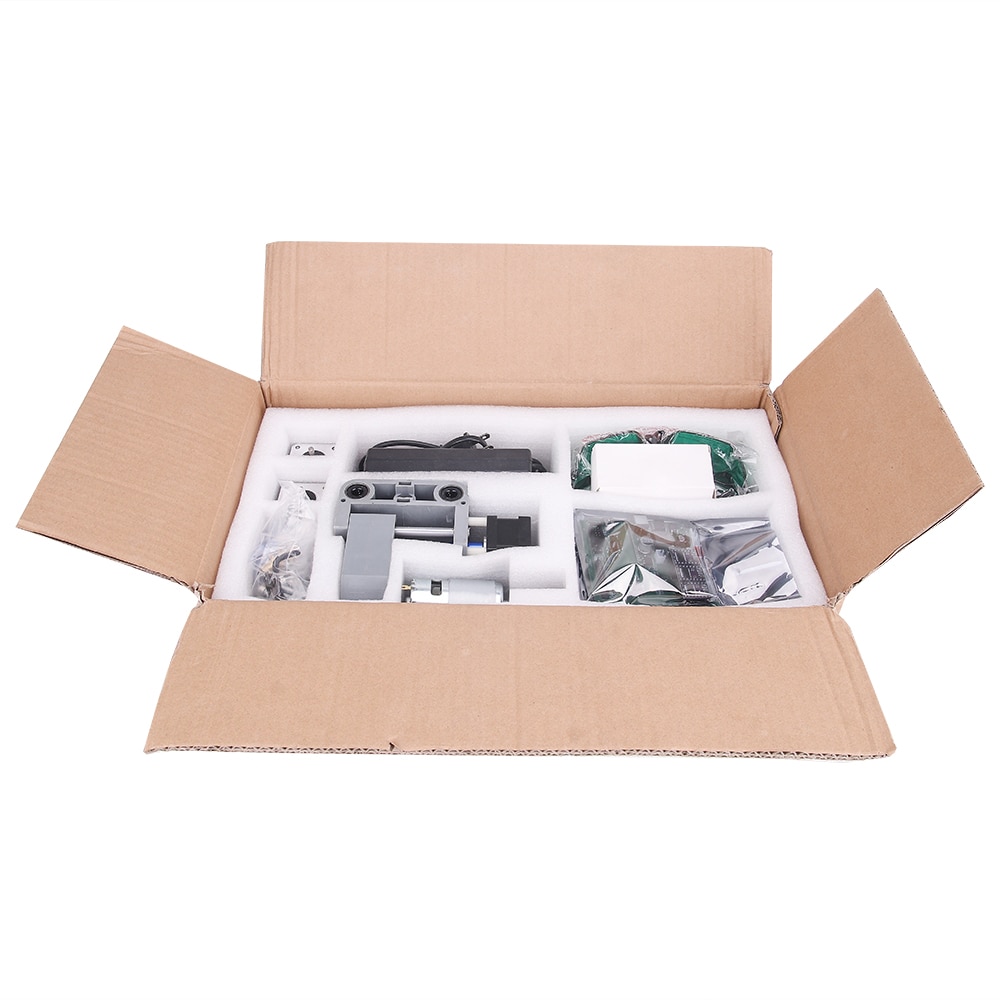

5. the structure is stable, the shape is simple, the assembly is difficult, now the 3018Pro machine only takes about 20 minutes to complete the assembly. Some components and core components have been assembled and can be used by hand assembly according to the installation instructions.
Application:
Can be carved in plastic, wood, acrylic, pvc, pcb, wood or similar materials. Jade, advertising signs, artwork, crafts, aircraft models, RC model parts, industrial or hobby prototype buildings, architectural model making, etc. As a result, you can work in the office or at home, ideal for milling, engraving, drilling and cutting.
About cnc 3018 software :
(you can get it through these three methods)
☛1. The engraving machine we sent is equipped with a U disk, which contains 3018pro software and installation instructions.
☛2. You can download it through this link:
https://my.pcloud.com/publink/show?code=XZh0fSkZDn1g9WlY8dkCoFK1lGFnv5XP6PU7
☛3. You can provide me with your email address and I can send you software and installation instructions.
About GRBL software :
☛https://my.pcloud.com/publink/show?code=XZp2ldkZC2NGws1EqH5xTmTfEBTyP5VSBjBV
Warranty service:
We will provide a one-year warranty and we will solve all your after-sales problems!
We will check all items before sending, we make sure you receive high quality products!
Important reminder:
1. Laser engraving includes: mahogany, bamboo, paper card, ivory, leather, flammable plastic, PCBA, etc.
2. The blade can be carved plastic, wood, acrylic, pvc, pcb, wood and other materials
3. ER11 needs shrink fittings. Both the spindle and the ER11 have the correct diameter, but the ER11 is designed to have a negative tolerance to the spindle, so you cannot open it directly.

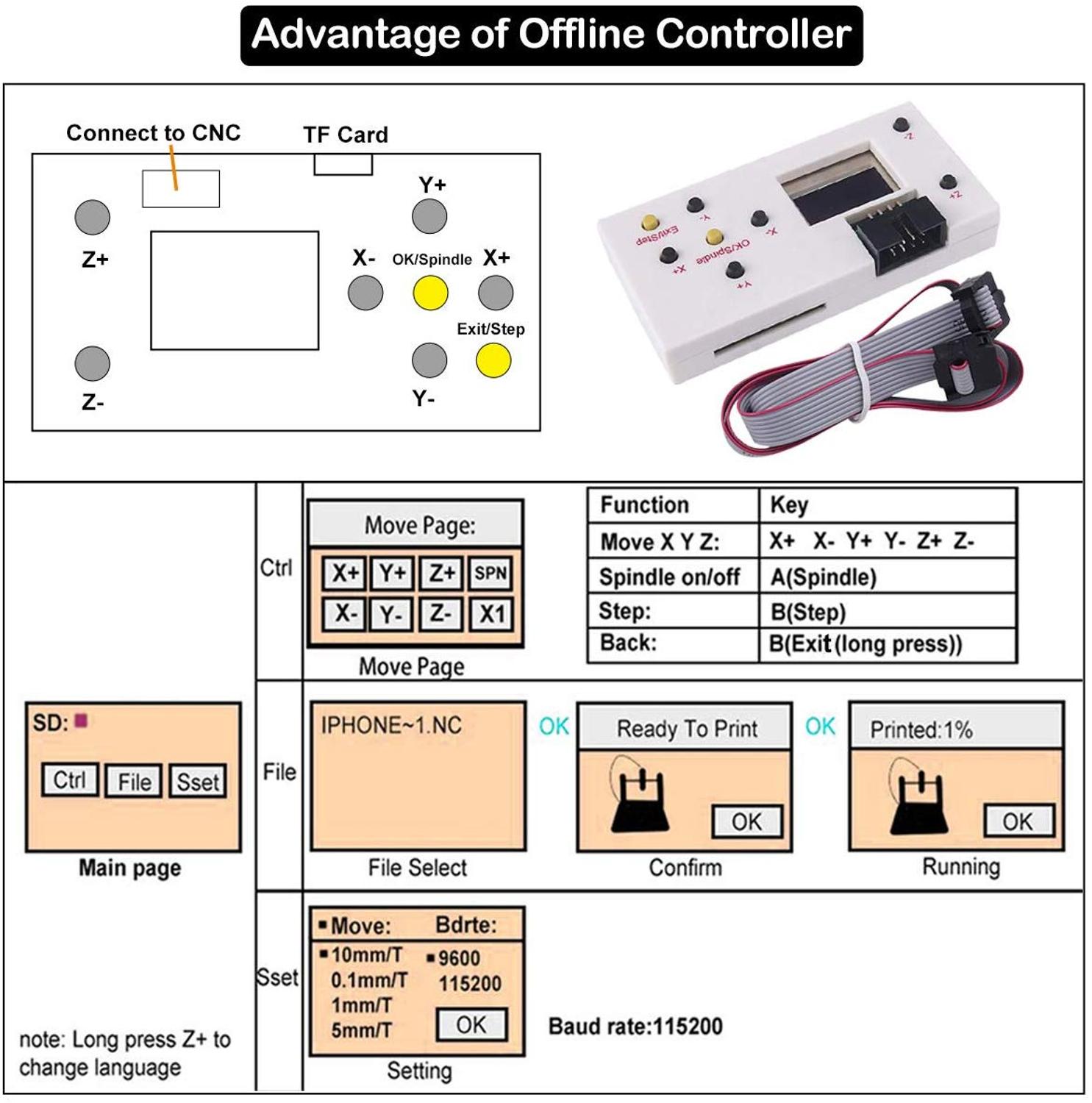

4. Offline controller supports offline work, you do not need to connect to the computer
5. We have EU and US adapters. I will send the correct plug according to your country. If you need more accessories, please contact me.
6. If you encounter problems during the use process, you can contact us in time.
DIY CNC Router Kits 3018 GRBL Control 3 Axis Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine, XYZ Working Area 300x180x45mm CNC Router Machine with 5mm Extension Rod ER11 Collet
