Description
- Brand Name: ZHONG HUA JIANG
- Origin: CN(Origin)
- Certification: None
- Condition: New
- Model Number: milling machine
- CNC or Not: CNC
- Milling cutter: 3.175mm
- Type: Mini cnc milling machine
- Softwear: GrblController
- Usage: CNC
- laser: 1000mw,2500mw.5500mw,15w
CNC 3018 Pro DIY Laser Engraver GRBL DIY 3Axis PBC Milling Laser Engraving Machine Wood Router with Offline Controller
Feature:
Profile Dimensions:33x40x24cm
engraving area:30x18x4cm
Spindle:775 spindle motor
Softwear :GRBL control systems
support system:24V 5.6A adapter
Stepper motor:Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
Spindle:775 spindle motor (12-36V) 24V:10000r / min
Supported system: Windows XP / Win 7 / Win 8 / Win 10
Screw: professional T8 T-screw, lead 4 mm, pitch 2mm, double copper nut
Power Supply: 24V 5A power adapter

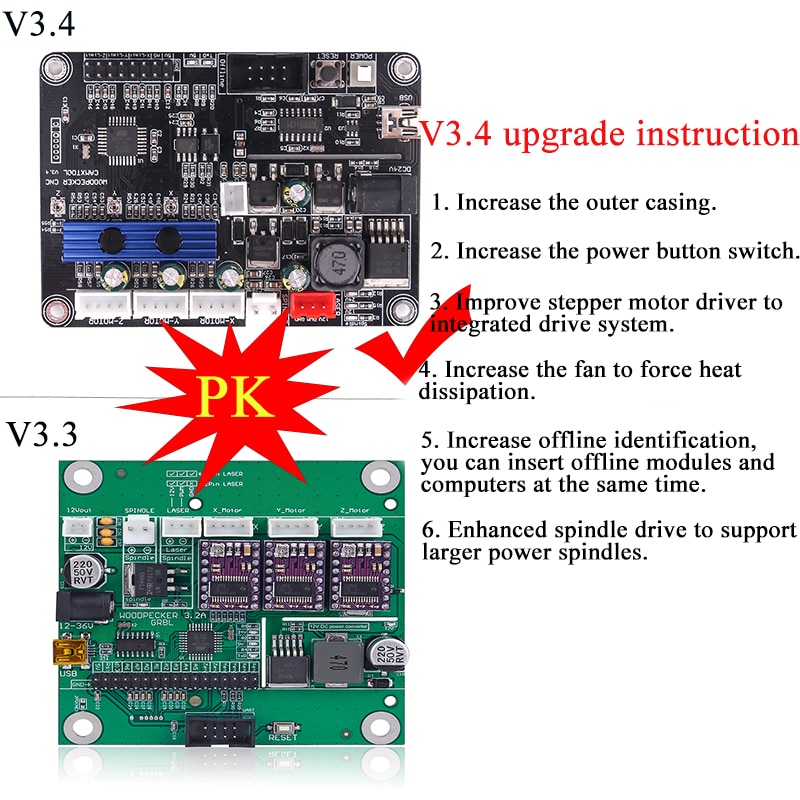

Controller Board: Upgrade GRBL Offline XYYZ 3 Axis Control Board with upgrade A4988 drives
Laser Module (Options): Brand new and updated blue lasers, which is 33mm 3P connection, supports PWM/TTL, 0-100% adjustable

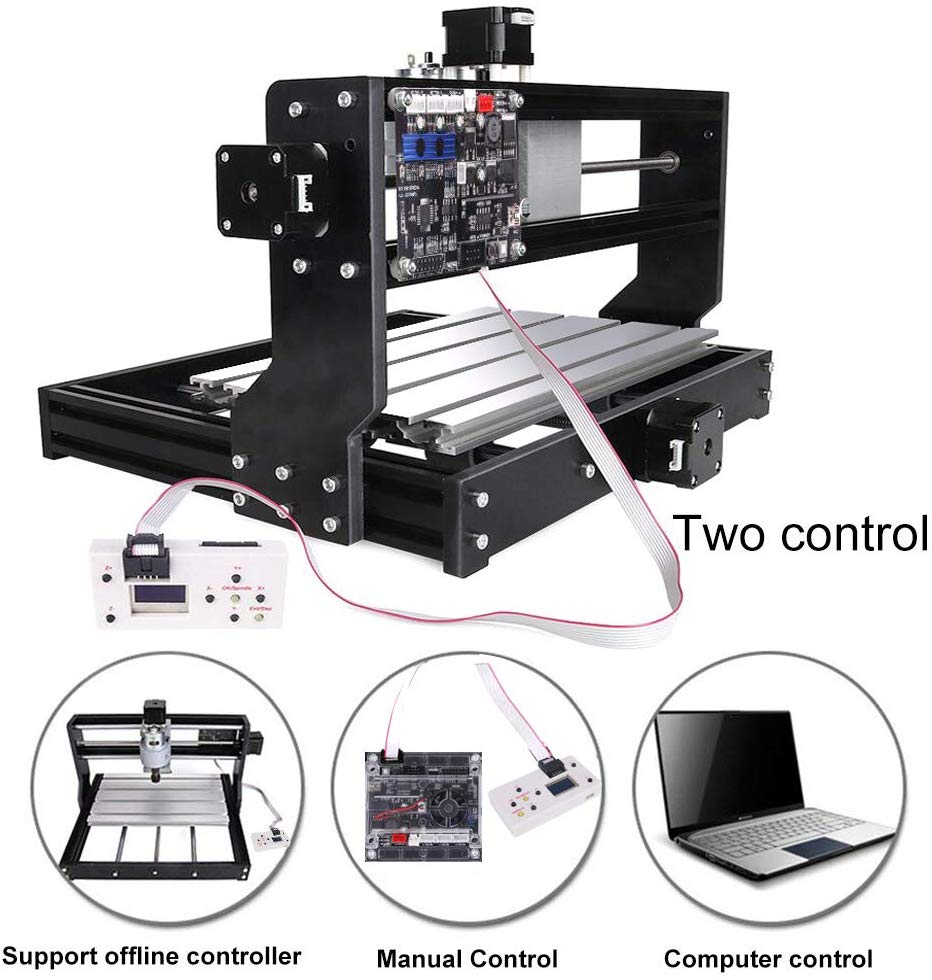

Offline work: Surpport

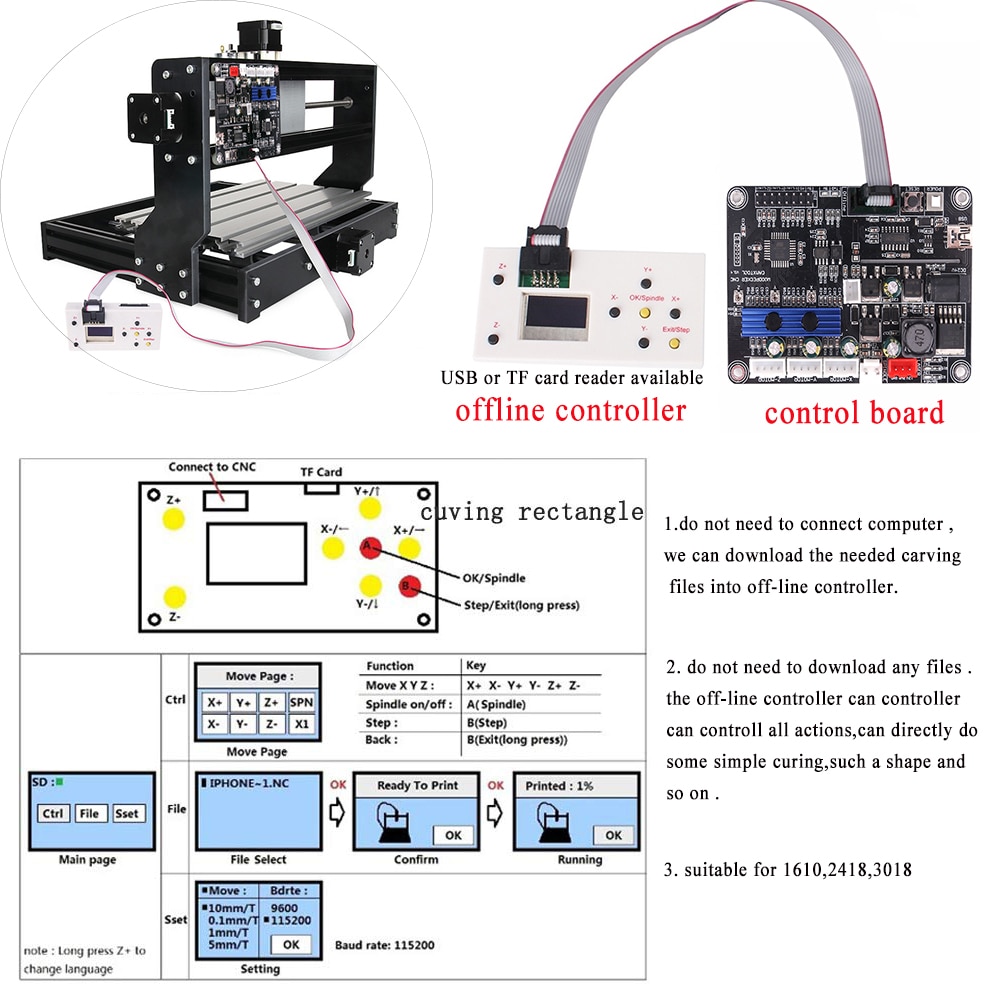

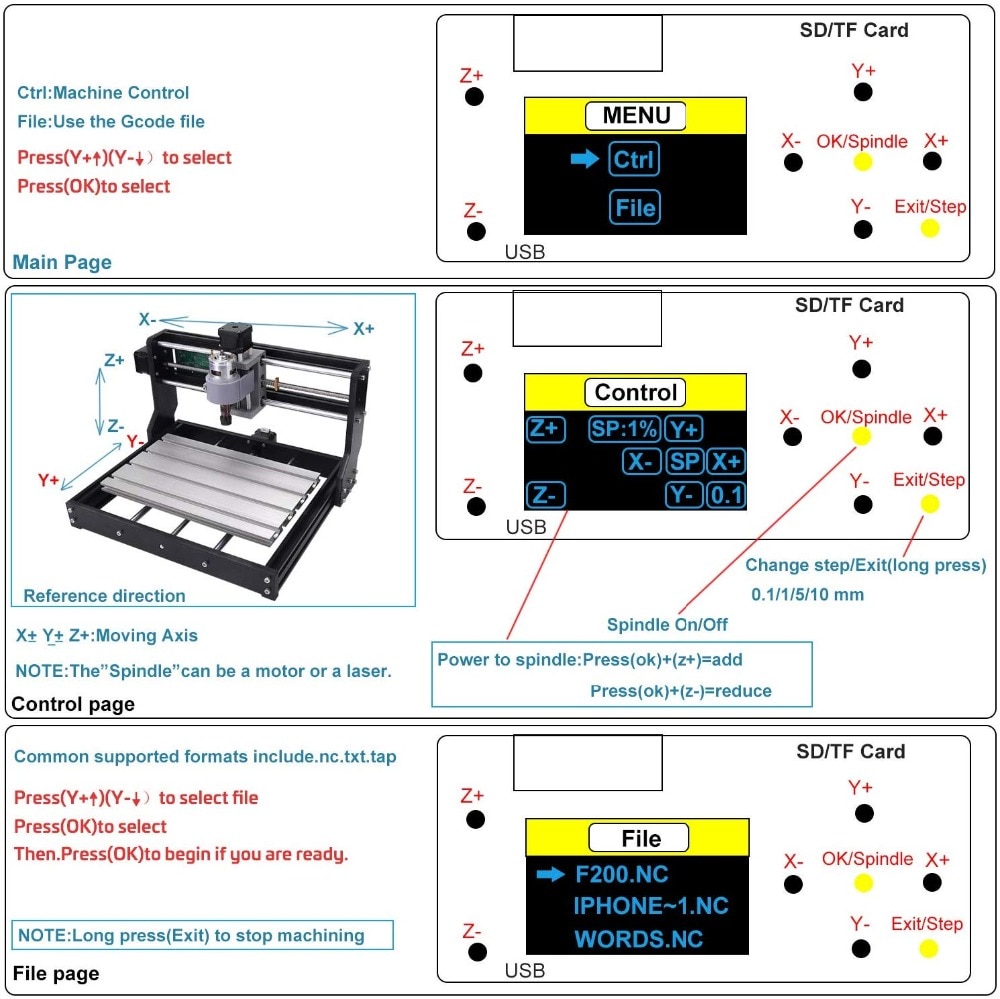

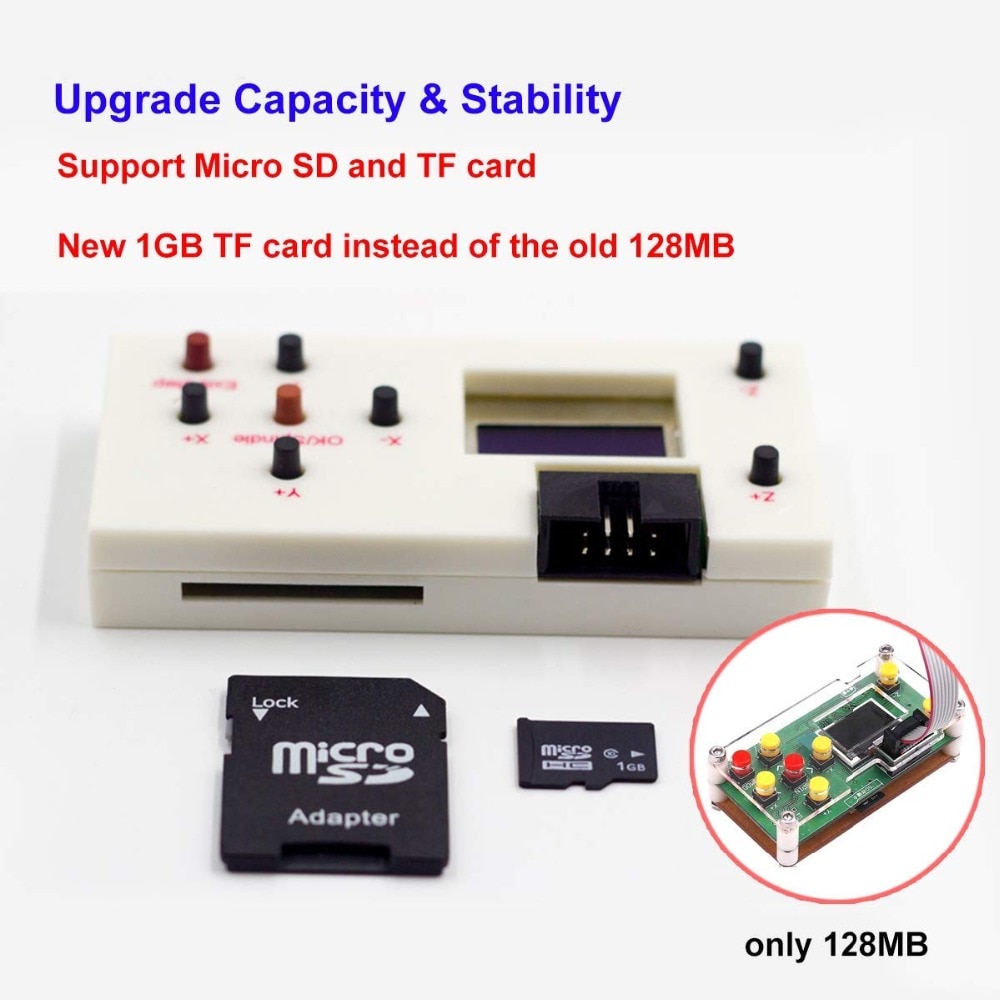

Offline controller : new version with button battery, 1.8in LCD monitor with installed SD card

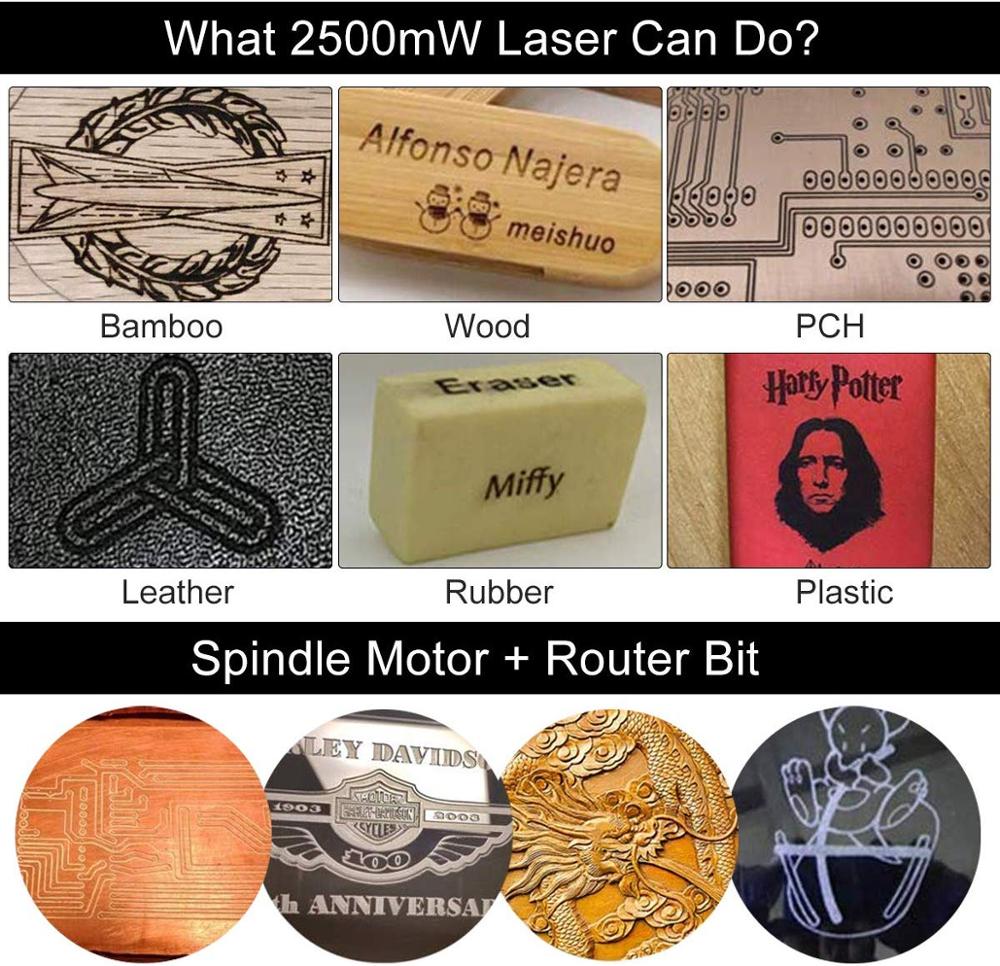

Application:
Laser Can Engrave:
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam/Paper/Anodized Aluminum/Ceramics/Stone/Stainless steel (with 15W)
Laser Can Not Engrave:
Metal/Glass/PCB/Reflective Material/Transparent Material
15W Laser Can cut:
About 3mm wooden materials
Cutters can engrave:plastic, wood, acrylic, pvc, pcb, wood or the like material
Plastic body with a profile, small size, light weight, USB interface, GRBL control systems, learn to use the preferred entry. Either by inscribing, and can be carved with lasers.
Control Software: GRBL Controller

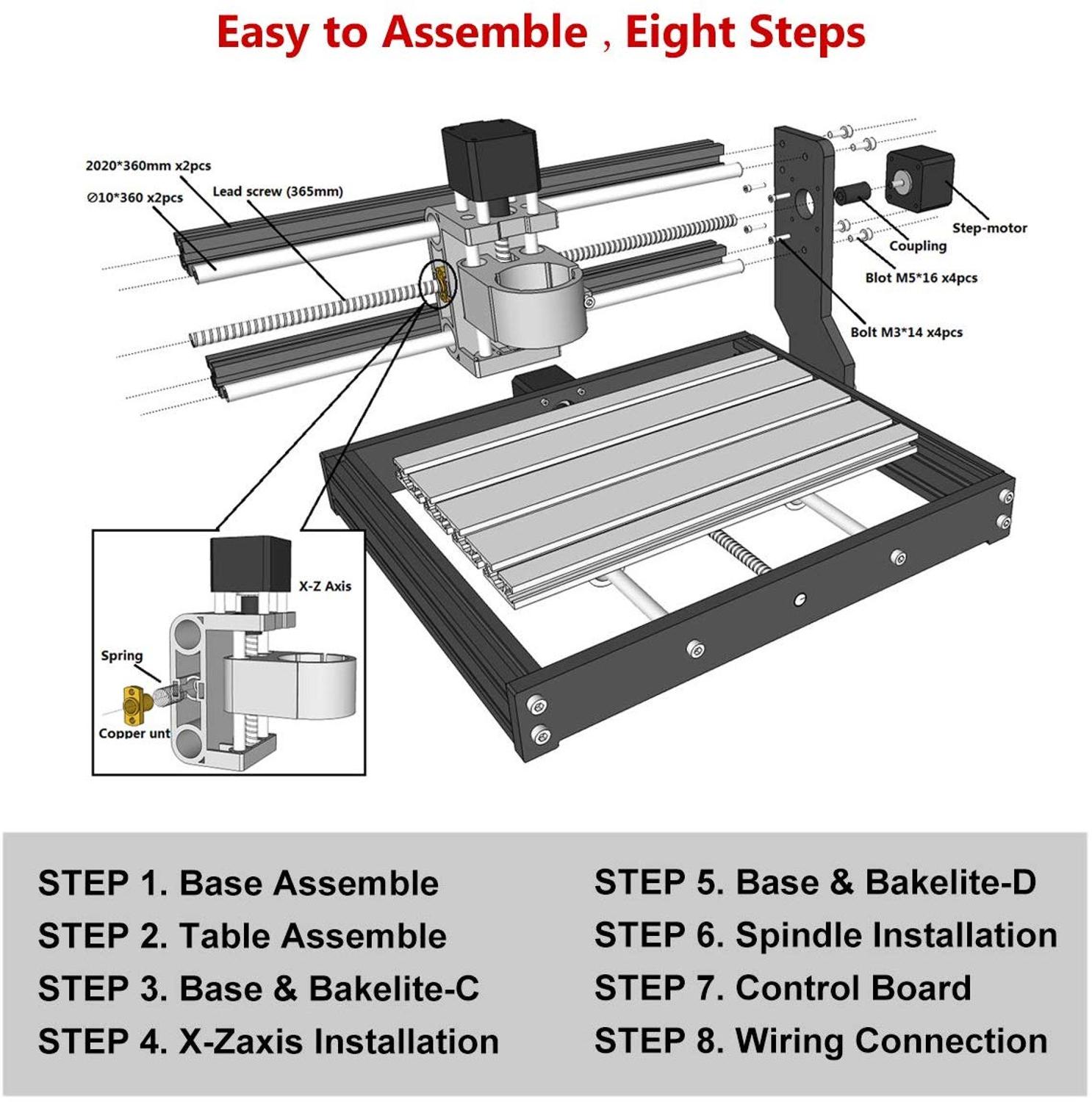

Description: Some components and core components have been assembled, simply hand assembled according to the installation instructions, you can use the rack
SETS OPTIONS:

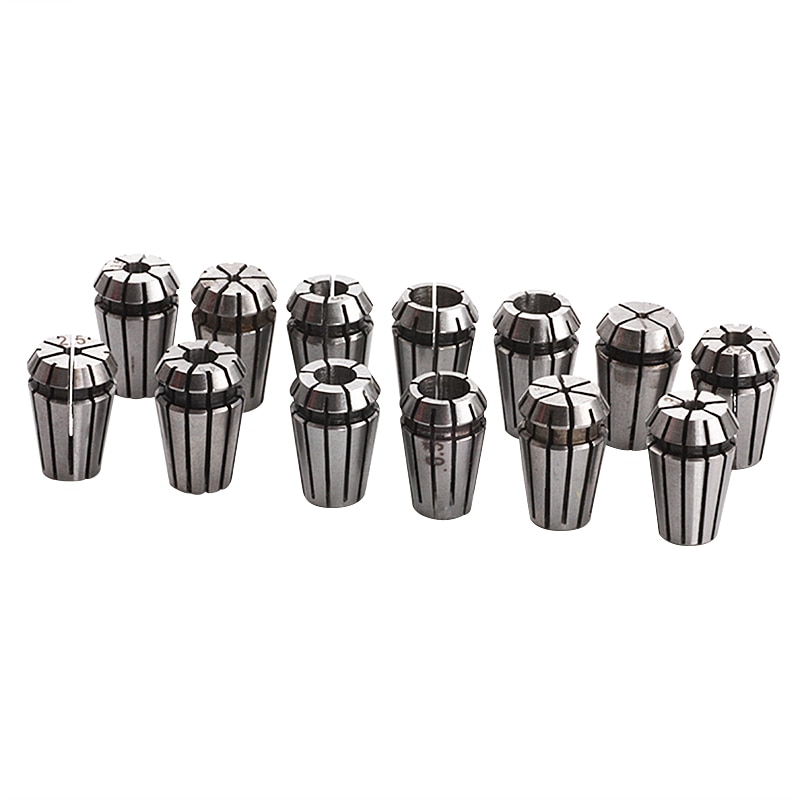

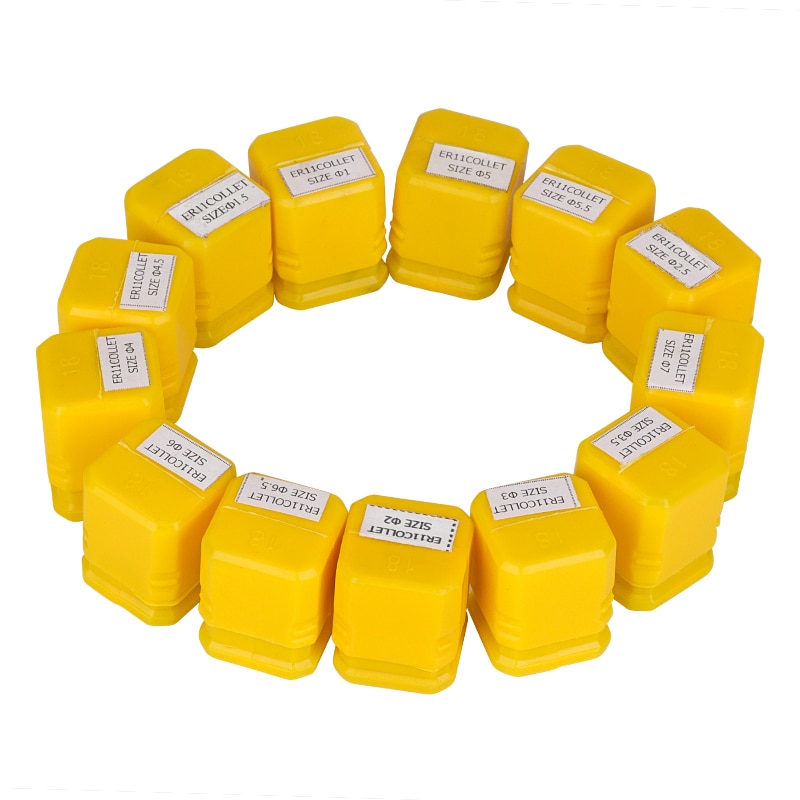

SETS 1 :CNC 3018pro+10pcs Cutters+ER11+13PCS ER11
SETS 2 :CNC 3018pro+10pcs Cutters+ER11+Offline controller+13PCS ER11
SETS 3 :CNC 3018pro+10pcs Cutters+ER11+Offline controller+1000mw laser+13PCS ER11
SETS 4 :CNC 3018pro+10pcs Cutters+ER11+Offline controller+2500mw laser+13PCS ER11
SETS 5 :CNC 3018pro+10pcs Cutters+ER11+Offline controller+5500mwlsaser+13PCS ER11
SETS 6 :CNC 3018pro+10pcs Cutters+ER11+Offline controller+7wlsaser+13PCS ER11
SETS 7 :CNC 3018pro+10pcs Cutters+ER11+Offline controller+10wlsaser+13PCS ER11
SETS 8 :CNC 3018pro+10pcs Cutters+ER11+Offline controller+15wlsaser+13PCS ER11
About software:
cnc 3018 software:
https://my.pcloud.com/publink/show?code=XZh0fSkZDn1g9WlY8dkCoFK1lGFnv5XP6PU7
Grbl software:
https://my.pcloud.com/publink/show?code=XZp2ldkZC2NGws1EqH5xTmTfEBTyP5VSBjBV
If you need software, please download the link above.
Any questions, please feel free to contact us
WARRANTY SERVICE:
We will provide a one-year warranty and we will solve all your after-sales problems!
We will check all the goods before sending, we make sure you receive high quality products!
