Description
- Brand Name: TwoWin
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: 3018Plus
- CNC or Not: CNC
- Is Smart Device: No
- Laser Power: 5500mw/15w fixed focus laser
- Is Smart Device: yes
- Working area: 30*18*6cm
- Spindle hole diamete: 52mm
- Stepper motor: Apply to Nema17/23 Stepper
- Material: 6063 Aluminium plate
- funtion: cnc millling machine , diy cnc , wood router,homelab cnc
Product Description
Parameter:

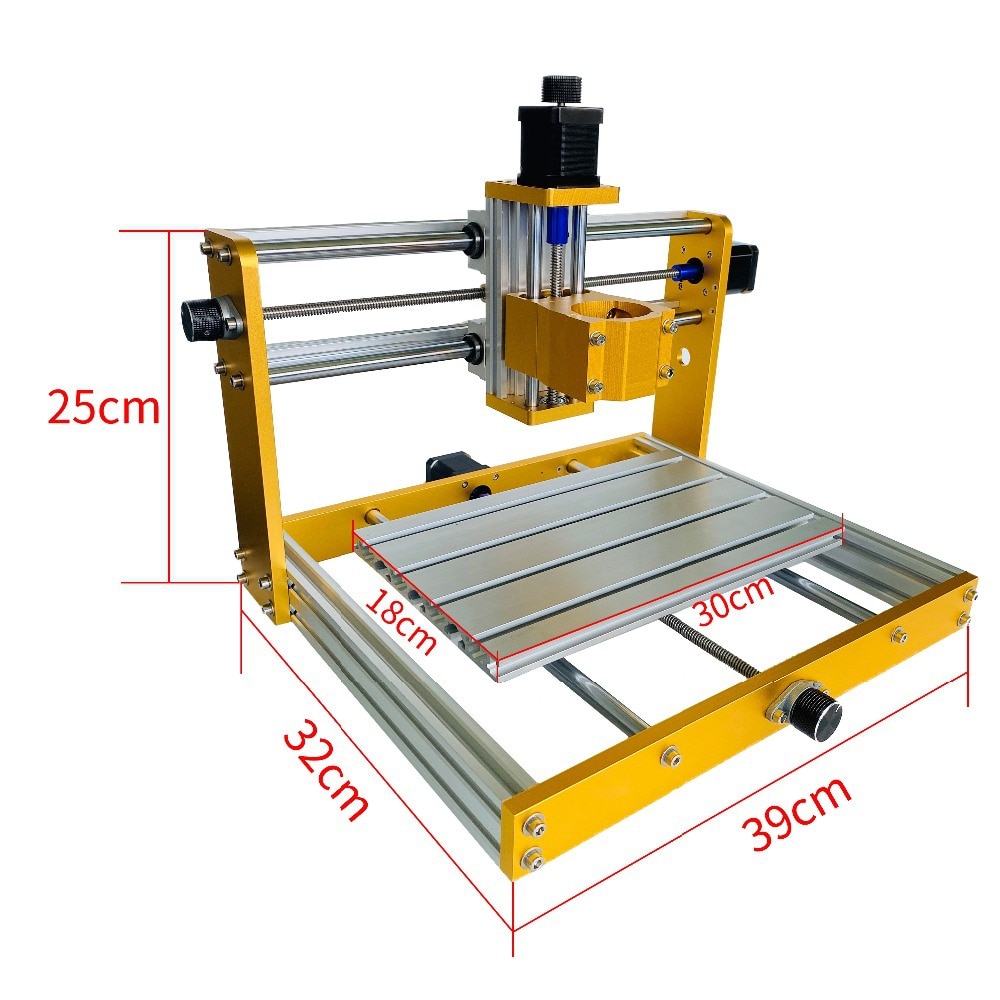

XYZ three-axis actual stroke 300*180*60mm
Aluminum Table Size 300*180mm
Material: Aluminium
Stepper motor: Apply to Nema48/57 Stepper
Screw: T8 stainless steel screw, lead 8MM, POM anti-backlash nut
Spindle hole diameter: 52mm
Feature:
1.Foot pads installed at four corners of the machine
2.Screws are equipped with gaskets to protect the machine more
3.Both screws are equipped with knobs, size 8mm
4.Horizontal screw seat, inner diameter 8
5.Full metal oxidation sandblasting
6.12mm optical axis, stable and durable

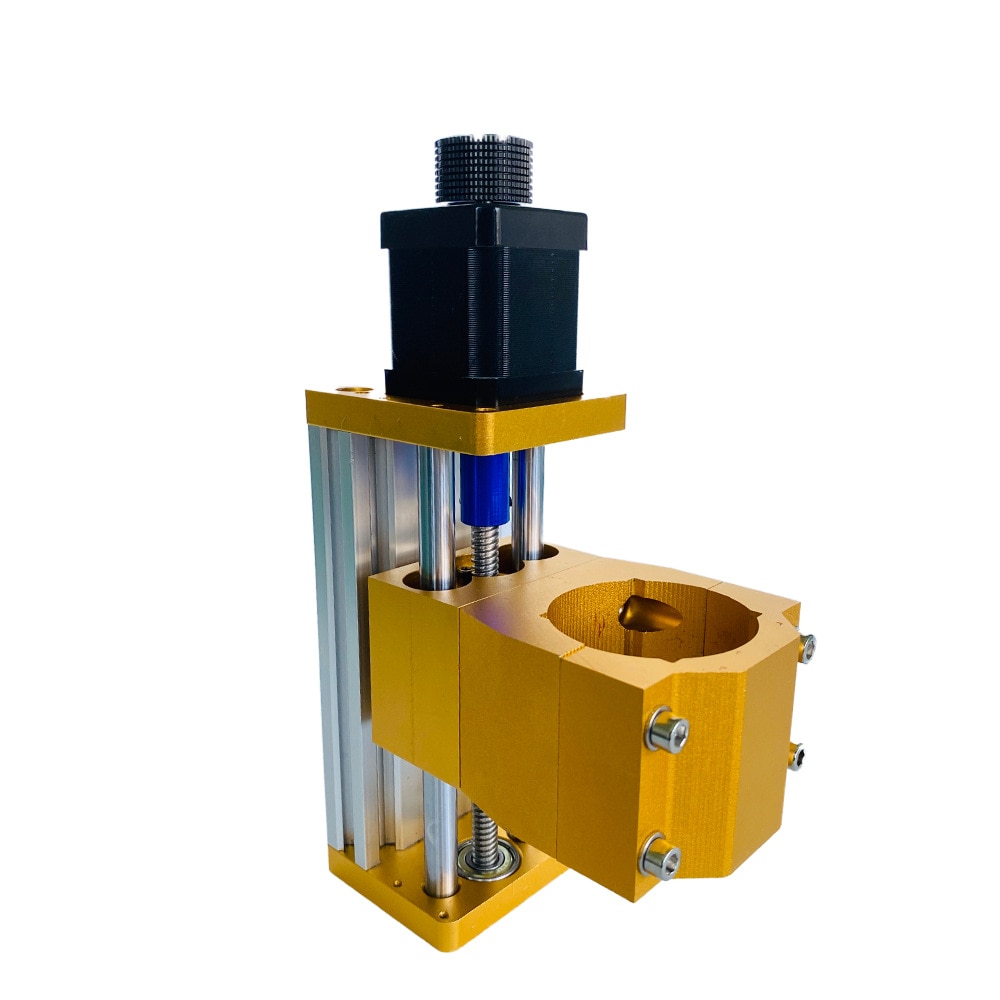

7.Z axis can be raised and lowered as a whole
PS: Equipped with baffle and emergency stop switch hole
Application:
Laser Can Engrave:
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam/Paper/Anodized Aluminum/Ceramics/Stone/ only 201, 316 type Coated Stainless steel (with 15W)
Laser Can Not Engrave:
Metal/Glass/PCB/Reflective Material/Transparent Material
15W Laser Can cut:
About 3mm wooden materials

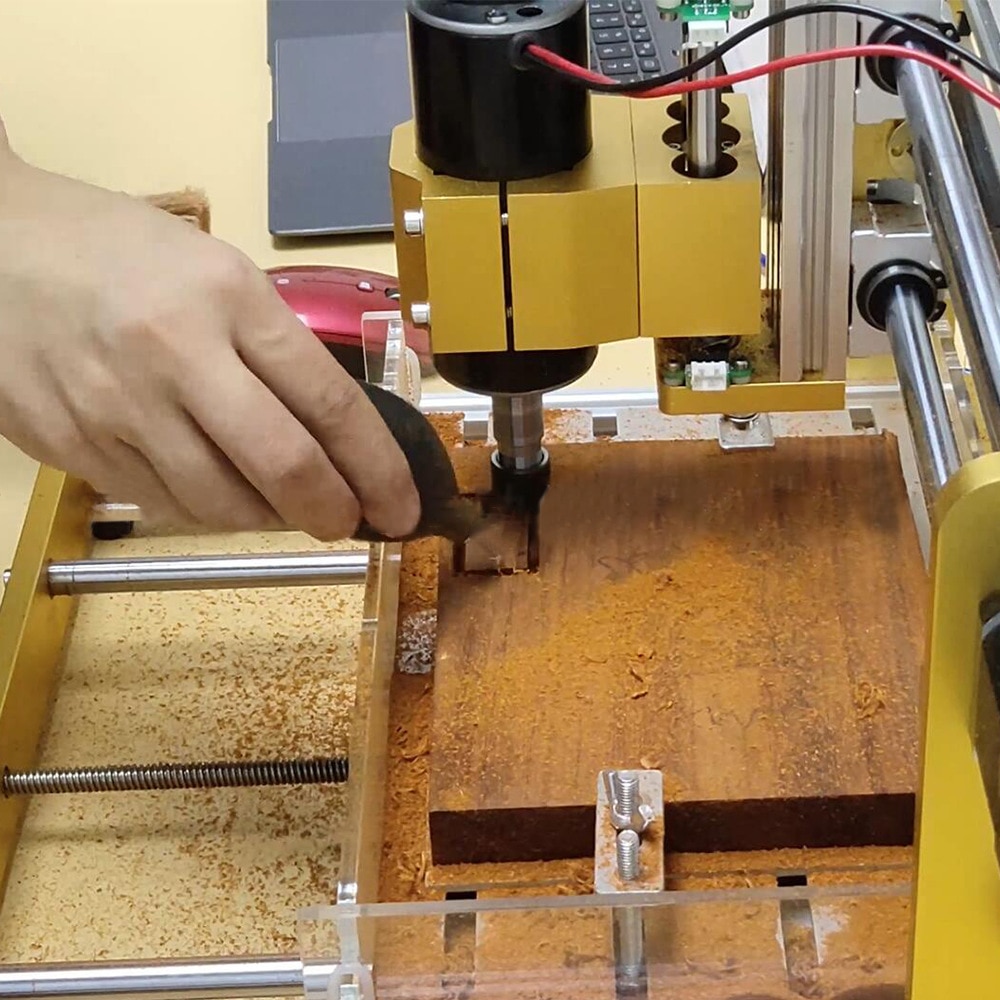

Cutters can engrave:
plastic, wood, acrylic, pvc, pcb, wood or the like material
Notice:
For 15W laser module, the line sequence of control board terminal should be
Red — "12V", Yellow — " TTL/ PWM", Black– “GND”.
Package Inludes:

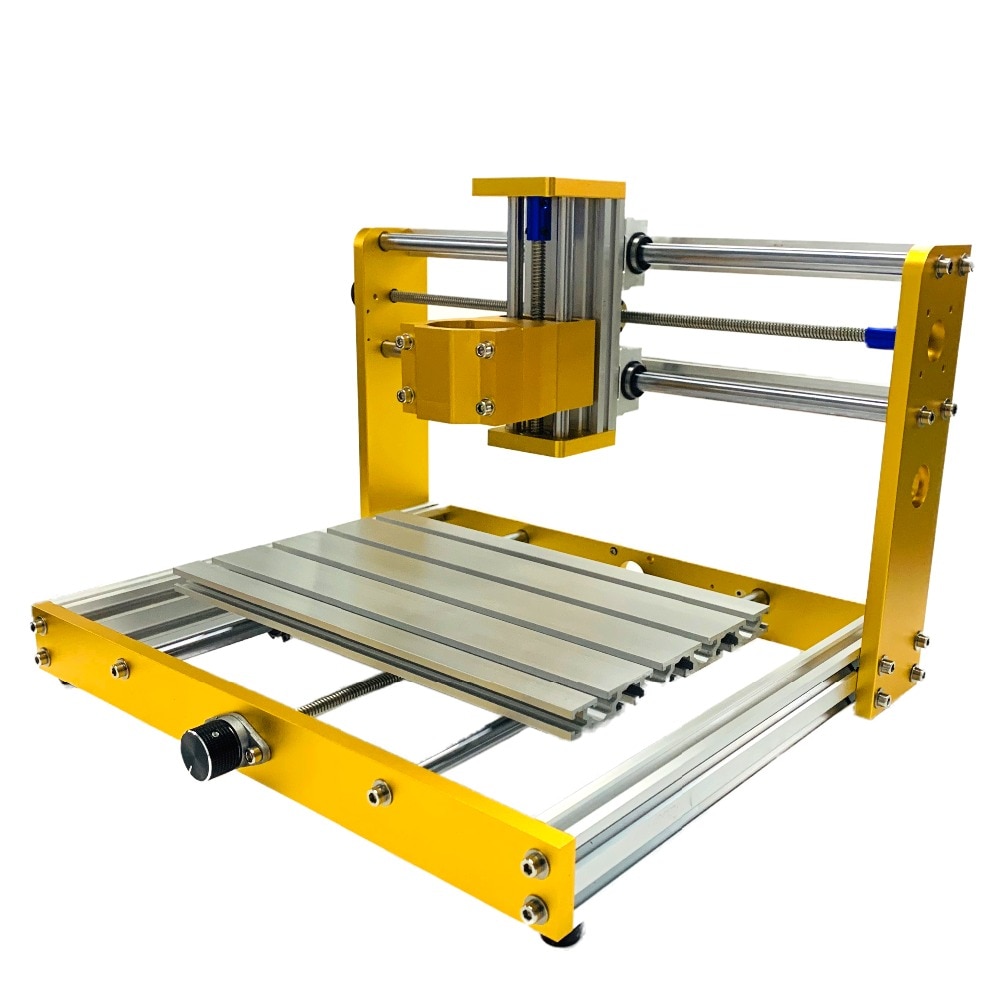

1.3018 Plus Laser Machine with motor
2.3018 Plus Laser Machine+ 300w spindle
3.3018 Plus Laser Machine+ 300w spindle+5500mw laser
4.3018 Plus Laser Machine+ 300w spindle+15w laser
5.3018 Plus Laser Machine+ 500w spindle
6.3018 Plus Laser Machine+ 500w spindle+5500mw laser
7.3018 Plus Laser Machine+ 500w spindle+15w laser
8.only 1pcs z axis
This kit is disassemble, needs the customer DIY assembling, needs certain electronic and the Mechanical Foundation.
Any questions pls feel free to contact me！
Any questions pls feel free to contact me！
