Description
- Origin: CN(Origin)
- Condition: New
- Type: Voltage Regulator
- Model Number: Module
- Application: Computer
- Operating Temperature: -20 40
- Supply Voltage: .V
- Dissipation Power: .W
- Package: SMD
- is_customized: Yes
Description:

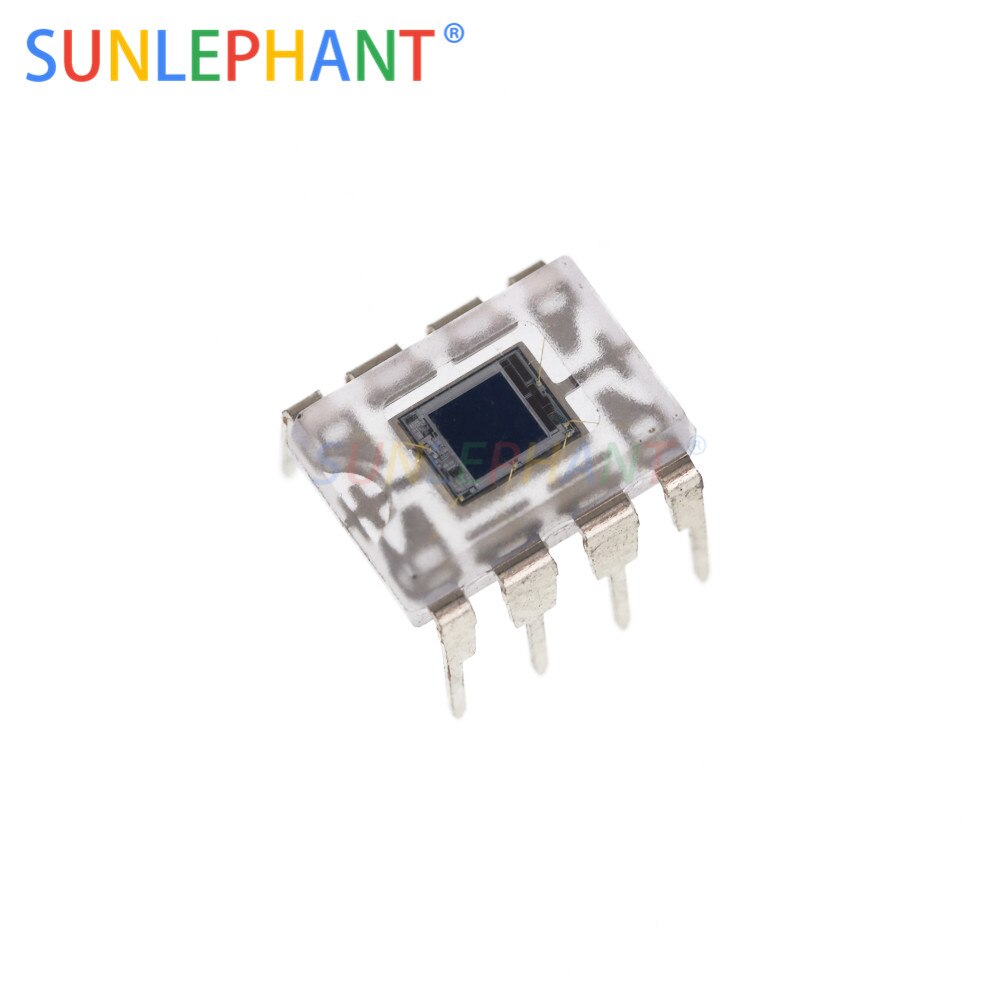

The OPT101 is a monolithic photodiode with on-chip transimpedance amplifier.The ingrated combination of photodiode and transimpedance amplifier on a single chip eliminates the problems commonly encountered in discrete designs, such as leakage current errors, noise pick-up, and gain peaking as a result of stray capacitance.Output voltage increases linearly with light intensity. The amplifier is designed for singlr or dual power-supply operation.
Features;
1.Single Supply:2.7-36V
2.Photodiode Size:2.29mm*2.29mm
3.Internal 1Mohm Feedback Resistor
4.High Responsivity:0.45A/W(650nm)
5.Bandwidth:14Khz
6.Low Qulescent Current:120UA
7.Packages:Clear plastic 8-pin PDIP and J-Lead SOP
Applications;
1.Medical Instrumentation
2.Laboratory Instrumentation
3.Position and Proximity Sensors
4.Photographic Analyzers
5.Barcode Scanners
6.Smoke Detectors
7.Currency Changers

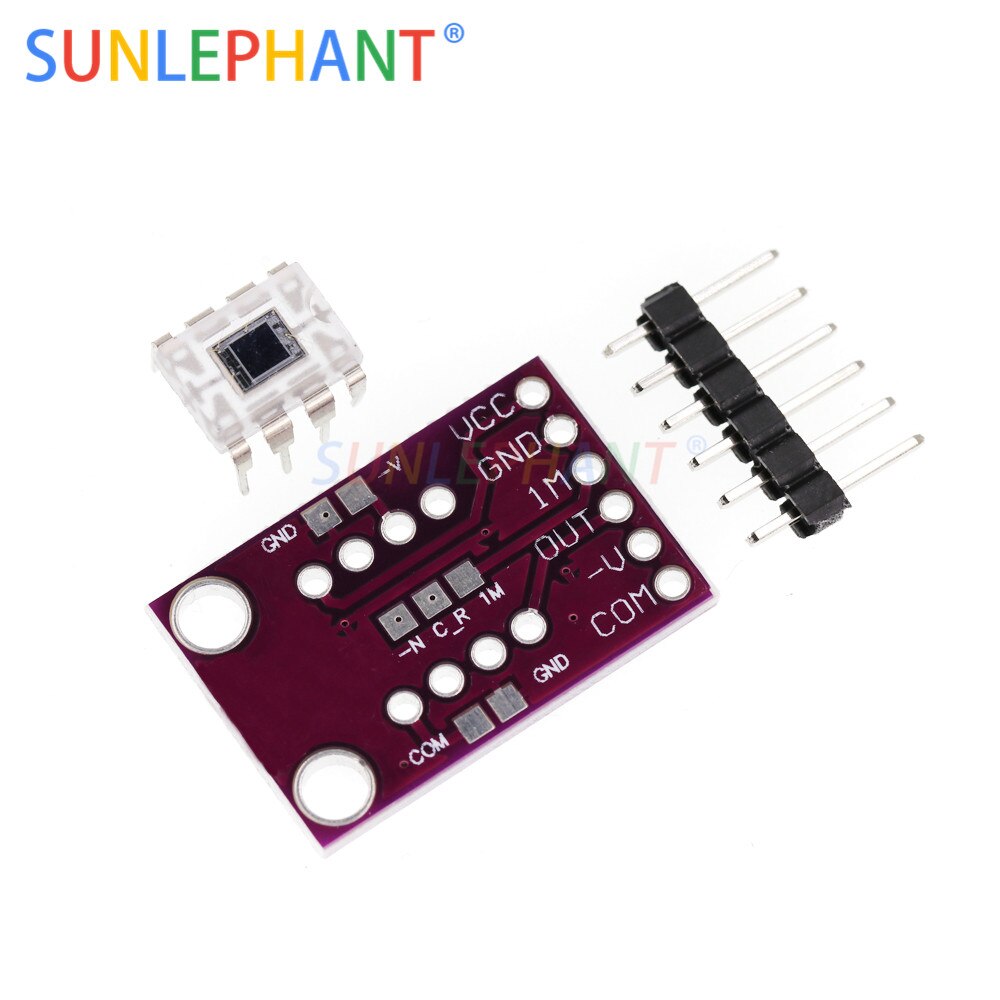

Package Included:

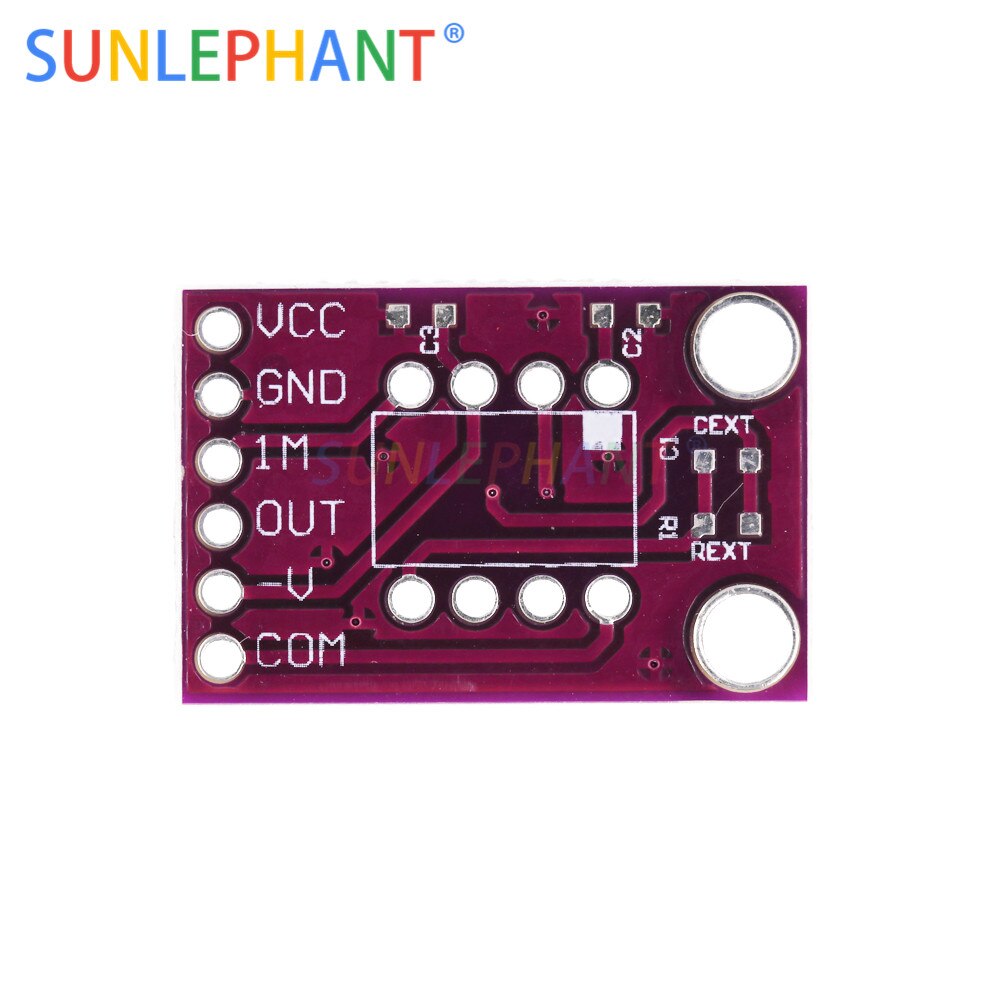

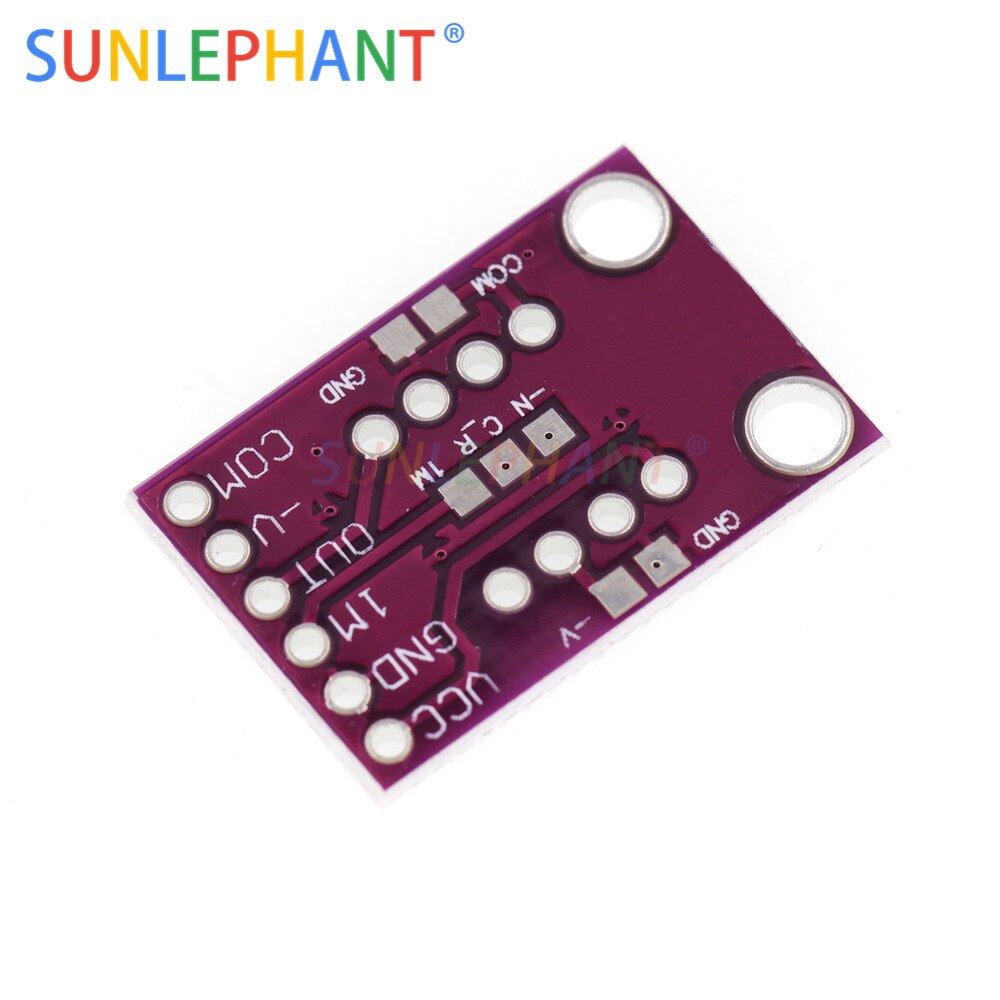

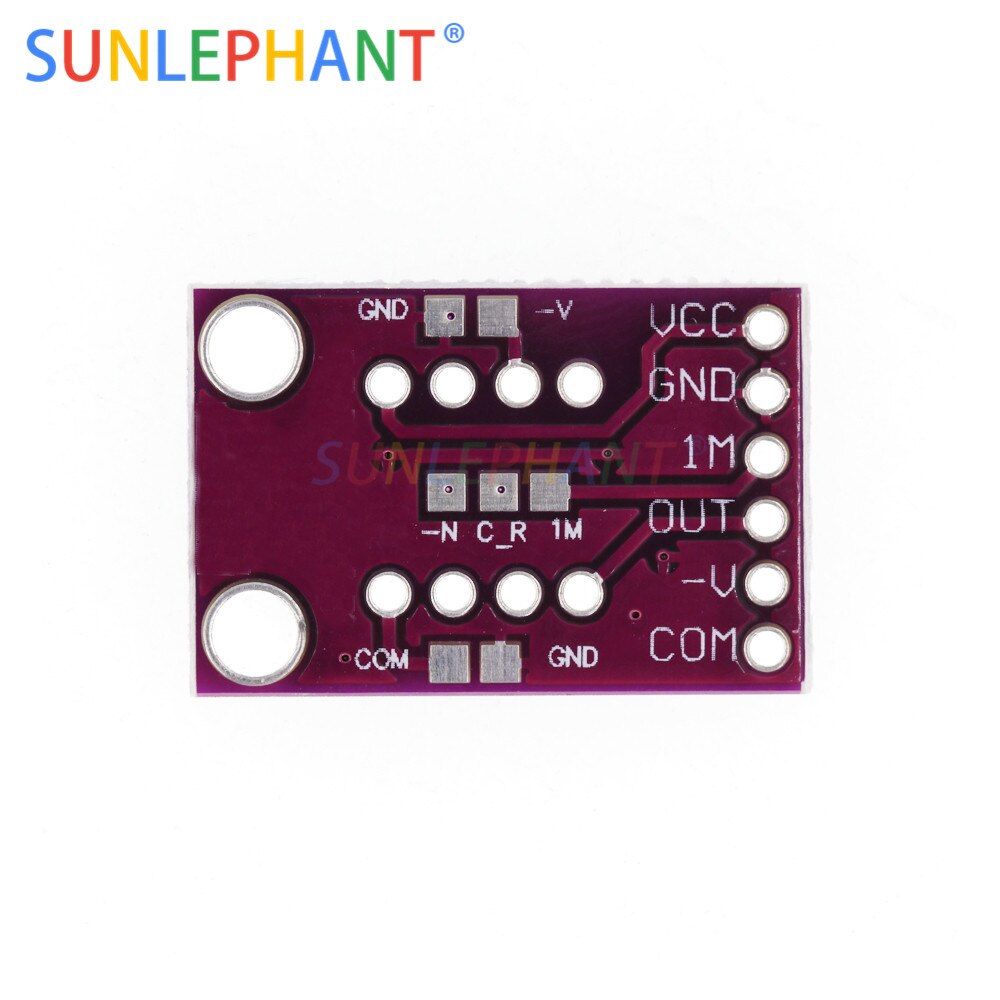

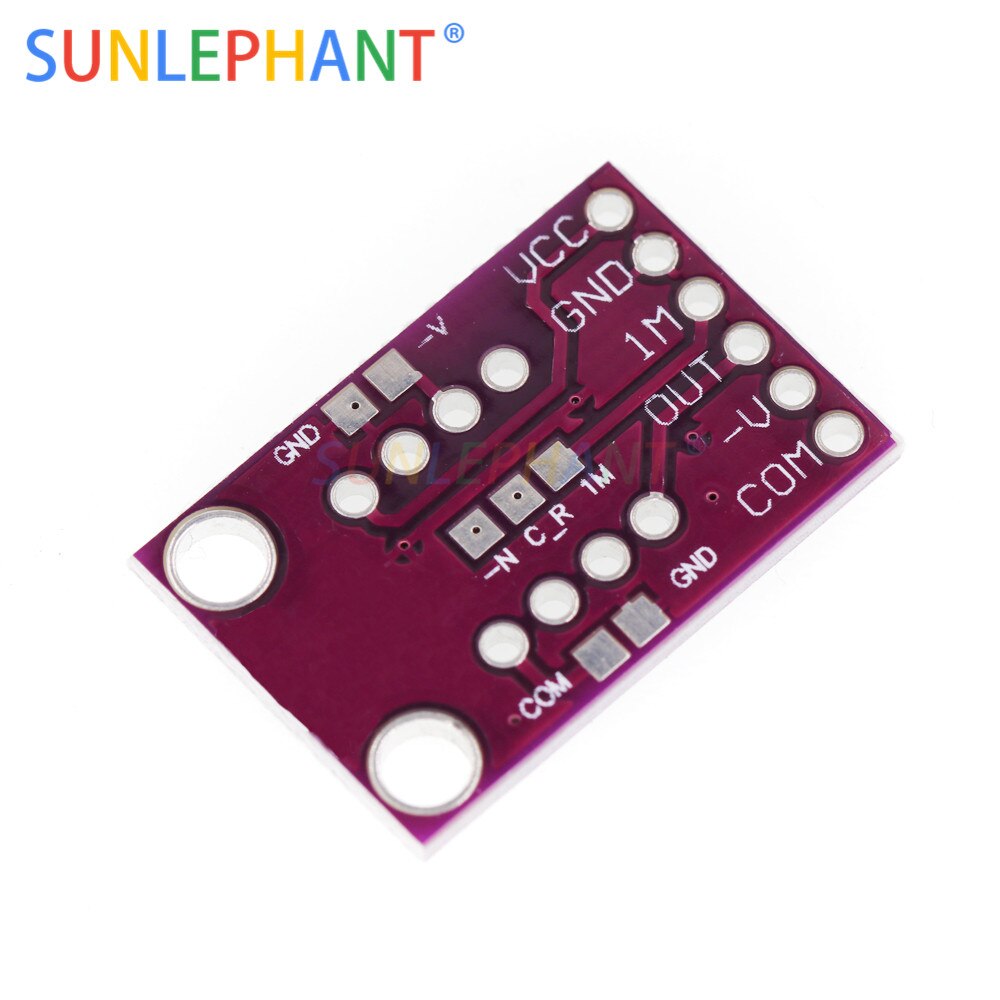

1 x OPT101 Analog Light Sensor Module
