Description
- Brand Name: CLUBIONA
- Certification: CE
- Origin: CN(Origin)
- Type: Vertical & Horizontal Lasers
- is_customized: YES
- Measurement Model: 16 Lines
- Size: 22x18x14cm
- Wavelength: 520 nm
- Precision: -1.5 mm / 5m
- Model Number: IE16R
- Product name: 4D line laser level
- Original: Shanghai, CHina
- Remote control: Yes
- 360 degree rotary: Yes
- Self-leveling: Yes
- Outdoor available: Yes
- tilt slash function: Yes
- Laser line color: Green
- Laser Class: class II
- Threaded hole: 1/4″,5/8″
- Waterproof grade: IP 54
- Lowest line to floor: 13mm
- Closest line to wall: 10mm
CLUBIONA IE16R Powerful Green 16 Lines 4D Laser Level Remote Control German Module Floor and Ceiling Mounted With Li-ion battery
Specifications:
Laser Line Color: Green
Standard: 16 lines (4D)
Wavelength: 520 nm (German brand Laser Core)
Laser class: Class 2
Leveling: Gravity pendulum self leveling
Outdoor available: YES
Working distance diameter: 50m (with receiver / detector)
Outdoor working: YES
Tile Slash function (LOCK mode): YES
Self-leveling: YES
Outdoor mode (receiver mode): YES
Auto adjustment range: ±4 degrees
Working tempature: -10 degrees celsius to 50 degrees celsius
Power: Lithium battery
Waterproof / dustproof: IP54
Package Includes:
1 x Laser Level
1 x Remote Control
1 x Wall Bracket
1 x Triangle Base
1 x Li-ion Battery
1 x Adapter
1 x Leather Storage Case
1 x User Manual
Details & Advantages

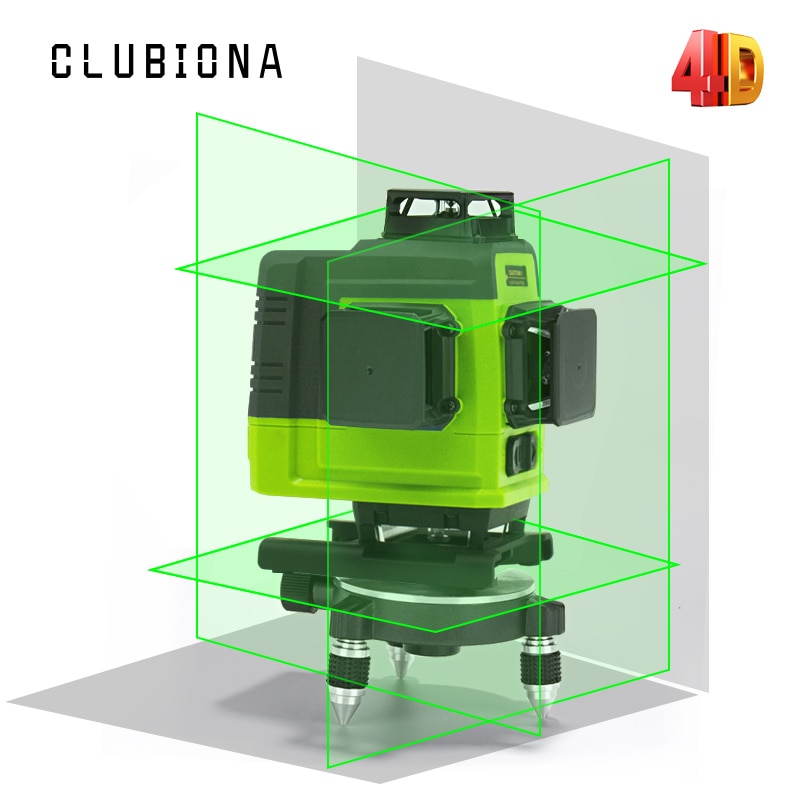

16 LINES LASER LEVEL
3×360 Degree Green Laser
15m Remote Control
SCIENTIFIC DESIGN
TOUCH KEY & REMOTE-CONTROL INTEGRATED MODE SWITCHING
This laser level can use both the touch buttons and the remote control to easily operate 15m away.

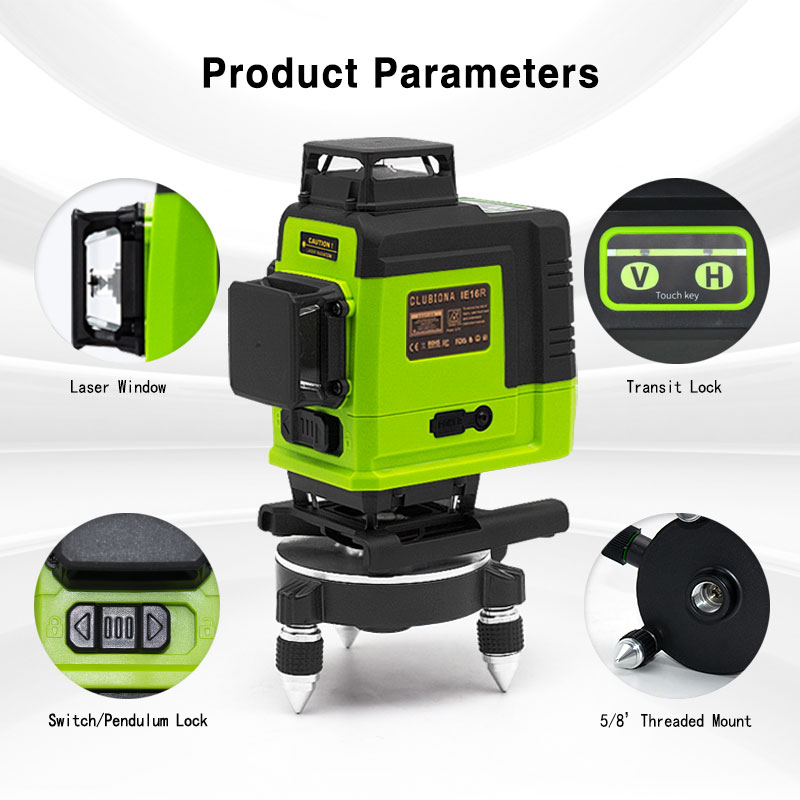

LED touch indicator (H: horizontal line switch, V: vertical line switch, V: tilt mode)

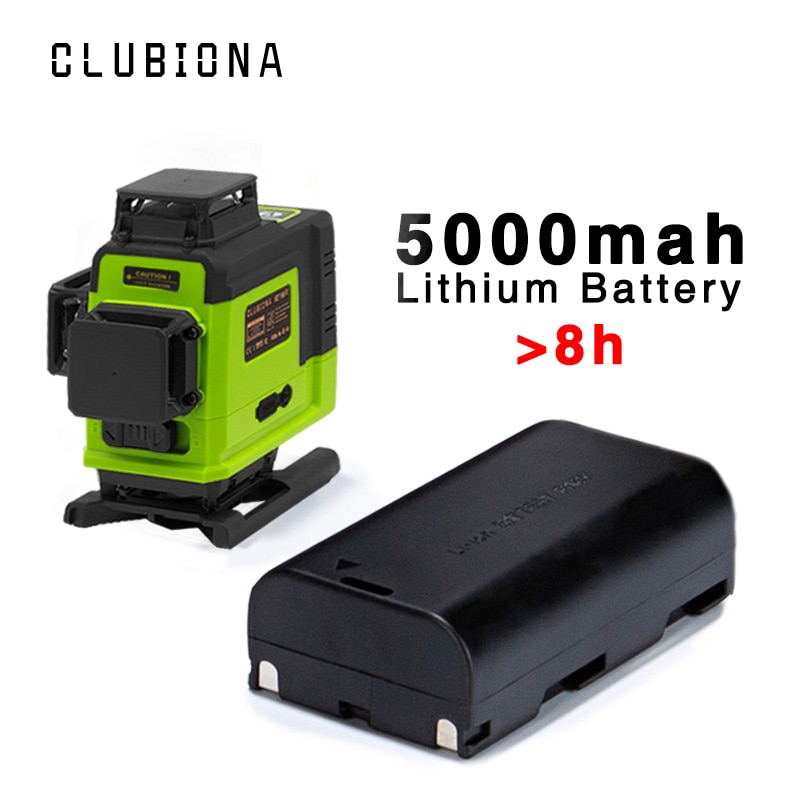

LONG WORKING TIME
5000mAh Li-ion battery, made up of 18650 batteries, it can be changed when it is necessary. Put the lithium battery inside the battery compartment, then the lithium battery can be charged. The adapter can also power the line laser level separately.
POWER SAVING OUTDOOR PULSE MODE
In pulse mode, the laser tool can work with a laser receiver for working in a brighter condition or a further working distance for a long time. (Note: The laser receiver is NOT INCLUDED.)
EASY TO OPERATE AND SAFE

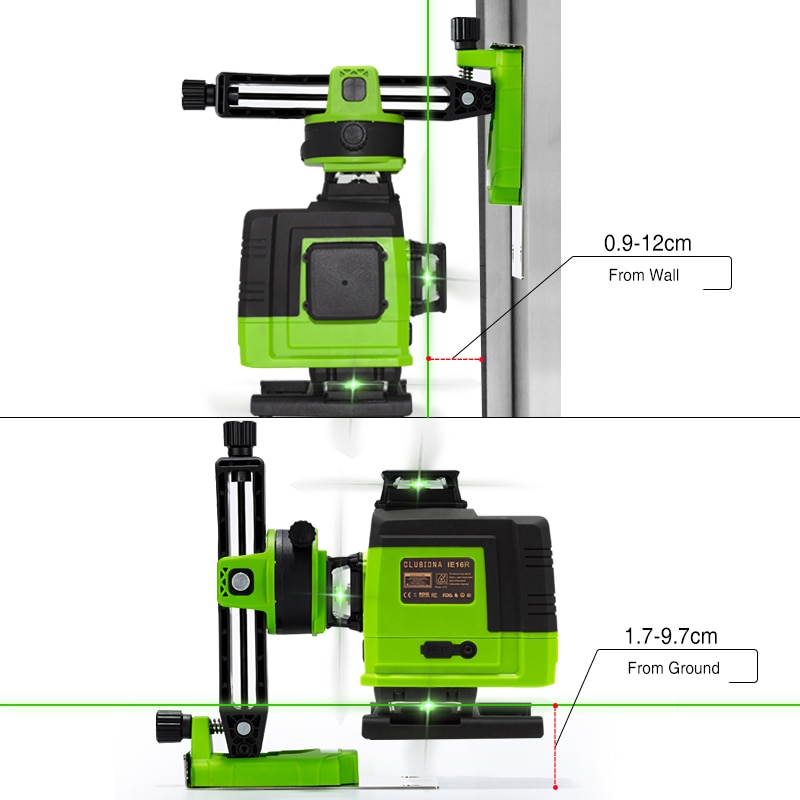

The distance from the vertical line to wall is ≤9mm and horizontal line to floor is ≤17mm, greatly improves your work efficiency.
4P strong magnetic bracket ensures easy adsorption on the wall surface and 360 degree rotating increases the convenience and safety of working.

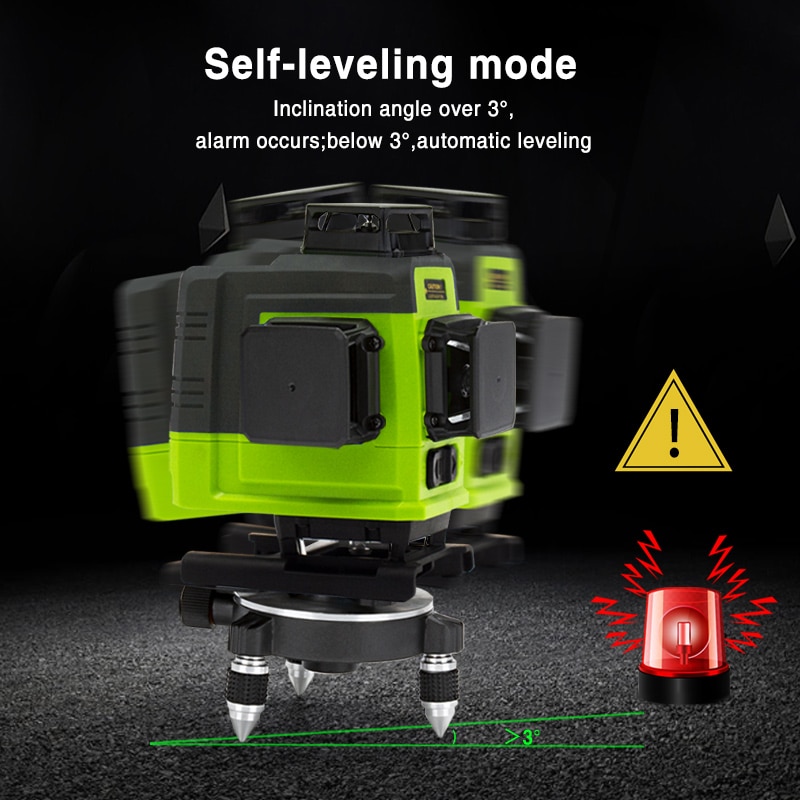

SELF-LEVELING & 360° ADJUSTABLE TILT FUNCTION
Self-Leveling Mode:
•After power on, the self-leveling mode is enabled by default.
•When the device is out of self-leveling range(＞3 degrees), the laser beam(s)will blink fast
Note: When using it under Self-leveling mode, please place this laser tool on a level surface.
Manual/ Tilt Mode:
•After power on, press and hold V for 2 seconds to switch to manual mode, the LED indicator lights up in red.
•Position the device at various angles.
HIGH VISIBLE GREEN BEAM LASER FOR VARIOUS OCCASIONS
The IE16R green laser level with higher visibility, eye friendly for all-new experience. Bright green-beam laser up to 2x brighter than standard red beams, which improves your work efficiency greatly.
Muitiple Using Method
Applications
