Description
- Brand Name: Cloudray
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AirMaker
- CNC or Not: CNC
- Is Smart Device: YES
- Power: 20W/30W
- Working Area: 50*50-200*200
- Laser Wavelength: 1064nm
- Makring Speed: 7000mm/s
- Operating System: Win7/Win8/Win10
- Software: Ezcad
1. Foldable wear-resistant aluminum and iron case design to quick Install.
2. Built-in high-speed marking laser motion control system.
3. The fiber laser beam has good quality, high reliability and high precision.
4. Fast marking on metals and certain non-metal materials (such as certain hard plastics).
Note:
-

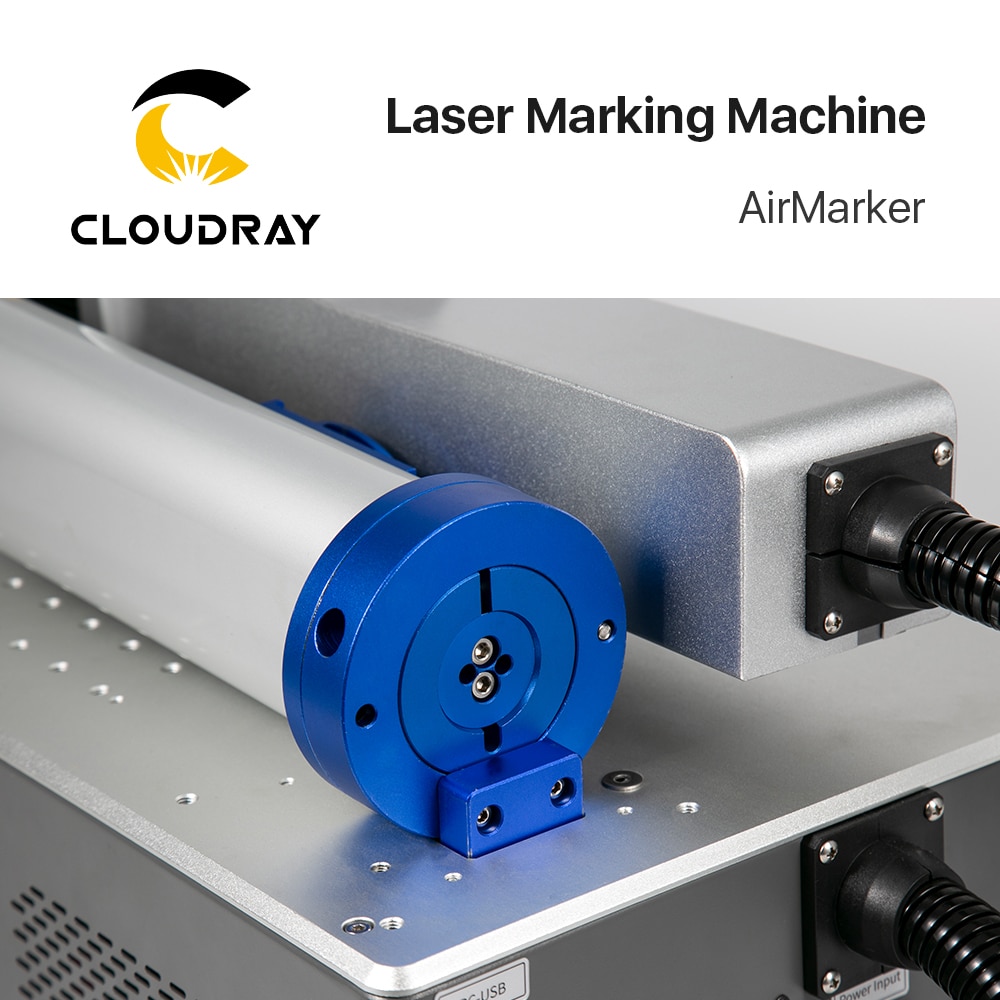

Rotary connector is installed when the rotary set is purchased, not standard.
-
Product display pictures, please refer to the actual product.

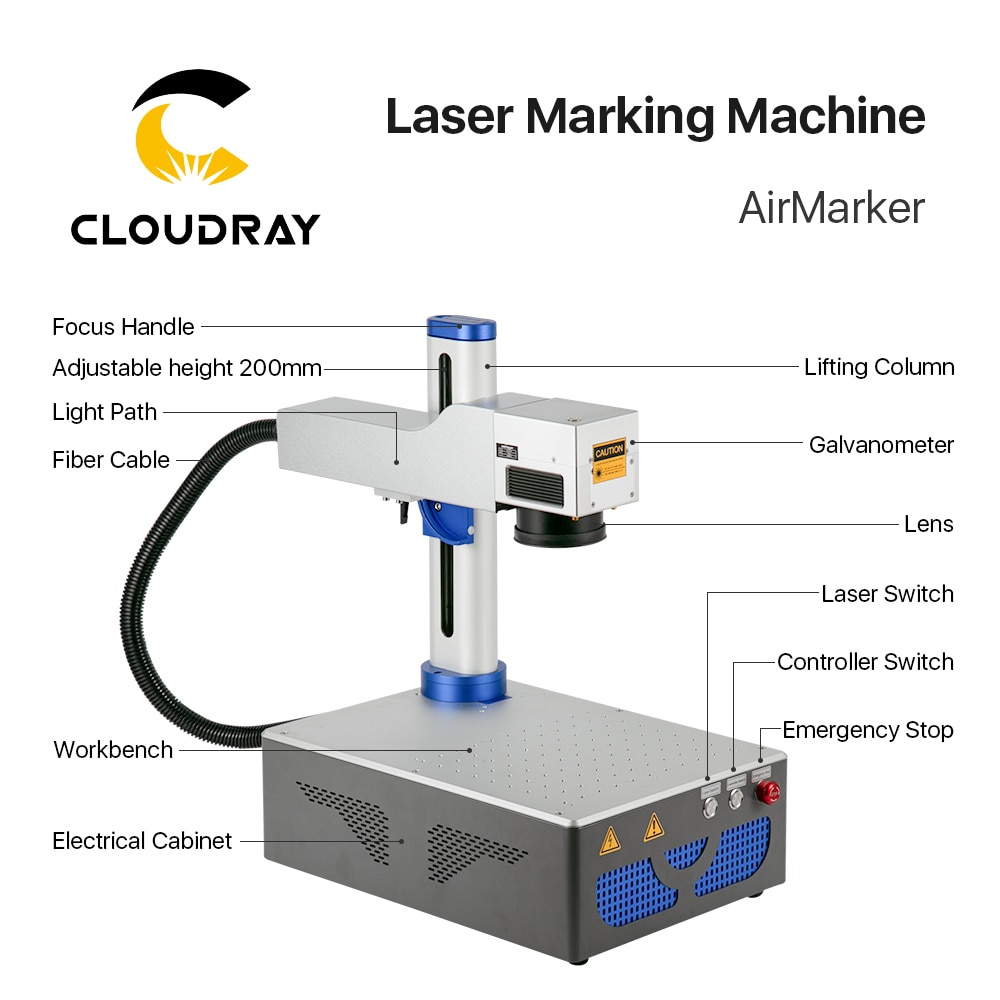

1. Manually align the light path lifting column, tighten the No. 1 screw to fix the base, and tighten the No. 2 screw to prevent rotation.
2. Adjust the horizontal and vertical of light path, tighten the Lock Key to lock the angle, and tighten the NO.3 screw to fix the light path.
