Description
- Origin: Mainland China
- Certification: CE
- Single Pulse Energy: 1000w
- Model Number: MCW-1000
- Max. Output Power: 1000W
- Wavelength: 1064nm
- Rated Voltage: 220V
- Usage: Laser Welding metal
- Is Smart Device: YES

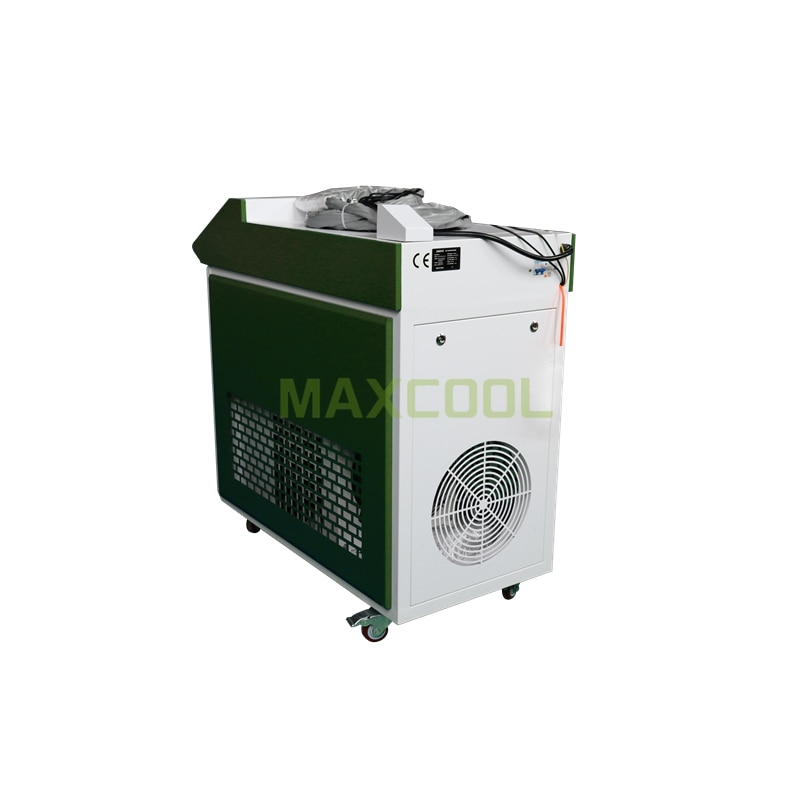

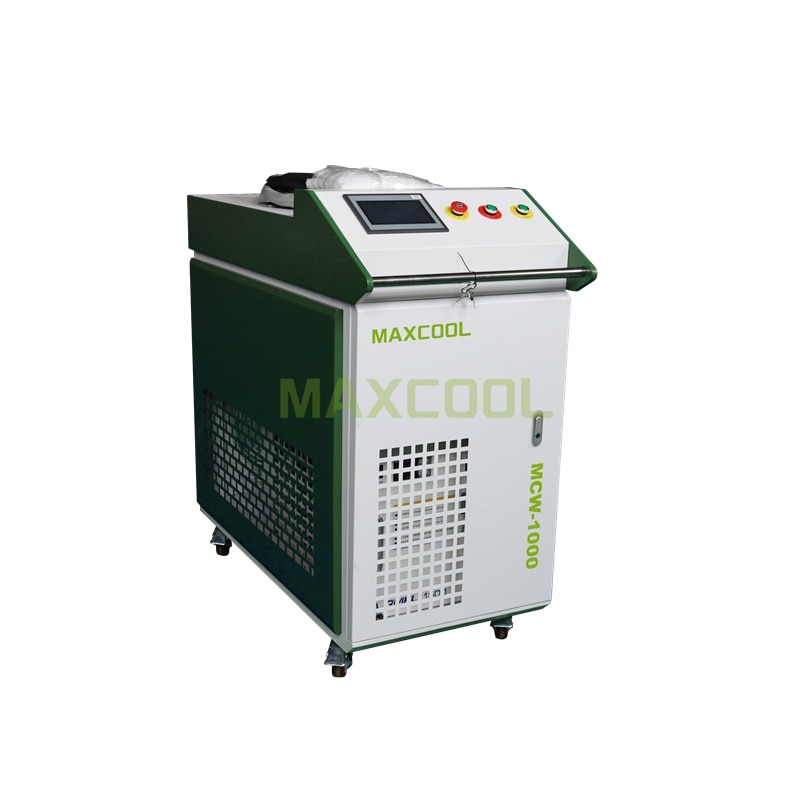

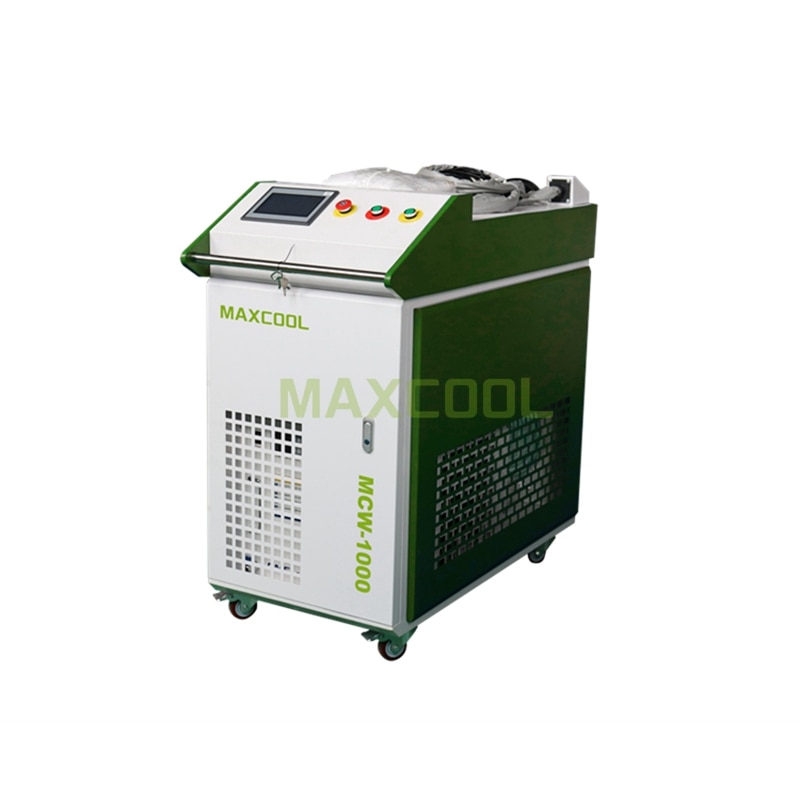

- Product name: Fiber laser welding machine
- Model: MCW-1000
- Laser power: 1000w 1500w 2000w
- Laser type: Continuous
- Laser source: Reci/Raycus/MAX
- Welding head: Au3tech
- Cooling mode: Water cooling
- Wire feeder: Included
- Usuage: Welding steel, aluminum, brass,etc
Welcome to contact me if you would like to learn more:
Sales manager: Betty Yin
Email: sales13@maxcoolcnc.com
Whatsapp: +86 13365319785
Machine Brief Introduction:
1. About Fiber Cable Length
Usually standard length is 10m, if you have other needs, we support shortening or lengthening.
2. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.

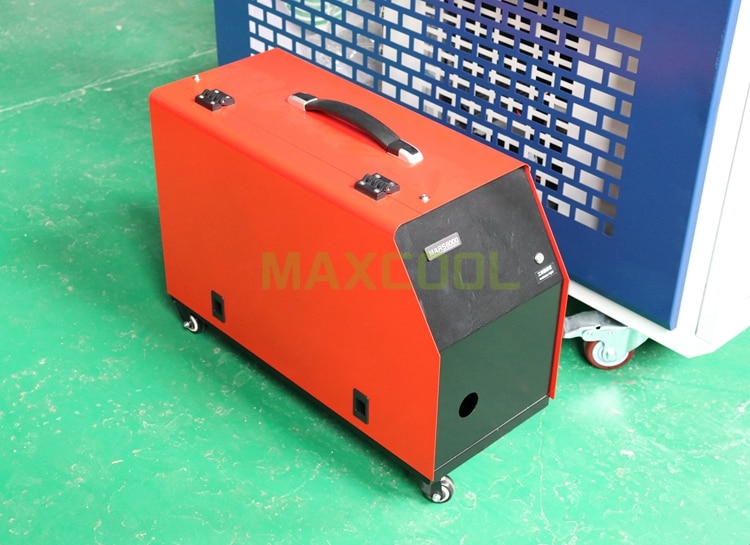

3. About wire feeder
It’s the machine standard configuration, we will send to you together with the whole machine.
4. Machine warranty
usually 3 years for whole machine, 2 years for lasr source, we have professional after sale team, 24 hour online
Technical Parameters.
|
Model
|
Fiber laser welding machine
|
|
Laser Type
|
Continuous fiber laser
|
|
Average Power
|
1000W/ 1500W/ 2000W
|
|
Output Range (If adjustable)
|
0-1000W/ 0-1500W/ 0-2000W
|
|
Auto wires feeder
|
Included
|
|

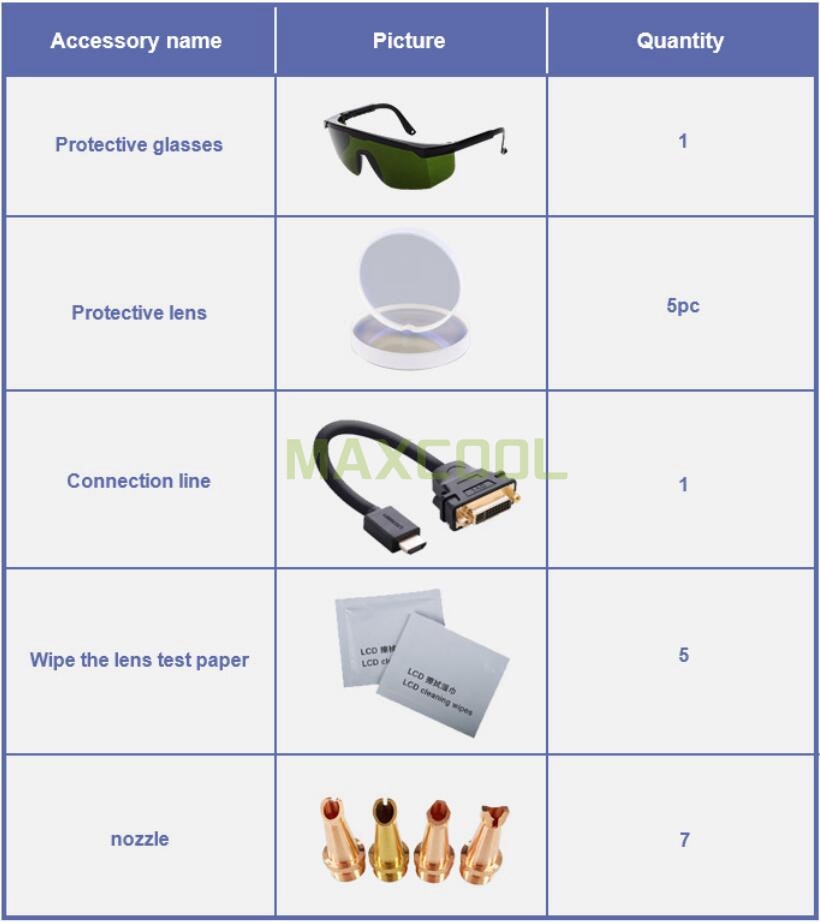

Consumable parts
|
Protective lens, welding nozzle
|
|
Fiber Length
|
10m
|
|
Cooling Type
|
Industrial water chiller cooling
|
|
Input Power
|
220V/380V, 50/60H
|
|
Power Consumption (W)
|
4500W (including Chiller)
|
|
Package Dimensions
|
1240*620*1060mm
|
|
GrossWeight
|
240kg
|

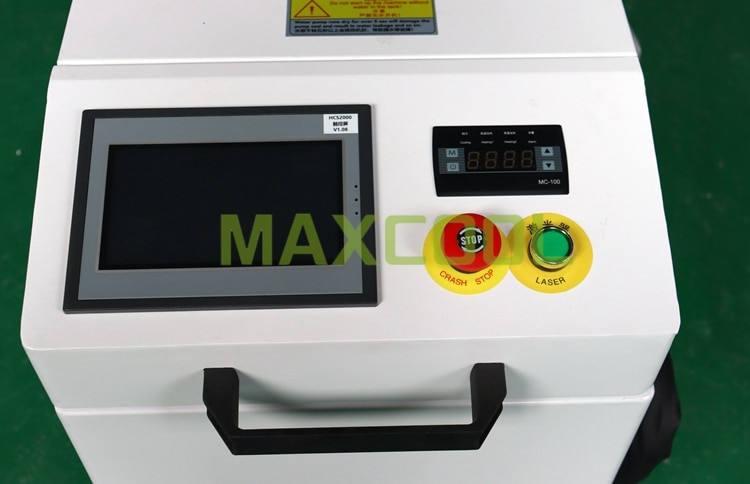

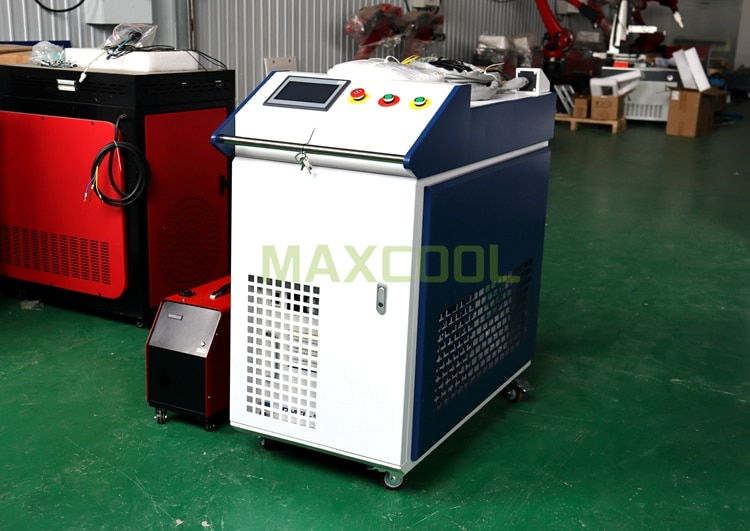

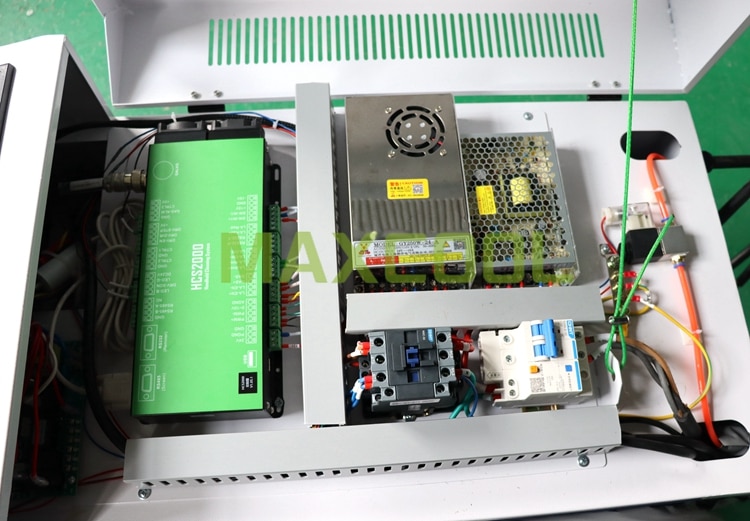

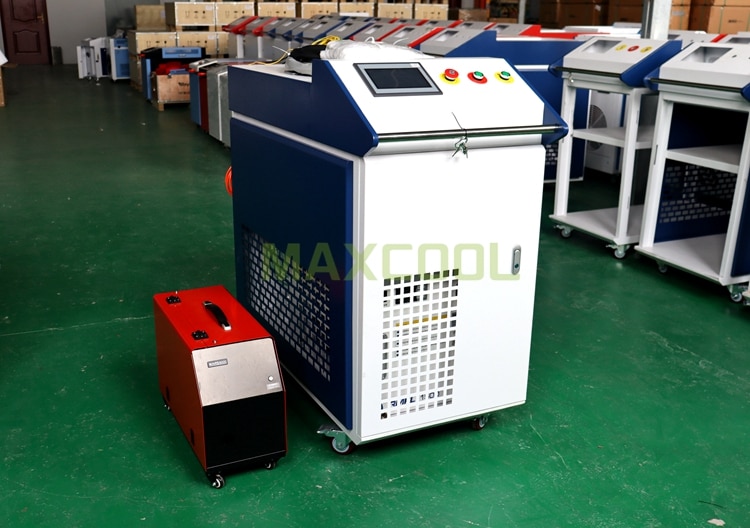

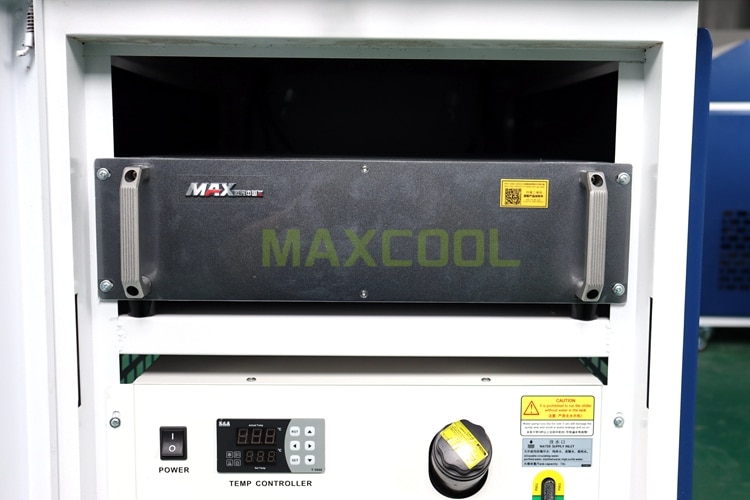

Machine Details.

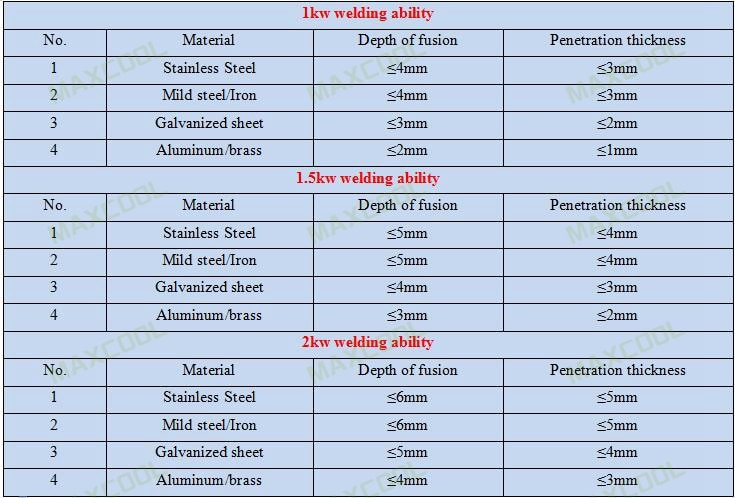

Welding Material Parameter for your reference, different materials, different welding parameters, limited by the section,
directly display a part.
If You want to know more about the parameter, please contact us directly, 24 hours online.
Application Field:

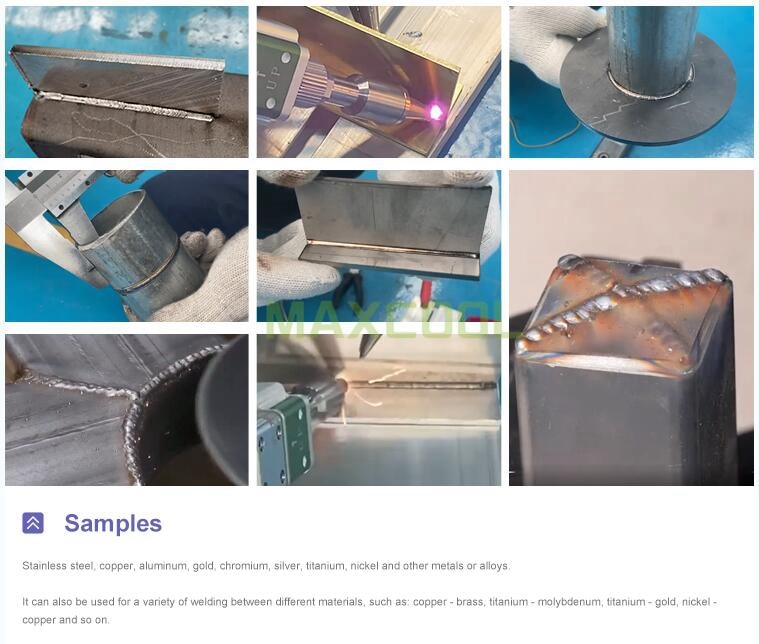

Fiber Laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding between metals and dissimilar metals. It has been widely used in aerospace, shipbuilding, and instrumentation. , Mechanical and electrical products, automobiles and other industries.

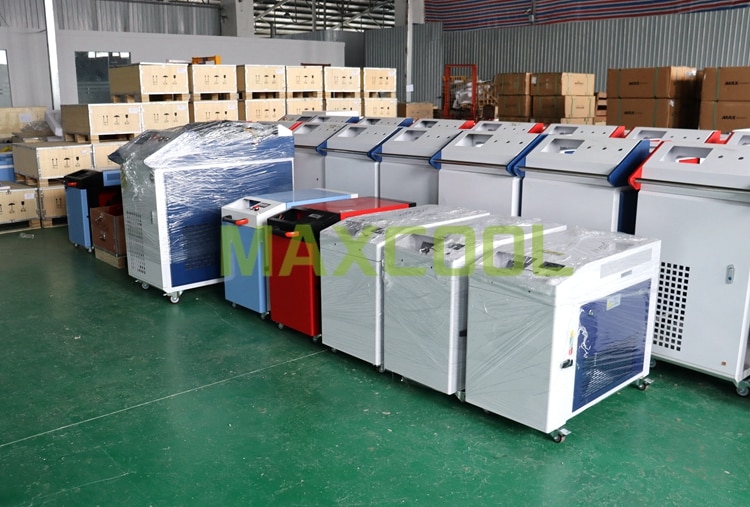

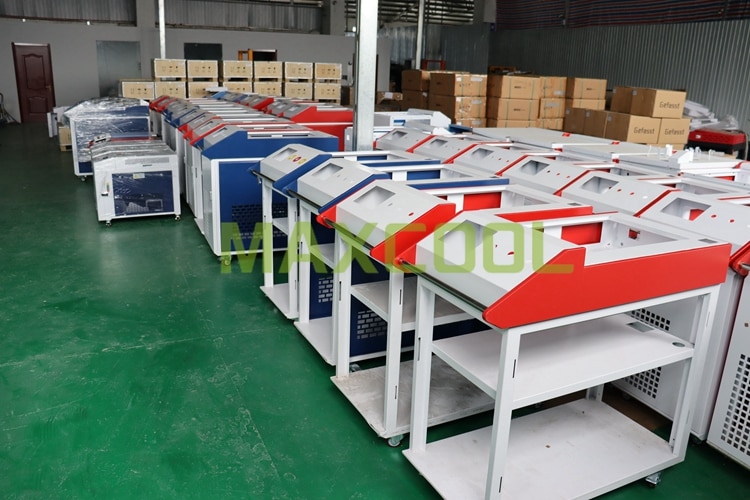

Lots of half-finished machines in stock !
FAQ:
How to operate the machine ?
We will deliver English manual and video to you. If you still need our help, please contact us, our engineer will guide you.
How can I get the sample to check you quality ?
If you want to welding sample to check the quality, we can help you do this.
Just tell us your needs, when finished the testing, we can send testing video to you, if you need, we also can send welding sample to you.
Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience. Tell us your needs, and we will customize your own solutions.
