Description
Products Description

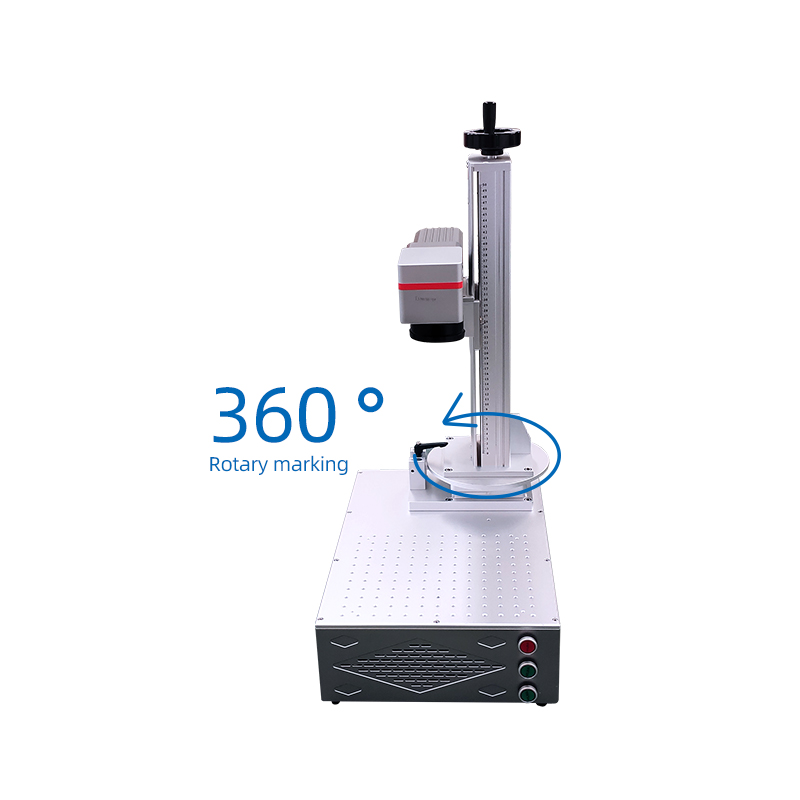

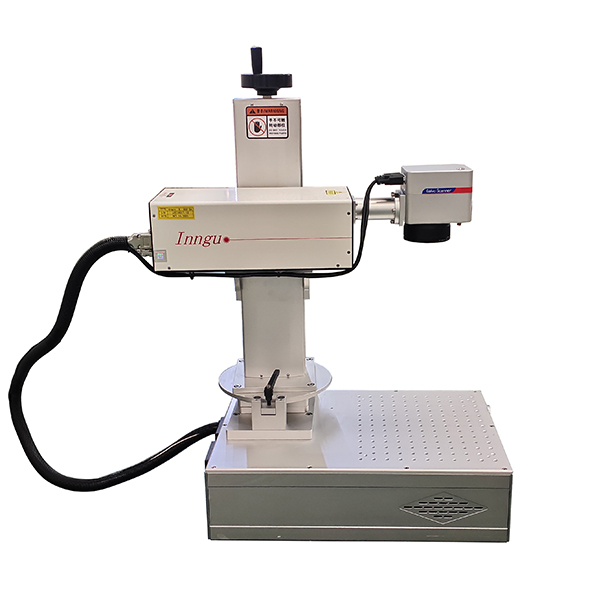

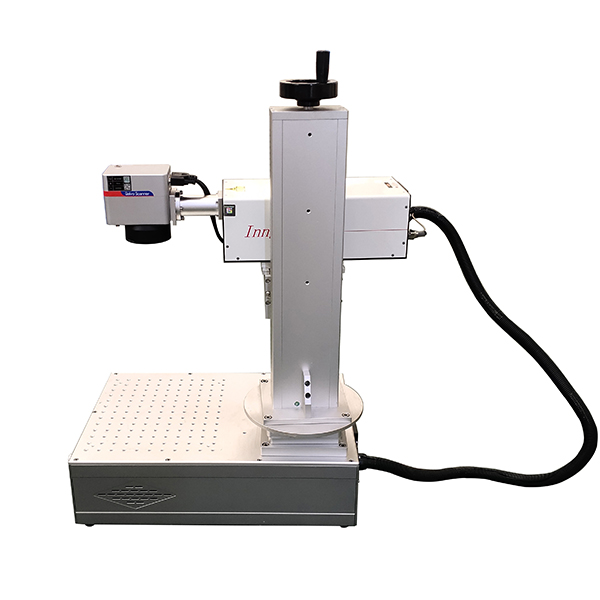

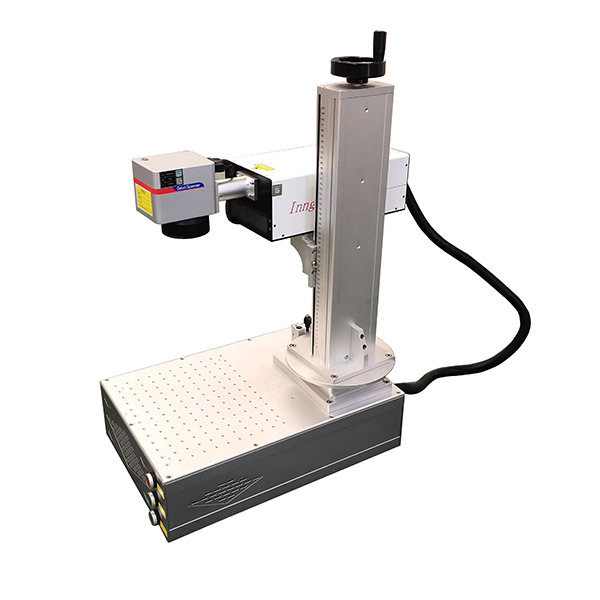

UV laser marking machine Application
1.–It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories(mobile phone screen, LCD screen) and communication products.
2.–Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
3.–Pharmaceutical, food, beverage and cosmetics industry.
4.–Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving,clocks and
watches and glasses.
5.–It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, previous to light polymer materials, plastic, fire prevention materials etc.
1.–It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories(mobile phone screen, LCD screen) and communication products.
2.–Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
3.–Pharmaceutical, food, beverage and cosmetics industry.
4.–Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving,clocks and
watches and glasses.
5.–It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, previous to light polymer materials, plastic, fire prevention materials etc.
Product Paramenters
|
Product name
|
UV Laser marking machine
|
||||||
|
Machine power
|
3W 5W(Optional)
|
||||||
|
Laser wavelength
|
355nm
|
||||||
|
Pulse repetition rate
|
20–200KHZ
|
||||||
|
Pulse width
|
<20ns@30KHz
|
||||||
|
Average power(W)
|
3W/5W
|
||||||
|
Average power stability
|
<±2% over 23 hours
|
||||||
|
Pulse-to pulse instability
|
<3%rms
|
||||||
|
Spatial mode
|
TEM00(M2<1.3)
|
||||||
|
Beam divergence
|
<2mrad(full angle)
|
||||||
|
Beam diameter
|
0.6±0.1mm
|
||||||
|
Cooling method
|
Air-cooling
|
||||||
|
Relative humidity
|
10%-80%(non-condensing)
|
||||||
|
Warm-up time(mins)
|
<10
|
||||||
|
Operating voltage
|
110V/220V(Optional)
|
||||||
