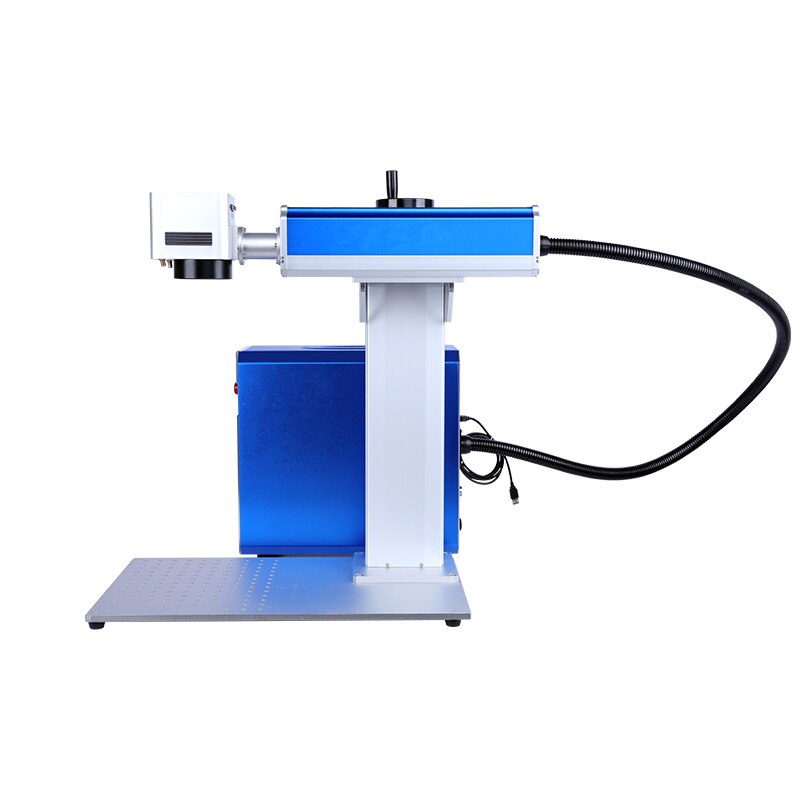

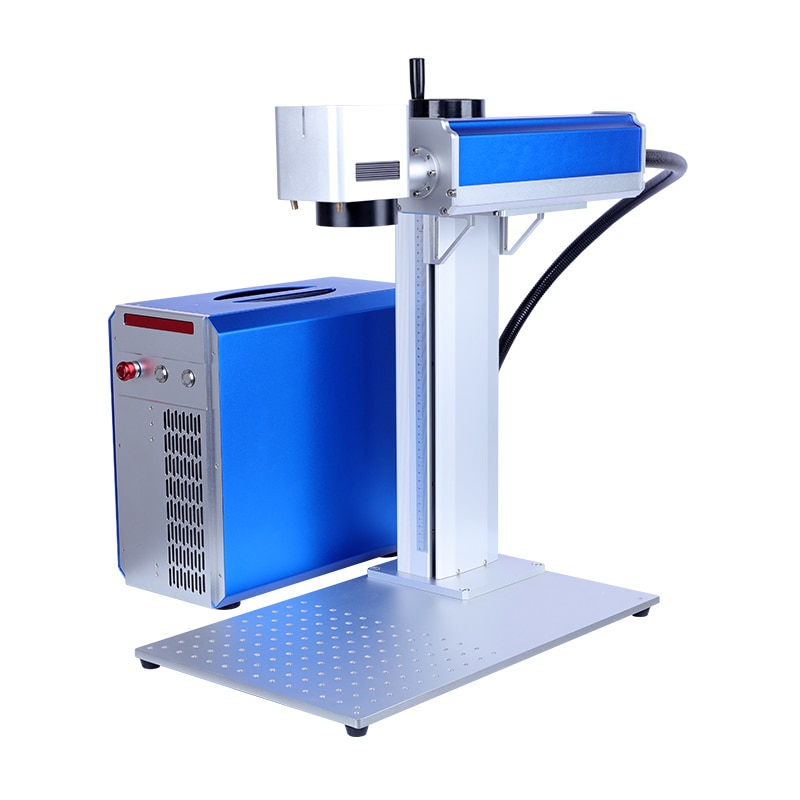

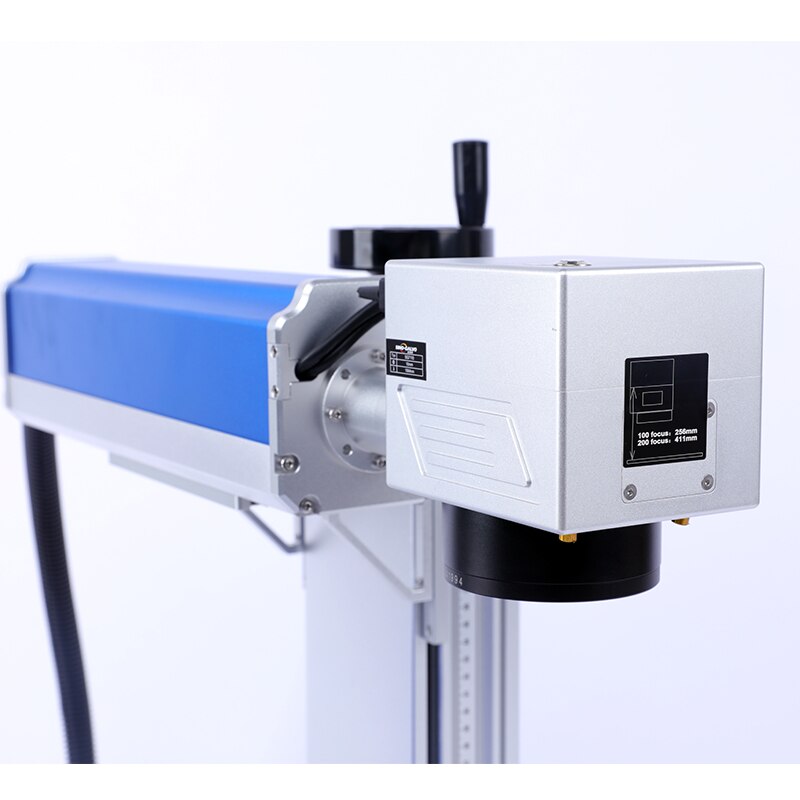

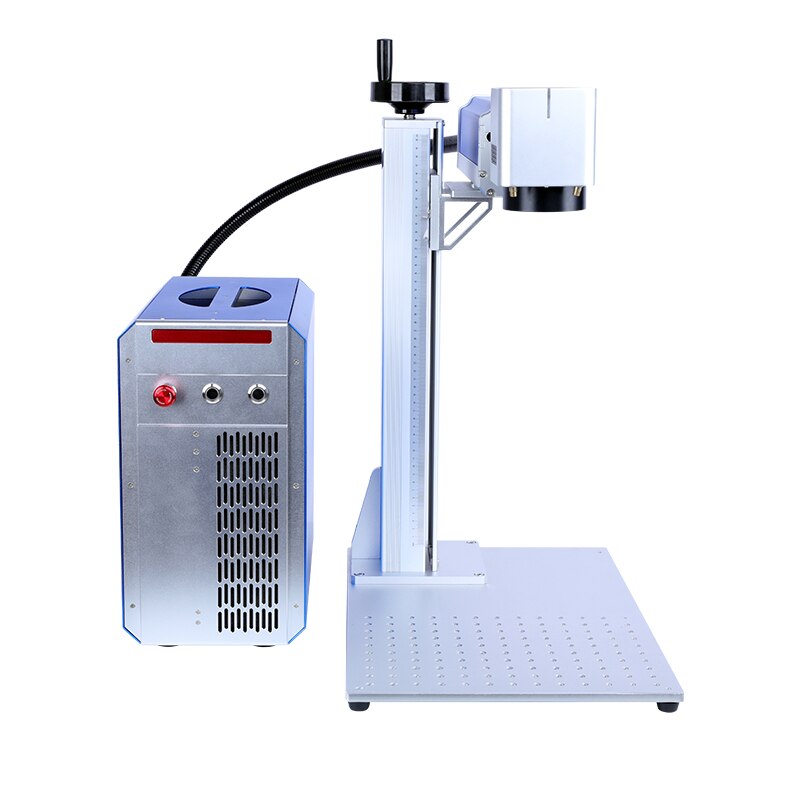

china 20w 30w 50w 3d mini small portable fiber laser marking machine laser marker plastic metal jewelry pen

$6,324.35$9,324.35

SKU: 1005002358909815 Category:

Description

  • Brand Name: IGOLDENCNC
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: fiber laser marking machine
  • CNC or Not: CNC
  • name: portable laser marking machine
  • laser power: 20W/30W/50W
  • Working area: 110*110mm/200*200mm/300*300mm
  • Laser Wavelength: 1064nm
  • marking type: portable laser marking machine

Product Description

china cheap 20w 30w 50w 3d mini small portable fiber laser marking machine for plastic metal jewelry

The laser marking machine uses a laser beam to make permanent marks on the surface of various materials. Laser marking is the use of laser beams to evaporate surface material to expose deep material, or to cause chemical changes on the surface material and physical changes to engrave traces, or to burn off part of the material through light energy to show the desired etching pattern and text

Technical Parameters:

Model

20w 30w 50w 3d fiber laser marking machine

Laser power

20W/30W/50W

Working area

110*110mm/200*200mm/300*300mm

Laser Wavelength

1064nm

Response time

0.5m/s

Frequency of pulse

20-80KHz

Max marking depth

≤0.5mm

Marking speed

≤7000mm/s

Marking lines

1-10 lines(in the marking area)

Minimum line width

0.01mm

Minimum character

0.15mm

Repeatability accuracy

±0.005mm

Resolution ratio

0.1mm

Marking content

Text,pattern,date,bar code,etc

Operation system

Microsoft Windows XP or Windows 2000

Control software

JCZ

Graphic format supported

bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

Unit power

≤1.2KW

Operation temperature

5℃-35℃

Relative moisture

≤90%,no fog

Supply Voltage

220V/50Hz/10A

Focusing system

Autofous and electric Bella

Sample & Application

Fiber laser marking machine is suitable for most metal materials and some non-metal materials, such as gold, silver, copper, iron, zinc, aluminum, stainless steel, stainless acid-resistant steel, and hard plastics, rubber leather, coating materials, etc. Widely used in electronic components, hardware products, tool accessories, electrical products, consumer goods, sensors, auto parts, 3C electronics, handicrafts, precision equipment, gifts and accessories, medical equipment, high and low voltage electrical appliances, bathroom industry, battery industry, IT industry, integrated circuit chips, computer accessories, industrial bearings, aerospace parts, automobile manufacturing, military industry and other fields.

Recommend For You

These machines are all popular among different customers. Why not to take one minutes for clicking to get more details. All the specification of machine can be customized according to your own requirements, and there will be one machine suit for you.

ATC CNC Wood Machine

Pneumatic Multi Spindles

CNC Plasma Cutting

Packaging & Shipping

company information

shandong igolden cnc technology co. ,ltdis a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc.

And welcome to visithttps://igoldencncrouter.en.alibaba.com/for more choices and info.
