Description

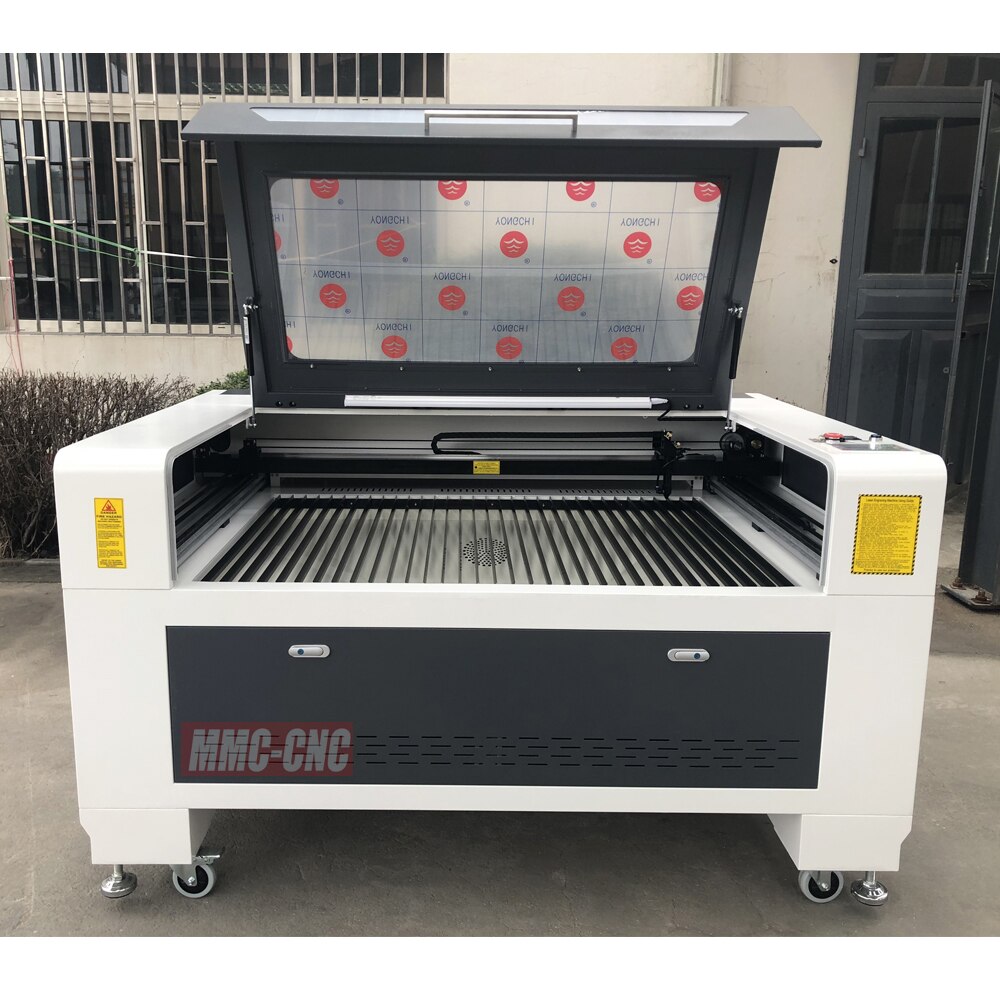

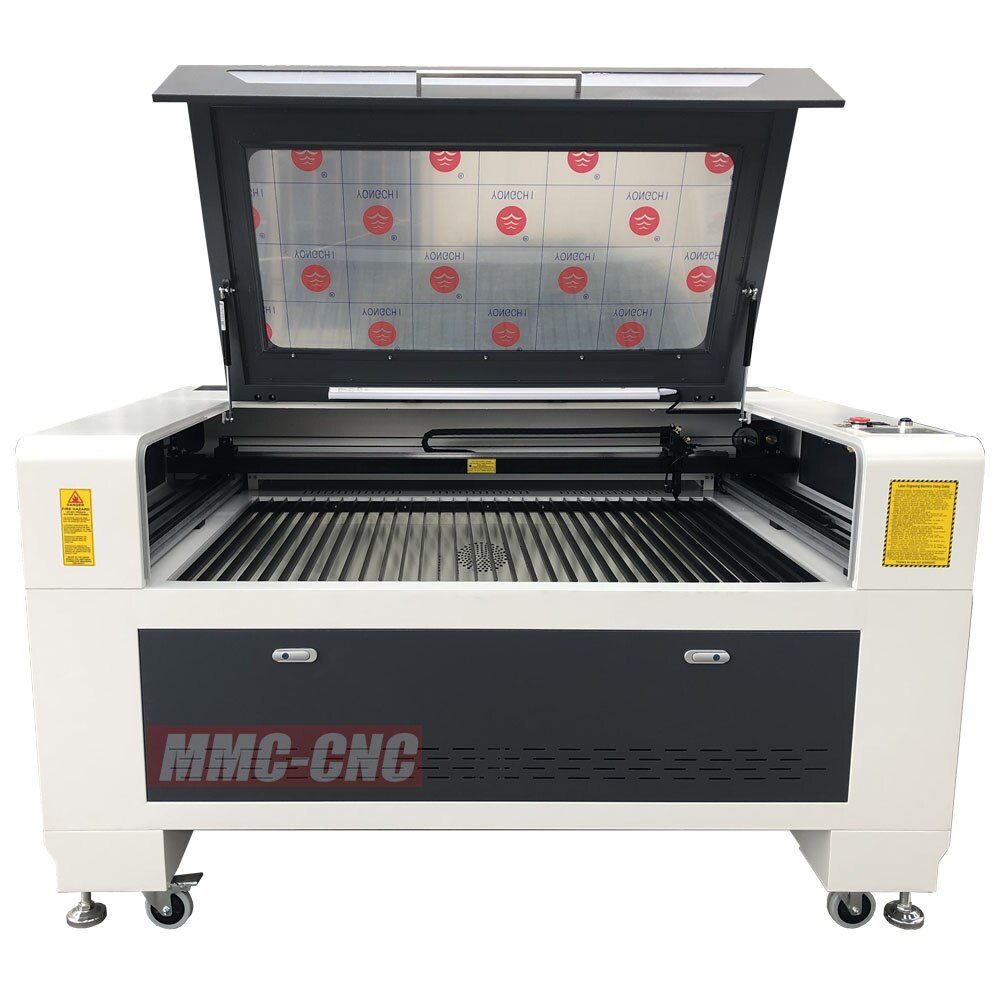

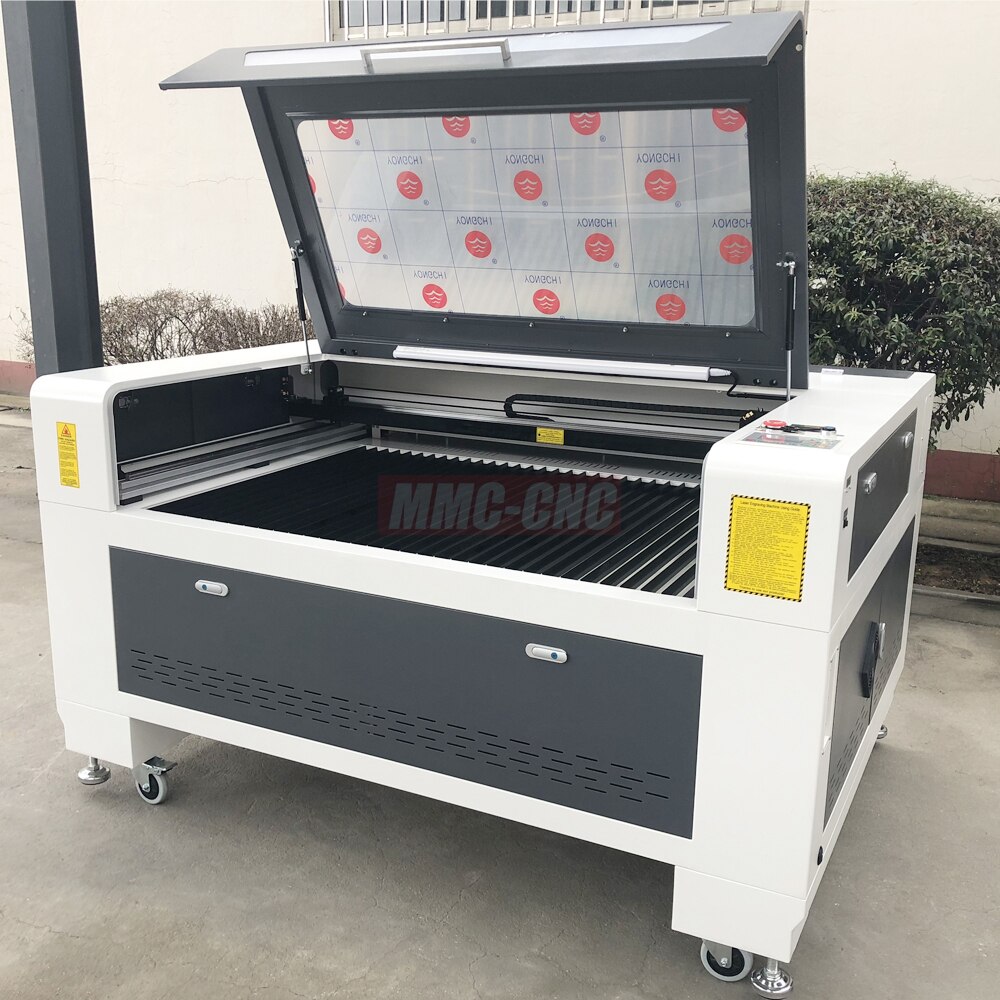

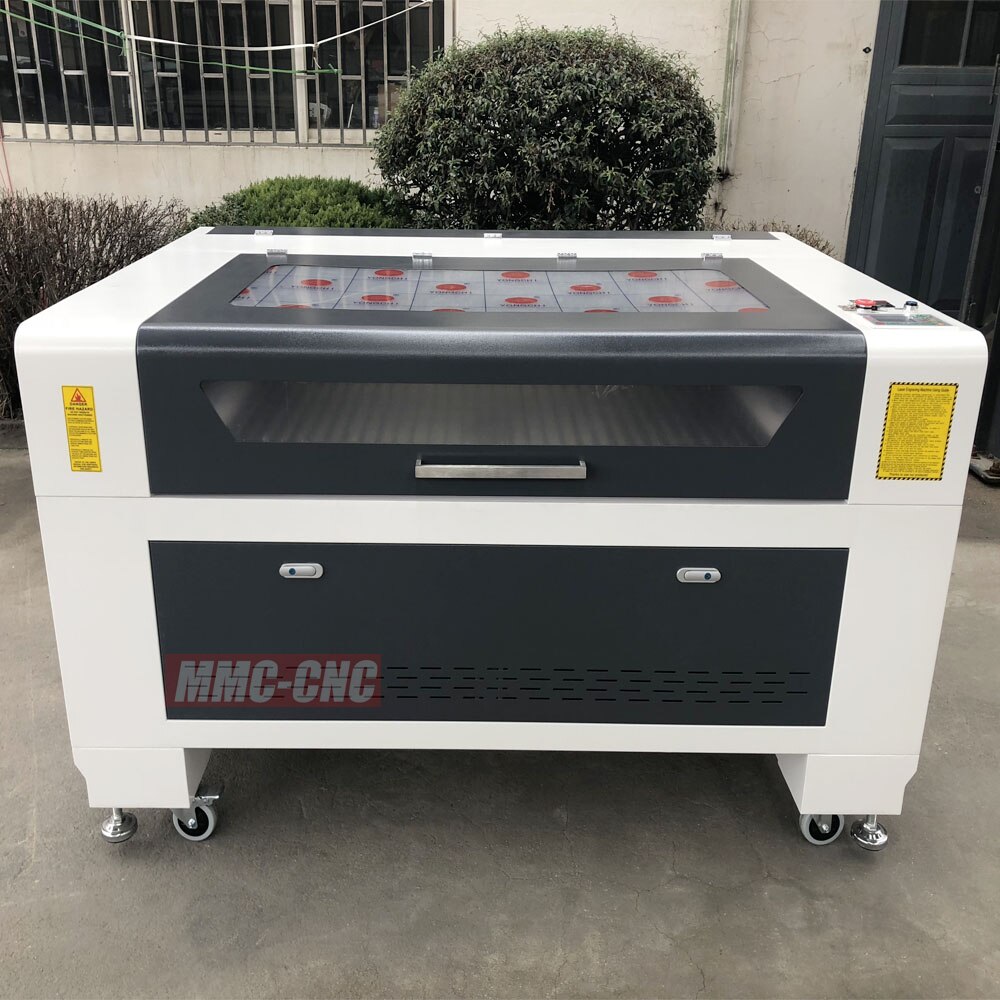

China 1390 Laser Cutting Machine With Water Chiller,CO2 Wood Laser Cutter 150w Laser Engraving Machine Module Transmission

Laser cutting machine Configurations(whatsapp:+8615335443323)

Parameter
Name	CO2 laser engraving cutting machines
Model	MMC1390
Working area	1300*900mm
Laser power	90w,100w,130w,150w
Laser type	CO2 laser tube,RECI brand,>10000 hrs service life
Cooling ways	Water cooling
Engraving speed	0-500mm/s
Cutting speed	0-400mm/s
Laser output control	0-100% controlled by software
Min engraving size	English letters,1*1mm
Scanning resolution	4000DPI
Locating accuracy	≤0.01mm
Controlling software	DSP controlling system,RDWORKS V8
Format supported	DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc
Software environment	Windows xp/7/8/10
Compatible software	Coreldraw,Autocad
Color separation output	Yes
Slope engraving	Yes
Driving system	High precision stepper motor with belt
Auxiliary accessories	Exhaust fan,fume tubes,air pump
Working table	Blades table or Honey comb
Applicable materials	Acrylic,wood,plywood,MDF,glass,stone,plastic,rubber ,leather
Working environment Temperature	0-45℃,Humidity5-95%(no condensate water.)
Power supply	110v/220v,50hz/60hz
Weight	4000kg
Dimension	180*130*110cm
