Description

Brand Name: IGOLDENCNC
Origin: CN(Origin)
Certification: CE
Condition: New
Model Number: laser marker
CNC or Not: CNC
F-theta lens: Wavelength brand from Singapore
Cooling way: Air cooling
optical maser: Raycus laser
Modulation: 20kHz~80kHz
Manual working table stroke: Movements itinerary 285 mm (desktop type)
Repositioning precision: ±0.005mm
customized: laser marker machine
Keywords: Fiber Laser Markng Machine

Product Description

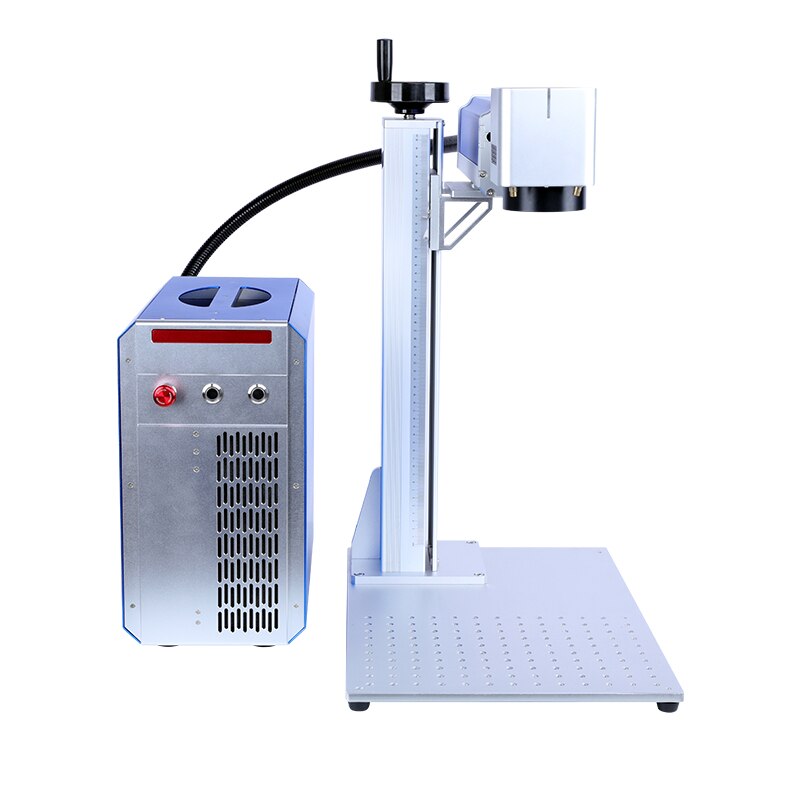

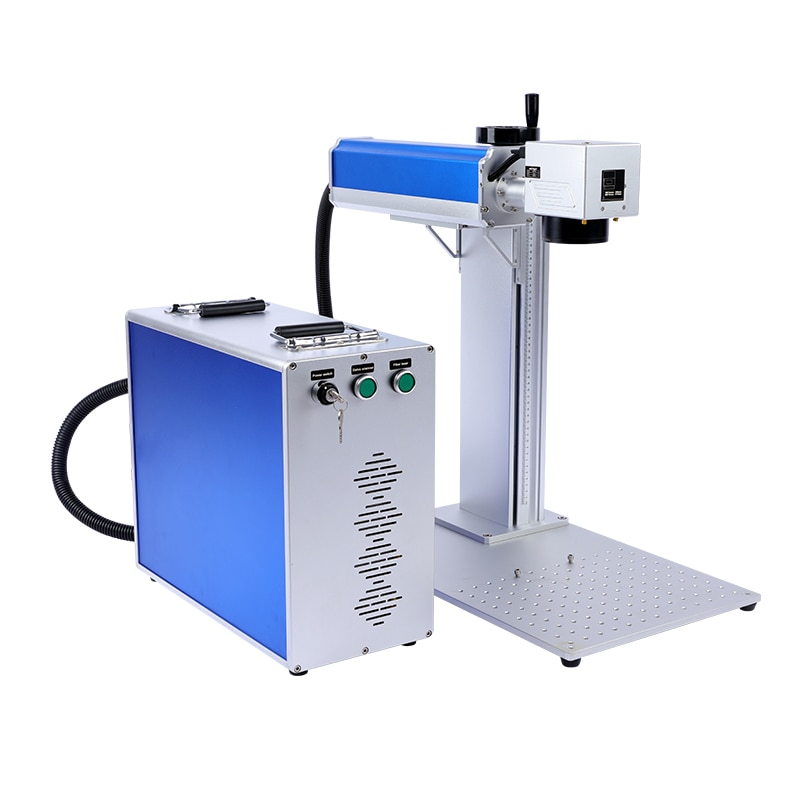

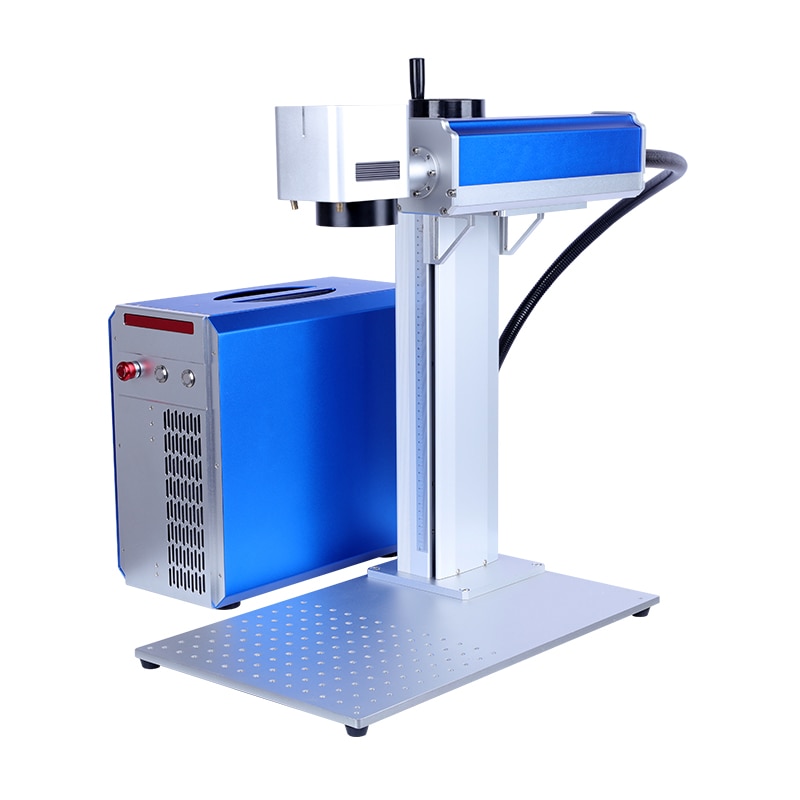

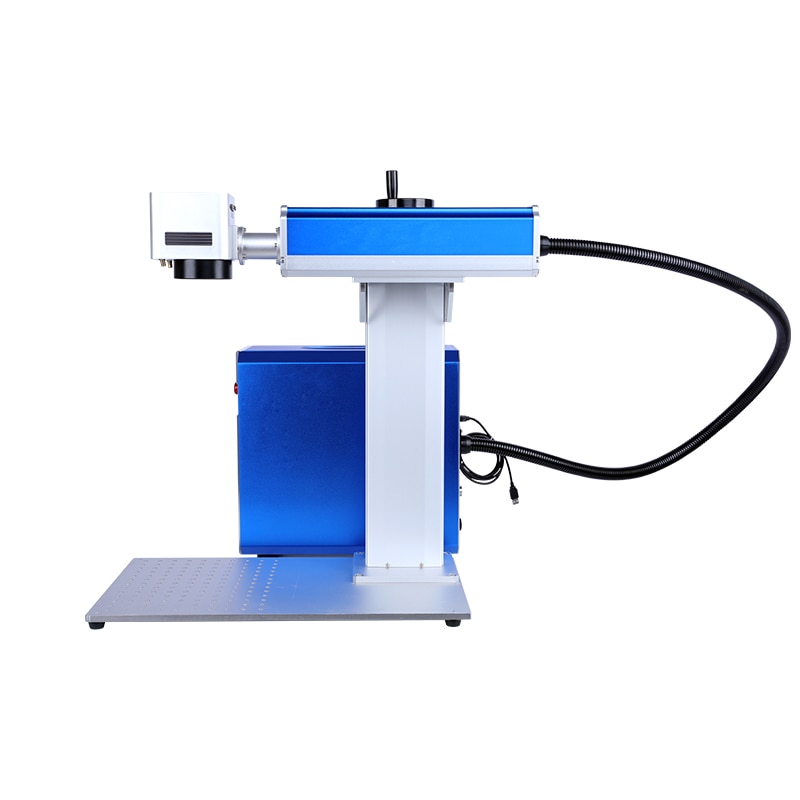

portable laser marking machine

Features:

1.Adopts the USA RF laser generator, high speed scanning vibrating lens and extending focusing system, high precision, high speed.

2.Red light positioning system,ensure accurate positioning,avoid waste.
3.Professional marking software owns strong graphics drawing and editing funcion,enable direct marking of color graphic or marking after color convert from RGB to grey scale.
4.It is popular with it's high precision, high speed, carving depth of random control. It can be applied to a variety of non-metal engraving. No consumables, Marking clear, not easy to wear and tear.

Technical Parameters:

NO	Model	20w 30w 50w 3d fiber laser marking machine
1	Laser power	20W/30W/50W
2	Working area	110110mm/200200mm/300*300mm
3	Laser Wavelength	1064nm
4	Response time	0.5m/s
5	Frequency of pulse	20-80KHz
6	Max marking depth	≤0.5mm
7	Marking speed	≤7000mm/s
8	Marking lines	1-10 lines(in the marking area)
9	Minimum line width	0.01mm
10	Minimum character	0.15mm
11	Repeatability accuracy	±0.005mm
12	Resolution ratio	0.1mm
13	Marking content	Text,pattern,date,bar code,etc
14	Operation system	Microsoft Windows XP or Windows 2000
15	Control software	JCZ
16	Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
17	Unit power	≤1.2KW
18	Operation temperature	5℃-35℃
19	Relative moisture	≤ 90%,no fog
20	Supply Voltage	220V/50Hz/10A
21	Focusing system	Autofous and electric Bella

Function:
1, marking content: any text or icon in English, Arabia digital, serial number, VIN number, two-dimensional code, logos, etc.;
2, character arrangement: horizontal, inclined, arc, arbitrary permutation;
3, any optional font;
4, the character size, spacing can be adjusted freely;
5, applicable materials: metal, hard alloy, ceramic, plastic etc.;
6, the bar code scanning input marking or labelling and print bar code;
7,The output data from the network 7, read
8, and other equipment to contact PLC function.

Sample & Application

CO2 marking machine	Non-metal,fabric,leather,wooden packing,paper packing,acry;ic pipe,PET,plastic,som of the paint layer,ceramics,glass
Fiber marking machine	Ordinary metal,rare metal and alloy,alloy powder,ceramic materials,after surface treatment of metal,oxides,plastics.polymers 3M label paper.
Portable marking machine	This device can print the minium character height is 0.8mm-18mm,suit for cable,auto parts,cosmetics,pharmaceutical and some industries which need micro character in small product.
