Description
- Brand Name: hilinksys
- Certification: CE
- Certification: FCC
- Origin: CN(Origin)
- Fiber Type: Single Mode
- Connector Type: LC/UPC
- Model Number: HL-SFP-BIDI-120km
- Product name: 1.25G BiDi SFP 120km
- Data transfer rate: 1.25G
- Wavelength: 1490nm/1550nm
- Fiber connector: LC
- Logo: Can be customized
- CE RoHS: Compliant
- DDM: Yes
- Warranty: 3 years
- Distance: 120km
- Components: DFB PIN
1.25G BiDi SFP 120KM 1490/1550nm DFB+PIN
Features:
Data rate: From 155Mbps, 622Mbps, 1.25Gb/s, 2.5Gb/s, and 4.25Gb/s
Distance up to 120km
Simplex LC optical acceptable
Type: Tx1490nm /Rx1550nm and Tx1550nm /Rx1490nm
-
Single LC receptacle optical interface compliant
-
Hot-pluggable SFP footprint
-
1490nm DFB laser transmitter
-
1550nm PIN Receiver
-
RoHS compliant and Lead Free
-
Up to 120km on 9/125um SMF
-
Metal enclosure for lower EMI
-
Single 3.3V power supply
-
Low power dissipation <700mW
-
Commercial operating temperature range: 0°C to 70°C
Applications:
-
Gigabit Ethernet
-
1.06 Gb/s Fibre Channel

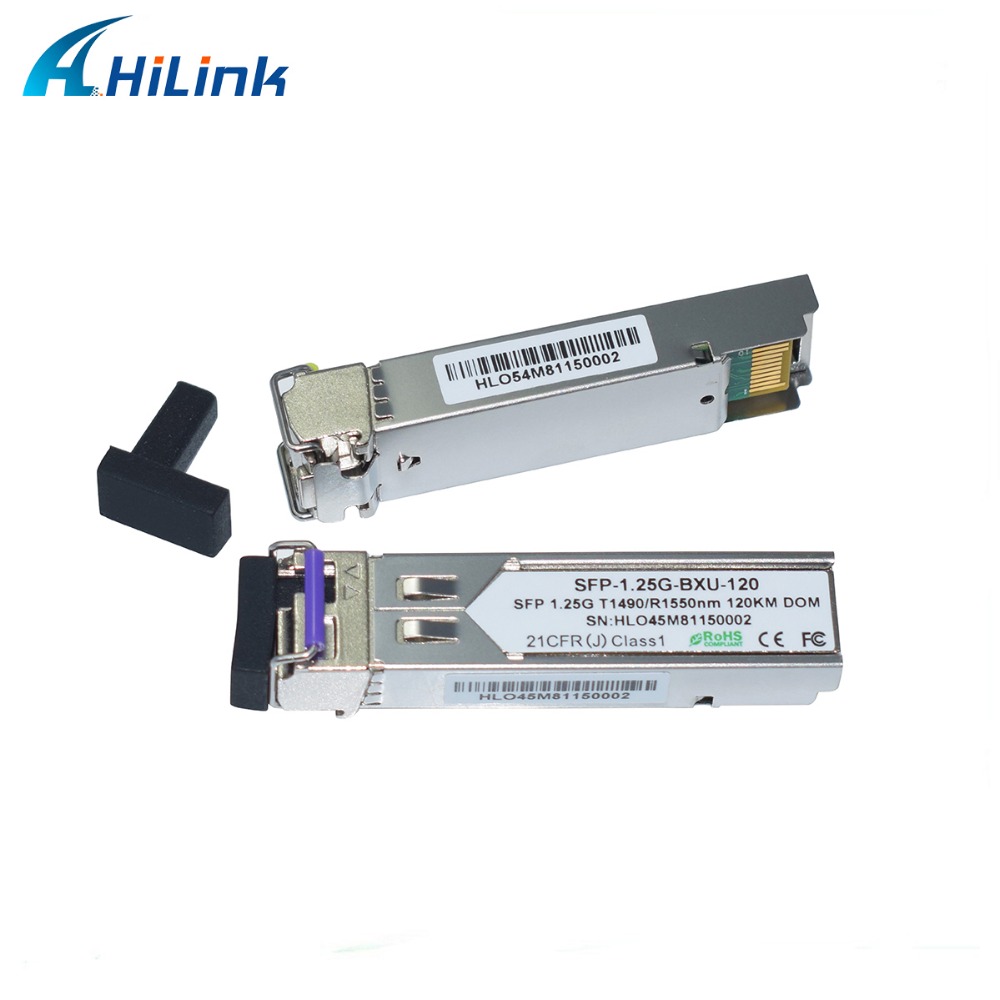

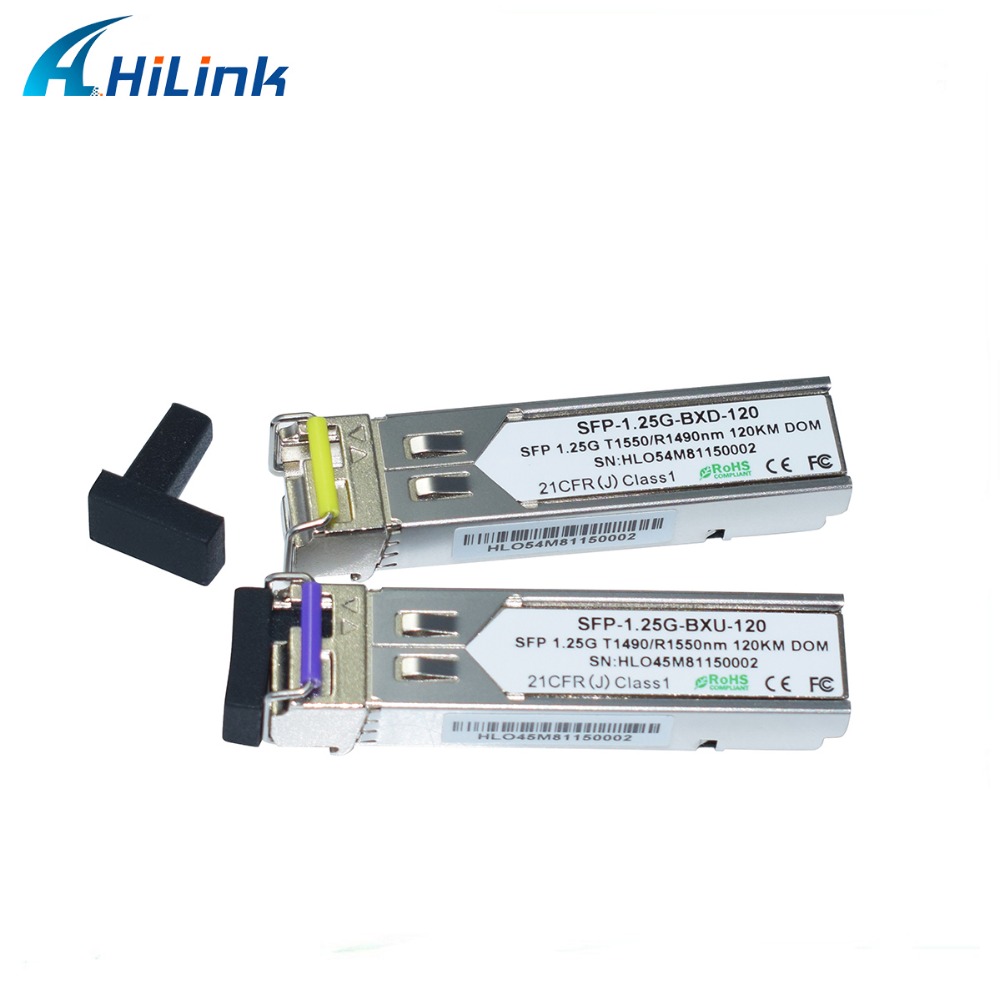

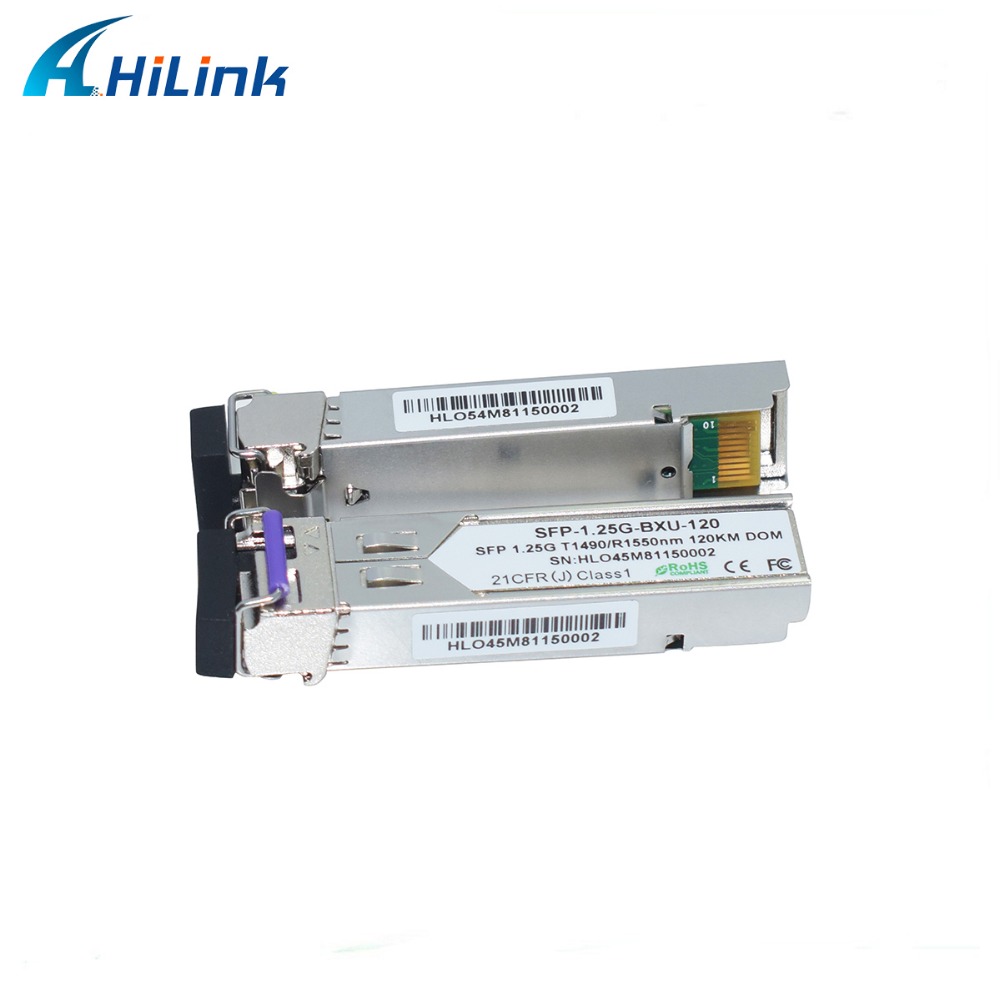

Real Photo Show

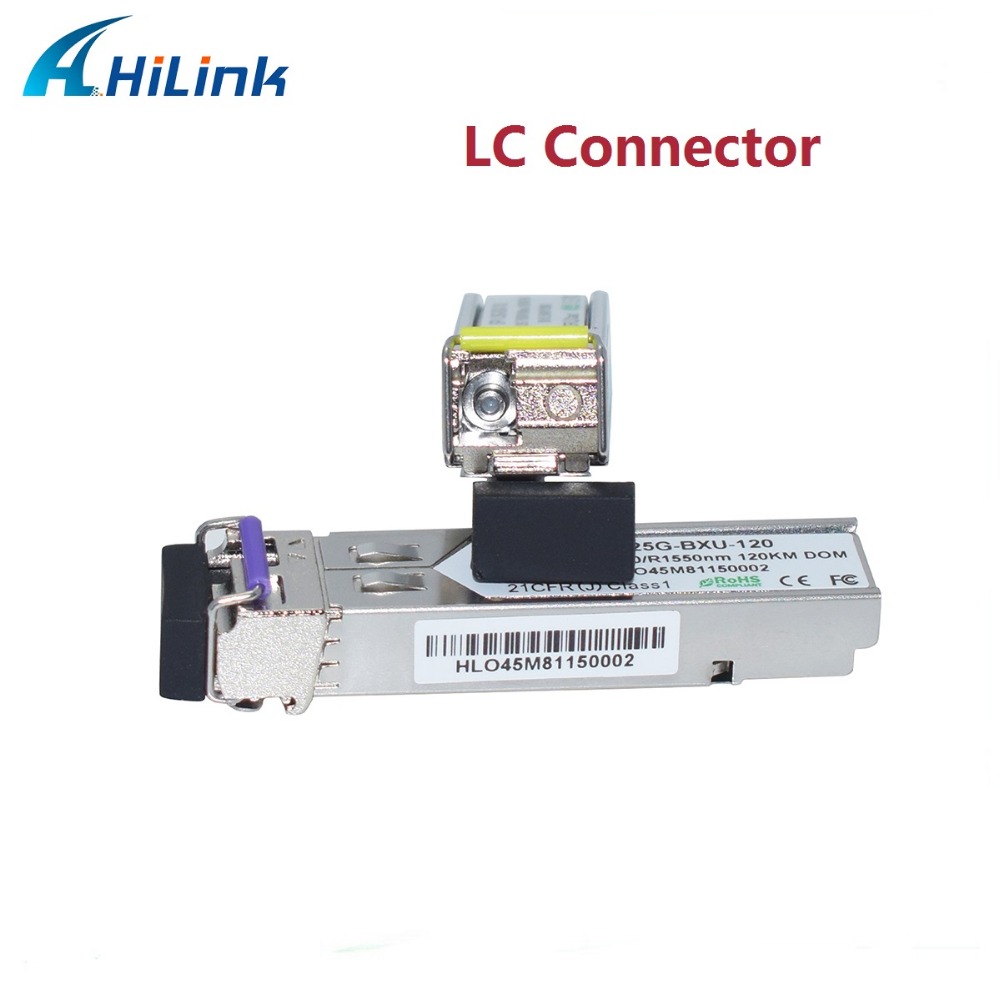

LC CONNECTOR :
OEM and ODM
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible withMikrotik, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel,etc.
