Product introduction

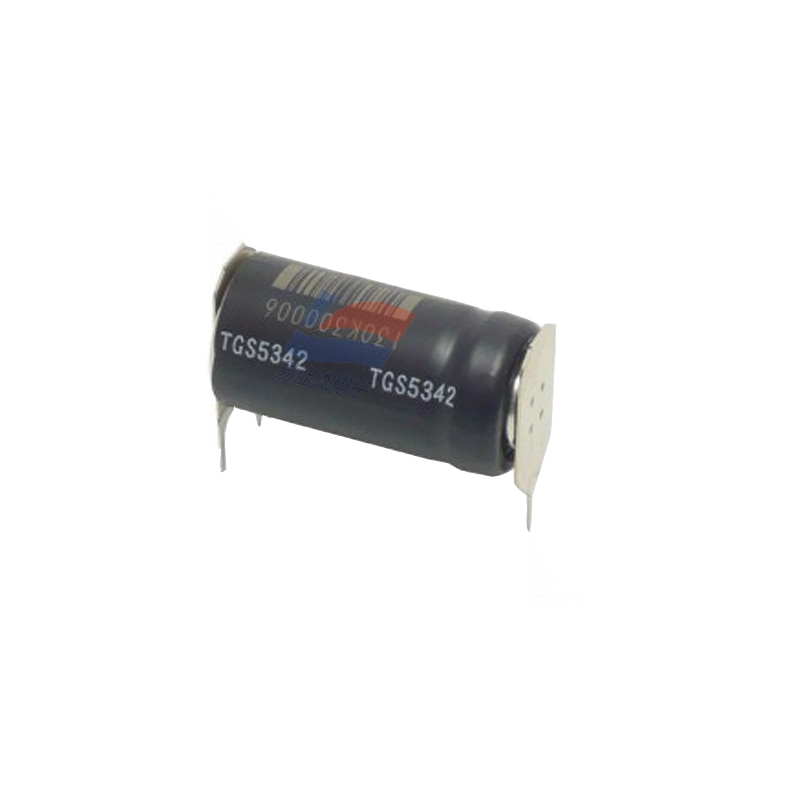

Description of CO gas sensor TGS5342-G03:
TGS5342 is a battery-operated electrochemical sensor developed by Figaro. Compared with the existing electrochemical sensors, it has the following advantages: the electrolyte is environmentally friendly;No risk of electrolyte leakage;It can detect up to 1% CARBON monoxide with wide operating temperature range (-5C ~ 55C).Very low sensitivity to interfering gases.This kind of sensor has the characteristics of long service life, good long-term stability and high precision, which is one of the few ideal sensors available for digital display.OEM customers will find that with each sensor’s barcode, each sensor’s data can be printed separately, allowing users to avoid expensive gas calibration procedures and also allowing tracking of individual sensors.The TGS5342 is only 60% as long as the TGS5042.
2. Carbon monoxide sensor (CO gas sensor)TGS5342-G03 features:
Battery-Operated
Small volume
High selectivity/repeatability to CO
It has a high output characteristic for carbon monoxide
Easy to calibrate
Long service life
Obtain – certification
Meet the requirements of -2034, EN50291 and RoHS
3. Application of CO gas sensor TGS5342-G03:
Residential and commercial carbon monoxide detectors
Industrial carbon monoxide monitoring
Risk control system for indoor parking lots
Fire alarm
4. Carbon monoxide sensor (CO gas sensor)TGS5342-G03 specification:
The project specifications
Model TGS5342
Object gas carbon monoxide
Typical detection range is 0 ~ 10000ppm
Output current in carbon monoxide is 0.7~1.4nA/ PPM
Baseline excursion (*1) & LT;Plus or minus 10 PPM
Serving temperature: 0C ~ +50C (commonly used) -5C ~ +55C (occasionally)
Humidity range 5 ~ 99%RH (no condensation)
Response time (T90) within 60 seconds
Serving conditions (*2, *3) -5C ~ +55C
The net weight about 7 g
60 C and 40±10%RH
