Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL

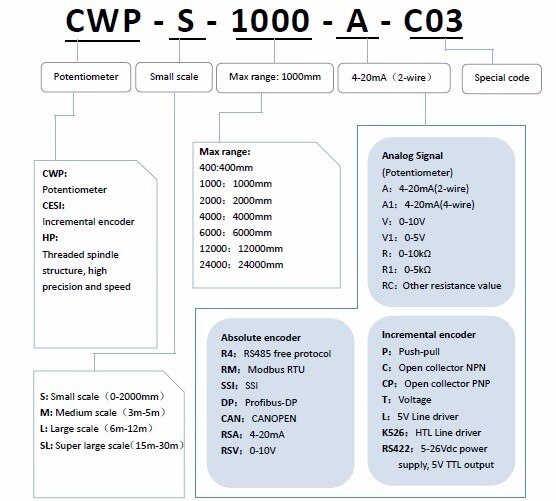

- Model Number: CWP-S2300V1
- Place of Origin: Shanghai, China
- Brand Name: CALT
- Usage: Position Sensor
- Theory: Resistance Sensor
- Output: Analog SENSOR
- sensing method: potentiometer
- stroke range: 2300mm
- voltage supply: 12V DC
- speed max: 1000mm/s
- cable diameter: 0.6mm
- operating temp: -40-85 celsius
- protection class: IP54
- Application: Wide Range
- output form: 0-5v
- Warranty: 12 Months

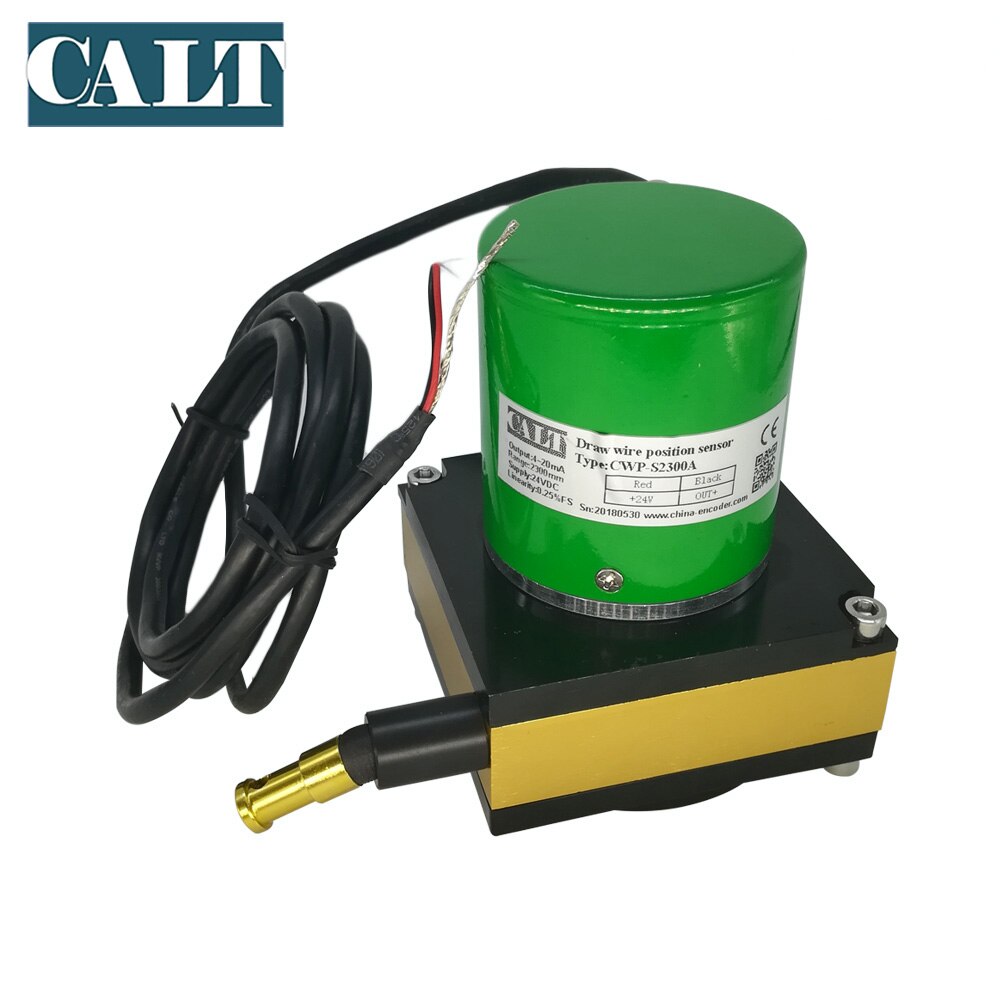

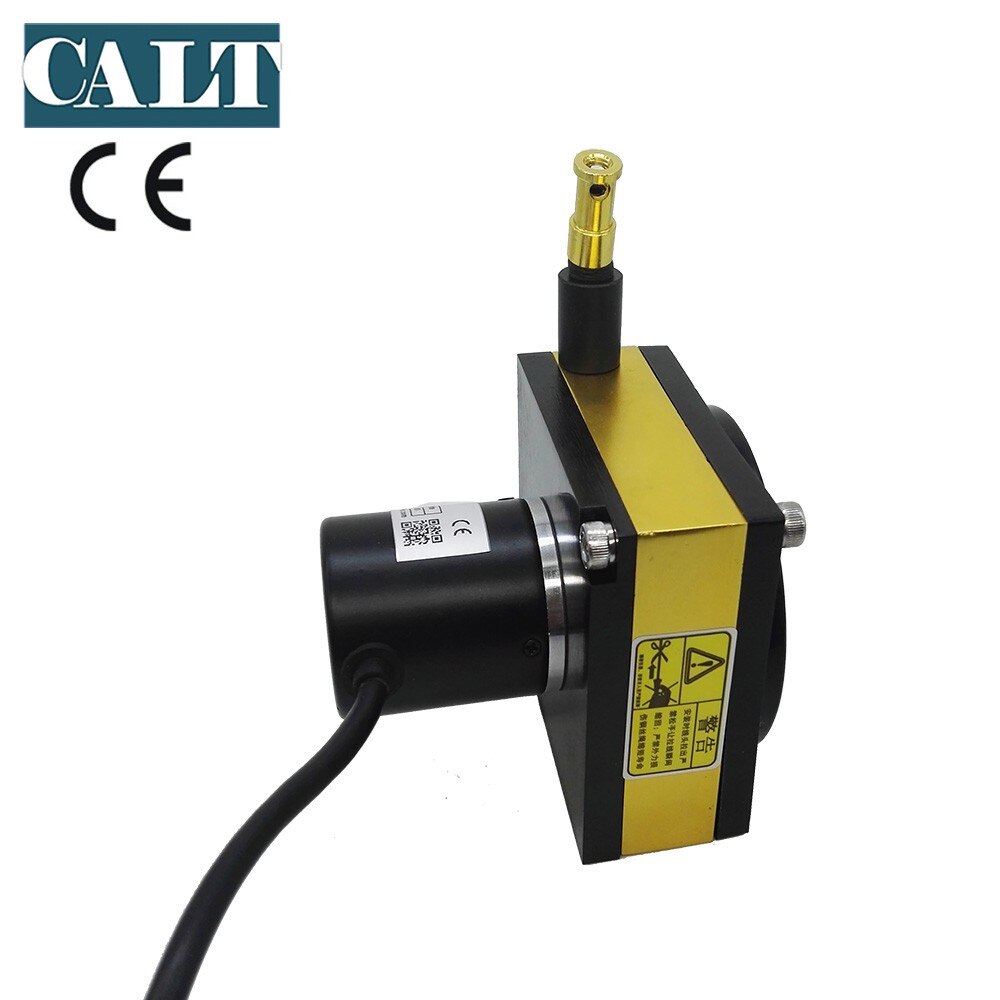

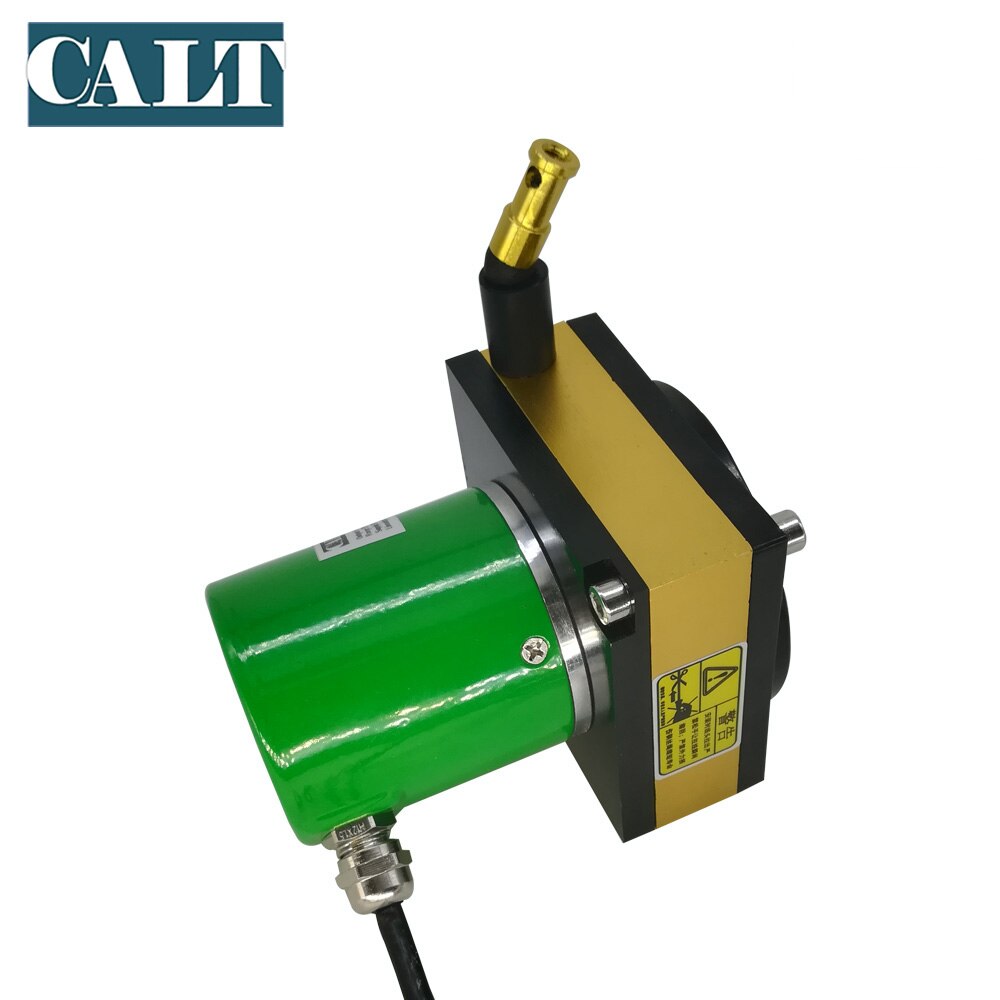

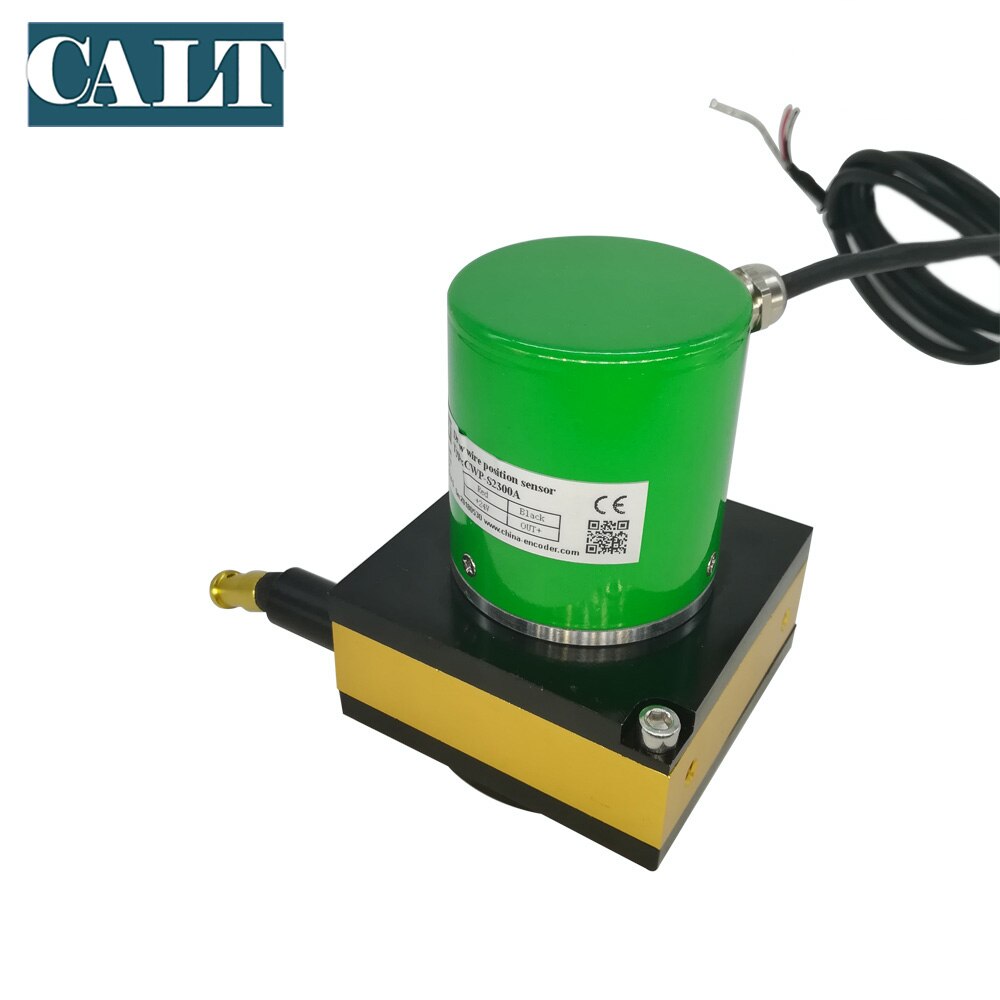

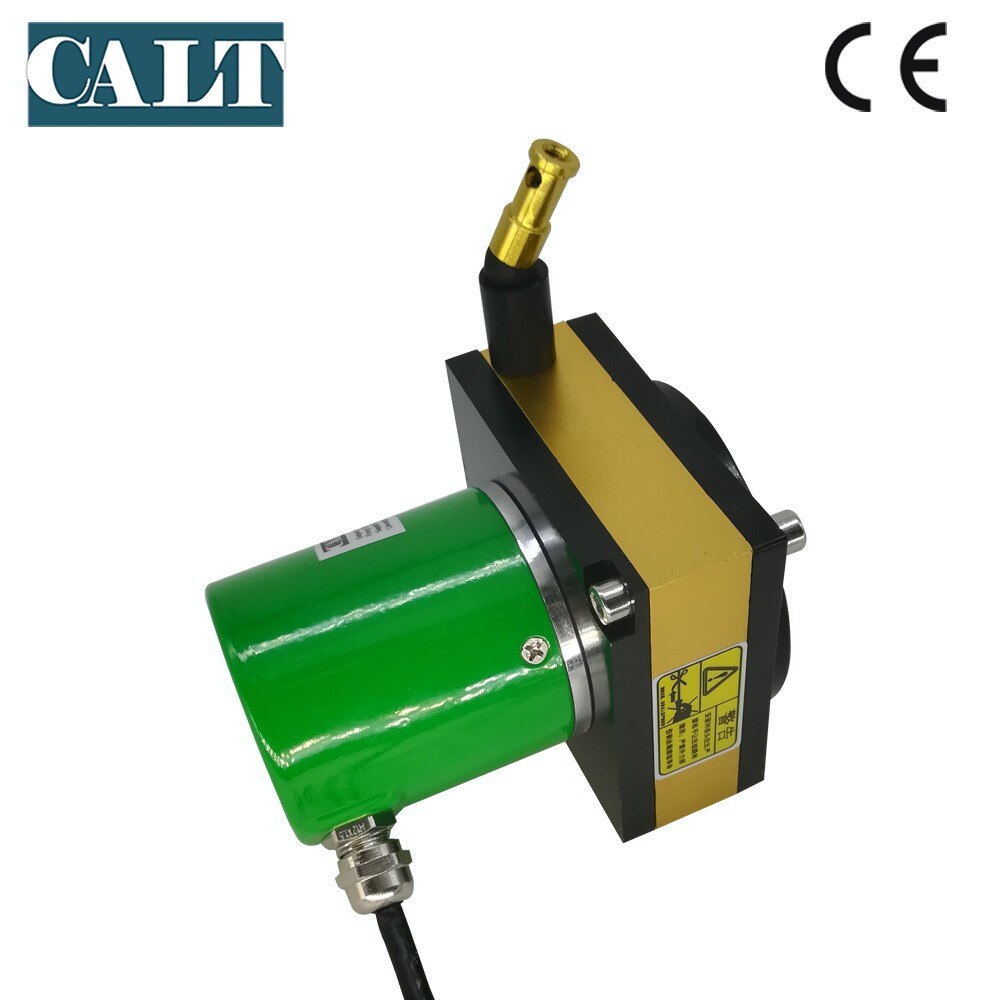

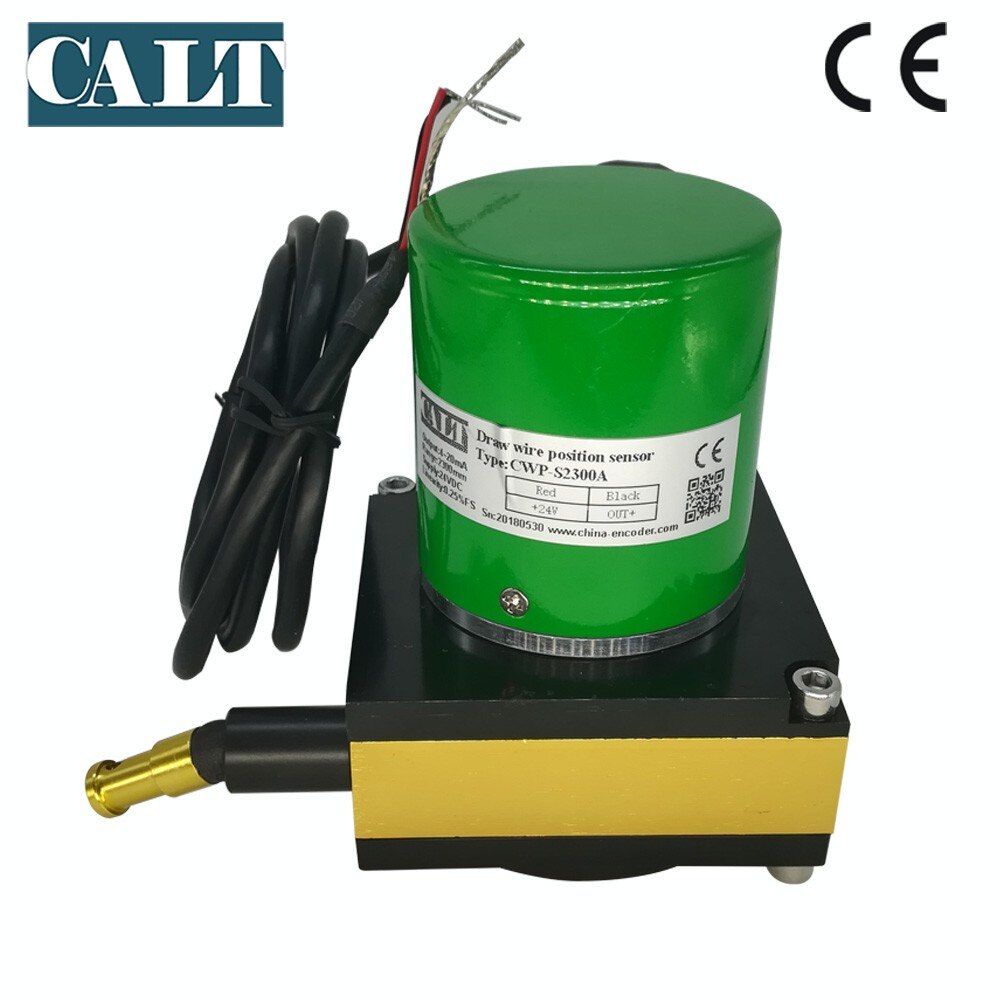

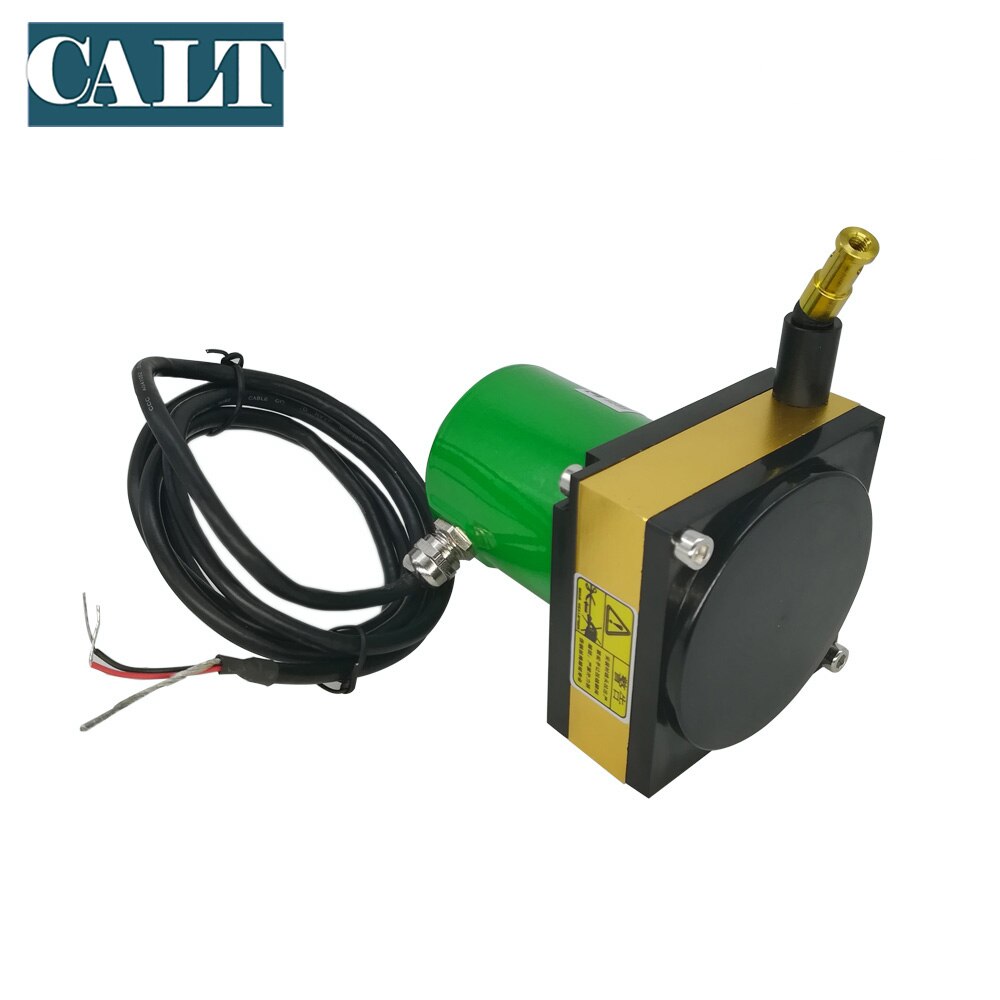

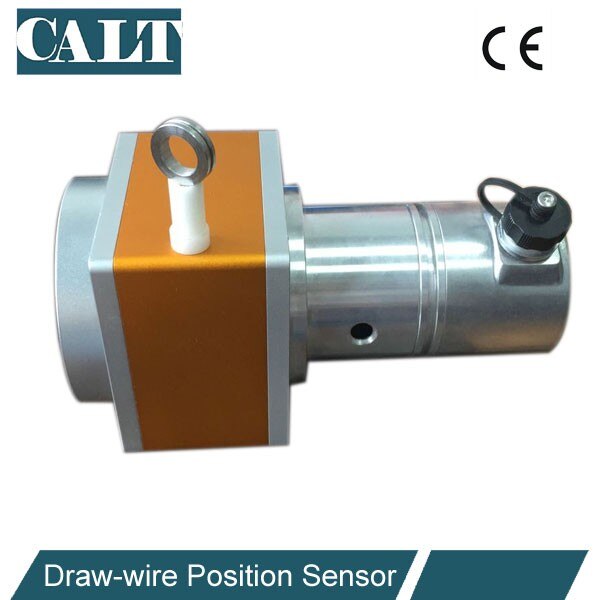

CALT Position Potentiometer Sensor Stainless Steel Stoke Displacement Sensor 0-5V output

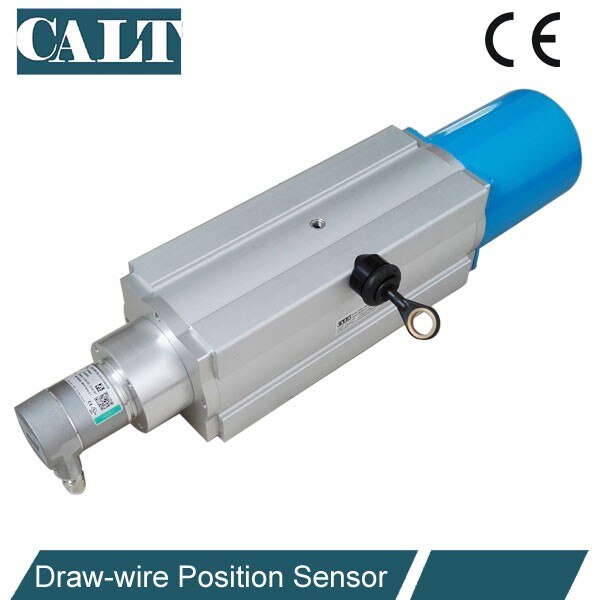

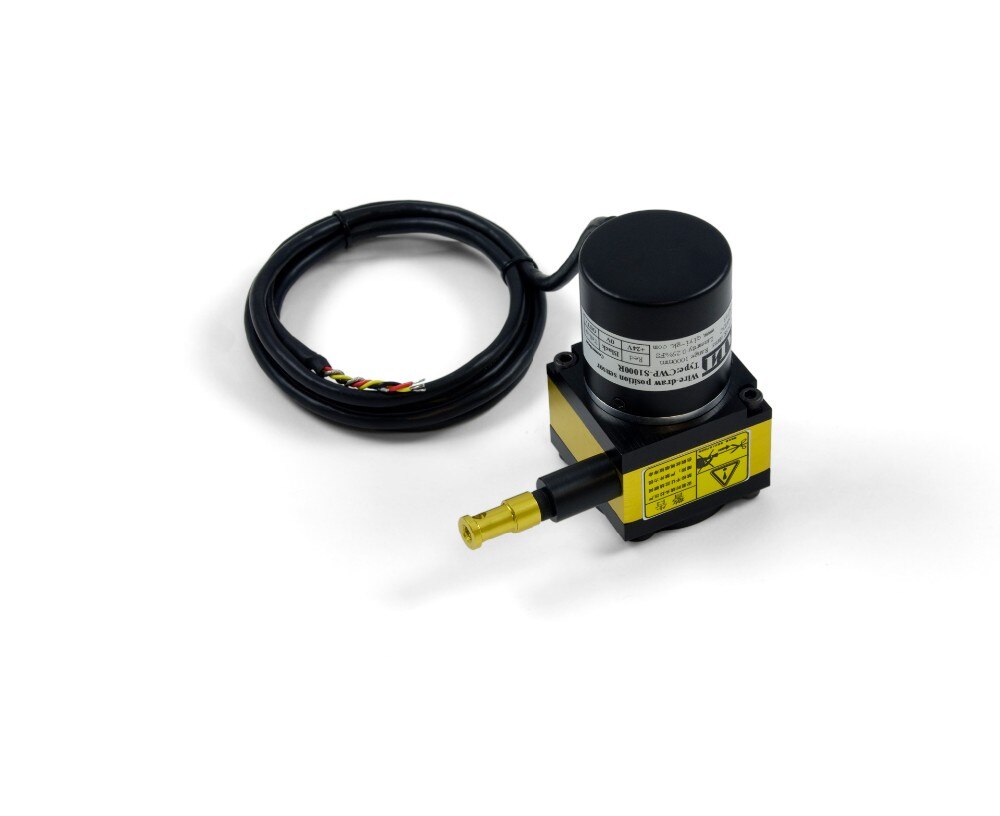

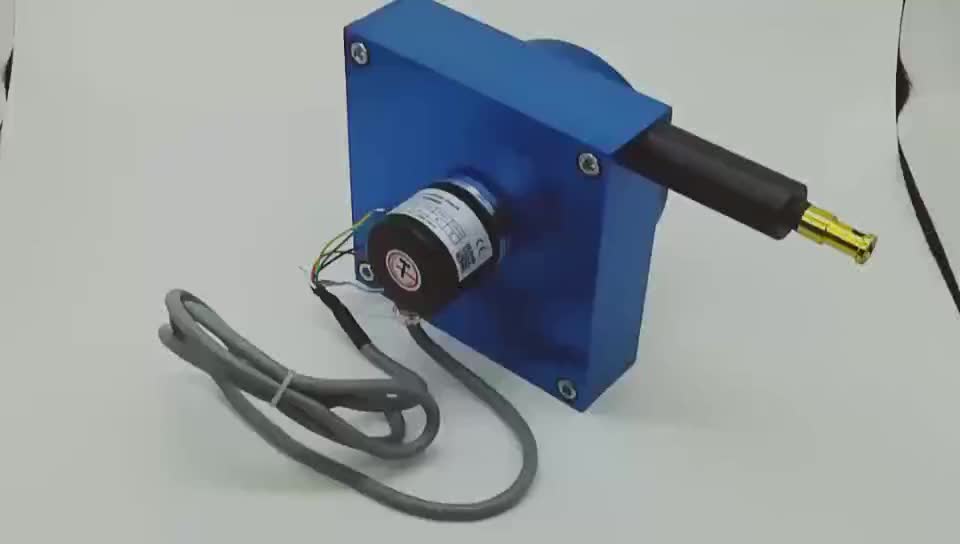

Draw-wire linear potentiometer position sensor. Draw-wire Position Sensor is a highly efficient linear displacement measuring device, with ingenious design principle, through scientific combination of the special steel cable and angle measurement components (potentiometer or encoder), it make linear displacement motion of an object convert into electric signal that measurable and linearly proportional, thereby achieve accurate displacement measurement data output.
Features
* Compact size, rugged construction, easy to install
* Economic cost, and cost savings for customers
* Various signals output optional: 4 ~ 20mA, 0 ~ 5V, 0 ~~ 10V and 0-10K ohm
* The cylinders, testing machines and other industry has achieved large-scale applications, reliability

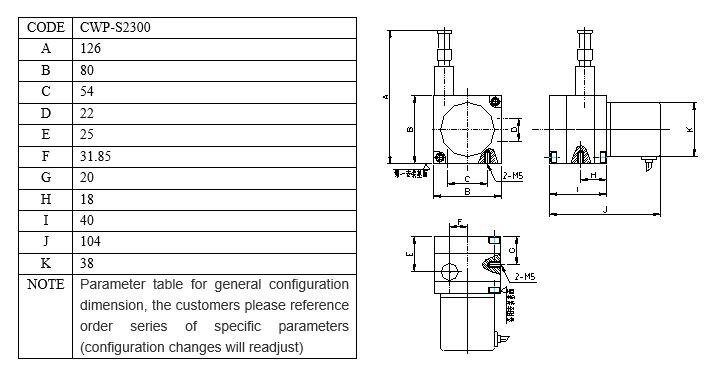

Dimensions:

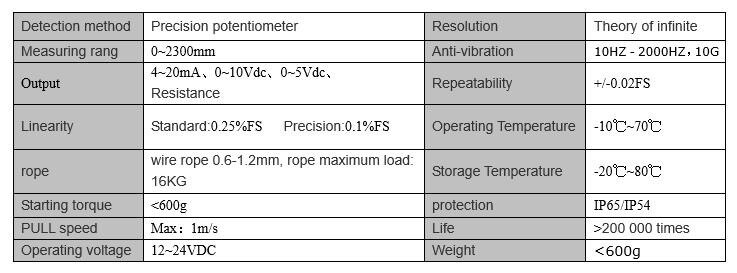

Specifications:
Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.

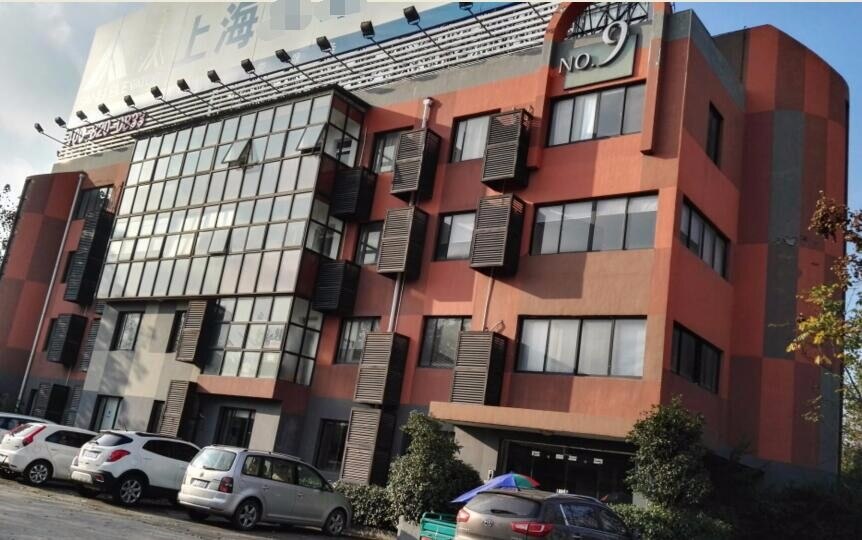

Factory Building
9# 302, No. 4361 Hutai Road, Baoshan District, Shanghai

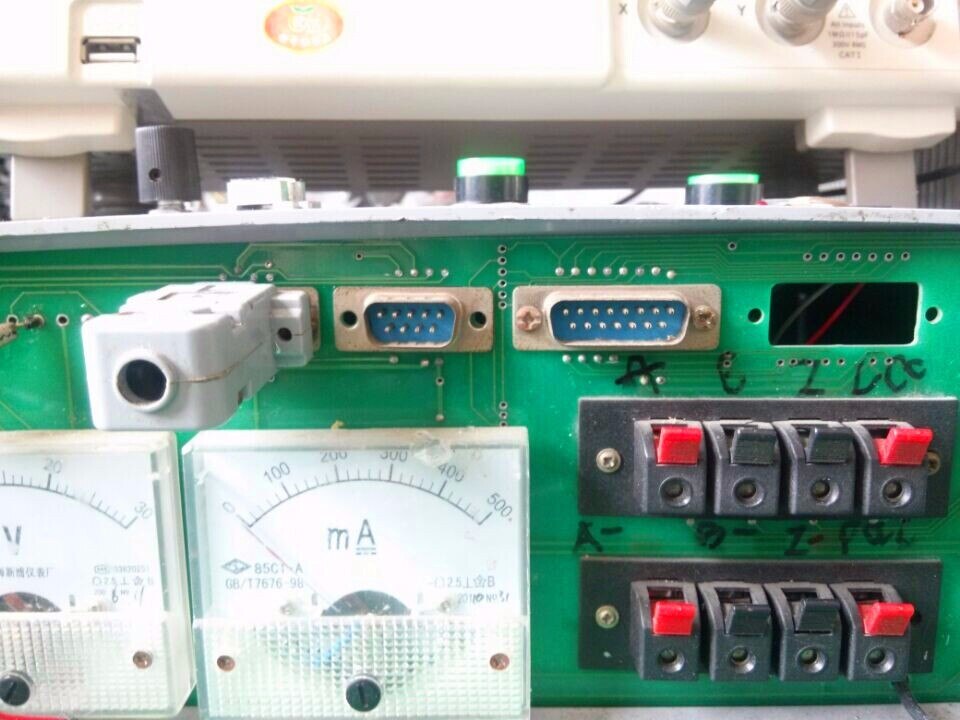

Testing Machine

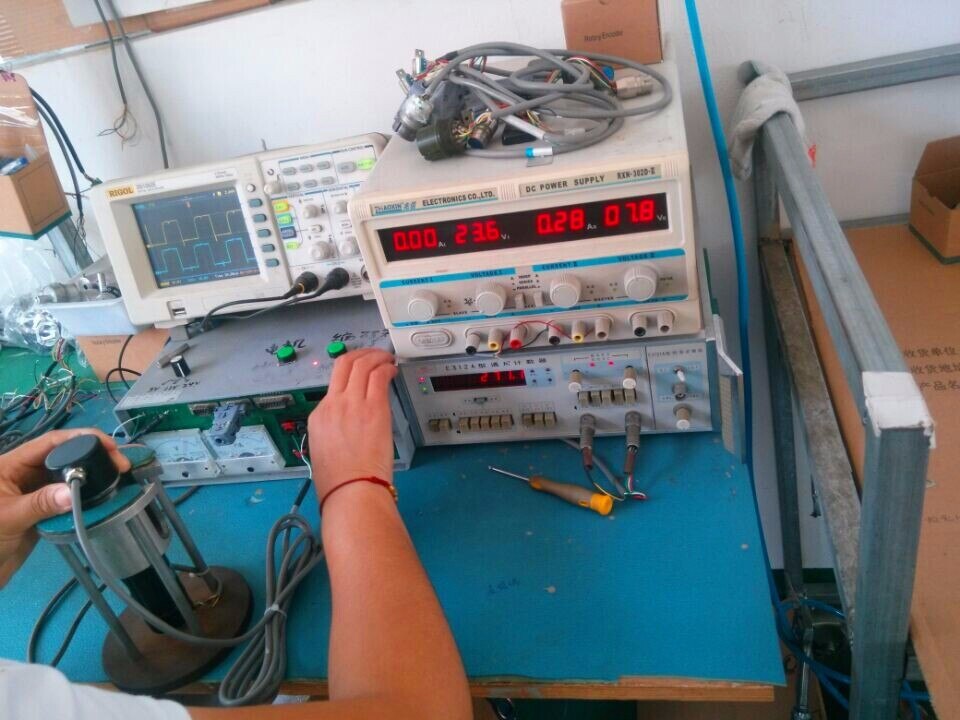

Oscilloscope
Testing Machine

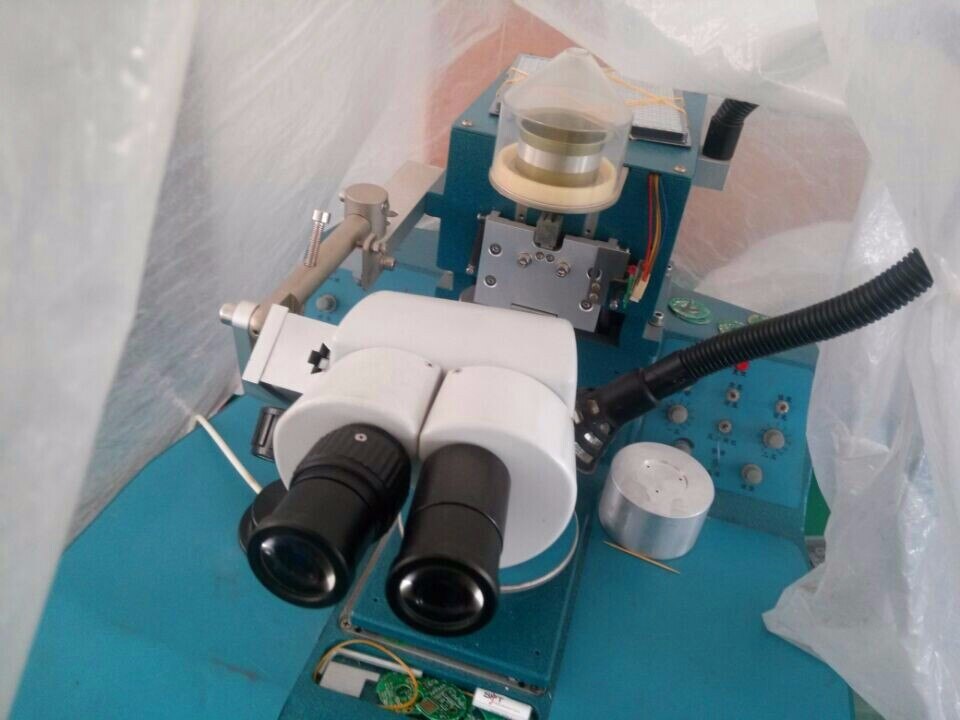

Industrial microscope
Testing Machine
Plug and dial

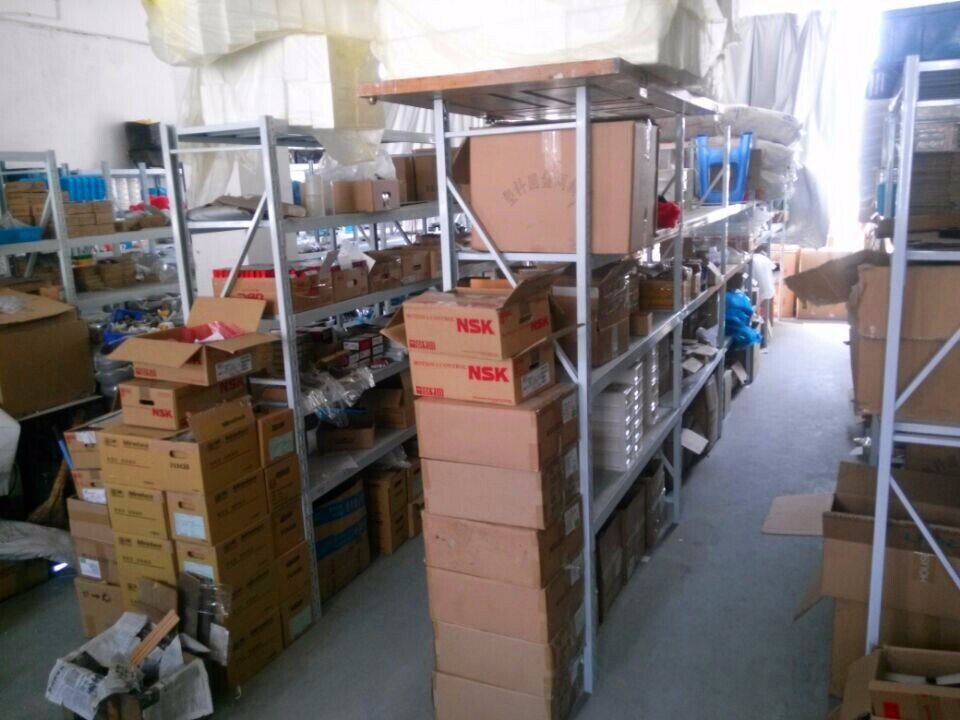

warehouse: common type rotary encoders are all in stock can send our in 2-3 days.

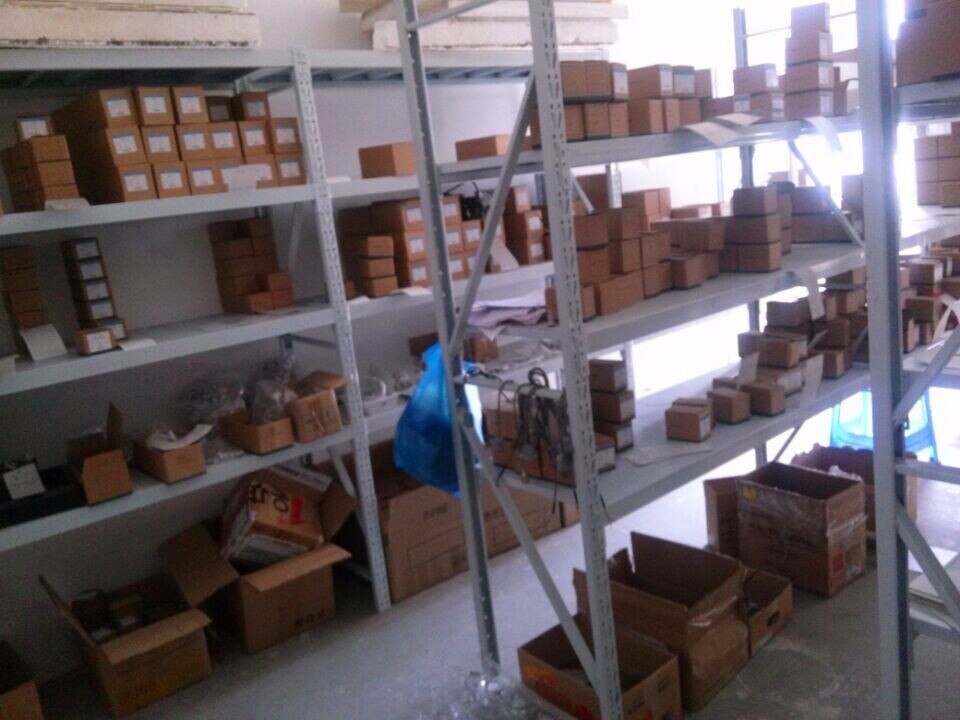

warehouse

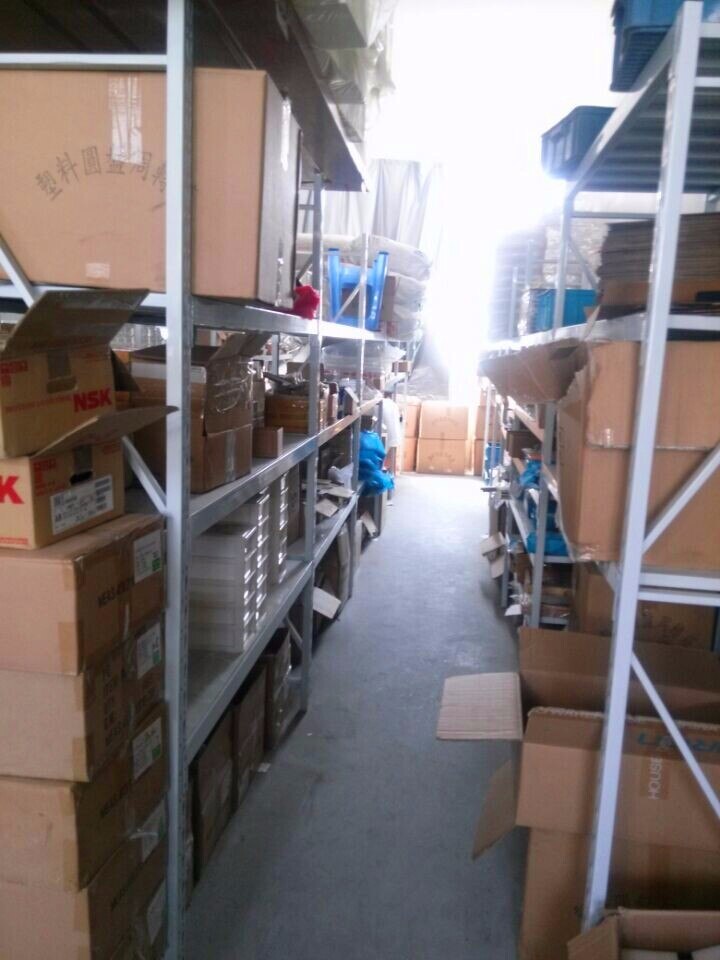

warehouse

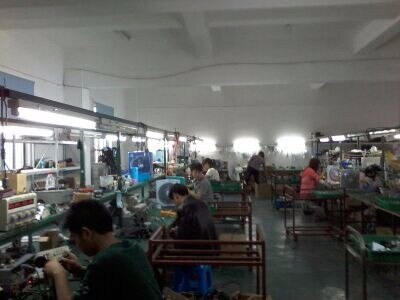

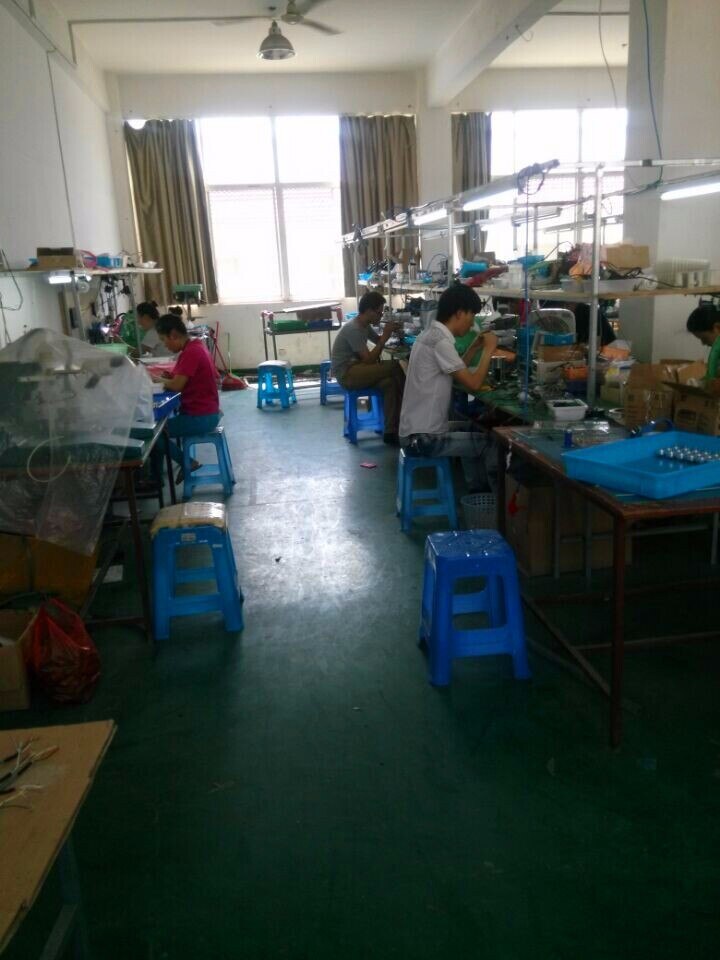

Workshop1
Workshop2

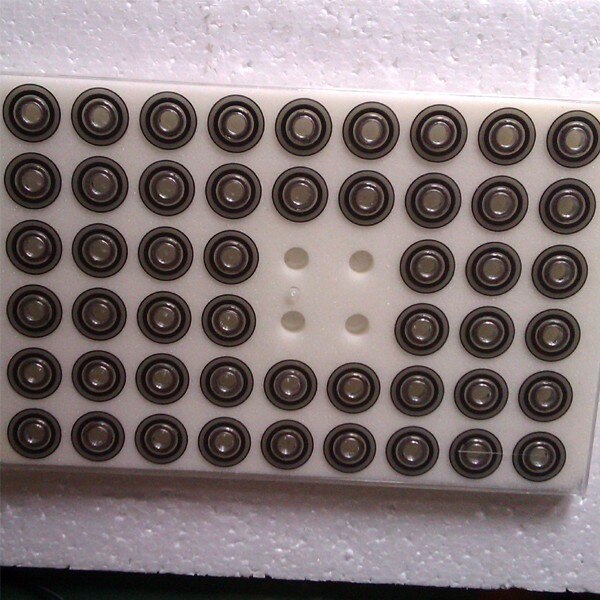

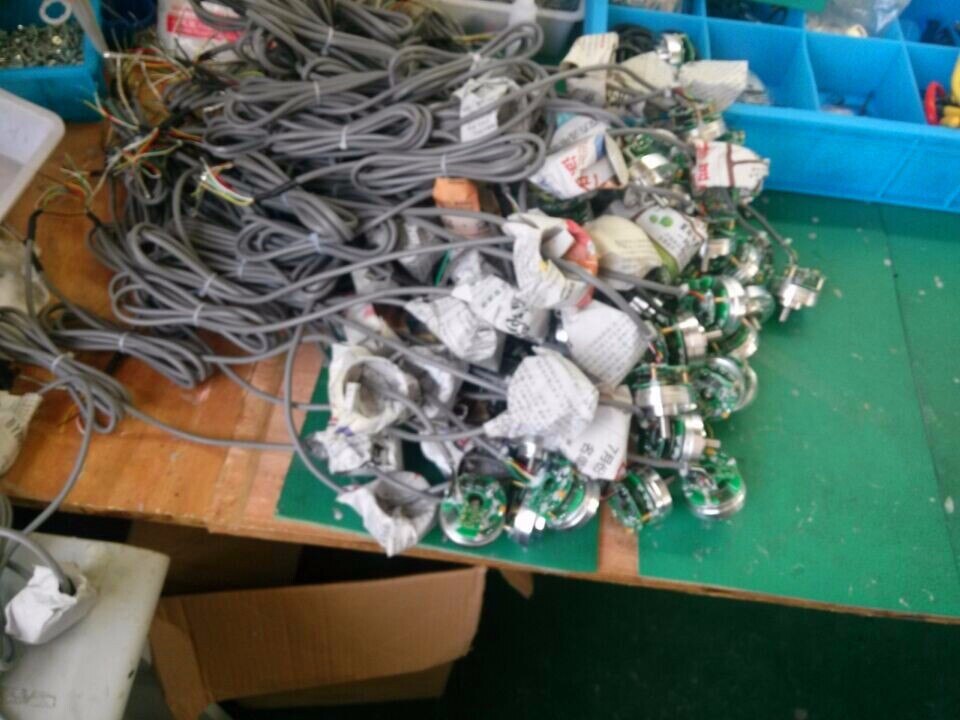

Semifinished product
Packing Details : carton packed for each encoder or items, and then pack with thick carton for shipping.
Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.
1. Rotary encoder pack box 2 layers.
2. All packed good
3. Encoder module disc in plastic box

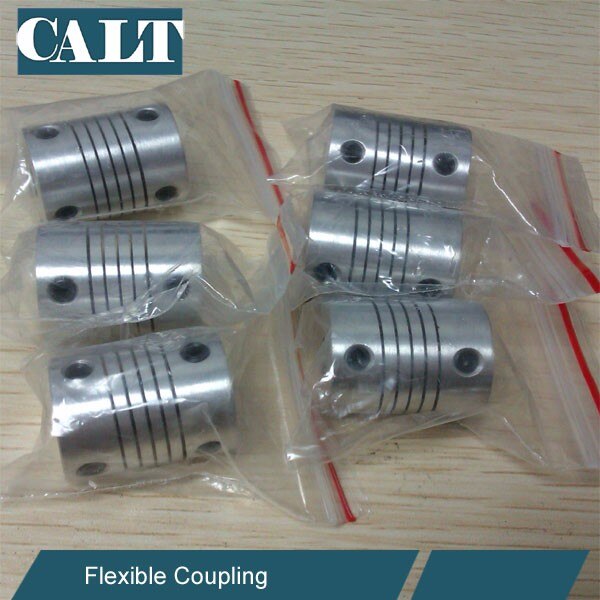

4. Ziplock packed for flexible coupling

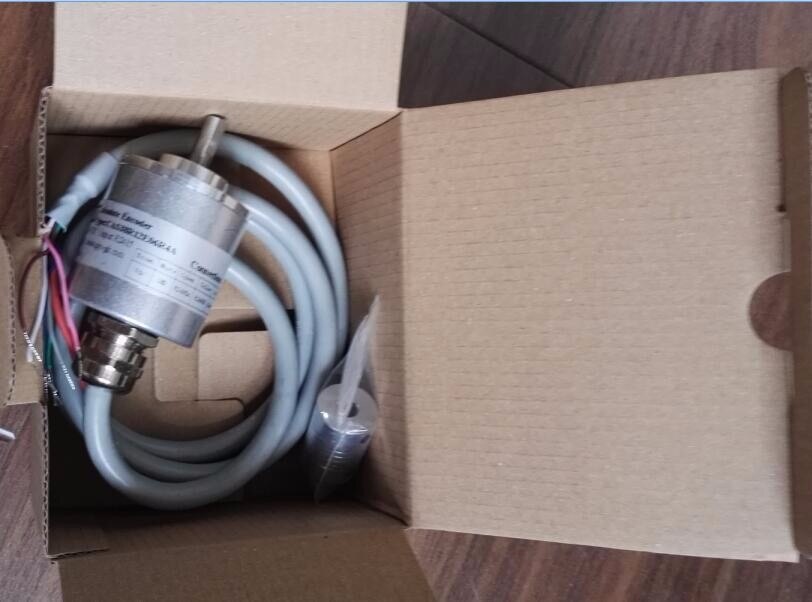

5. Rotary encoder packed well
6. Packed with good conditions with shipping mark.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: We accept T/T, Paypal, Western union or money gramm.
Q: What’s your warranty ?
A: 12 months. If the items you purchased from our company are not with perfect quality or can’t work normally, you can ship back for replacement or refund.
Q: What’s your shipment method?
A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
