Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Model Number: BSL-MA80
- Place of Origin: Shanghai, China
- Brand Name: CALT
- Usage: Position Sensor
- Theory: Optical sensor
- Output: Analog SENSOR
- Measuring Range: 0-2000mm
- Pull Speed: 10m/s
- Rope diameter: 1.2mm
- Force of retractile spring: Theory of infinite
- Weight: 6 N … 14 N
- IP code of casing: IP65
- Application: Industrial Automation
#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{orphans:2;text-align:start;text-indent:0;widows:2;text-decoration-style:initial;text-decoration-color:initial;float:none;display:inline !important}#detail_decorate_root .magic-4{font-size:18px}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{color:#333;font-family:”Helvetica Neue”,Helvetica,Arial,sans-serif,宋体;font-size:14px;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-weight:400;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;display:inline !important;float:none}#detail_decorate_root .magic-9{width:750px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-12{width:750px;border-collapse:collapse}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:295px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:380px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{overflow:hidden;width:750px;height:480.8035714285714px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:750px;height:480.8035714285714px}#detail_decorate_root .magic-17{overflow:hidden;width:498px;height:498px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:4px}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:498px;height:498px}#detail_decorate_root .magic-19{width:248px}#detail_decorate_root .magic-20{overflow:hidden;width:248px;height:247px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:248px;height:248px}#detail_decorate_root .magic-22{overflow:hidden;width:248px;height:247px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-24{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-25{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-26{width:244.656px;height:234px;overflow:hidden}#detail_decorate_root .magic-27{position:relative;left:0;top:0;width:244.656px;height:244.656px}#detail_decorate_root .magic-28{margin:0;padding:0}#detail_decorate_root .magic-29{position:relative;left:0;top:0;width:244.656px;height:251.852px}#detail_decorate_root .magic-30{position:relative;left:0;top:0;width:244.656px;height:240.64px}#detail_decorate_root .magic-31{overflow:hidden;width:247.33333333333334px;height:202.1886512763499px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:269px;height:202px}#detail_decorate_root .magic-33{overflow:hidden;width:247.33333333333334px;height:202.1886512763499px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:-21.22980838401674px;width:269px;height:202px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:320px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:-256px;margin-left:0;width:750px;height:1000px}#detail_decorate_root .magic-37{position:relative;left:0;top:0;width:244.656px;height:251.155px}#detail_decorate_root .magic-38{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-39{position:relative;left:0;top:0;width:244.656px;height:243.53px}#detail_decorate_root .magic-40{position:relative;left:0;top:-117px;width:244.656px;height:435.732px}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:422.656px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:422.656px}#detail_decorate_root .magic-43{padding:0;line-height:20px;font-weight:bold;color:#333;margin:0}
Product Description

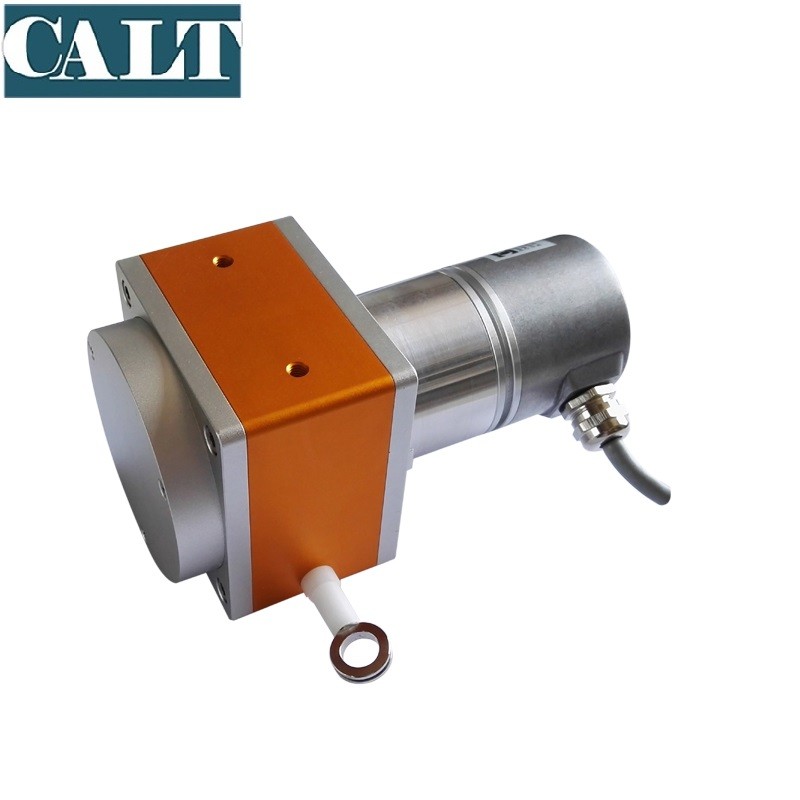

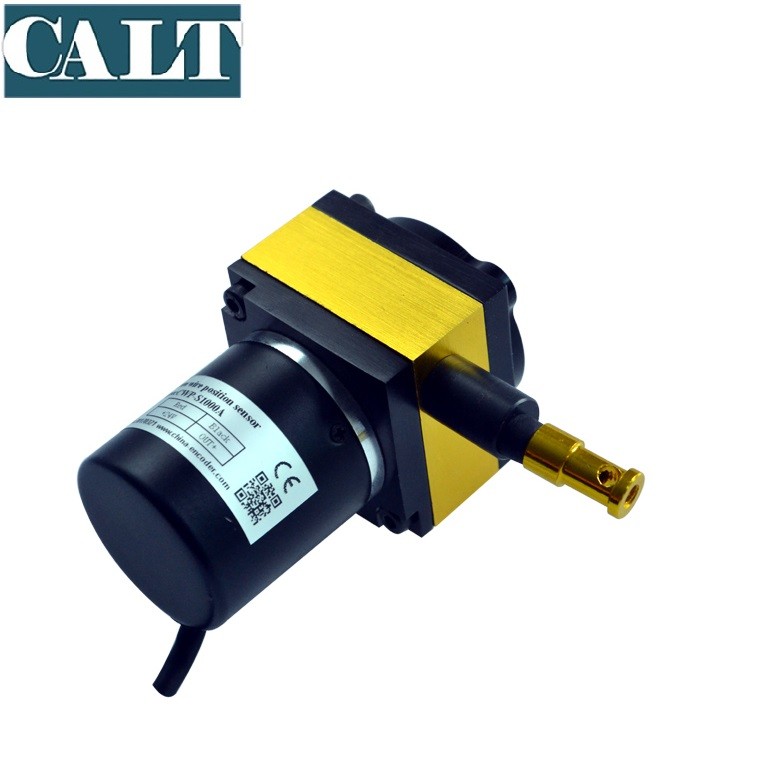

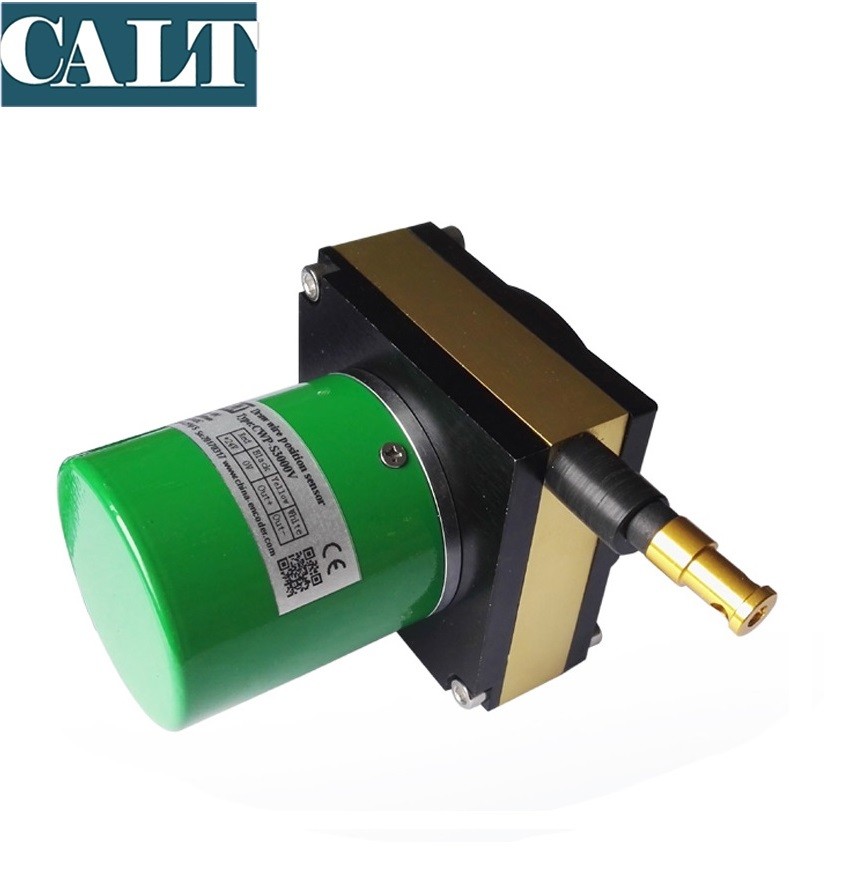

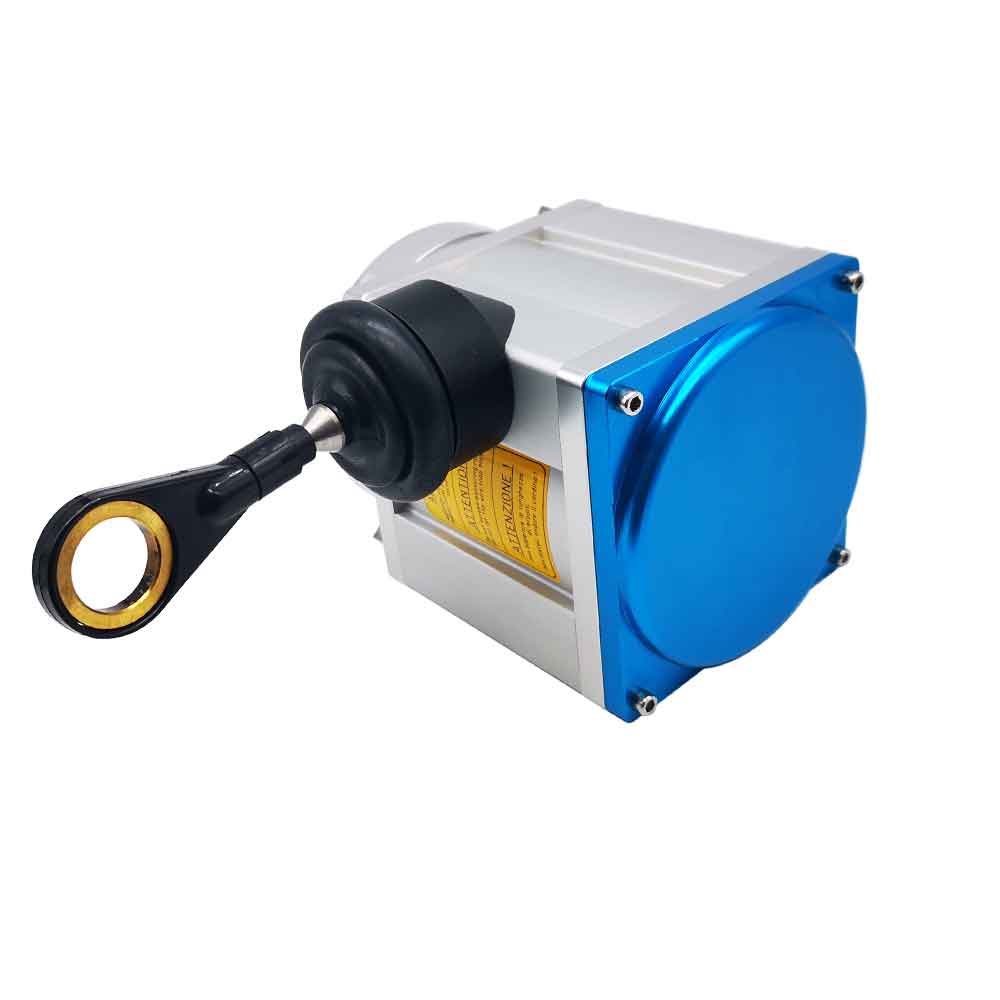

CALT BSL-MA80 fast speed wire rope pull sensor encoder 2000mm measure range transmitter
Draw-wire linear potentiometer position sensor. Draw-wire Position Sensor is a highly efficient linear displacement measuring device, with ingenious design principle, through scientific combination of the special steel cable and angle measurement components (potentiometer or encoder), it make linear displacement motion of an object convert into electric signal that measurable and linearly proportional, thereby achieve accurate displacement measurement data output.
|
Product
|
Draw-wire mechanism
|
|
Profile
|

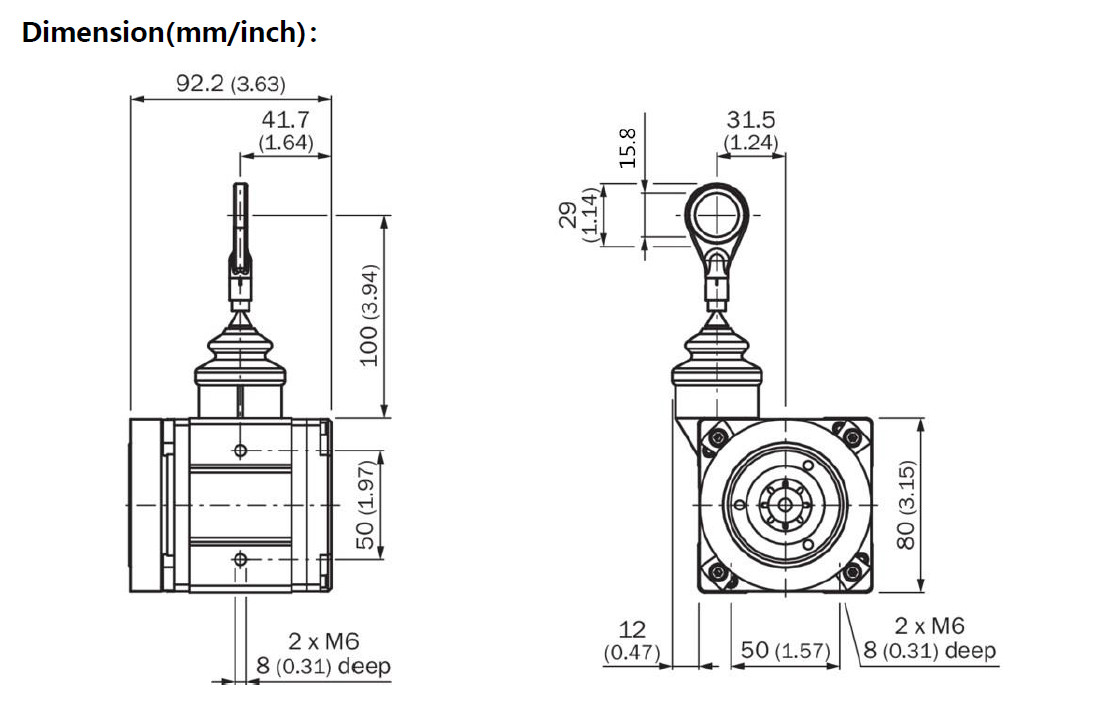

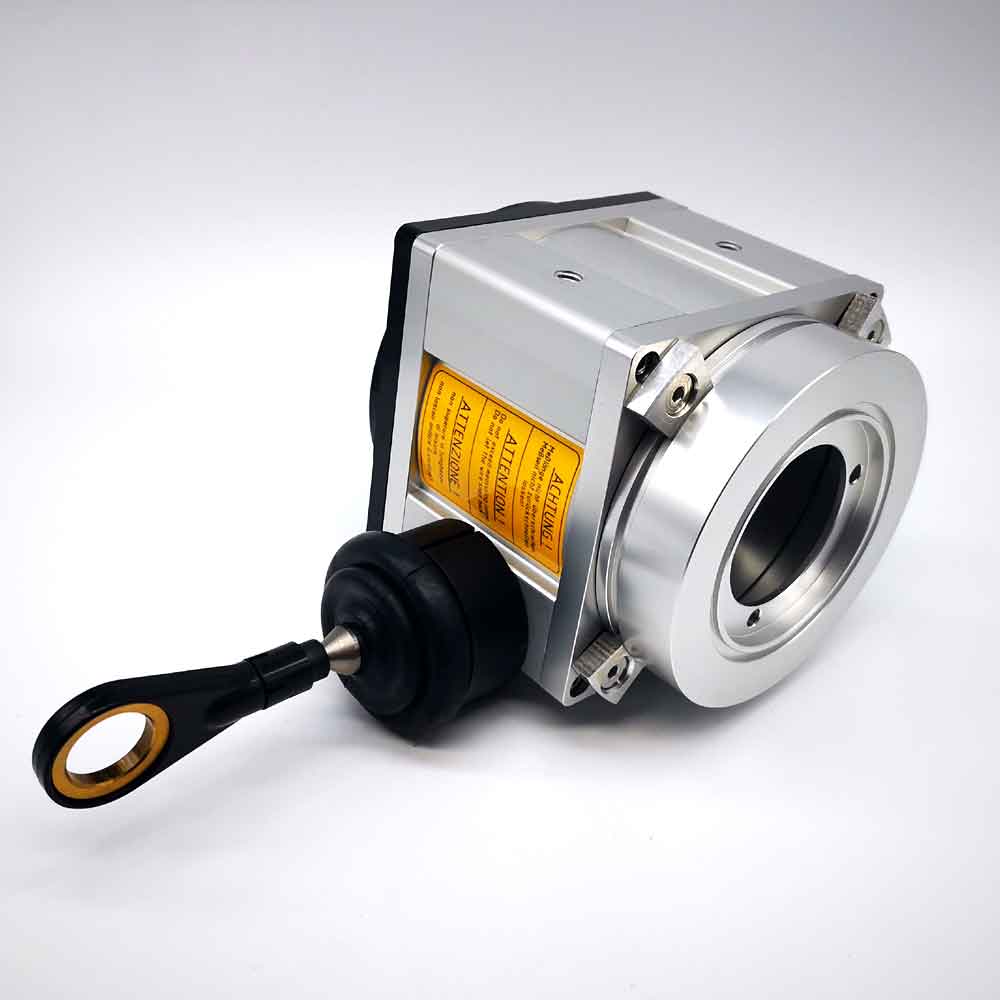

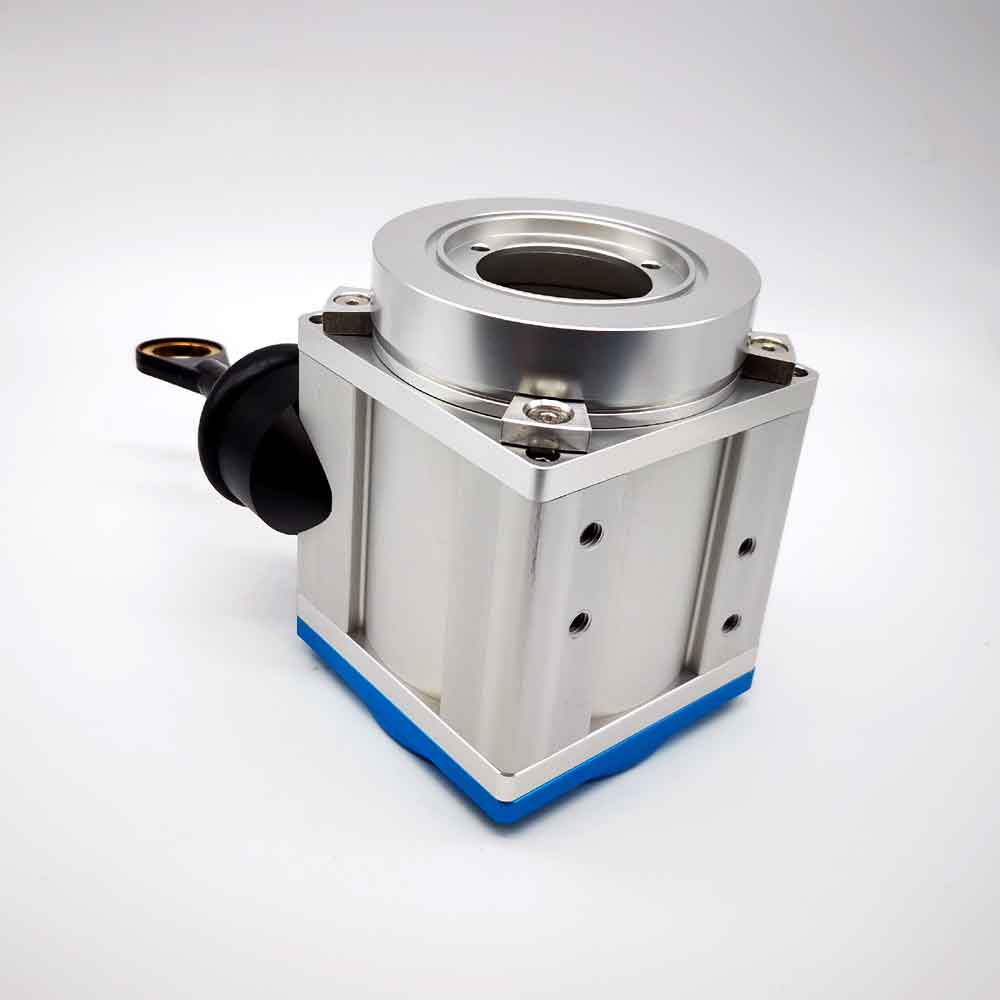

Draw- mechanism for servo flange with 6 mm shaft, measuring range 0 m … 2 m
|
|
Note
|
Encoders need to be purchased separately
|
|
Measuring length up to
|
0 m … 2 m
|
|
Repeatability
|
≤ 0.2 mm
|
|
Linearity
|
≤ ± 2 mm
|
|
Hysteresis
|
≤ 1 mm
|
|
Weight
|
1.3 kg (without encoder)
|
|
Material（rope）
|
Highly flexible 316 stainless steel rope
|
|
Spring sleeve material
|
Zinc die casting
|
|
Casing material
|
Aluminum (anode coating treatment), die-cast zinc
|
|
Circumference of drum
|
200 mm
|
|
Force of retractile spring
|
6 N … 14 N 1)
|
|
Diameter(rope)
|
1 .2mm
|
|
Acceleration
|
40 m/s²
|
|
Speed of adjustment
|
10 m/s
|
|
Resolution
|
To determine the system resolution, use the following formula:
Pull-out length of cable per circle / Steps per circle = Resolution of draw-wire encoder combination |
|
Working temperature
|
–30 °C … +70 °C
|
|
IP code of casing
|
IP64
|
|
life
|
Typ. 5000,000 cycle 2) 3)
|
Products Show

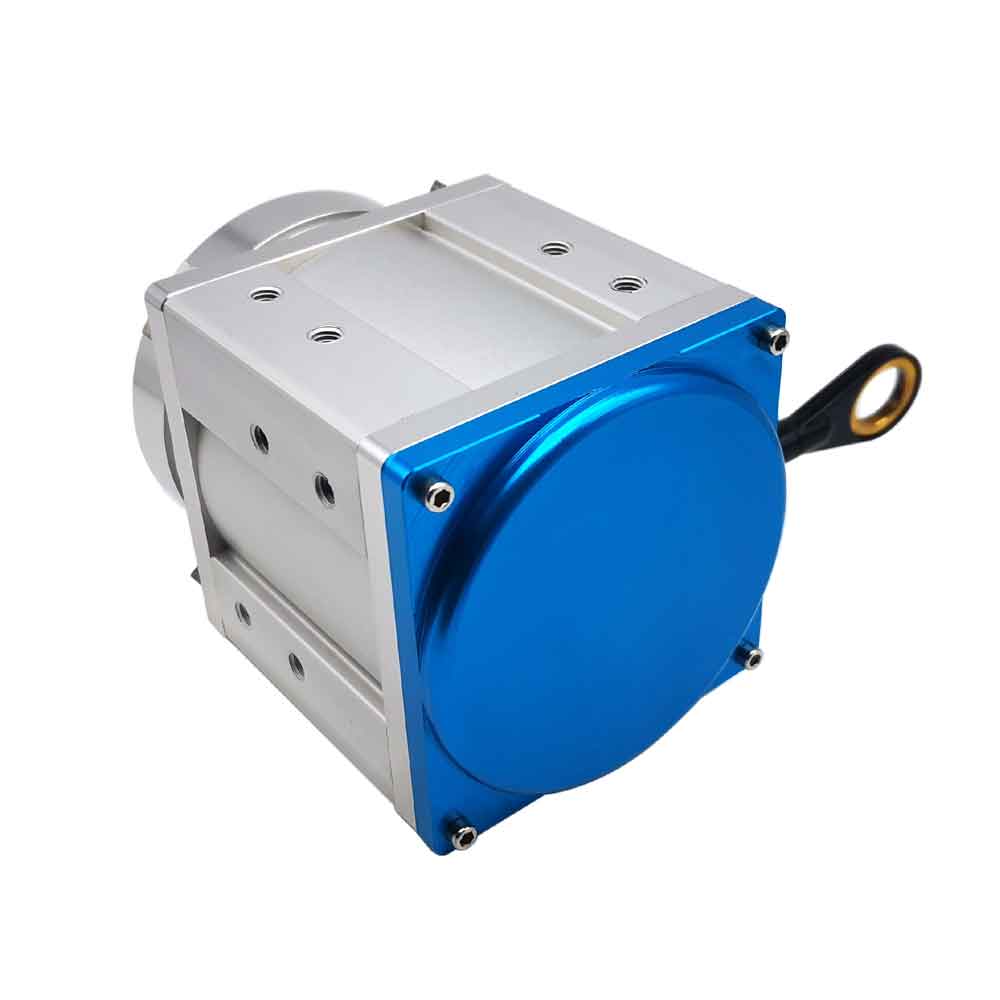

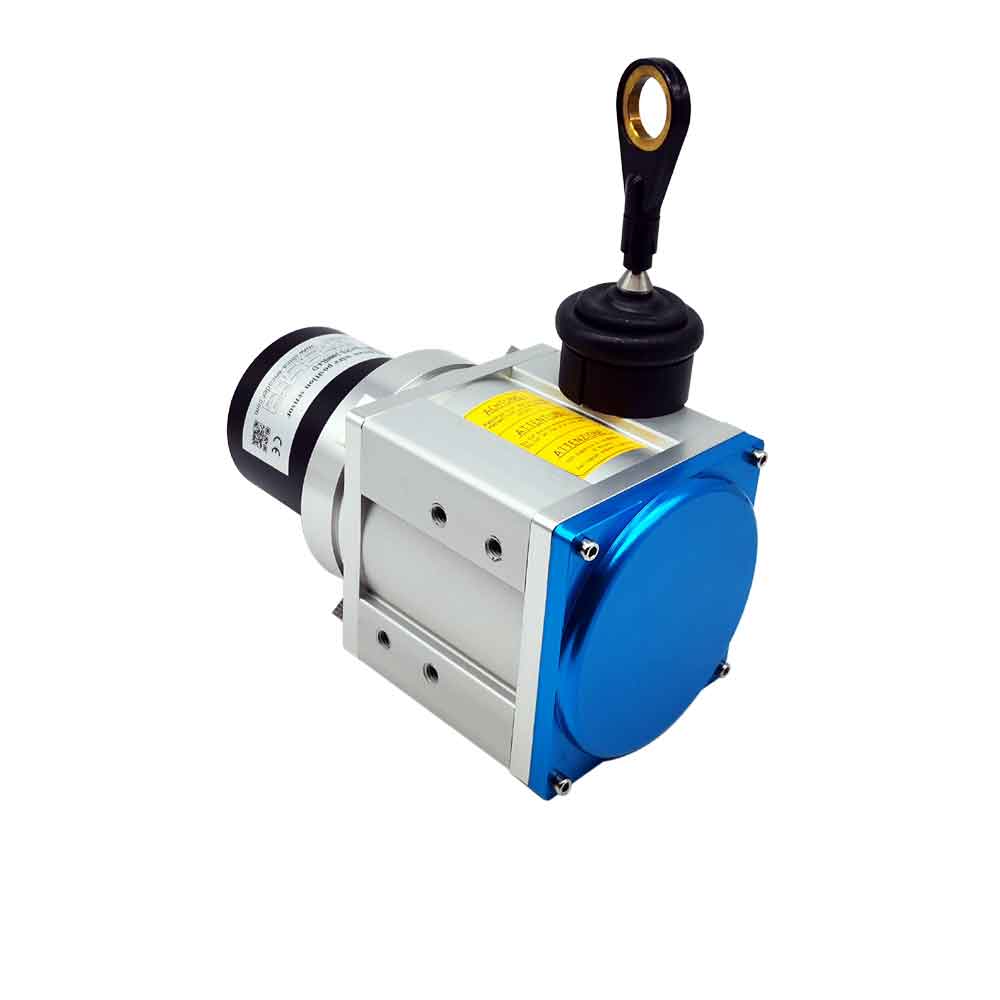

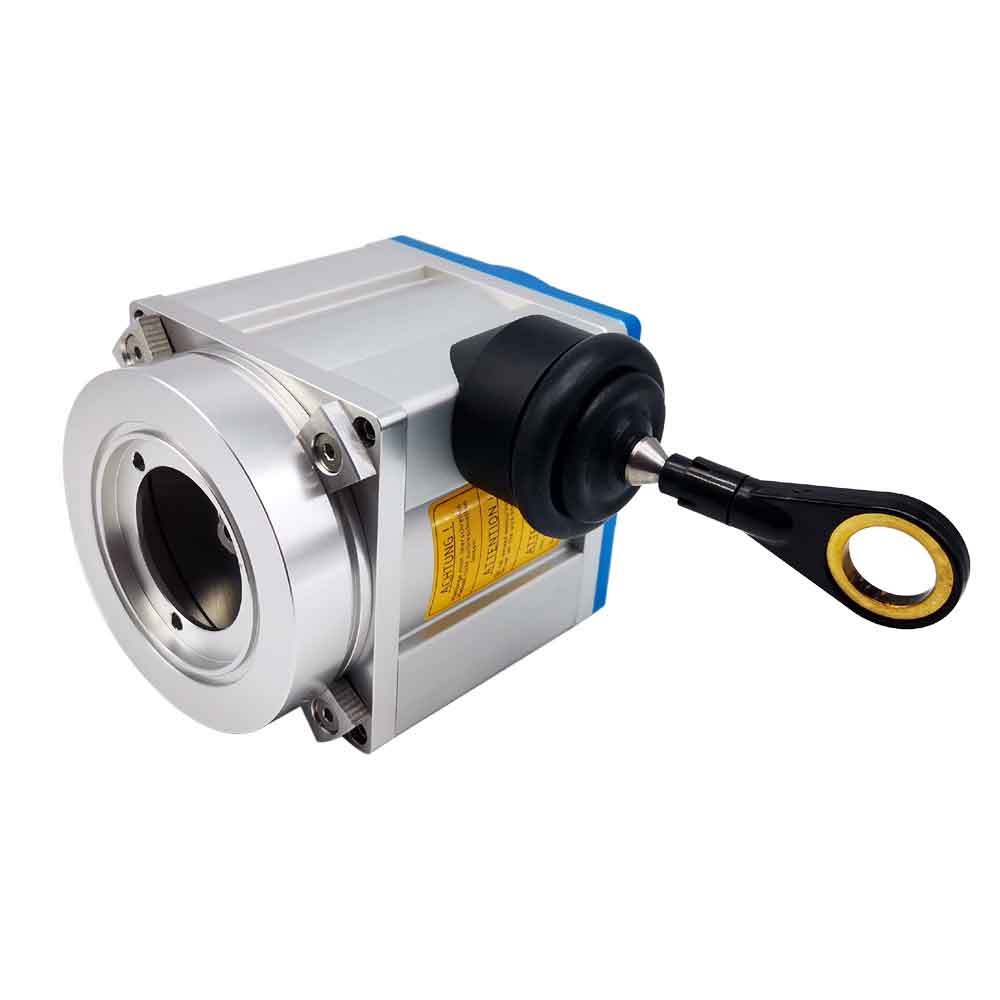

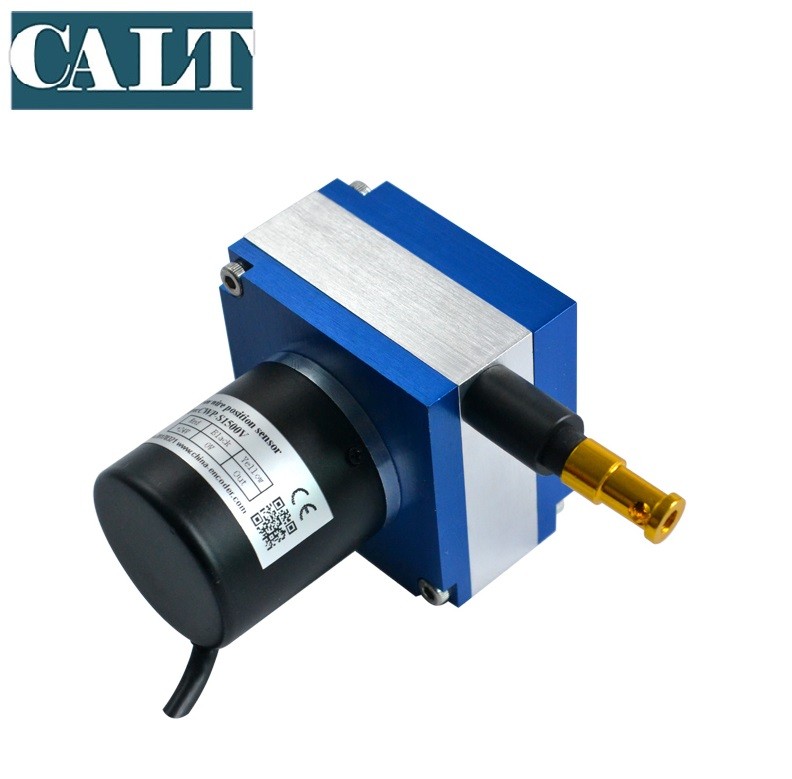

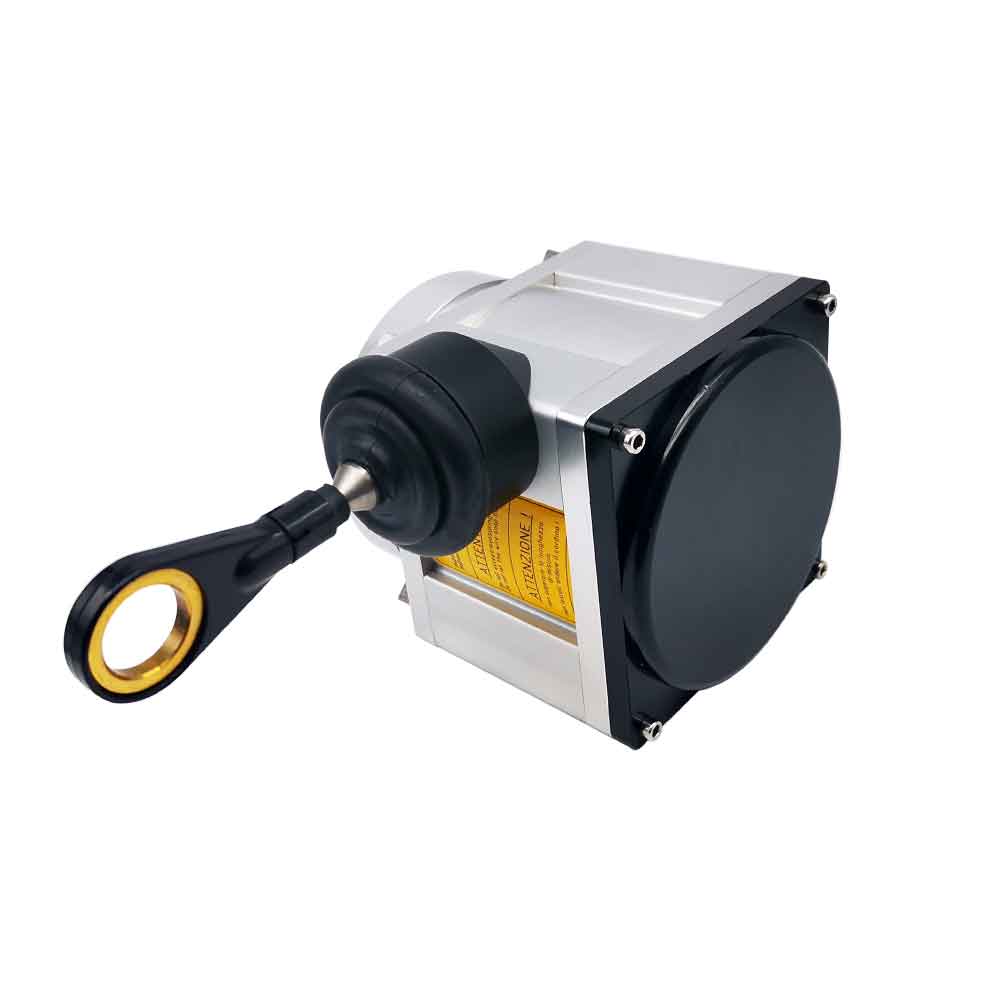

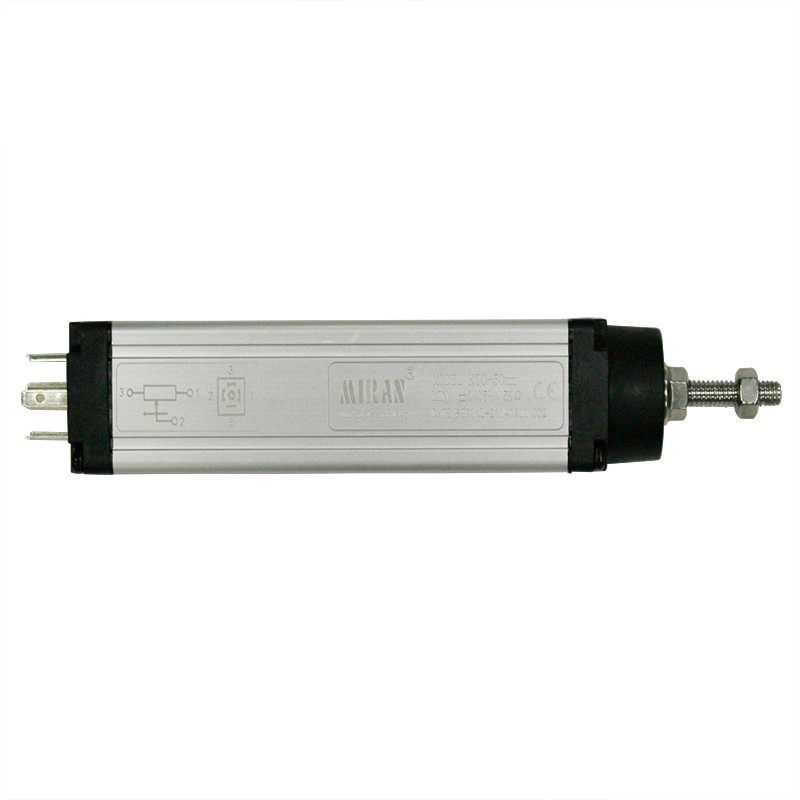

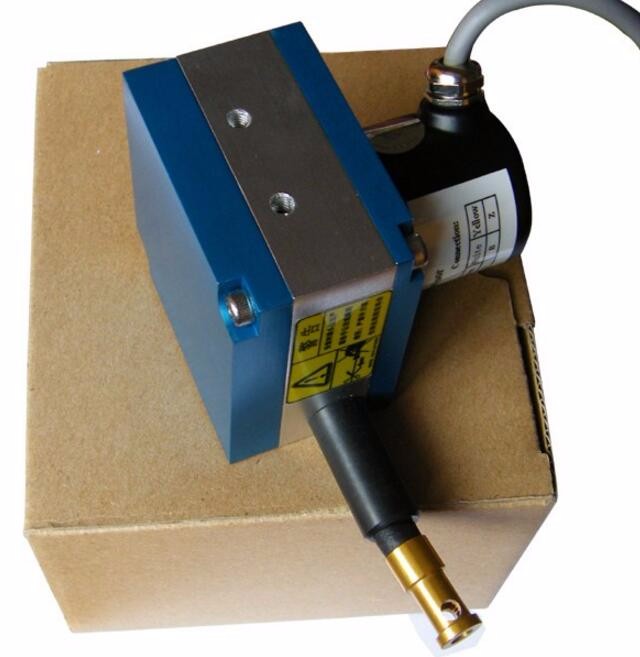

Related Products
CALT CWP-S400 Analog signal draw wire sensor 0-400mm range
CALT CWP-M3000 Analog signal draw wire sensor 0-3000mm range
CALT HS Series High Precision draw wire sensor
CALT CESI-S1000 incremental encoder draw wire sensor 0-1000mm range
CALT KTC1-100 rod type resistance Linear LVDT displacement sensor
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

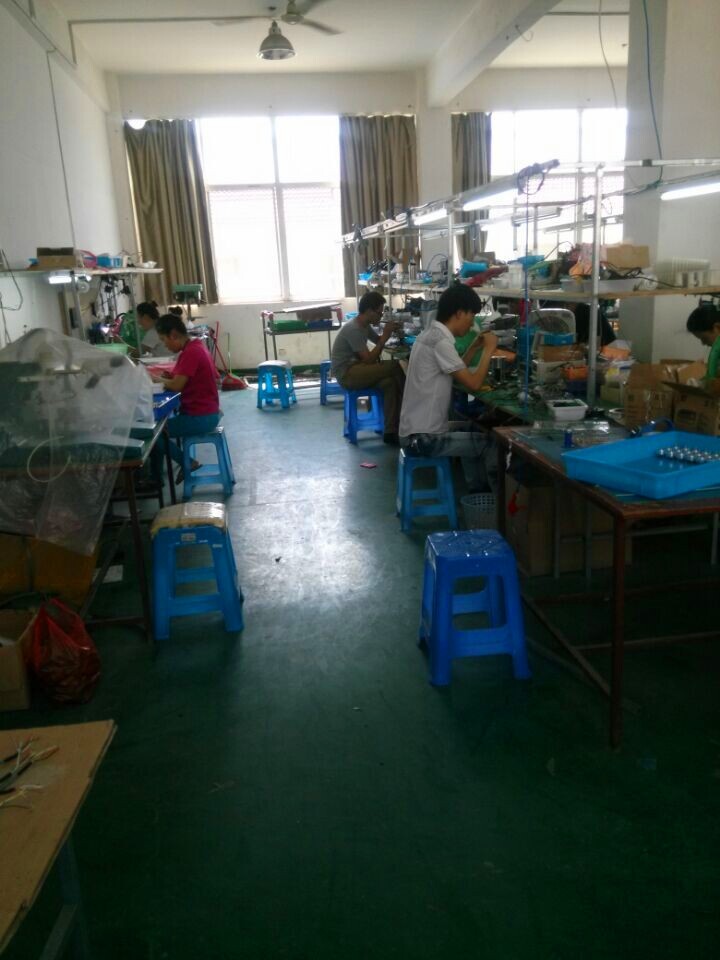

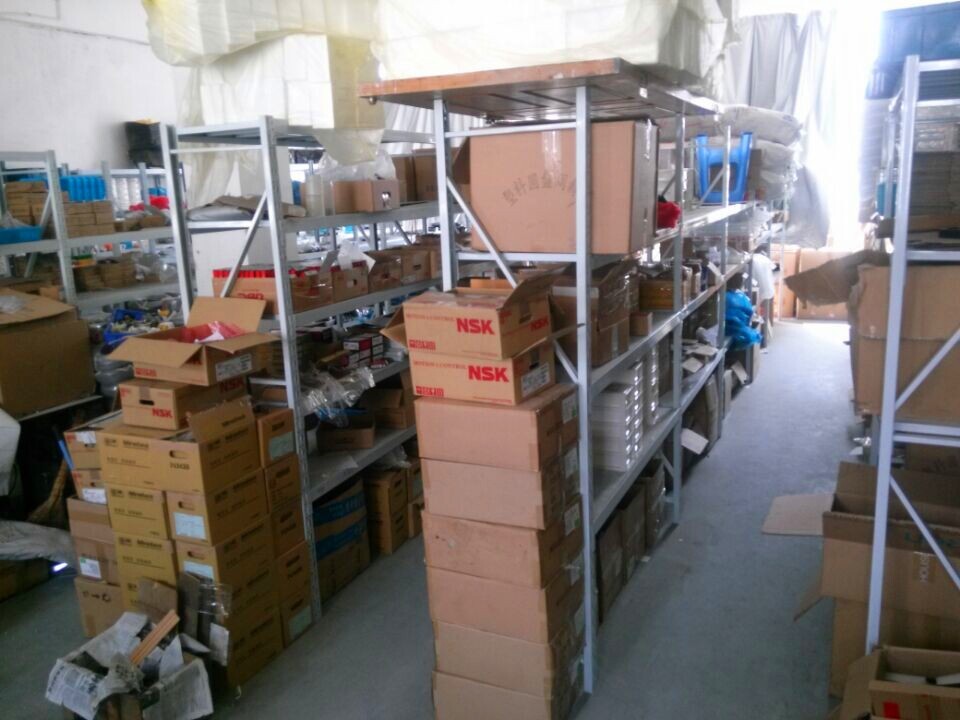

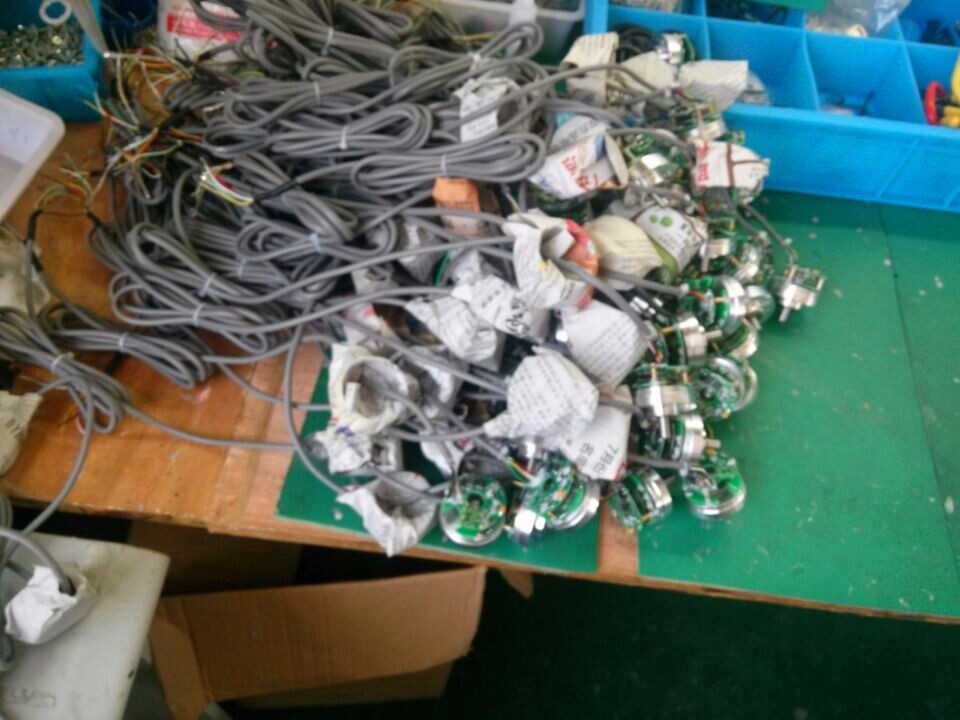

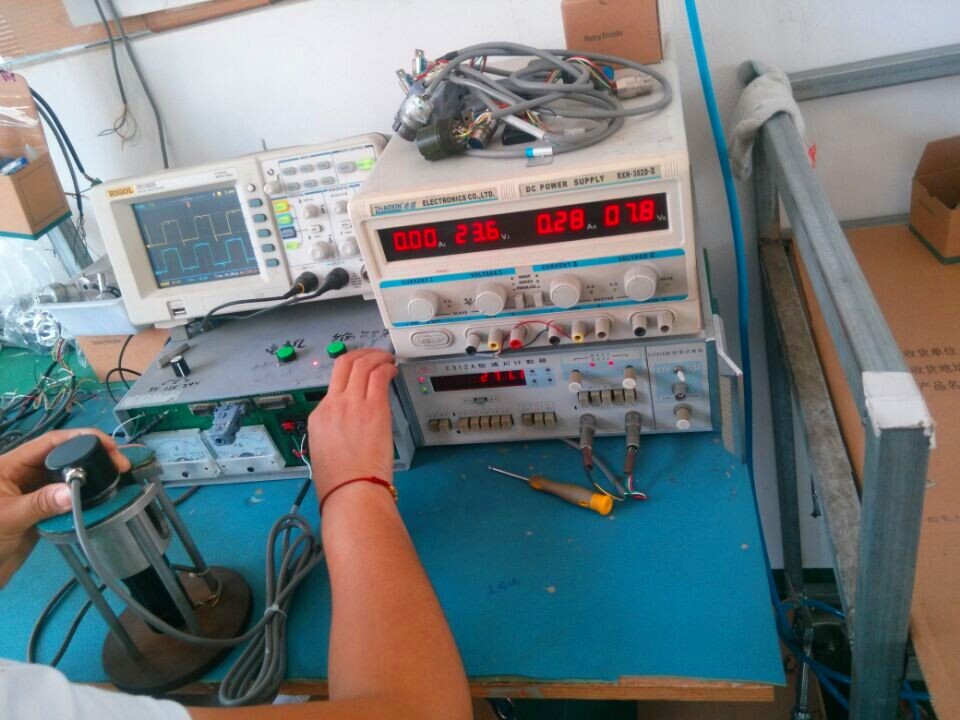

Our Factory
Packing & Delivery

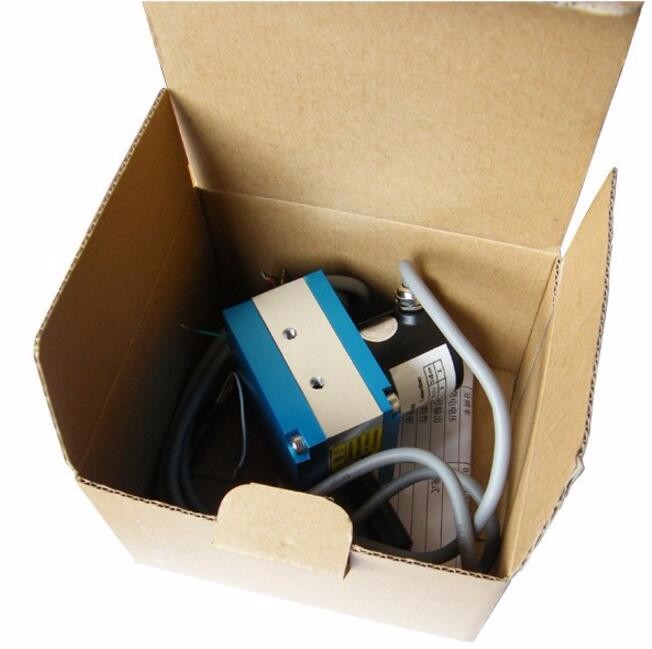

Packing Details : carton packed for each encoder or items, and then pack with thick carton for shipping.
Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.
Single item per box
All packed well
Packed with good conditions with shipping mark.
