Description
- Brand Name: Cute
- Output Power: 1-5mW
- Origin: CN(Origin)
- Type: Laser Sight
- Model Number: Cal. 30-30Win

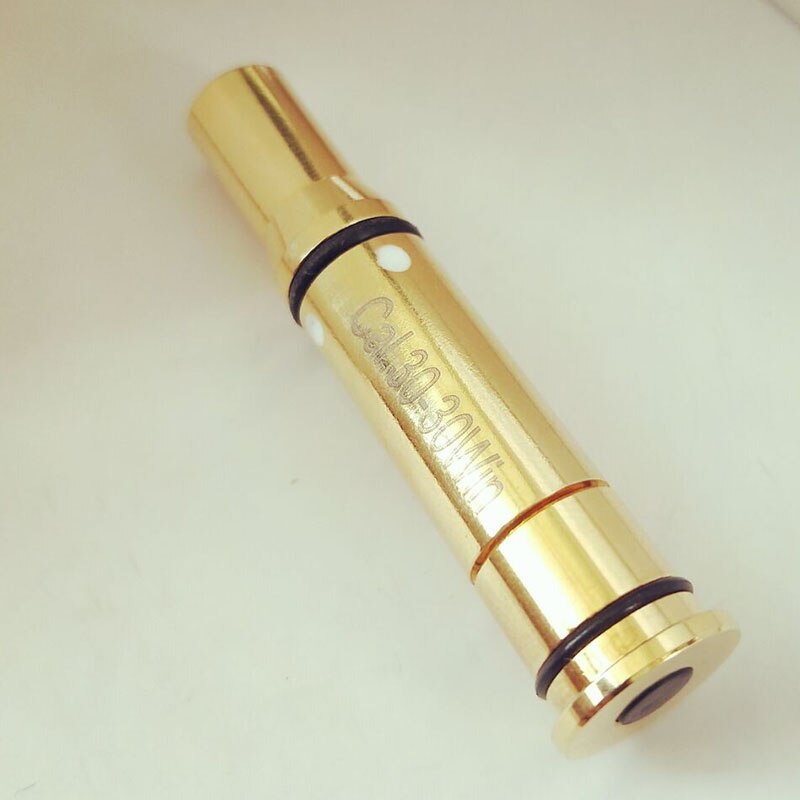

Cal. 30-30Win Laser Bullet Training Cartridge Red Dot Tactical Laser Trainer Bullet Red Dot & Laser Bullet 100% Brass Glock Gun
Hold the switch(button cap or back cover) always light up 50ms delay red dot light up when shooting training
This is laser trainer cartridge not laser bore sight. It can help you shooting more accurately.
1. Cal. 30-30Win Laser Bullet Training Introduction:
Cal. 30-30Win laser bullet red dot laser bore sight for training and shooting simulation.
The maximum laser output power is 3.0mW at 650nm with high quality brass and
gold-plated material.
2. Laser Bullet for Training Bore Sight Applications
a. Gun calibration b. Simulation of ballistic
3. Optical and Electrical Characteristics:
Perameter Specifications Test Conditions
Wavelength 650nm T c = 25degC
Output Power 3.0 mw T c = 25degC
Laser Modee Pulse
Output Apurture ￠2.8mm Factory fixed
Beam Size <10mm (@10m) Factory fixed @10m
<20mm (@20m) Factory fixed @20m
Laser Pulse 70ms
Divergence <0.4mard T c = 25 + _3deg C
Bore Sight <0.30mard
Optics Glass lens
Operating Current <25mA T c = 25 + _3deg C
Operating Voltage 4.5VDC by 3pcs. LR626 1.5V batteries
Housing Material Brass
CDRH Class Class IIIa
MTTF >8000 Hrs T c = 25 + _3deg C
4. Cal. 30-30Win Laser Training Bullet Bore Sight Specifications:
Laser Wavelength: 650nm
Type: Visible Red Laser
High brightness, optical output power: 3.0mW
Low operating current: <25mA
Low operating voltage: 4.5VDC ( 3pcs of LR626 batteries )
Class IIIa laser, CDRH/ROHS compatible
Static, Surge, and Reverse Polarity Protected
Ciruit control: Auto Power Control (APC)
Operating Temperature: -10 to +50degC
Offaxis Angle: 0.3mrad
Range for Sighting: 5-100 yards
Dot Size: 1 inches at 25 yards
Construction: Brass, gold-plated
Life Span: >8,000hrs
5. In the box:
1 x Cal. 30-30Win
