Description
- Brand Name: XMSJ
- Type: Hand Tool Parts
- Origin: CN(Origin)
- Model Number: IMU700
- Place of Origin: Jiangsu, China
- Brand Name: BWSENSING
- Usage: monitor
- Theory: Accelerometer Gyro
- Output: RS422, Digital Sensor
- Brand: IMU700
- Amplifier Type: N/A
- Voltage – Supply: 5V DC
- Output Type: RS422
- Current – Supply: 200mA
- Operating Temperature: -40~85℃
- Mounting Type: See product details
- Resolution (Bits): 0.1mg;0.00005°/sec
- Features: High-performance inertial measurement
- Current – Supply (Max): 200mA
- Package / Case: See product details
- Packaging: N/A
- Frequency: See product details
- Output Configuration: See product details
- Current: See product details
- Voltage Rating: See product details
- Operating Force: See product details
- Oxygen Range: See product details
- Humidity Range: See product details
- Size: See product details

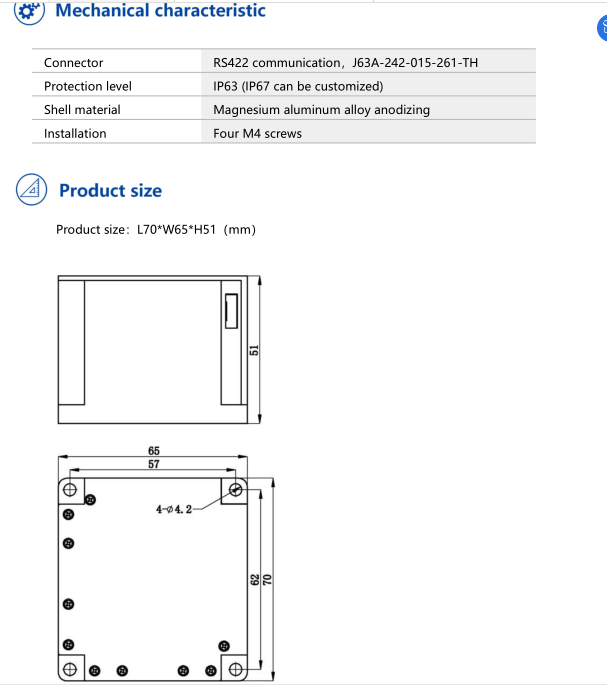

- Size / Dimension: L70*W65*H51(mm)
- Measuring Range: ±500°/sec;±20 g
- Resolution: 0.1mg;0.00005°/sec, 0.1mg;0.00005°/sec
- Interface: See product details
- Technology: See product details
- Sensing Range: See product details
- Current – Output (Max): See product details
- Bandwidth: See product details
- Function: See product details
- Acceleration Range: See product details
- Sensitivity (LSB/g): See product details
- Sensitivity (mV/g): See product details
- Sensitivity (LSB/(°/s)): See product details
- Sensitivity (mV/°/s): See product details
- Sensing Distance: See product details
- Current – Output: See product details
- Power – Rated: See product details
- Voltage – Output Difference (Typ) @ Distance: See product details
- Voltage – Output (Typ) @ Distance: See product details
- Voltage – Max: See product details
- Voltage – DC Reverse (Vr) (Max): See product details
- Power – Max: See product details
- Sensing Object: See product details
- Sensing Light: See product details
- Resistance: See product details
- Resistance Tolerance: See product details
- Sensing Temperature – Local: See product details
- Sensing Temperature – Remote: See product details
- Current Rating – AC: See product details
- Current Rating – DC: See product details
- Tolerance: See product details
- Voltage – Rated: See product details
- Flow Sensor Type: See product details
- Voltage – Input: See product details
- Application: See product details
- Output Function: See product details
- D/C: See product details
- Cross Reference: See product details
- Name: Inertial Measurement Unit IMU600

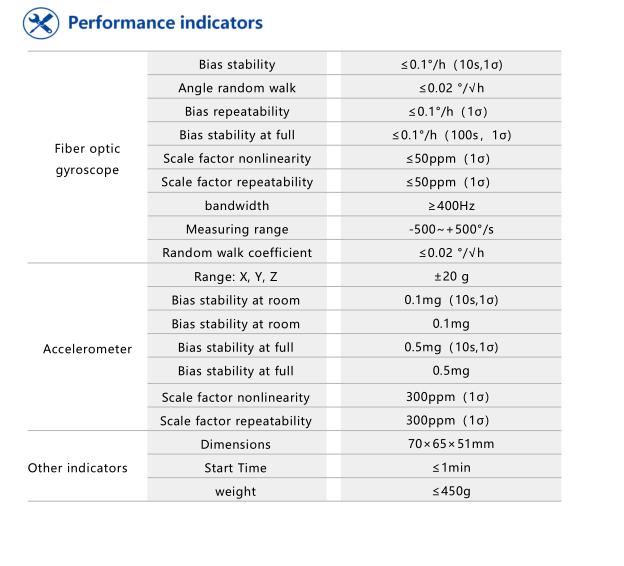

- Gyro bias: 0.1°/h
- Gyro range: ±500°/sec
- Accelerometer range: ±20 g
- Output interface: RS422
- Working temperature: -40℃~ 85℃
- Small size: 70*65*51mm
- Shockproof: >2000 gravity

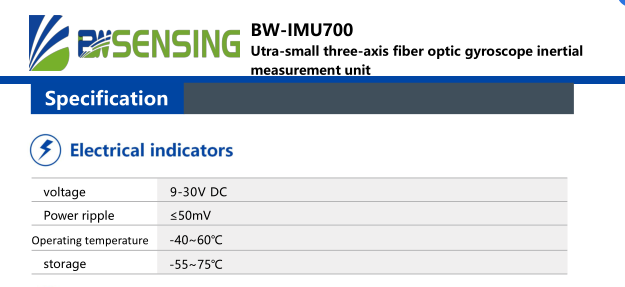

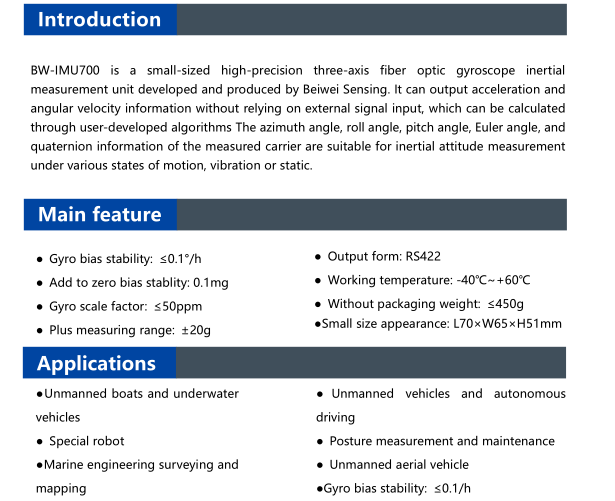

Three-axis fiber optic gyroscope inertial measurement unit
| Gyro bias |
Gyro range |
| 0.1°/h | ±500°/s |
| Measuring range | Supply voltage |
| ±20g | 10-30V |
| Output interface | Protection class |
| RS422 | IP63 |

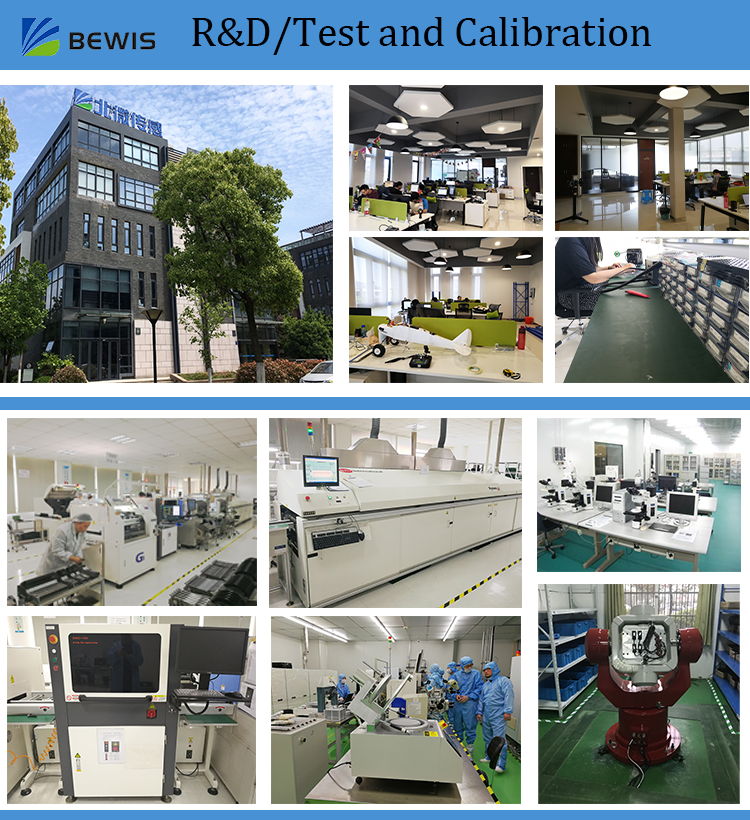

Company information
Q1: Which countries have you exported to ?
A: Such as Germany ( like Siemens), Sweden, Spain, USA, Australia, Saudi Arabia,UAE,Brazil,Indonesia,Malaysia,India,Russia,South Africa etc.
Q2: Which certifications have you gained?
A: We have ISO, CE, ROHS at present. We can also apply E-mark and UL if you need.
Q3: Do you support customization?
A: Yes,it’s no problem as our researchers account for 50% of the total and we have already customized for many famous companies like Siemens .
Our typical customer
Q4: How can you get a sample?
A: After you contact and reach an agreement with our company, the factory can normally make samples in 2-4 days. If you are our VIP customer, we will provide you with samples for free.
Q5: What’s your Payment term?
A: T/T or Paypal
