Butterfly type Laser Driver Board Laser Diode Driver Module 14PIN

• Condition: New
• Type: Logic ICs

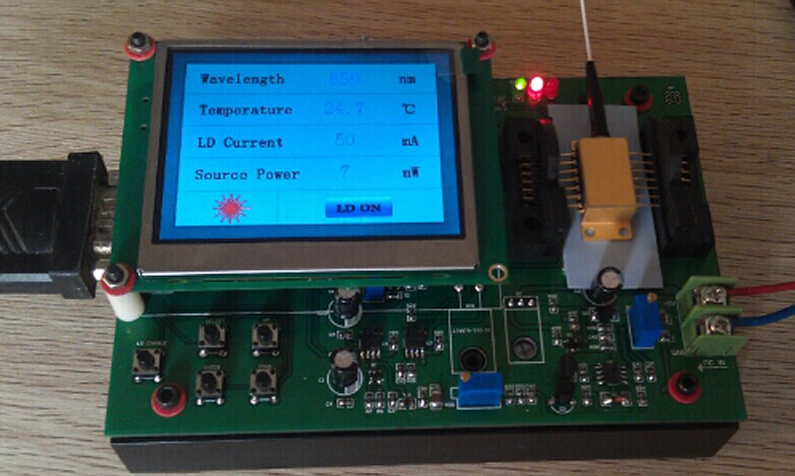

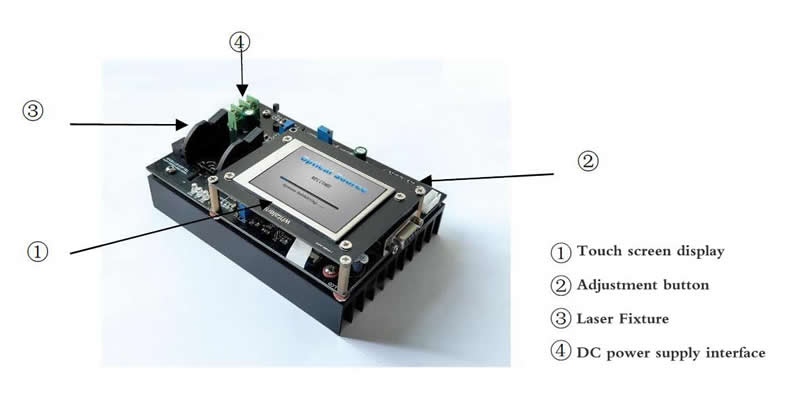

Product Introduction

The butterfly laser driver board is a continuous multi-purpose semiconductor laser power supply,introducing the current international advanced semiconductor laser power supply technology, and selecting high-quality components for production. It has the advantages of low output noise, good constant current characteristics, stable current, and strong anti-interference ability. It also has anti-overflow and anti-surge voltage stabilization and constant current dual protection circuits
to ensure the stable operation and service life of the laser. The whole machine is configured Perfect, stable performance, high cost performance, very suitable for various manufacturers, companies, universities, scientific research.

Product Features：

lOutput voltage adaptive load 3V;

lOutput current: 0~5000mA;

lContinuous CW mode

lCurrent stability is less than 0.1%

lThe output current has two control modes: local and computer
(software selection);

lThere are two control methods (software selection) for power
on and off; local and computer;

lWith TEC temperature control laser (optional temperature
control accuracy ±0.1℃)

lTEC output voltage 1~5V adjustable, current 3A

lWith protection of overcurrent, overvoltage, overheating,
etc.;

lIt has protection functions such as slow current rise and
slow current drop;

lHigh stability, high anti-interference, low noise;

lLCD true color liquid crystal display;

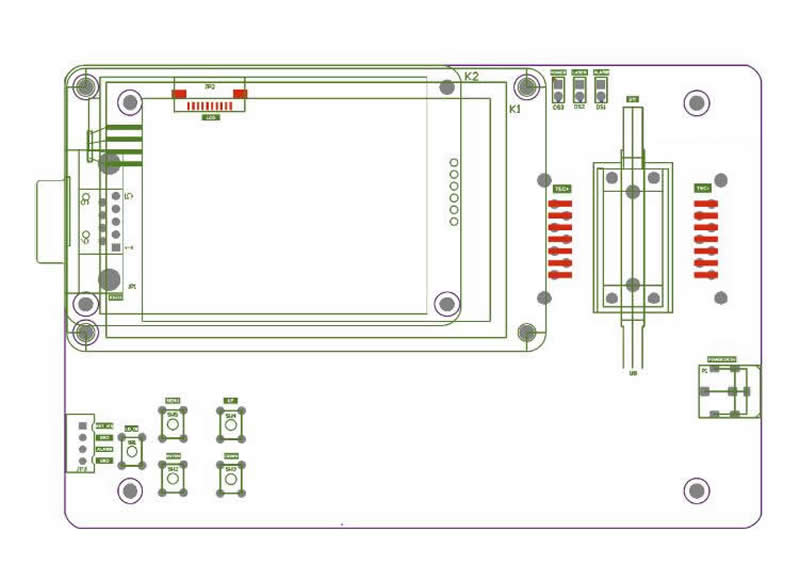

lCircuit board size: 100*150*50mm



Product Applications

lSemiconductor lasers

lCrystal temperature
control

lSolid temperature
control

lTemperature control
source for experiment and scientific research

Product Selection
Table:

Model Parameter	TLTM -YTH030250	TLTM -YTH030500	TLTM -YTH031000
Input voltage（VDC）	5±15%	5±15%	5±15%
Output voltage （V）	0~3V (Adaptive)	0~3V (Adaptive)	0~3V (Adaptive)
Output current（A）	0~250mA	0~500mA	0~1000mA
Temperature control accuracy	±0.1℃ /±0.01℃
Temperature control range	5℃~40℃
Temperature Sensor	NTC（25℃-10K）

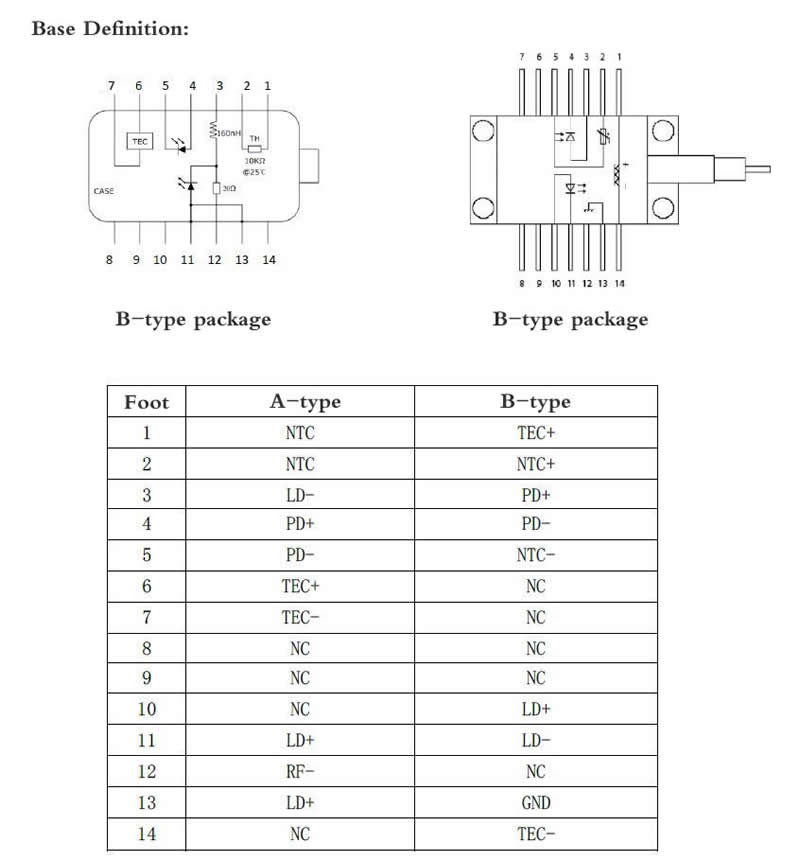

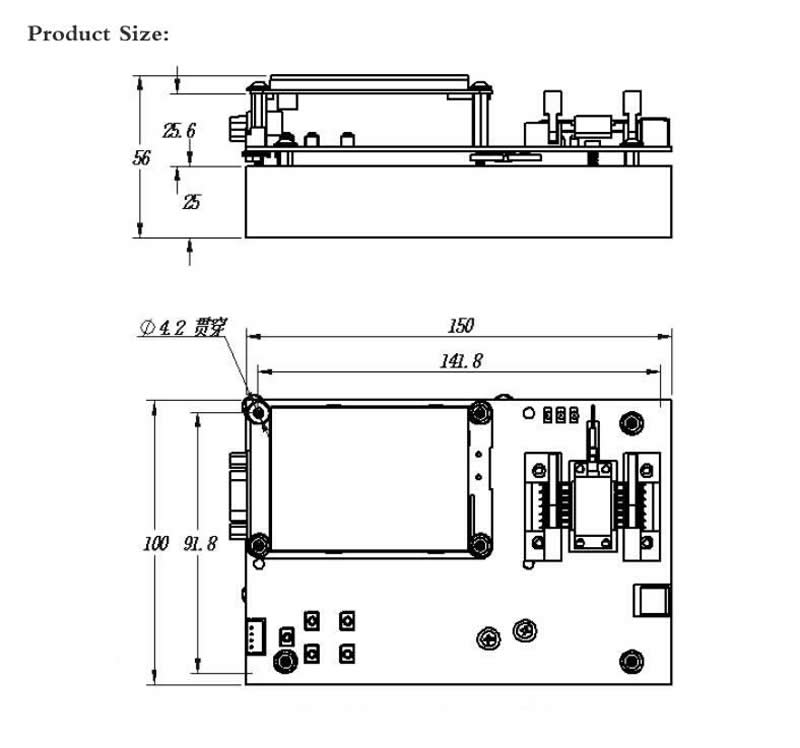

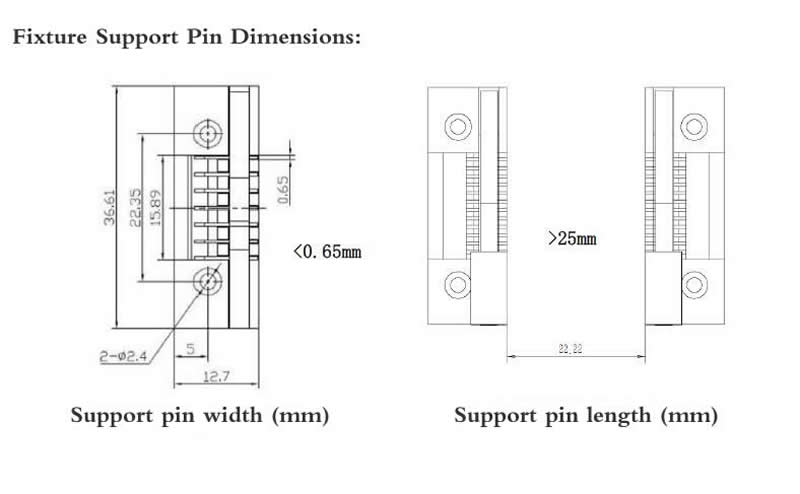

Instrument volume	W×L×H＝100*150*50mm
Remote interface	RS232
