Description
- Brand Name: BSIDE
- Origin: CN(Origin)
- Certification: CE
- is_customized: Yes
- Model Number: FWT21
- Item Type: Telephone Wire Tracker
- Detect cable type: RJ11
- Telephone job status detection: YES
- Check wire continuity: YES
Features:
100% Brand new and high quality
Perfect for installing, debuging, maintaining telephone line and other wires or cables.
Detect continuity of the cables or wires without damaging the insulation
Track the cables or wires, and diagnose the break point.
Receiver the tone signal on the cables or wires (telephone line).
Identify the state in the working telephone line (clear, ring, busy).
Send a single solid tone or a dual alternating tone to the object cables or wires.

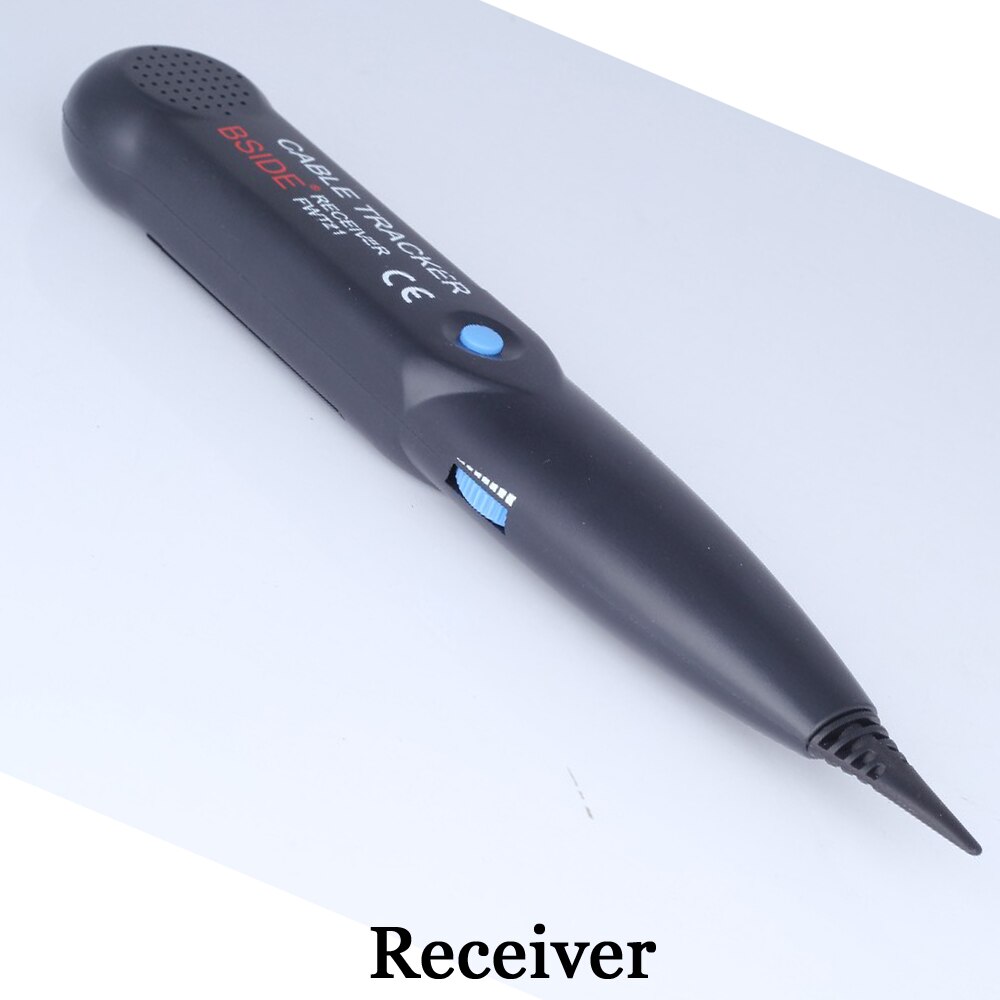

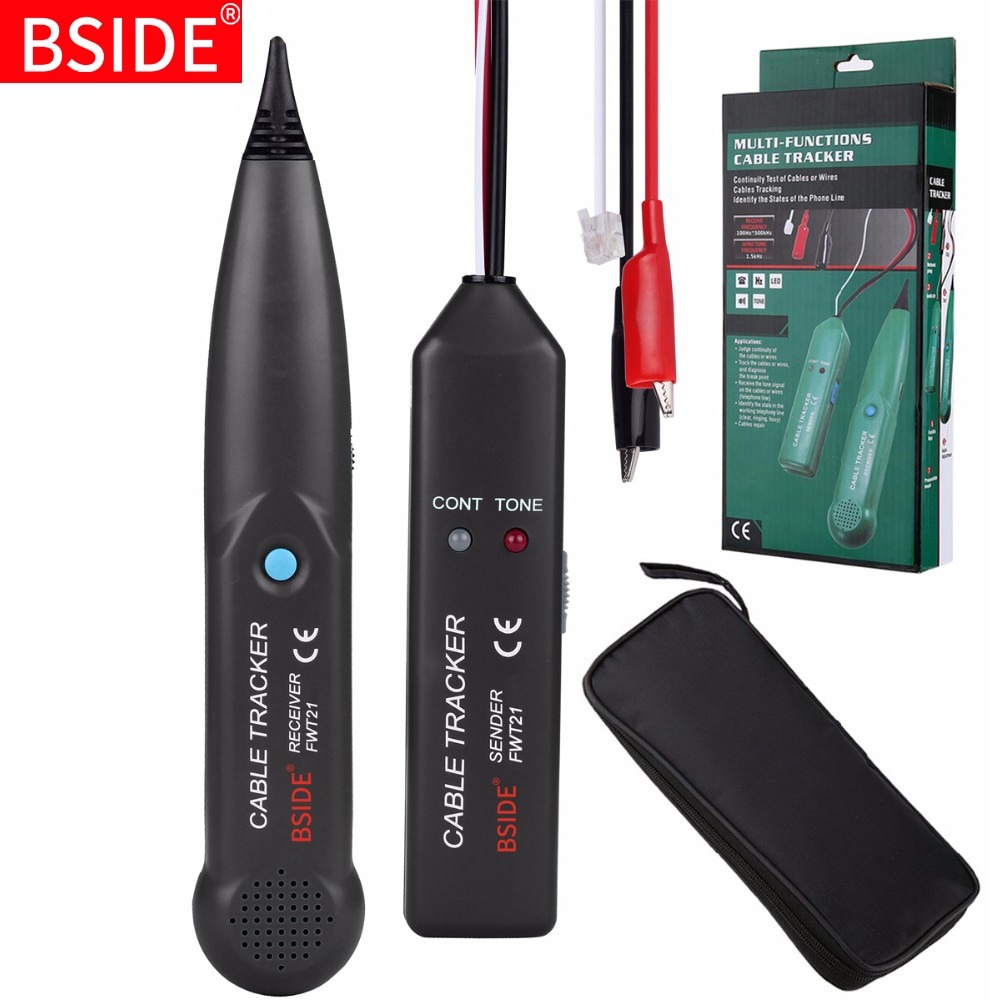

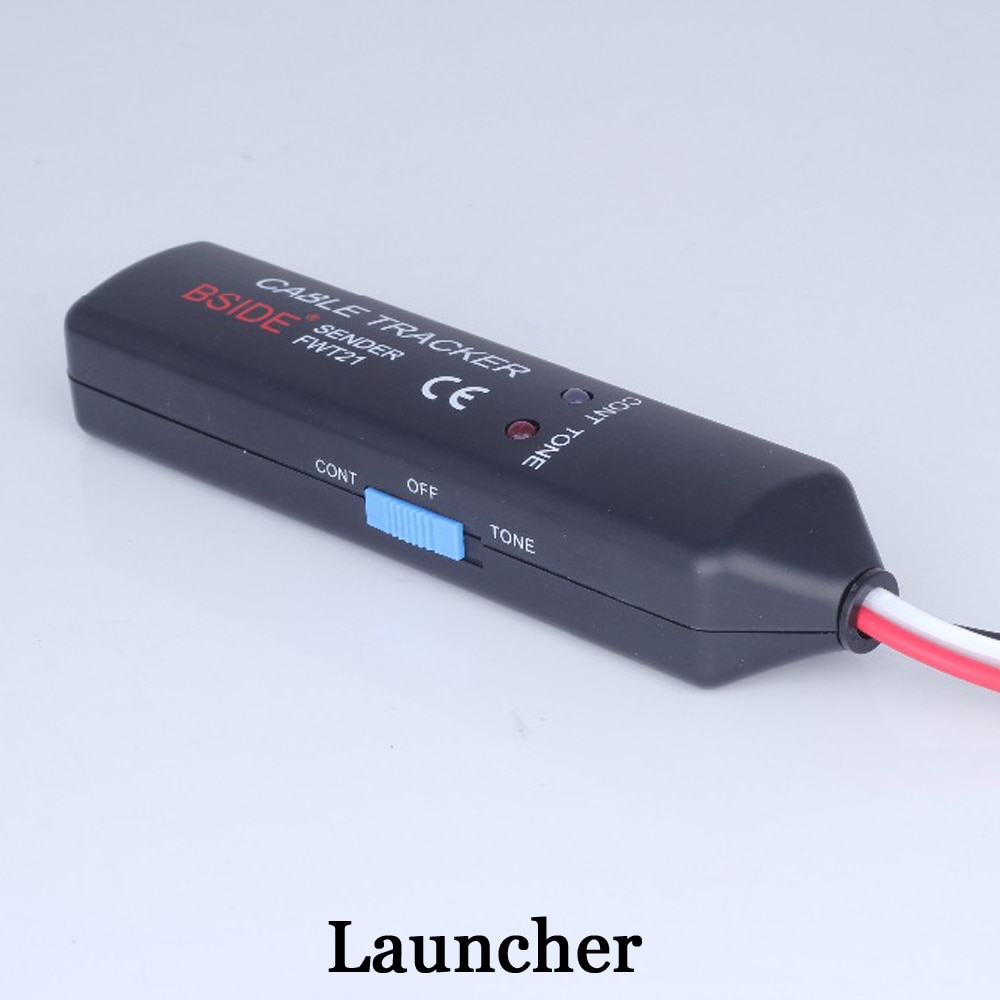

Include a sender (MS6812-T) and a receiver (MS6812-R).
A professional & safe tool for wireman.
Order notice:

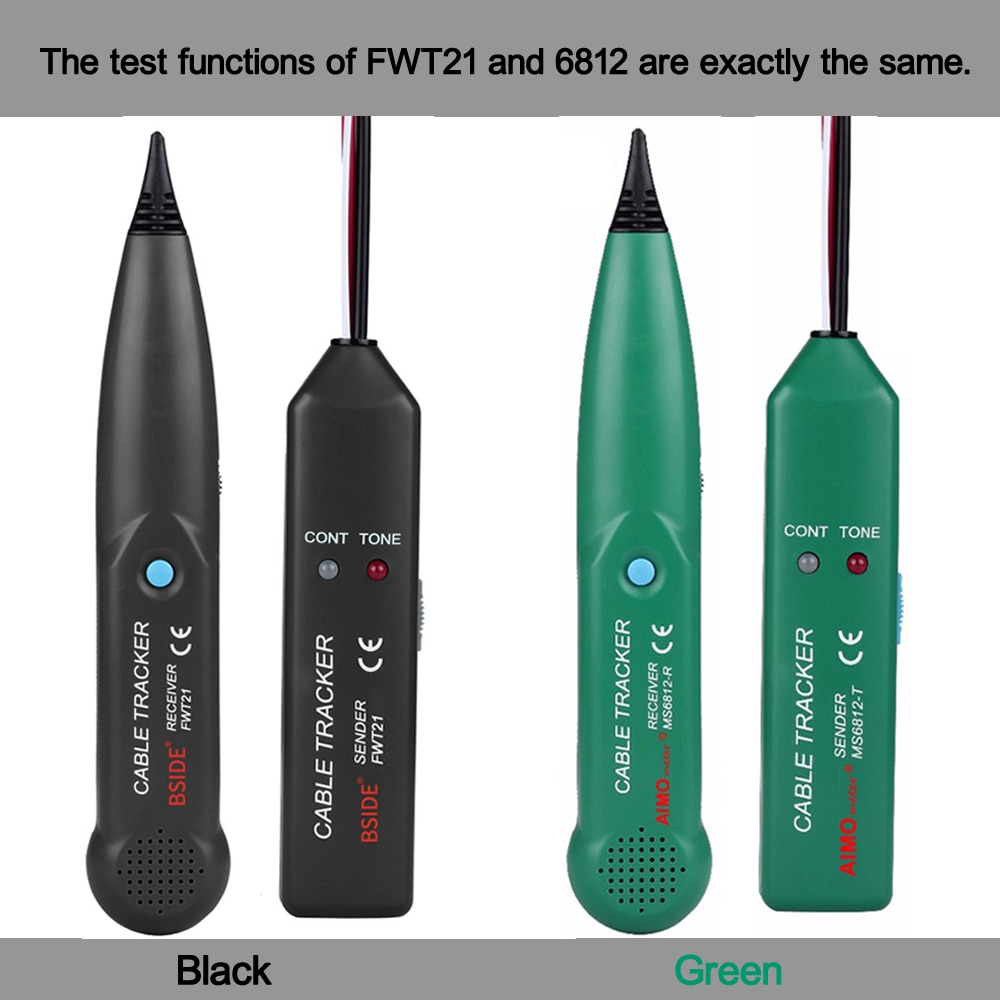

The performance of the blue and black products is exactly the same, the difference lies in the color and model.
Specifications:
Send tone frequency: 1.5kHz
Receive frequency range: 100 ~ 300kHz

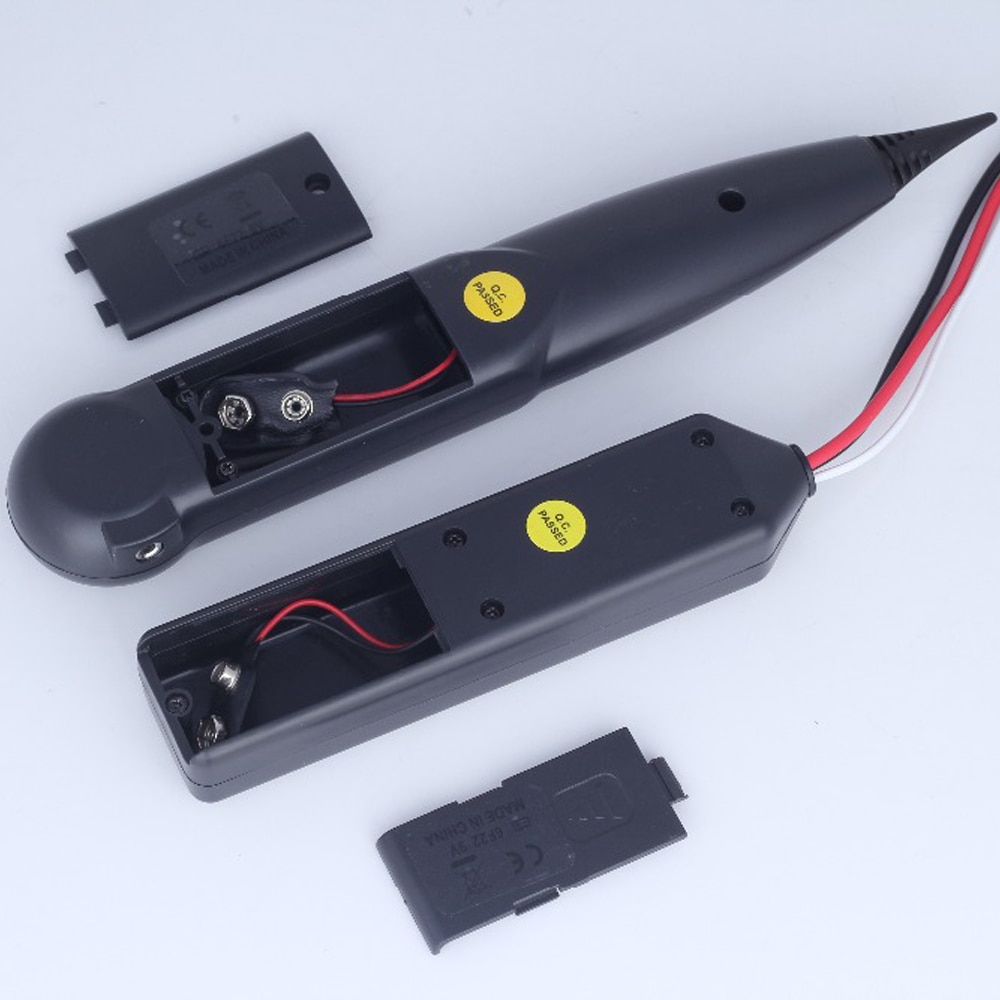

Power supply: 6F22 9V (Not Included)
Receiver size: 23.8 x 4.3 x 2.6cm
Emitter size: 14.5 x 3.5 x 2.5cm
Shell Color: Green
Net Weight: 233g (Approx.)

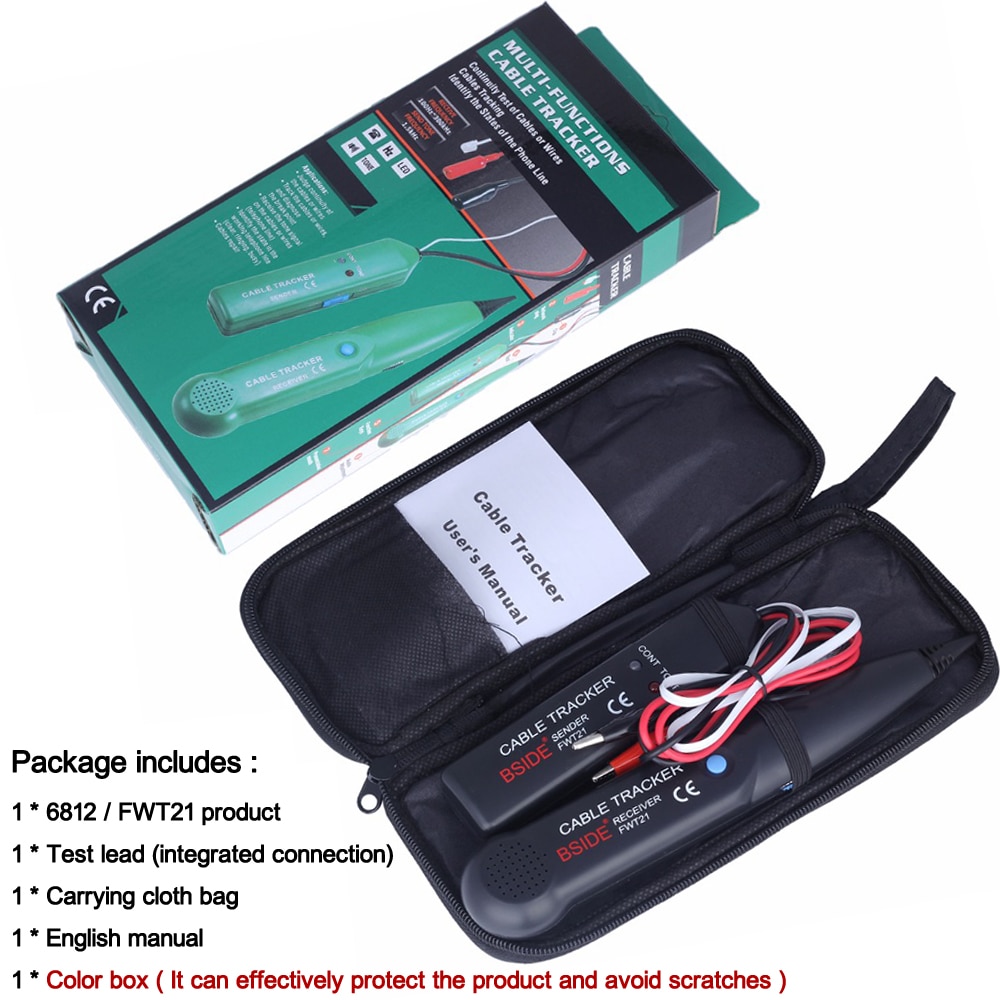

Packing List:
1 * Sender. 1 * Receiver. 1 * Toolkit. 1 * Instruction Manual. 1 * Color box.
Excellent workmanship:
FWT81 Functions:
1. Wire Tracking: It can quickly find the required line pairs among numerous ones. It is adaptable to network cable RJ45 terminal, telephone line RJ11 terminal. It can test other metal wires via an adapter.
-Compared with traditional products, it has better anti-interference and can be hunt in the presence of voltage. (less than 48V)
-The tracking distance is far more than 300 meters.
2. Network Cable Collation: It tests physical connection status of network cable, such as open circuit, short connection, miswire and reverse connection.
3. Line Level, Positive and Negative Polarity Test: Use transmitter only to test line level, positive and negative polarity.
4. Status of Telephone Line Test: Use the transmitter only to test the status of working telephone lines.
5. Continuity Checking: This instrument can check the continuity of a circuit.
6. Low Battery Capacity Indication.
General Technical Parameters:
Operating temperature & relative humidity: 0-40℃, maximum 80% (non-condensing)
Storage temperature & relative humidity: -10-50℃, maximum 80% (non-condensing)
Altitude: less than 2000m
Anti-explosion rating: IP40
Distance of emitting signal: >300m
Safety class: IEC61010-1 600V CAT III, pollution class II.
Specifications:
Product weight: 0.180 kg.
Package weight: 0.270 kg.

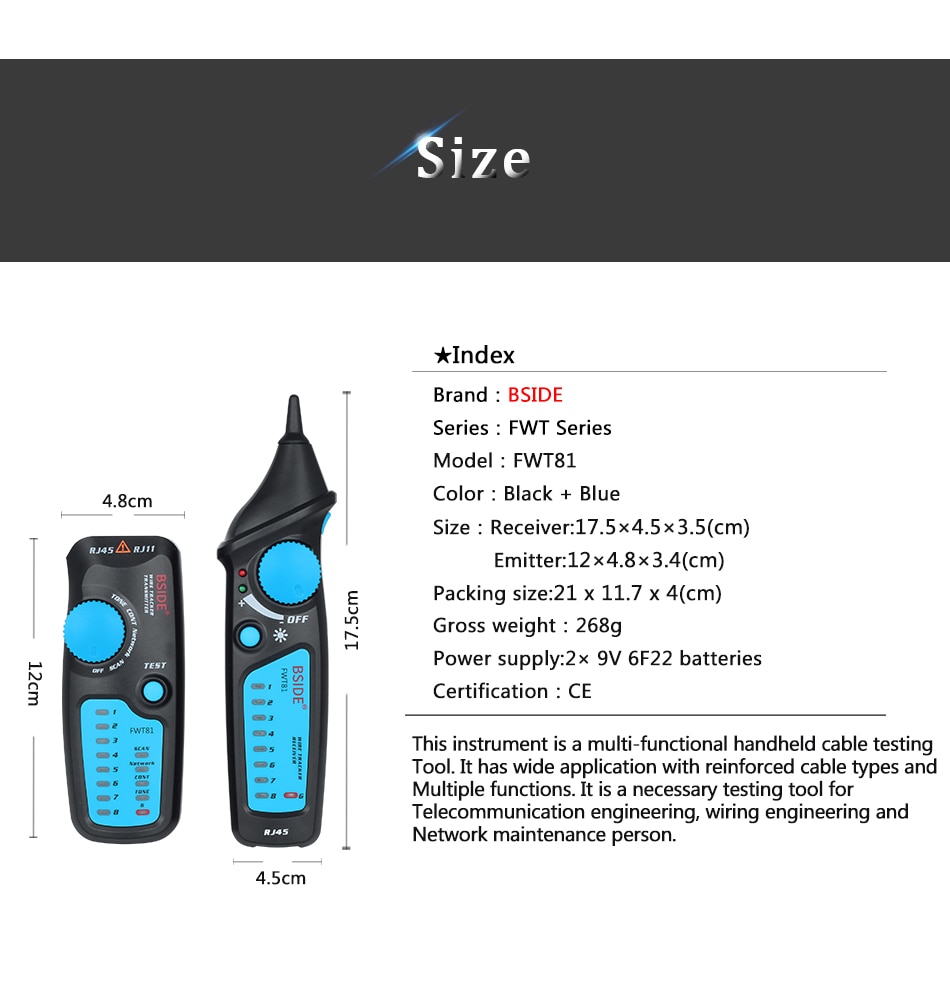

Product size: Receiver: 17.5×4.5×3.5 cm;Transmitter: 12×4.8×3.4 cm.
Package size: 21.0 x 11.8 x 4.0 cm.
Emitter battery: 6F22/9V (not included).
Receiver battery: 6F22/9V (not included)TXT
Package Includes:
1 x FWT81 Transmitter.1 x FWT81 Receiver.1 x Clip Adapter Cable.1 x RJ11 Adapter Cable.1 x Carrying Case.1 x User Manual.
