Description
- Type: Other
- Origin: CN(Origin)

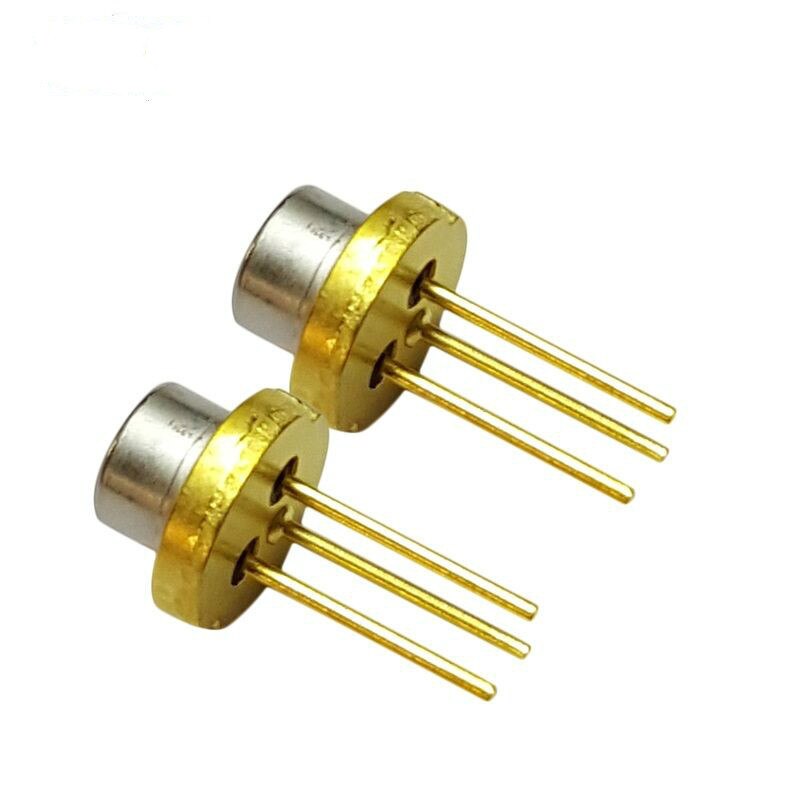

Product name: 980NM500MW laser diode.
Product model: sld980500tn-a
Operating voltage: 1.8V.
Output wavelength: NM 980/-10
Maximum current: & lt; 650ma
Recommended current: around 600 MA
Maximum output power: slt;500MW.
Sealed Form/Size: T0-18/∮& nbsp;5.6MM
Laser pin connection: figure H (shell connection)
Lifetime: 10,000 hours.
With or without PD: None.
Shell Material: Metal
Surface treatment: gold plating
Working temperature: – 10 ~ 50 ℃
Storage temperature: -40 to 85 degrees C.
Operating voltage: 1.8V.
Output wavelength: NM 980/-10
Maximum current: & lt; 650ma
Recommended current: around 600 MA
Maximum output power: slt;500MW.
Sealed Form/Size: T0-18/∮& nbsp;5.6MM
Laser pin connection: figure H (shell connection)
Lifetime: 10,000 hours.
With or without PD: None.
Shell Material: Metal
Surface treatment: gold plating
Working temperature: – 10 ~ 50 ℃
Storage temperature: -40 to 85 degrees C.
![](https://ae01.alicdn.com/kf/Hbfb7de4eac1740b286874c6fce11b392t.jpg?width=749&height=782&hash=1531)
![](https://ae01.alicdn.com/kf/Hb1e1a1a4927b4e25b2a5fb5935d89064b.jpg?width=749&height=768&hash=1517)
![](https://ae01.alicdn.com/kf/Hd781df3a092d4075a2d1f677b4d6cfc84.jpg?width=750&height=435&hash=1185)
![](https://ae01.alicdn.com/kf/H4ad7ba32a1c049f29e16262979217728e.jpg?width=750&height=1067&hash=1817)
