Description
- Type: Other
- Origin: CN(Origin)

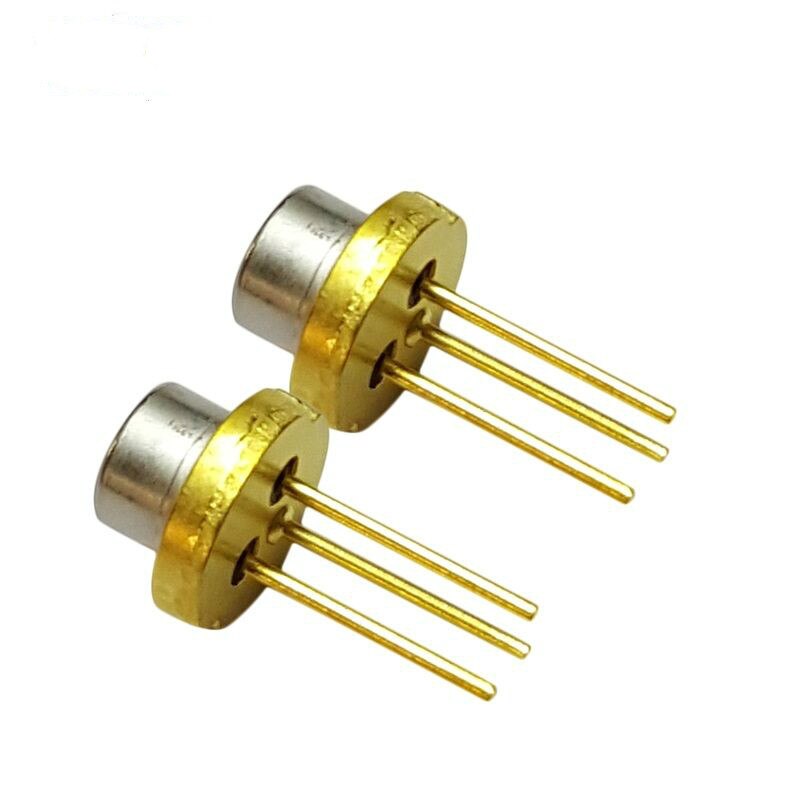

* product name: 638NM500MW laser diode
Product model: sld638500tm-a
Working voltage: 2.3V
Output wavelength: 638+/-5NM
Maximum current: slt;680MA.
Suggested current value: about 600MA
Maximum output power: & lt; 500mW
封闭形式/尺寸:T0-18/∮ 5.6MM
Laser pin bit connection: Figure B (shell empty foot)
Service life: >: 10,000 hours
PD: None
Shell material: Metal
Surface treatment: gold plating
Operating temperature: -10 to 55 degrees C.
Storage temperature: -40 to 100 degrees C.
